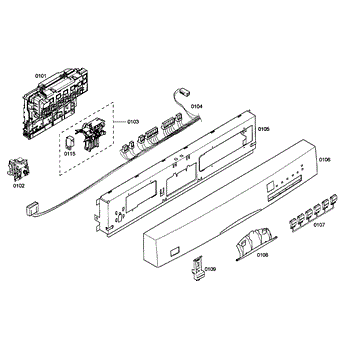

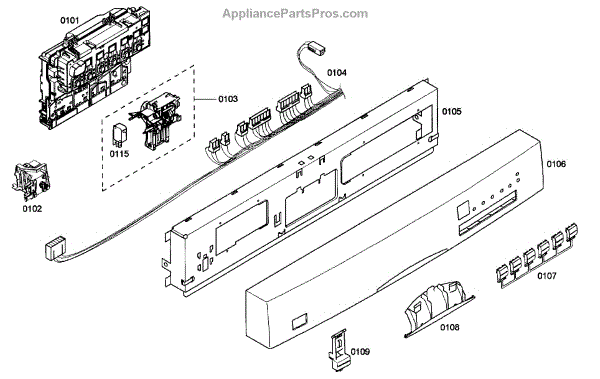

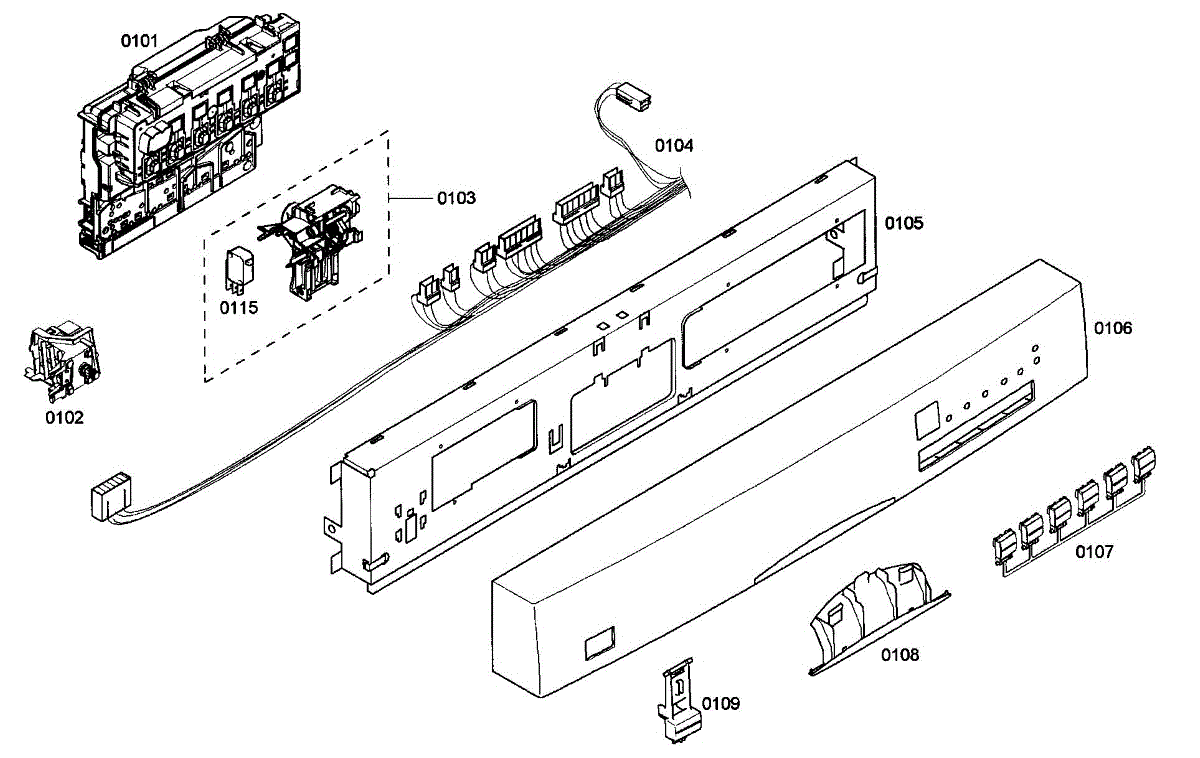

Parts for Bosch SHE45M05UC/48: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Control Unit is an OEM component specially designed for select Bosch dishwashers. As the appliance's main processor, it directs all wash cycles, temperatures, times, and auxiliary features.

Integrated circuitry executes complex programs with precision to thoroughly clean varied loads efficiently. Sensors monitor functions and provide cycle status updates to the control panel interface.

Symptoms indicating control unit replacement include:

• Cycles failing to start or responding incorrectly to input selections
• Error codes displayed without reason or resolution through reset
• Inoperative auxiliary settings like speed adjustment or half-loads

Causes stem from degradation over decades of continuous thermal and electronic stresses. Water intrusions pose risks as circuit boards are fragile to short circuits.

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and select Kenmore dishwashers utilizing identical cycles and diagnostics systems. Reinstallation ensures continued intended cycle performance.


The On/Off Switch is an OEM part for Bosch dishwashers. It provides the function of powering the unit on or off with the press of a button.

Causes can be normal wear over thousands of cycles or moisture damage compromising electronics. Physical impact could also affect switch operation over time.

Symptoms of a bad on/off switch include:

• The dishwasher failing to start wash cycles when the switch is engaged
• Washers inadvertently stopping mid-cycle or short cycling irregularly
• The control panel lighting/interface malfunctioning or unresponsive

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Latch is an OEM part for Bosch dishwashers. This part securely closes the dishwasher door, ensuring that it locks in place during operation. The latch mechanism works by engaging with the door strike, preventing the door from opening while the dishwasher runs, which is essential for both the safety and proper functioning of the appliance.

Causes for replacement often include normal wear and tear from regular use, accidental damage, or a malfunction that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dishwasher door doesn't stay shut or locks intermittently.
• The dishwasher fails to start due to the door not being recognized as properly closed.
• Visible signs of damage or wear on the latch mechanism.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Latch is an OEM part for Bosch dishwashers. This part securely closes the dishwasher door, ensuring that it locks in place during operation. The latch mechanism works by engaging with the door strike, preventing the door from opening while the dishwasher runs, which is essential for both the safety and proper functioning of the appliance.

Causes for replacement often include normal wear and tear from regular use, accidental damage, or a malfunction that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dishwasher door doesn't stay shut or locks intermittently.
• The dishwasher fails to start due to the door not being recognized as properly closed.
• Visible signs of damage or wear on the latch mechanism.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This cable harness routes power and signals between components to restore reliable electrical connections. Replacing a damaged harness helps stop intermittent operation and eliminates exposed or broken wiring that can cause component failures. What it does

• Reconnects power and control signals between appliance modules and components.
• Replaces damaged, frayed or burned wiring that can cause shorts or loss of function.
• Commonly fixes intermittent operation, components that do not power on, or complete failure of a circuit.
• Maintains correct wire routing and secure terminals for safe, reliable operation.

• Disconnect all power before starting work to avoid shock or injury.
• Compare the harness to the original and follow the OEM wiring diagram for correct routing and terminal locations.
• Securely seat all connectors and use proper strain reliefs; avoid pinching wires when reassembling panels.

This control panel frame supports the user interface assembly and front fascia, keeping buttons and display properly aligned. Replacing a cracked or warped frame restores a secure console fit and consistent control response.

• Provides the structural housing and mounting points for the control/user interface assembly
• Maintains alignment of buttons, display, and touchpad overlay for reliable operation
• Secures the console and covers internal control components
• Typical signs of failure: loose or sagging control panel, broken tabs, gaps at the console, buttons sticking or misaligned

• Disconnect power before servicing; verify no voltage is present
• Support the console while removing screws/clips to protect wiring and connectors
• Transfer the user interface, control board, and hardware from the old frame to the new one one-for-one
• Ensure all tabs engage and do not overtighten screws to avoid cracking the frame

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Panel-Facia is an OEM component specifically designed for select Bosch dishwashers requiring sturdy mounting points for control interfaces. As an assembly attachment, it secures digital displays and mechanical inputs.

Reinforced composite edges withstand years of repeated loading and latching without fatigue or warping. Independent fasteners avoid stress concentrations that could crack surrounding plastics.

Symptoms signaling the need for a new panel-facia include:

• Gaps permitting water intrusion compromising connected circuitry
• Loosened control mountings enabling unintended contact separation
• Fatigued fastening points releasing entire control assemblies

Causes requiring replacement relate to repeated expansion and contraction cycles stressing adhesives and joints. Direct impacts may also deform secure positioning preventing proper interfacing.

This OEM Bosch replacement panel is also compatible with Thermador, Gaggenau, and some Kenmore models relying on robustly attached interface housings. Correct installation restores sealing and component positioning.


The Button is an OEM part for Bosch dishwashers. This replacement button is essential for the proper operation of the dishwasher, allowing users to select various wash cycles and options.

The need for replacement can arise from regular use, leading to wear and tear on the button mechanism, or accidental damage.

Symptoms of a failing Button include:

• Difficulty in engaging the desired dishwasher functions, which may result from a stuck or unresponsive button.
• Visible wear or damage to the button, affecting the aesthetic appeal and functionality of the dishwasher's control panel.
• The dishwasher failing to start a cycle or select specific settings, indicating that the button may not be activating the corresponding function properly.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Handle is an OEM component specifically designed for Bosch dishwashers. This handle allows for smooth, intuitive opening and closing of the dishwasher door. Over time, door handles can become worn, loose, or damaged through repeated use. The stress of opening and closing puts strain on this high-touch point.

Causes of a faulty door handle include cracks, breaks or looseness caused by excessive force or impact. Normal wear and tear over thousands of uses can also degrade plastic and mechanics.

Symptoms of a bad door handle include:

• Difficulty opening or closing the door
• The handle wobbling or coming loose from the assembly
• Cracks or splits in the plastic casing
• Improper alignment preventing full closure of the door seal

This part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The On/Off Button is an OEM part for Bosch dishwashers. As a primary control interface, this button facilitates the activation and deactivation of the dishwasher's functions. Its ergonomic design and precise construction ensure ease of use and reliable operation.

A common issue with a malfunctioning On/Off Button involves wear and tear, leading to a loss of responsiveness or failure to engage/disengage the dishwasher's functions.

Symptoms of a defective On/Off Button may include:

• Unresponsive or non-functional button
• Difficulty in starting or stopping the dishwasher
• Visible damage or wear on the button's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement switch restores reliable electrical control within your appliance. It opens and closes an electrical circuit to signal the control system, so power and functions respond consistently when the switch is actuated.

• Opens/closes an electrical circuit when the actuator is engaged
• Sends an on/off or selection signal to the control or main board
• Helps address: no response or no start, intermittent operation, stuck on/off state, or heat-damaged/burned terminals
• Direct replacement for the original switch on applicable units

• Disconnect power at the breaker and unplug the unit before servicing
• Access the control area to reach the switch; note wire locations or take a photo
• Transfer wires one at a time for correct orientation; ensure snug terminal connections
• Reinstall mounting hardware, reassemble panels, restore power, and test operation
