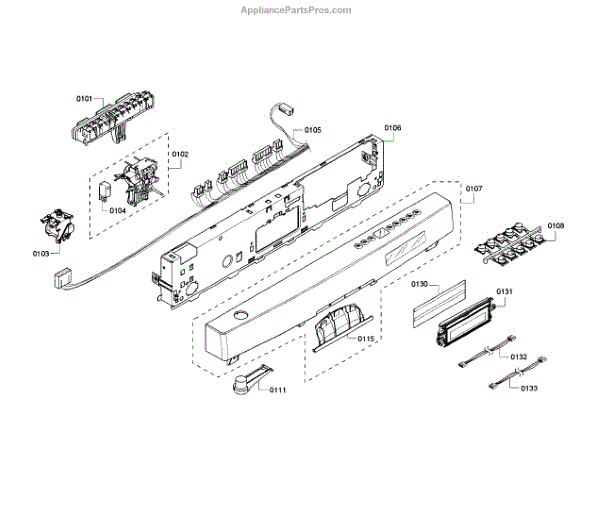

Parts for Bosch SHE55RF5UC/69: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This door lock is the latch assembly that secures the dishwasher door and tells the control when the door is closed so cycles can start and run safely. It restores proper door closure and control interlock function. What it does:

• Secures the dishwasher door during operation to prevent accidental opening
• Engages the door-switch/sensor so the control will start and continue a cycle
• Prevents water from spilling by ensuring the door stays fully latched during wash
• Common symptom fix: dishwasher won't start or stops mid-cycle because the door won't lock

• One door lock / latch assembly as shown

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access typically requires removing the inner door panel; handle the door panel and wiring gently
• Test door operation and run a short cycle after installation to verify proper function

The On/Off Switch is an OEM part for Bosch dishwashers. It provides the function of powering the unit on or off with the press of a button.

Causes can be normal wear over thousands of cycles or moisture damage compromising electronics. Physical impact could also affect switch operation over time.

Symptoms of a bad on/off switch include:

• The dishwasher failing to start wash cycles when the switch is engaged
• Washers inadvertently stopping mid-cycle or short cycling irregularly
• The control panel lighting/interface malfunctioning or unresponsive

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement switch restores reliable electrical control within your appliance. It opens and closes an electrical circuit to signal the control system, so power and functions respond consistently when the switch is actuated.

• Opens/closes an electrical circuit when the actuator is engaged
• Sends an on/off or selection signal to the control or main board
• Helps address: no response or no start, intermittent operation, stuck on/off state, or heat-damaged/burned terminals
• Direct replacement for the original switch on applicable units

• Disconnect power at the breaker and unplug the unit before servicing
• Access the control area to reach the switch; note wire locations or take a photo
• Transfer wires one at a time for correct orientation; ensure snug terminal connections
• Reinstall mounting hardware, reassemble panels, restore power, and test operation

This replacement frame restores the finished front appearance and provides structural support for the appliance door assembly. It helps keep the door aligned and the control area protected for reliable daily use. What it does:

• Replaces a worn, cracked, or damaged front frame to restore a flush, secure door fit
• Maintains proper door alignment and helps prevent uneven sealing or chipping
• Protects underlying components and the control area from everyday wear
• Helps eliminate visible cosmetic damage for a clean, finished look

• One replacement frame as shown

• High-level replacement; basic trim removal and reattachment hardware may be required
• Disconnect power (and water if applicable) before beginning work to ensure safety
• Handle edges carefully to avoid scratches; use proper fasteners and align before tightening

This facia panel provides the outer trim for the appliance control console, restoring a finished look and protecting control buttons and electronics from dirt and moisture. It's a direct-fit exterior replacement for damaged or worn console trim. What it does:

• Replaces cracked, scratched, or warped control panel trim to restore appearance
• Shields buttons, displays, and switches from spills and debris
• Keeps control components secure and properly aligned
• Helps prevent accidental contact with internal electronics

• Disconnect power to the appliance before starting any repair
• Remove console screws and any retaining clips to access and swap the panel
• Handle the panel and attached clips gently to avoid breaking tabs or scratching the finish

This push button set restores the feel and reliability of your control panel. It replaces worn or broken buttons and transfers your presses to the underlying switches so selections register consistently. What it does:

• Provides the user-pressed buttons on the control panel
• Interfaces with the underlying switch assembly/control board to register selections
• Helps resolve cracked, missing, sticky, or misaligned buttons
• Addresses intermittent response when selections only register if pressed very hard

• One push button set

• Disconnect power before servicing the control panel
• Remove the control panel/fascia as needed to access the button set
• Note button positions and orientation; install the new set the same way
• Align tabs and avoid overflexing plastic parts to prevent damage

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Button is an OEM part for Bosch dishwashers. It serves as a component of the control panel, allowing users to select various wash cycles, options, and settings for operating the dishwasher.

Causes of a malfunctioning Button can include physical damage from impact or excessive force when pressing, as well as general wear and tear over time.

Symptoms of a bad Button include:

• Unresponsive or stuck buttons, making it difficult to change settings
• Certain dishwasher cycles or options not engaging correctly
• Worn-out or faded button labels or markings, making them hard to read

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Handle is an OEM replacement part for Bosch dishwasher doors. It allows for safe, ergonomic opening and closing of the dishwasher during each cycle.

Causes of a bad handle can include normal wear and tear from frequent use. Exposure to moisture, chemicals, and temperature fluctuations may cause plastics to deteriorate faster than expected.

Symptoms of an inadequate handle include:

• Loose, unstable, or improperly secured fitment to door
• Cracks, breaks, or bending of handle plastic/metal
• Difficulty grasping or maneuvering the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

This electronic control board is the main printed circuit board that manages appliance functions and user controls, restoring normal electronic operation and control response when the original board fails. What it does:

• Regulates and coordinates electronic signals for cycles, timers, and features
• Processes input from buttons, touchpads, and sensors to run selected functions
• Controls relays, indicators, and communication between subsystems
• Can cause symptoms like no power to controls, unresponsive buttons, erratic operation, or failure to start

• Disconnect power at the breaker or plug before starting work to avoid shock
• Handle board by edges and avoid static discharge; use an ESD strap if available
• Some disassembly of panels or console may be required; keep fasteners and wire locations noted
• Verify model and part number match your appliance before installing; some boards require programming or calibration.

A replacement cable harness that routes power and signal connections between components to restore proper electrical function. Designed to match original connector layouts for a direct-fit repair and reliable circuit continuity. What it does:

• Replaces damaged or chafed wiring that can cause intermittent power or component failures.
• Restores secure connections for controls, sensors, and motors to eliminate communication and power-cut symptoms.
• Helps prevent shorts and arcing from exposed wires or broken terminals.
• Maintains the oven/dishwasher/dryer's original routing to avoid strain on connectors.

• Disconnect power before removing panels or working on wiring to avoid shock or injury.
• Compare connector shapes and wire colors to the original harness before installation.
• Route wires along original clips and channels; avoid pinching when reassembling panels.
