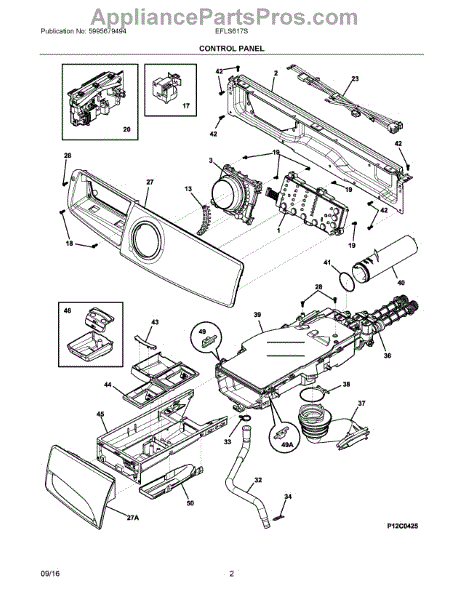

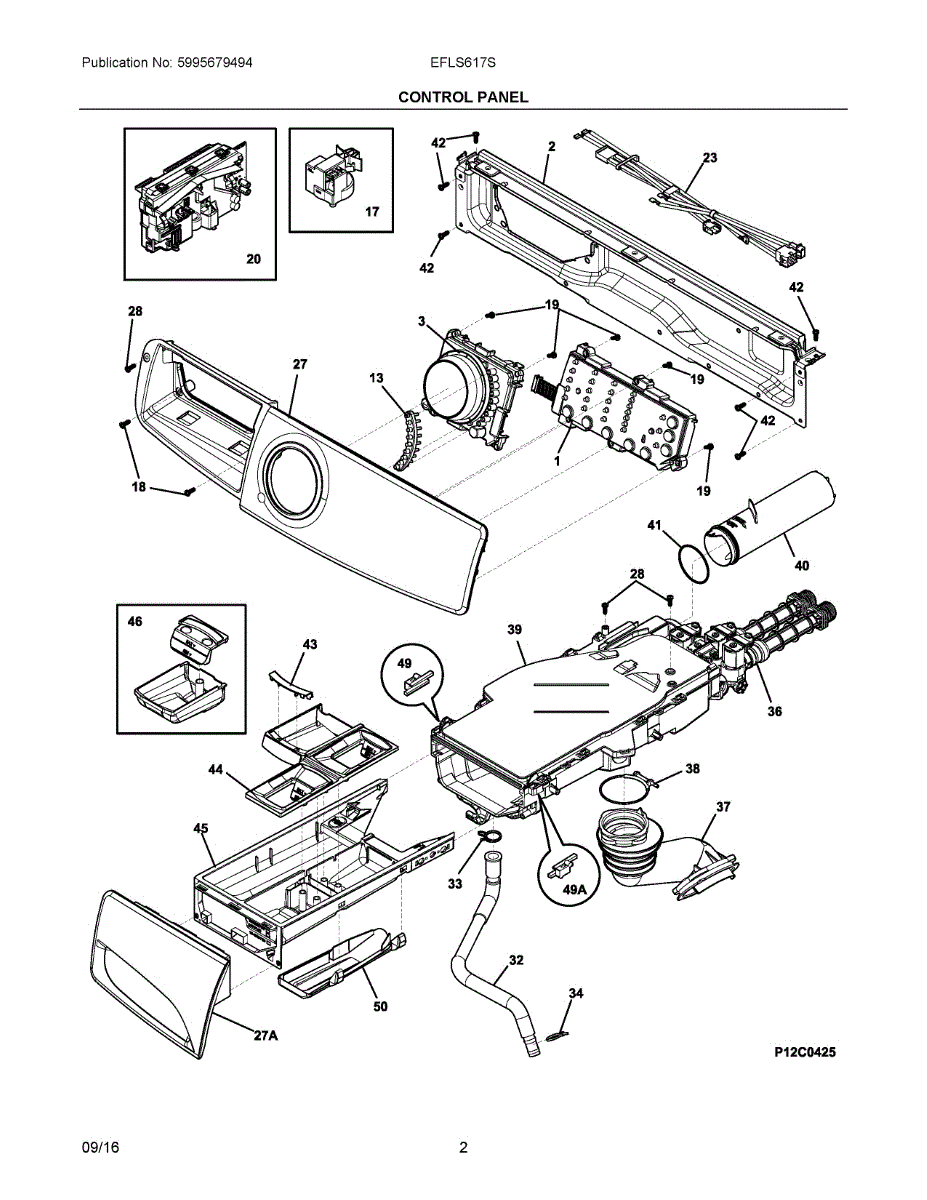

Parts for Electrolux EFLS617STT0: 02 - Control Panel Parts

This pre-programmed user interface control board assembly manages the buttons and display on your appliance's control panel. Replacing a failed UI board restores responsive controls and accurate indications from the panel. What it does:

• Interprets keypad inputs and drives the display/indicator LEDs
• Sends user selections to the main control for proper operation
• Helps resolve an unresponsive or intermittent control panel
• Addresses blank, flickering, or garbled display behavior

• 1 pre-programmed user interface control board assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection; handle the PCB by the edges only
• Photograph wiring and ribbon connections; match keyed connectors and orientation on reassembly
• Reuse existing mounting hardware, trim, and overlays as needed; ensure all harnesses are seated before restoring power

A replacement mounting bracket that secures appliance components to the cabinet or chassis, restoring stable support and alignment for panels, assemblies, or controls. What it does

• Provides a durable mounting point to hold panels, assemblies, or components in place.
• Stops loose or sagging panels and reduces rattling or vibration noises.
• Restores proper alignment so doors, panels, or control assemblies fit and operate correctly.
• Replaces damaged, bent, or broken brackets that no longer secure parts.

• One mounting bracket

• Disconnect power (and water, if applicable) before installing to avoid shock or injury.
• Installation typically requires basic hand tools (screwdriver, nut driver); keep hardware and orientation noted for reassembly.
• Do not over-tighten fasteners; align bracket and component before final torque.
• If the bracket mounts to structural studs or inserts, replace any stripped hardware.

This knob assembly replaces a damaged or missing control knob so you can accurately adjust settings again. It restores a secure fit and proper indexing on the control shaft for smooth, reliable operation.

• Mounts onto a switch or valve shaft to control heat, temperature, or function
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps the control turn smoothly and stay aligned with the indicator mark
• Common symptoms: wobbling, slipping, falling off, or difficulty turning

• Disconnect power and allow any hot surfaces to cool before servicing
• Pull the old knob straight off the shaft; avoid prying against the panel
• Align the new knob's insert with the shaft (flat/D-shape or splines) and press straight on until fully seated
• Inspect the control stem; if bent or stripped, the underlying switch/valve may also need service

This diffuser directs and evens airflow inside the appliance to promote consistent temperature and efficient operation. Replaces a damaged or broken diffuser to restore proper air distribution and reduce airflow noise. What it does:

• Guides cool or warm air from the blower/vent to improve circulation and temperature consistency
• Helps prevent hot or cold spots by evenly dispersing incoming airflow
• Replaces cracked, warped, or missing diffusers that can cause reduced airflow or noise
• Common symptom fixer: uneven cooling, fluctuating temperatures, or rattling/whistling near the vent

• Disconnect power to the appliance before beginning any repair
• Typically installs at the vent or blower outlet; common fasteners are clips or screws — keep hardware if replacing only the diffuser
• Handle plastic parts gently to avoid cracking; align tabs/slots before fastening

The Pressure Sensor Switch is an OEM part for Frigidaire washing machines. It is a component located near the pulsator that monitors water pressure within the washer tub during active cycles. The pressure sensor switch detects water pressure levels and transmits that input to the control board so it can regulate operation accordingly.

Causes for failure of the pressure sensor switch tend to be wear over time, accumulation of minerals/debris that impede functionality, or damage from unexpected water pressure rises. As a safety mechanism, this switch helps prevent overflow or other water-related issues by monitoring pressure inside the tub.

Symptoms of a bad pressure sensor switch include:

• Inability to advance to specific cycles like agitation or spin
• Error codes indicating pressure issues
• Cycles not completing properly or automatically stopping prematurely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

The Main Control Board is an OEM part for Frigidaire washing machines. As the central electronic component, the main control board is responsible for monitoring and regulating the various functions of the washer during operation. It receives input signals, makes logic decisions, and outputs signals to control operations like agitation, spin speeds, temperatures, and more.

Causes of a bad main control board can include exposure to moisture, fluctuating power sources, or component failures due to normal wear over time. As an electronic component, the main control board is susceptible to damage from electrical surges or power outages.

Symptoms of a bad main control board include:

• The washer not powering on at all
• Error codes or flashing lights on the display
• Inability to advance through cycles
• Malfunctioning of specific cycles like agitation or spin

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This wire harness connects refrigerator components to the unit's main electrical system, restoring reliable power and signal routing. It is a direct-fit replacement for damaged, frayed, or disconnected harnesses to help resolve intermittent power and control issues. What it does:

• Routes power and control signals between components using factory-style connectors
• Replaces damaged, burnt, or corroded wiring that can cause intermittent operation or component failures
• Restores secure plug-and-play connections to prevent loose contacts and electrical arcing
• Helps address symptoms like loss of power to circuits, inconsistent operation, or non-responsive controls

• One wire harness as described

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Verify connector orientation and seating; match terminal clips to factory harness layout
• Inspect mating connectors and terminals for damage or corrosion; replace if needed

This console assembly replaces the stove/oven control panel housing to restore a secure, finished user interface and mount for switches and display components. It helps protect controls from damage and keeps the front of the range looking complete. What it does:

• Provides the outer housing and mounting surface for control switches, knobs, and the display
• Secures and aligns control components to ensure consistent button/knob operation
• Protects internal electronics from spills, bumps, and debris
• Helps eliminate loose or cracked trim and restores a finished appearance
• Useful when the original console is cracked, broken, or missing mounting features

• Disconnect power at the breaker before starting any repair to avoid shock
• Remove backguard or access screws as required to access mounting points; keep track of fasteners
• Handle plastic trim carefully to avoid cracking; avoid forcing snaps or clips

Handle assembly that replaces a damaged or worn refrigerator door handle to restore a secure grip and normal door access. Simple, direct replacement that returns everyday usability and a finished factory look. What it does:

• Provides a sturdy grip for opening and closing the refrigerator door
• Replaces broken, cracked, loose, or missing door handles
• Restores proper door access and everyday usability
• Designed to align with factory mounting points on compatible models

• Support the door and remove stored items before starting work
• Use basic hand tools; retain or replace mounting hardware with manufacturer-specified fasteners
• Do not overtighten screws — overtightening can damage the handle or door

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This clamp secures a hose to its fitting, maintaining a tight, leak-resistant seal at the connection. Replace a fatigued or missing clamp to help prevent drips and stop hoses from working loose under vibration.

• Holds a hose firmly on a pump, tub, dispenser, or valve outlet
• Maintains clamping force to help minimize leaks at the joint
• Helps keep hoses from slipping off during operation
• Common signs: water at a hose joint, loose/slipping hose, damaged or corroded clamp

• Disconnect power and shut off water supply before servicing
• Place a towel or pan to catch residual water at the connection
• Note hose position; remove the old clamp, seat hose fully on the fitting, position the new clamp over the bead, and secure
• After reassembly, run a short cycle and check for leaks

This cable tie secures wiring and small hoses to appliance frames and harnesses, keeping components organized and reducing wear from rubbing or vibration. It helps maintain safe routing so wires stay clear of moving or hot parts. What it does:

• Fastens wire bundles, harnesses, and small hoses to prevent movement
• Keeps wiring routed away from sharp edges and heat sources
• Reduces noise and wear caused by loose or vibrating wires
• Helps prevent chafing that can lead to insulation damage or intermittent connections

• Disconnect power before servicing electrical components
• Position ties to secure harnesses without over-tightening; trim excess tail
• Keep ties away from high-heat surfaces and moving parts
• Replace any damaged or brittle ties rather than reusing

The Water Inlet Valve is an OEM component for Frigidaire washing machines. It resides within the base and precisely controls water intake into the washer tub.

Symptoms of a bad water inlet valve include:

• Failure to fill the tub with water for cycles
• Residual water leaks at the valve area
• Inability to select fill levels on newer machines
• Restricted or no water flow into hoses

Causes may be mineral sediment buildup inhibiting valve function over time, worn internals allowing leaks, or electronic issues in smart valves.

Compatible with units including Electrolux, Gibson, and select Kenmore models as well. Renewed laundry performance awaits with this vital component repair.


This replacement hose routes water within your washer. Replacing a cracked, worn, or leaking hose restores a secure, watertight path so the machine can move water properly without puddles or performance issues.

• Transfers water between internal components during wash cycles
• Maintains a sealed flow path to help prevent leaks
• Damage may present as water on the floor, moisture under the unit, or related fill/drain errors
• Cracks, swelling, abrasion, or loose connections are common failure signs

• Unplug the washer and turn off water supply; have towels or a pan ready for residual water
• Note hose routing and clamp positions before removal; photos can help
• Transfer or replace clamps as needed; seat connections fully and secure firmly
• Run a test cycle and check all connections for leaks

This clamp secures flexible hoses and small-diameter tubing to fittings, helping prevent leaks and keeping connections tight for reliable appliance operation. Use it where a compact, durable clamp is required for water or drain lines. What it does:

• Holds hoses or tubes firmly to inlet/outlet fittings to reduce leaks
• Prevents hoses from slipping off during normal use or vibration
• Helps maintain proper fluid flow by keeping connections sealed
• Useful for water lines, drain hoses, and small appliance tubing

• One clamp

• Turn off and unplug the appliance and shut off water supply before starting
• Inspect the hose and fitting; replace any damaged hose before installing clamp
• Position clamp over the hose/fitting and tighten evenly for a snug fit without crushing the hose

This O-ring is a small rubber seal that helps prevent water or refrigerant leaks by creating a tight connection between mating parts. Replacing a worn O-ring restores a secure seal and reduces dripping or loss of pressure. What it does:

• Forms a leak-tight seal at a joint or fitting to stop drips and seepage
• Helps maintain proper fluid or refrigerant pressure where used
• Commonly replaced when cracked, flattened, or hardened
• Can eliminate intermittent leaks that occur under load or when the appliance cycles

• Turn off and unplug the appliance and shut off water or refrigerant supply before service
• Inspect mating surfaces and replace any damaged fittings to ensure a proper seal
• Lightly lubricate the O-ring with appliance-safe silicone grease; avoid petroleum-based products
• Do not stretch or nick the O-ring during installation; confirm correct seating before restoring power or supply

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This is a replacement indicator light that mounts in the appliance control panel to show status and help you know when cycles or functions are active. Restores clear visual feedback for worn or non-working panel indicators. What it does:

• Lights to indicate oven/range or appliance function status from the control panel
• Replaces a burned-out, dim, or non-responsive indicator lamp or lens
• Helps diagnose whether controls are sending a signal when functions won't start
• Improves visibility of active cycles or alerts for safer operation

• Disconnect power to the appliance before attempting service to avoid shock
• Access typically requires removing the control panel; follow OEM disassembly steps
• Handle the lens/lamp carefully to avoid damage; use proper replacement screws/clips

This replacement cup funnels water to the ice maker fill tube and helps ensure proper water delivery for consistent ice production. It restores the fill path and prevents water from pooling where it can cause poor ice formation or leaks. What it does

• Directs water into the ice maker fill tube so molds receive the correct amount
• Helps prevent water from spilling into the ice bin or cabinet area
• Addresses symptoms like slow/weak ice production, water pooling under the ice maker, or visible leaks during a fill cycle
• Works with the ice maker assembly to maintain consistent ice size and formation

• One replacement ice-maker fill cup

• Disconnect power and shut off the water supply before servicing the ice maker
• Remove the ice maker or access panel per your model's service instructions to reach and replace the cup
• Handle plastic parts gently to avoid cracking; ensure a snug fit to prevent leaks
• If symptoms persist after replacement, check the fill valve and ice maker assembly for proper operation

A replacement drawer slide that helps the drawer open and close smoothly and stay aligned. Restores reliable sliding action for drawers that stick, sag, or catch while opening and closing. What it does:

• Guides and supports the drawer for smooth, even movement
• Prevents drawer sagging and misalignment during use
• Reduces sticking, scraping, or catching when opening or closing
• Helps maintain proper drawer fit and load distribution

What's included: One replacement slide Install notes:

• Disconnect power and remove drawer before replacing the slide
• Inspect mounting clips or screws and reuse or replace as needed; align slide before securing
• Use proper tools and avoid forcing parts to prevent damage

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly

This is a dispenser inlet gasket intended for use on washing machines. This part ensures that the hot and cold water lines do not leak at the point where they are connected to the appliance. If the washing machine is leaking, the gasket may need to be replaced.Replacing a dispenser inlet gasket in a washing machine can be done easily. Screwdrivers and pliers are required. Disconnect the appliance before starting the repair. Wear work gloves for safety. The hot and cold water lines should both be turned off and removed to prevent flooding.This dispenser inlet gasket is an authentic OEM replacement part. It is sourced from the manufacturer. The replacement component is made of high-quality materials. It can be installed in several different models of washing machines. The dispenser inlet gasket is compatible with appliances produced by Frigidaire, Gibson, Electrolux, Westinghouse, and Kelvinator brands.
