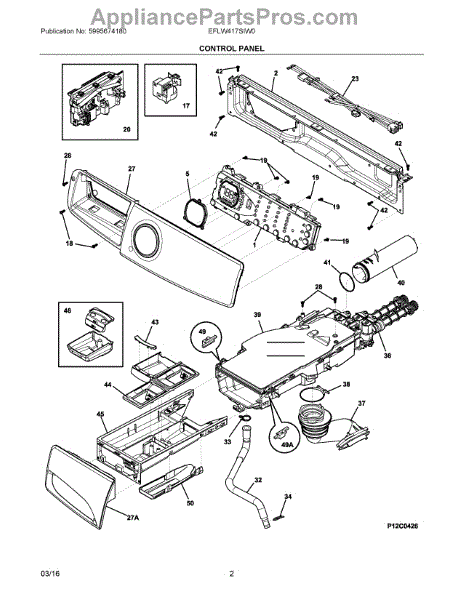

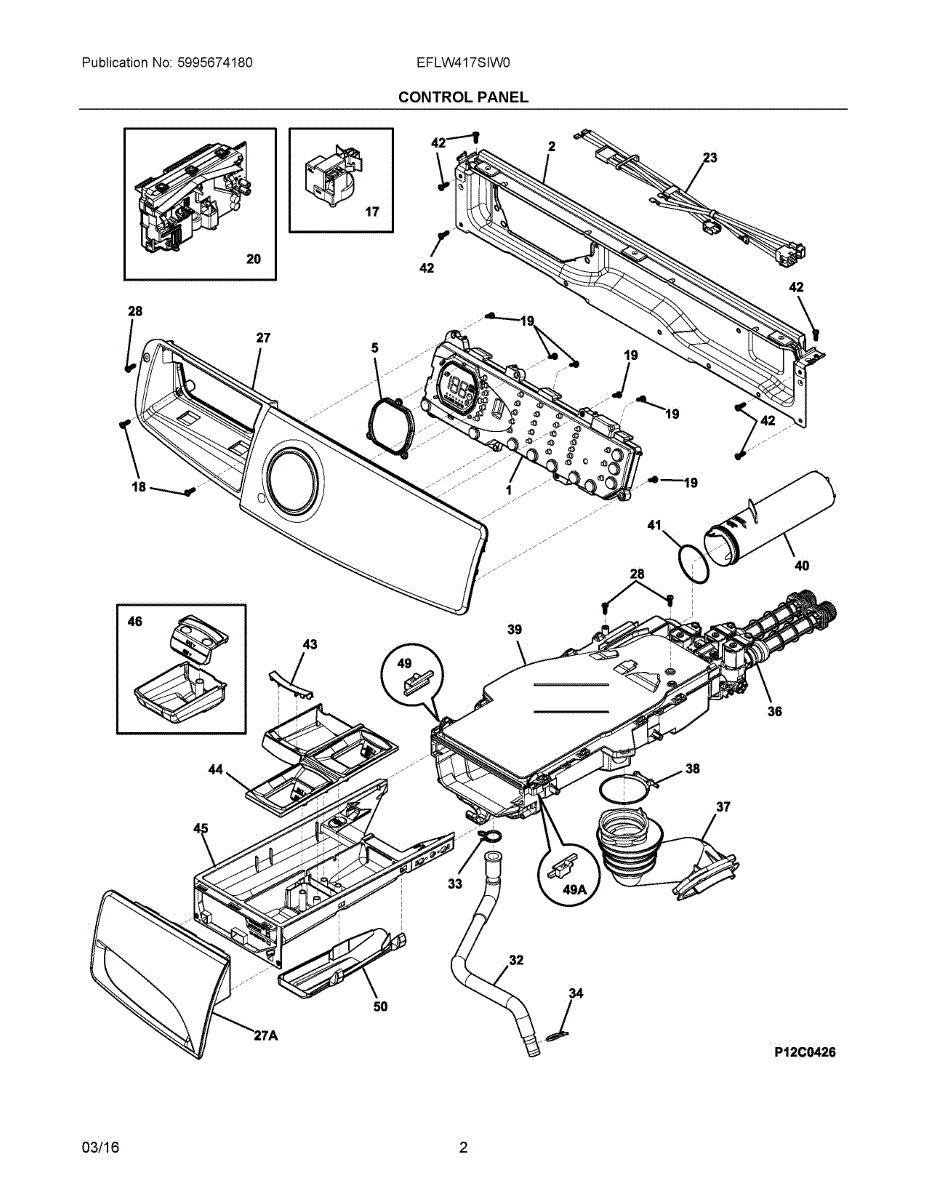

Parts for Electrolux EFLW417SIW0: 02 - Control Panel Parts

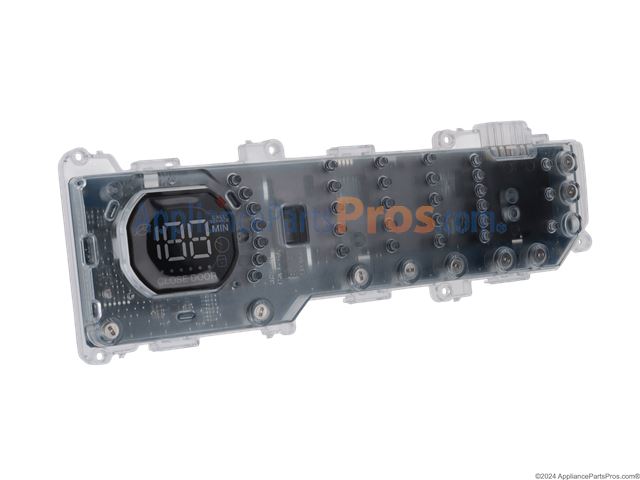

The Board Assembly is an OEM part for Frigidaire washing machines. Located inside the control panel, it consists of the electronic circuit board responsible for operating all washing cycles and monitoring functions.

Causes of failure include failures due to heat cycling within the confined control area and moisture exposure over years of repetitive use.

Symptoms of a bad board assembly include:

• Inability to power on the washer or begin cycles
• Error codes or flashing lights on the display
• Non-responsive buttons or uncalibrated programming

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A replacement mounting bracket that secures appliance components to the cabinet or chassis, restoring stable support and alignment for panels, assemblies, or controls. What it does

• Provides a durable mounting point to hold panels, assemblies, or components in place.
• Stops loose or sagging panels and reduces rattling or vibration noises.
• Restores proper alignment so doors, panels, or control assemblies fit and operate correctly.
• Replaces damaged, bent, or broken brackets that no longer secure parts.

• One mounting bracket

• Disconnect power (and water, if applicable) before installing to avoid shock or injury.
• Installation typically requires basic hand tools (screwdriver, nut driver); keep hardware and orientation noted for reassembly.
• Do not over-tighten fasteners; align bracket and component before final torque.
• If the bracket mounts to structural studs or inserts, replace any stripped hardware.

The Pressure Sensor Switch is an OEM part for Frigidaire washing machines. It is a component located near the pulsator that monitors water pressure within the washer tub during active cycles. The pressure sensor switch detects water pressure levels and transmits that input to the control board so it can regulate operation accordingly.

Causes for failure of the pressure sensor switch tend to be wear over time, accumulation of minerals/debris that impede functionality, or damage from unexpected water pressure rises. As a safety mechanism, this switch helps prevent overflow or other water-related issues by monitoring pressure inside the tub.

Symptoms of a bad pressure sensor switch include:

• Inability to advance to specific cycles like agitation or spin
• Error codes indicating pressure issues
• Cycles not completing properly or automatically stopping prematurely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

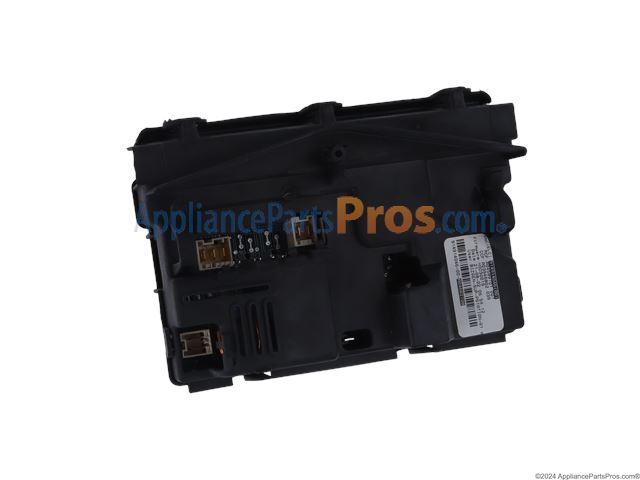

The Main Control Board is an OEM part for Frigidaire washing machines. It contains the electronic components that allow the washer to operate properly through cycles programmed by the control panel. As the central processing unit, it controls vital functions like water fill levels, agitation speeds, temperatures, and product sensors.

Causes can be normal wear over time from heavy usage. Exposure to accidental impacts, water damage or power surges can also potentially damage electronics.

Symptoms of a bad main control board include:

• The washer not powering on or displaying error codes
• Inability to select or run wash cycles
• Malfunctioning or unresponsive product sensors
• Inconsistent or improper water levels and wash motions

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This clamp secures a hose to its fitting, maintaining a tight, leak-resistant seal at the connection. Replace a fatigued or missing clamp to help prevent drips and stop hoses from working loose under vibration.

• Holds a hose firmly on a pump, tub, dispenser, or valve outlet
• Maintains clamping force to help minimize leaks at the joint
• Helps keep hoses from slipping off during operation
• Common signs: water at a hose joint, loose/slipping hose, damaged or corroded clamp

• Disconnect power and shut off water supply before servicing
• Place a towel or pan to catch residual water at the connection
• Note hose position; remove the old clamp, seat hose fully on the fitting, position the new clamp over the bead, and secure
• After reassembly, run a short cycle and check for leaks

This cable tie secures wiring and small hoses to appliance frames and harnesses, keeping components organized and reducing wear from rubbing or vibration. It helps maintain safe routing so wires stay clear of moving or hot parts. What it does:

• Fastens wire bundles, harnesses, and small hoses to prevent movement
• Keeps wiring routed away from sharp edges and heat sources
• Reduces noise and wear caused by loose or vibrating wires
• Helps prevent chafing that can lead to insulation damage or intermittent connections

• Disconnect power before servicing electrical components
• Position ties to secure harnesses without over-tightening; trim excess tail
• Keep ties away from high-heat surfaces and moving parts
• Replace any damaged or brittle ties rather than reusing

The Valve Assembly is an OEM replacement part for Frigidaire top-loading washing machines. It controls the flow of water into the washer tub during filling cycles.

Causes of failure can include mineral buildup restricting water flow, worn rubber components cracking from lots of use, or stuck diaphragms not activating valves properly.

Symptoms of a bad valve assembly include:

• Poor or one-sided agitation from uneven water filling
• Unable to rinse or spin if drainage valves leak
• Error codes related to water fill/drain sensors
• Noisy operation that gets louder from additional wear

This genuine Frigidaire replacement is compatible also with Electrolux, Gibson, and some Kenmore washers, this prevents further degradation.

This replacement hose routes water within your washer. Replacing a cracked, worn, or leaking hose restores a secure, watertight path so the machine can move water properly without puddles or performance issues.

• Transfers water between internal components during wash cycles
• Maintains a sealed flow path to help prevent leaks
• Damage may present as water on the floor, moisture under the unit, or related fill/drain errors
• Cracks, swelling, abrasion, or loose connections are common failure signs

• Unplug the washer and turn off water supply; have towels or a pan ready for residual water
• Note hose routing and clamp positions before removal; photos can help
• Transfer or replace clamps as needed; seat connections fully and secure firmly
• Run a test cycle and check all connections for leaks

This clamp secures flexible hoses and small-diameter tubing to fittings, helping prevent leaks and keeping connections tight for reliable appliance operation. Use it where a compact, durable clamp is required for water or drain lines. What it does:

• Holds hoses or tubes firmly to inlet/outlet fittings to reduce leaks
• Prevents hoses from slipping off during normal use or vibration
• Helps maintain proper fluid flow by keeping connections sealed
• Useful for water lines, drain hoses, and small appliance tubing

• One clamp

• Turn off and unplug the appliance and shut off water supply before starting
• Inspect the hose and fitting; replace any damaged hose before installing clamp
• Position clamp over the hose/fitting and tighten evenly for a snug fit without crushing the hose

This O-ring is a small rubber seal that helps prevent water or refrigerant leaks by creating a tight connection between mating parts. Replacing a worn O-ring restores a secure seal and reduces dripping or loss of pressure. What it does:

• Forms a leak-tight seal at a joint or fitting to stop drips and seepage
• Helps maintain proper fluid or refrigerant pressure where used
• Commonly replaced when cracked, flattened, or hardened
• Can eliminate intermittent leaks that occur under load or when the appliance cycles

• Turn off and unplug the appliance and shut off water or refrigerant supply before service
• Inspect mating surfaces and replace any damaged fittings to ensure a proper seal
• Lightly lubricate the O-ring with appliance-safe silicone grease; avoid petroleum-based products
• Do not stretch or nick the O-ring during installation; confirm correct seating before restoring power or supply

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This is a replacement indicator light that mounts in the appliance control panel to show status and help you know when cycles or functions are active. Restores clear visual feedback for worn or non-working panel indicators. What it does:

• Lights to indicate oven/range or appliance function status from the control panel
• Replaces a burned-out, dim, or non-responsive indicator lamp or lens
• Helps diagnose whether controls are sending a signal when functions won't start
• Improves visibility of active cycles or alerts for safer operation

• Disconnect power to the appliance before attempting service to avoid shock
• Access typically requires removing the control panel; follow OEM disassembly steps
• Handle the lens/lamp carefully to avoid damage; use proper replacement screws/clips

This replacement cup funnels water to the ice maker fill tube and helps ensure proper water delivery for consistent ice production. It restores the fill path and prevents water from pooling where it can cause poor ice formation or leaks. What it does

• Directs water into the ice maker fill tube so molds receive the correct amount
• Helps prevent water from spilling into the ice bin or cabinet area
• Addresses symptoms like slow/weak ice production, water pooling under the ice maker, or visible leaks during a fill cycle
• Works with the ice maker assembly to maintain consistent ice size and formation

• One replacement ice-maker fill cup

• Disconnect power and shut off the water supply before servicing the ice maker
• Remove the ice maker or access panel per your model's service instructions to reach and replace the cup
• Handle plastic parts gently to avoid cracking; ensure a snug fit to prevent leaks
• If symptoms persist after replacement, check the fill valve and ice maker assembly for proper operation

A replacement drawer slide that helps the drawer open and close smoothly and stay aligned. Restores reliable sliding action for drawers that stick, sag, or catch while opening and closing. What it does:

• Guides and supports the drawer for smooth, even movement
• Prevents drawer sagging and misalignment during use
• Reduces sticking, scraping, or catching when opening or closing
• Helps maintain proper drawer fit and load distribution

What's included: One replacement slide Install notes:

• Disconnect power and remove drawer before replacing the slide
• Inspect mounting clips or screws and reuse or replace as needed; align slide before securing
• Use proper tools and avoid forcing parts to prevent damage

This is a dispenser inlet gasket intended for use on washing machines. This part ensures that the hot and cold water lines do not leak at the point where they are connected to the appliance. If the washing machine is leaking, the gasket may need to be replaced.Replacing a dispenser inlet gasket in a washing machine can be done easily. Screwdrivers and pliers are required. Disconnect the appliance before starting the repair. Wear work gloves for safety. The hot and cold water lines should both be turned off and removed to prevent flooding.This dispenser inlet gasket is an authentic OEM replacement part. It is sourced from the manufacturer. The replacement component is made of high-quality materials. It can be installed in several different models of washing machines. The dispenser inlet gasket is compatible with appliances produced by Frigidaire, Gibson, Electrolux, Westinghouse, and Kelvinator brands.
