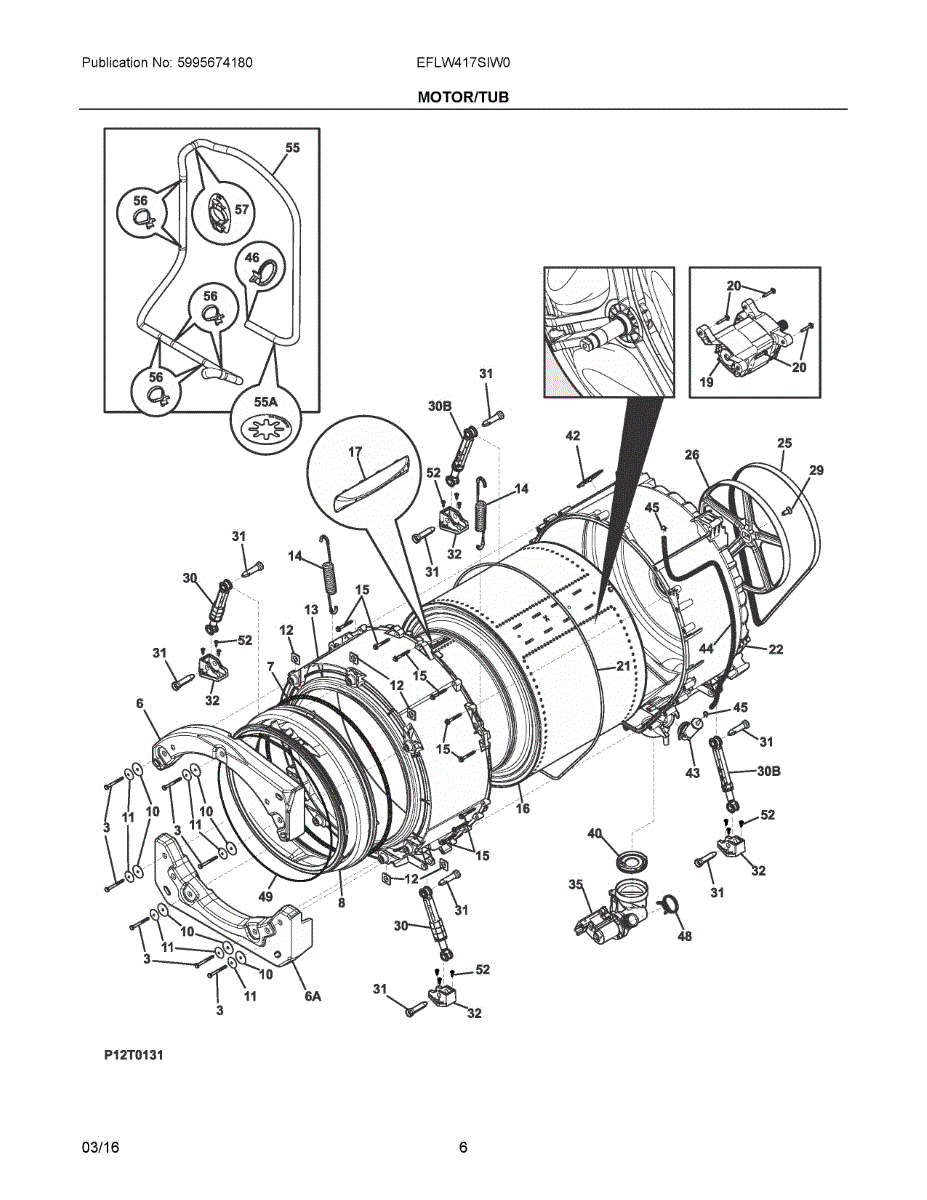

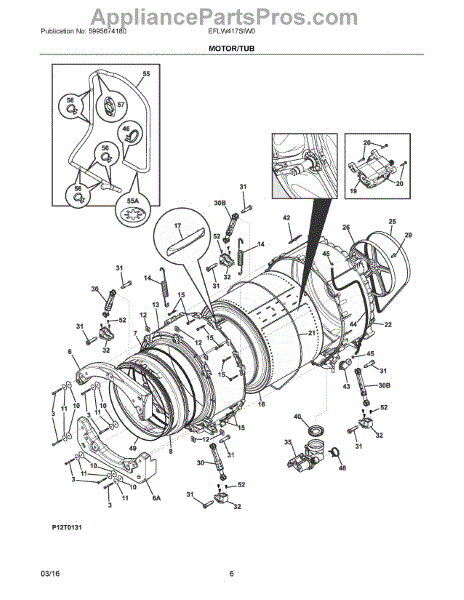

Parts for Electrolux EFLW417SIW0: 04 - Motor / Tub Parts

This replacement spring restores the correct tension in the affected mechanism on your appliance, helping parts return smoothly and stay aligned. A fatigued or broken spring can cause loose action, noise, or improper engagement—this fixes it fast. What it does

• Provides return tension to the related mechanism so parts move and reset correctly
• Helps maintain alignment and reduces looseness or rattle during operation
• Supports smooth engagement/disengagement of linked components
• Common symptoms: weak/loose action, parts not returning to position, squeaking/rattling, visible break or deformation

• 1 spring

• Disconnect power; for gas appliances, shut off gas. For washers, also turn off water supply.
• Support the component under spring tension before removal to prevent sudden release.
• Note or photograph original routing and anchor points to match orientation on reassembly.
• Inspect related brackets/clips; replace any that are bent, worn, or corroded.

The Drain Pump is an OEM component for Speed Queen washing machines. It is an important electric part that works to remove water from the washer tub at the end of each cycle.

Symptoms of a failing drain pump include:

• The washer not fully draining water after cycles
• Excessively long drain times
• Unusual noises coming from the pump area

Causes stem from blockages in the pump chamber or drain hose, worn impeller assembly, or damaged electrical components inhibiting proper operation.

This Speed Queen replacement pump restores the machine's essential draining ability for hygienic washing. It ensures the removal of all water to prevent residual moisture issues.

This suspension spring supports the washer tub and helps stabilize the drum during spin cycles to reduce vibration and noise. Replaces a worn or broken tub spring to restore smoother operation. What it does

• Holds and stabilizes the inner tub assembly to limit excessive movement during spins
• Helps reduce vibration and rattling that can occur from a loose or broken spring
• Prevents tub misalignment that can cause rubbing or noise
• Works with the washer's suspension system to maintain proper spin balance

• One suspension (tub) spring as shown

• Disconnect power and water supply before starting any repairs
• Springs are under tension; use caution and proper tools to remove/install
• Inspect other suspension components (shocks/rods, mounts) and replace if worn

This replacement shell restores the appliance's outer housing where the original shell is cracked, damaged, or missing, helping secure and protect internal components while maintaining a finished appearance. What it does

• Replaces a damaged or broken outer shell to restore fit and finish
• Protects internal components from dust and incidental contact
• Keeps panels and related parts aligned for proper operation
• Helps prevent gaps that can catch debris or interfere with door/cover movement

• One replacement shell as shown

• Installation requires removing the existing damaged shell and re-securing mounting tabs or fasteners
• Handle carefully to avoid scratching the finish; use protective gloves as needed
• Power off and unplug the appliance before starting work
• If fasteners or clips are damaged or missing, replace them with OEM-specified hardware

The Spring is an OEM part for Frigidaire washing machines. It is a component that assists the movement of the inner basket or tub during the wash cycle. The spring plays a crucial role in dampening vibrations and absorbing shocks to provide stability, preventing excessive noise and movement.

Causes of a spring failure can include wear and tear over time, exposure to heavy loads or unbalanced loads that put excessive strain on the spring, or damage due to impact or mishandling.

Symptoms of a bad Spring include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging noises
• The washer moving or walking during operation
• Leaks due to increased stress on the tub and other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This hex washer head screw secures appliance components and hardware, helping keep panels and assemblies fastened for safe, reliable operation. Use it to replace missing or damaged screws that allow parts to shift or rattle. What it does:

• Fastens panels, brackets, and component assemblies using a hex washer head for broad bearing surface
• Restores secure fit where stripped, missing, or damaged screws cause loose parts or vibration
• Maintains proper alignment and prevents movement that can lead to noise or additional wear
• Matches the OEM thread and length for a correct fit when replacing the specific factory screw

• Disconnect power to the appliance before beginning any repair
• Use the correct hex driver/socket to avoid stripping the head
• Thread the screw in straight and tighten until snug; avoid overtightening
• Repair or replace the threaded insert or mounting hardware before installing

This drum assembly is the rotating tub that holds and tumbles clothes inside a dryer, restoring proper load movement and preventing cloth damage from bent or worn drums. Replace a damaged drum to return smooth, even drying performance. What it does:

• Provides the rotating drum surface that carries and tumbles clothing during the dry cycle
• Supports drum rollers/bearings and works with the belt and motor to turn loads
• Common symptoms: visible dents, cracks or sharp edges on the drum, loud scraping or grinding noises, fabric snagging or excessive wear
• Replacing a damaged drum reduces rubbing and prevents further wear to belts and rollers

• Disconnect power to the dryer before beginning any service
• Access usually requires removing the dryer front or rear panel; follow the OEM service manual for safe disassembly
• Inspect and replace worn rollers, bearings, seals or the belt as needed while drum is accessible
• After installation, test with a short cycle to ensure smooth rotation and that no unusual noises remain

The Vane is an OEM part for Frigidaire washing machines. This part is responsible for the movement and circulation of clothes inside the washer drum during the washing cycle.

Causes of a bad vane can include wear and tear from regular use, physical damage from foreign objects in the drum, or degradation of the material over time.

Symptoms of a bad vane include:

• Clothes tangling or not moving properly during the wash cycle
• Increased noise during operation
• Visible damage or wear on the vane
• Poor cleaning results

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Motor is an OEM replacement part for Frigidaire front-load washing machines. Located inside the tub assembly and housed by an insulated casing, it powers the agitator, pump, and spin mechanisms.

Causes of a bad motor can include long-term wear from continuous usage cycles, debris getting lodged inside affecting mechanics, or damage from power fluctuations over time straining motor windings.

Symptoms of needing replacement include:

• Inability to advance through selected cycles
• Agitator or pump failure to turn even on "Spin"
• Grinding or clicking noises during operation
• Washer failing to drain or spin clothes effectively

This genuine OEM motor is compatible with Electrolux, Gibson, and Kenmore washing machine models as well.

This is a motor-mount screw used to secure the appliance motor housing. It's a direct-fit fastener that restores proper motor attachment to reduce movement and rattling caused by loose or missing hardware. What it does:

• Secures the motor to its mounting bracket or housing
• Prevents motor shifting that can cause vibration, noise, or misalignment
• Restores proper mechanical connection after strip-out or lost hardware
• Helps maintain safe operation by keeping motor fastened

• Disconnect power before servicing the appliance.
• Use the correct screwdriver or socket to avoid stripping the head.
• Thread carefully and tighten to snug; avoid over-tightening which can strip threads.
• If mounting holes or threads are damaged, repair or replace the affected components before reinstalling.

This O-Ring creates a tight, leak-resistant seal between appliance components. Replacing a worn or flattened ring restores proper sealing, helps stop drips at the joint, and protects nearby parts from moisture and mineral residue.

• Provides a compression seal between fittings, housings, or tubes
• Helps prevent water leaks and loss of pressure at the connection
• Common signs of failure: moisture or residue around the joint, visible cracks/flattening, leaks after reassembly
• Regular wear, heat, chemicals, or age can harden or deform the ring

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel to catch residual water
• Clean mating surfaces; lightly lubricate the new O-ring with food-grade silicone grease
• Seat evenly without twisting or pinching; reassemble and check for leaks

This washer drive belt links the motor to the drum pulley so the machine can tumble and spin. Replacing a broken or stretched belt restores smooth, reliable drum rotation during wash and spin cycles.

• Transfers motor power to the drum for tumbling and spin
• Worn or broken belts can cause no spin/tumble or intermittent rotation
• Common symptoms: drum won't spin, squealing or thumping noises, burning rubber smell, visible fraying/cracks
• Slipping belt can leave clothes wetter than normal at cycle end

• Disconnect power and turn off water supplies before servicing
• Access the belt from the rear or bottom; remove panels as directed in your model's service information
• Release belt tension at the motor/idler, remove the old belt, and route the new belt over the drum and motor pulleys with ribs properly seated
• Rotate the drum by hand to verify alignment; reassemble and test. Inspect the idler/tensioner and pulleys while open

The Bolt is an OEM replacement part for Frigidaire washing machines. Internally installed, these fasteners securely hold internal components like the tub, transmission, and agitator in the proper position.

Causes of bolt failures can include wear and corrosion from repeated vibrations during spin cycles compounding over many years of use.

Symptoms of bad bolts include:

• Loose, wobbly, or misaligned internal components
• Grinding noises or strange vibrations occurring
• Leaks developing from compromised tub seals

Compatible brands include Frigidaire, Electrolux, KitchenAid, Jenn-Air, and select Kenmore models for lasting reliability.

The Shock Absorber is an OEM part for Whirlpool brand washing machines. It plays a vital role in reducing vibrations and absorbing shocks during the wash cycle, providing stability and minimizing excessive movement.

Symptoms of a bad shock absorber include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging noises
• The washer moving or walking during the operation
• Leaks due to increased stress on the tub and other components

Causes of a bad shock absorber can include wear and tear over time, exposure to heavy loads or unbalanced loads that put excessive strain on the absorbers, or damage due to impact or mishandling.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Note: This is one shock absorber, order quantity needed.

The Shock Absorber is an OEM part for Frigidaire washing machines. The shock absorbers play a vital role in reducing vibrations during the spin cycle and absorbing mechanical shocks that occur with imbalanced or off-center loads. Their durable design effectively isolates the external structure from damaging reverberations.

Causes may involve age-related wear that diminishes shock absorbing qualities over thousands of machine cycles. Impact damage or broken mounts could also necessitate replacement. Installing this kit restores a quiet and stable washing performance to the appliance.

Symptoms of a bad shock absorber include:

• Excessive shaking or vibrating during operation, especially spin cycles
• Loud banging or knocking noises from the washer
• The washer moving or walking on the floor during use
• Leaks from external tub connections

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Shock Absorber Mounting Pin is an OEM part for Frigidaire washing machines. It is a part that secures the shock absorber in place, ensuring proper absorption of vibrations and shocks during the washing cycle.

Causes of a bad shock absorber mounting pin can include loosening over time due to constant movement and vibrations, accidental damage or loss during repair or maintenance, or general wear and tear.

Symptoms of a bad or missing shock absorber mounting pin include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging or rattling noises
• The washer moving or "walking" across the floor
• Premature wear or damage to the shock absorbers and other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This mounting bracket secures its associated component inside your appliance, keeping it properly positioned during operation. Replacing a bent or broken bracket helps stop rattling or vibration and restores stable, reliable performance.

• Provides a rigid mounting point to the appliance frame or assembly
• Maintains correct position and alignment of the attached component
• Helps reduce vibration and operational noise
• Common failure signs: cracks, bending, stripped holes, or the part no longer stays secured

• Disconnect power before servicing; if working on a washer, also shut off water supply
• Note the original orientation and hardware locations; transfer any clips or grommets from the old bracket
• Reinstall using existing screws and tighten evenly—do not overtighten

The Drain Pump is an OEM part for Frigidaire washing machines, crucial for removing used water from the machine at the end of each wash cycle. This pump ensures that water is efficiently expelled, allowing clothes to move to the spin cycle properly dried.

Causes of a bad part can stem from blockages by small garments, coins, or debris within the pump or the drain hose, mechanical failure within the pump itself, or electrical issues preventing the pump from operating.

Symptoms of a bad Drain Pump include:

• The washer not draining water, leaving clothes soaking wet after the cycle.
• A humming sound when the machine reaches the drain cycle, indicating the pump might be powered but blocked.
• Error codes displayed on the washer that signify draining issues.
• Water leakage from the bottom of the washer if the pump or its hoses are damaged.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This diaphragm is a flexible sealing membrane used in the water valve assembly to control water flow and prevent leaks. Replacing a worn diaphragm restores proper valve operation and helps stop unwanted water entry. What it does:

• Forms a watertight seal inside the valve to regulate water flow
• Opens and closes with valve actuation to allow correct fill cycles
• Prevents leaking or dribbling when the valve is closed
• Common symptom indicators: slow or no fill, continuous fill, or leaking at the valve

• Disconnect power and shut off the water supply before starting
• Replace only with the exact OEM-design diaphragm to ensure proper fit and sealing
• Handle the part gently; avoid nicking or stretching the sealing surface
• After installation, restore power and water, then run a test cycle and check carefully for leaks

This clamp secures a hose to its fitting, maintaining a tight, leak-resistant seal at the connection. Replace a fatigued or missing clamp to help prevent drips and stop hoses from working loose under vibration.

• Holds a hose firmly on a pump, tub, dispenser, or valve outlet
• Maintains clamping force to help minimize leaks at the joint
• Helps keep hoses from slipping off during operation
• Common signs: water at a hose joint, loose/slipping hose, damaged or corroded clamp

• Disconnect power and shut off water supply before servicing
• Place a towel or pan to catch residual water at the connection
• Note hose position; remove the old clamp, seat hose fully on the fitting, position the new clamp over the bead, and secure
• After reassembly, run a short cycle and check for leaks

A small replacement retainer clip used to secure interior trim or components so panels and shelves stay in place. Replacing a worn or broken clip restores a snug fit and reduces rattling or loose parts. What it does

• Holds trim, panels or small components in place to prevent shifting
• Prevents rattling and keeps parts aligned for proper operation
• Replaces cracked, broken or missing clips that allow parts to sag or fall
• Works wherever the OEM clip design is specified for a secure snap-fit

• Clip

• Disconnect power before servicing appliances with electrical components
• Remove surrounding trim or components carefully to access clip location
• Press or snap the clip into place; avoid forcing to prevent damage
• Keep small parts away from children and pets during installation

This clamp secures a flexible connection inside your appliance, holding a hose or boot firmly to its fitting to maintain a tight, leak-resistant seal and prevent connections from backing off during operation. What it does:

• Holds a hose or boot to a tub, pump, or port to keep the joint sealed
• Helps prevent leaks and disconnections from vibration or pressure changes
• Restores proper sealing when the original clamp is stretched, rusted, broken, or missing
• Typical symptoms include drips at the joint, a loose/slipping connection, or visible clamp damage

• 1 clamp

• Disconnect power and turn off water supply; place a towel to catch residual water
• Note the clamp's position before removal; seat the hose/boot fully over the fitting bead
• Position the clamp just behind the bead and engage/tighten it evenly
• Run a short test cycle and check the joint for leaks

This is a Phillips pan head machine screw commonly used to secure panels and components in appliances. It provides a reliable, low-profile head for flush fastening and easy Phillips-driver installation. What it does:

• Fastens trim, panels, or internal components where a pan head screw is required
• Designed for secure grip in metal or threaded inserts compatible with #10-16 threads
• Helps prevent loosening from vibration when installed to correct torque
• Often used in refrigeration and major appliance assemblies in limited quantities

• One Phillips pan head screw (#10-16 x 5/8")

• Use the correct #2 Phillips driver and steady pressure to avoid cam-out or stripping
• Do not overtighten; stop when snug to avoid damaging threads or mating parts
• Replace only with an identical thread size and head style to ensure fit
• Wear safety glasses when working around sharp sheet metal and springs

The Drain Hose is an OEM part for Frigidaire washing machines. As a key component of the machine's drainage system, the drain hose transports water from the washer tub to the standalone drain or out the back of a pedestal model during the drain cycle.

Causes can relate to standard hose degradation from constant use, accidental kinking that restricts flow, or physical damage by pets chewing the hose.

Symptoms of a bad drain hose include:

• Puddles or water leaks near the washer during and after cycles
• Smelly or mildewed hose from standing water
• Kinked or cracked hose that no longer fully drains water

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A simple wire-fastening cable tie that secures wiring and small hoses to prevent rubbing, snagging, or loose routing inside the appliance. Helps keep components organized for safer, quieter operation. What it does

• Secures wiring bundles and small hoses to chassis or brackets to prevent abrasion and movement
• Helps stop intermittent shorts or electrical noise caused by wires rubbing or contacting other parts
• Keeps airflow and moving parts clear by holding wiring away from fans and belts
• Useful when replacing or re-routing harnesses during repairs

• Always disconnect power before working on the appliance.
• Loop tie around wiring or hose, pull to secure snugly, and trim excess tail; do not overtighten.
• Replace ties that are brittle or damaged; use the same routing as the original harness.
• Dispose of trimmed ends and avoid sharp edges that could cut wiring insulation.

This is a replacement mounting bracket that secures appliance panels and components, restoring proper alignment and stability. A direct-fit part that helps stop loose panels, rattling, or misalignment for safe, reliable operation. What it does:

• Provides a secure attachment point for panels, trim, or internal components
• Restores correct alignment to reduce rattling and vibration
• Prevents parts from shifting or coming loose during operation
• Re-establishes proper fit where a worn or broken bracket allows gaps

• One mounting bracket

• Install with appliance powered off and disconnected from power source
• Use appropriate fasteners and torque to avoid stripping or damage
• Inspect surrounding clips and hardware; replace any damaged fasteners

This dampener regulates airflow inside the refrigerator to help steady temperatures between compartments and reduce temperature swings. It replaces a worn or broken air control piece to restore proper circulation and consistent cooling. What it does:

• Controls airflow between fridge compartments to help maintain even temperatures
• Helps reduce warm or cold spots caused by stuck or broken dampeners
• Minimizes rapid temperature changes when doors open and close
• Operates quietly as part of the internal air distribution system

• Disconnect power to the appliance before starting any repair
• Basic hand tools may be required; handle plastic parts carefully to avoid breakage
• Verify correct orientation and secure mounting for proper airflow operation

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
