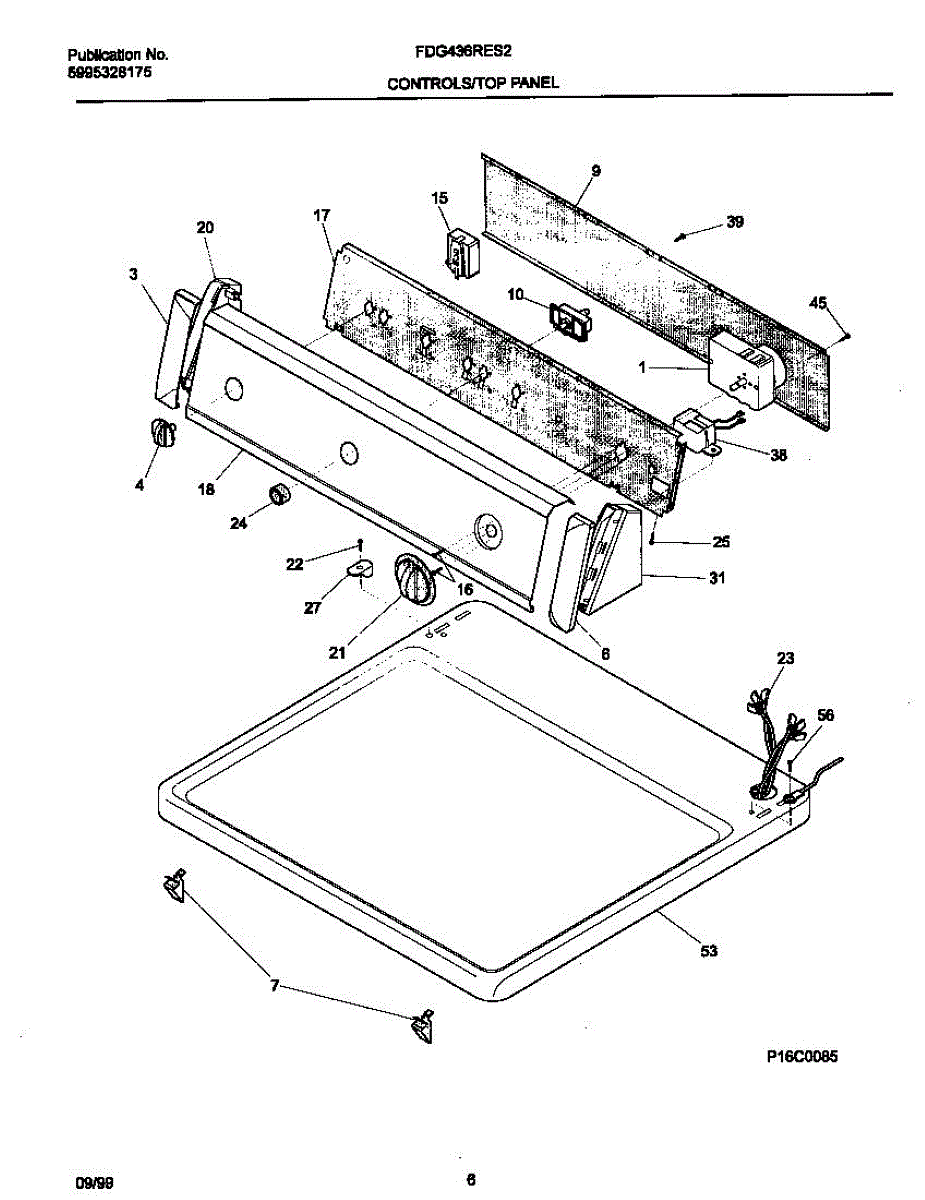

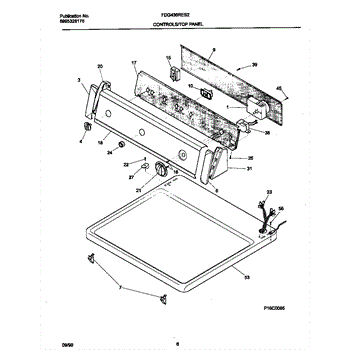

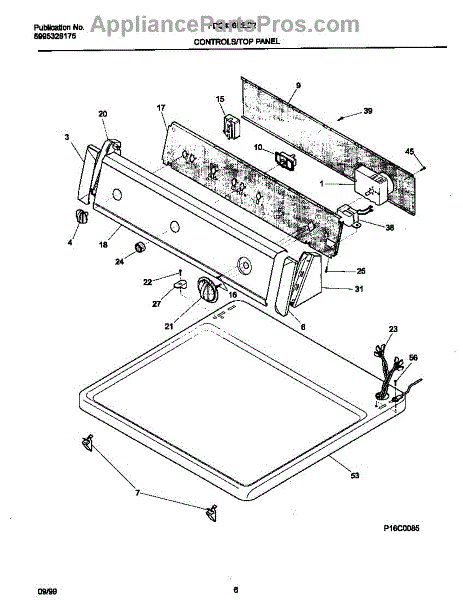

Parts for Frigidaire FDG436RES2: 04 - Control Panel Parts

A decorative cover piece that caps the left end of the washer's control panel or cabinet. Replace if the cover is cracked, missing, or doesn't fit properly, affecting the appliance's appearance.

Color: white. Measures about 1-1/2 inches in diameter.

This is a small metal or plastic retainer clip that secures the main top panel of the dryer to the cabinet frame. It holds the top panel firmly in place so it doesn't shift or rattle during operation. If your dryer's top panel feels loose, pops up during use, or won't stay properly seated, this clip may be broken or missing.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

Color: white. It measures about 3 inches in diameter.

This wire harness connects the range or oven gas valve to the control and safety circuit, ensuring proper signal and power routing for gas ignition and shutoff. It replaces a damaged or worn harness to restore reliable operation. What it does

• Routes electrical signals between the control board and the gas valve so the burner can ignite.
• Replaces frayed, burnt, or corroded wiring that can cause intermittent ignition or no heat.
• Helps restore normal operation when diagnostic tests show open or damaged harness conductors.
• Fits behind the oven or range chassis where the gas valve and control are located.

• One complete wire harness as shown.

• Safety first: disconnect power and turn off the gas supply before starting any repair.
• Verify the harness matches connector types and lengths in your appliance before installation.
• Inspect mating connectors and terminals for heat damage; replace if necessary.

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support
