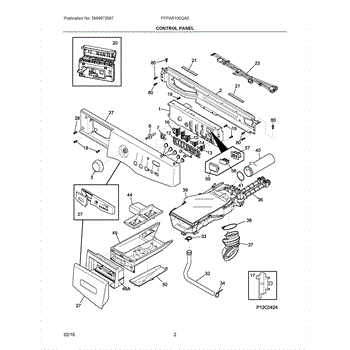

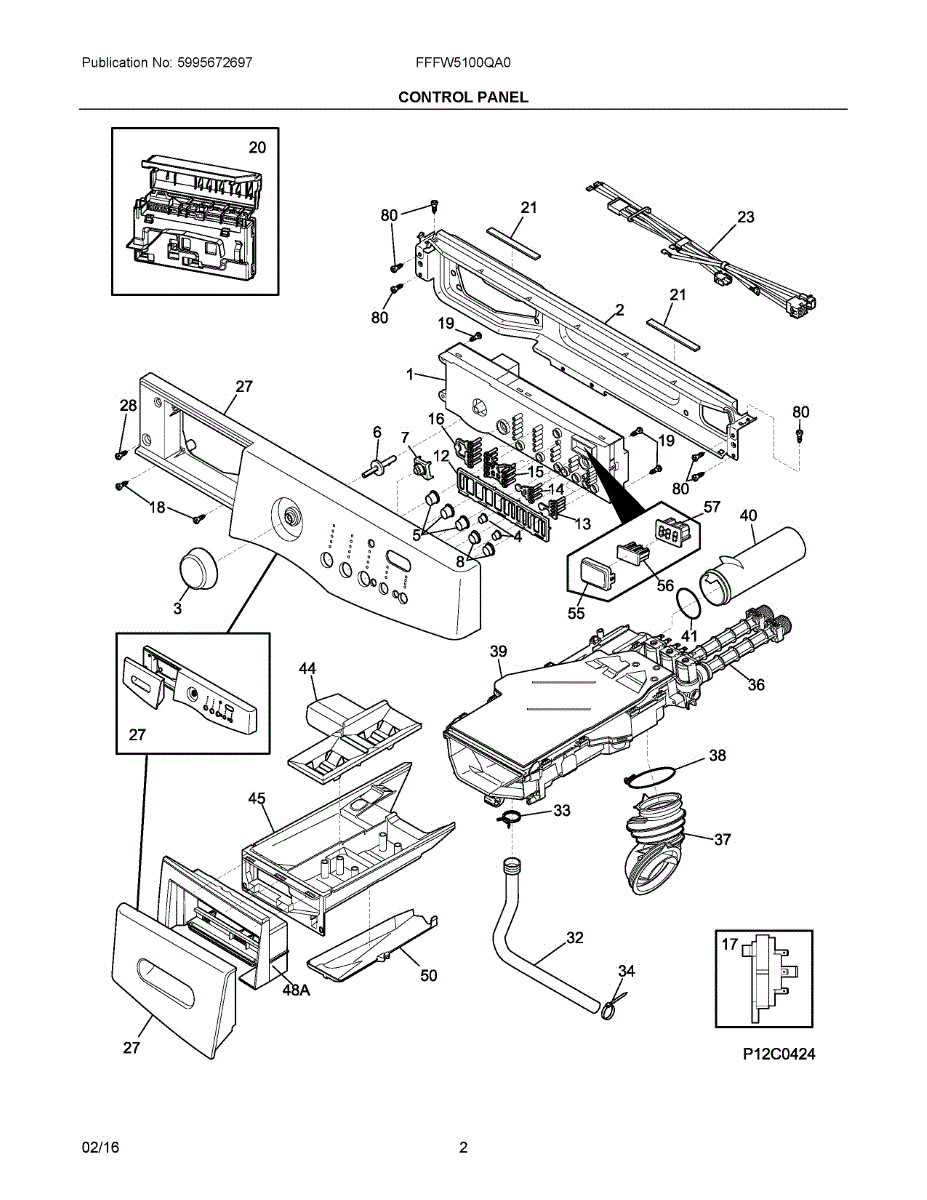

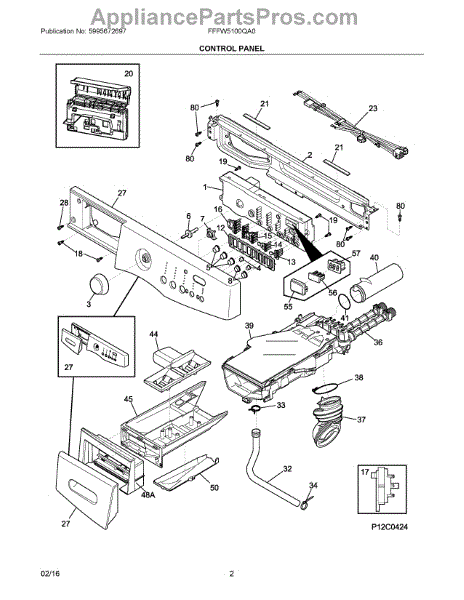

Parts for Frigidaire FFFW5100QA0: 02 - Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Fixes washer stuck on one cycle or won't advance through settings. This control board manages fill, agitate, rinse, and spin functions. Moderate DIY repair.

Mounting bracket for washer and laundry center models. Secures components in place during operation. Replace if cracked, bent, or broken to restore stability.

This push button is the user-facing control button that replaces a worn, broken or missing oven/stove/range or appliance selector button, restoring tactile control and reliable user input. It fits into the front control panel and provides the mechanical interface for selections. What it does:

• Replaces a cracked, stuck or missing control button so selections register correctly
• Restores tactile feedback and proper engagement with the underlying switch or mechanism
• Helps stop intermittent control issues caused by damaged or loose buttons
• Useful when the button housing is chipped or cosmetically damaged

• Disconnect power to the appliance before attempting service to avoid shock or unintended operation
• Typically snaps into the front control panel; remove the old button by pulling straight out and press the new button into place
• Inspect the underlying switch for damage while replacing the button and replace that switch if necessary

This small pin secures the program selection knob to the dryer's control panel shaft. Replace if the control knob spins freely without changing settings or falls off the control panel.

This cap is a small protective cover designed to fit over electrical terminals and exposed fittings to help keep dirt, moisture, and accidental contact away from sensitive components. It restores a finished appearance and basic protection. What it does:

• Covers and insulates exposed electrical terminals or connector ends to reduce short risk from accidental contact
• Helps keep moisture, dust, and debris off connections that can cause corrosion over time
• Maintains a secure fit over the terminal to prevent snagging or loose wiring
• Useful when replacing a damaged or missing terminal cover to restore proper protection

• Disconnect power to the appliance before working on electrical components
• Push the cap fully over the terminal until it seats; do not force or modify the part
• If wiring or terminals are corroded or damaged, replace or repair the wiring before installing the cap

Replacement push button for dryer control panels. Installs on the front console to operate cycle selections. Needed when original button is cracked or missing.

Fix a washer that won't fill, overfills, or shows E35 error code with this water level pressure switch. Moderate DIY repair takes about 1-2 hours.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

Washer won't start, shows error codes, or cycles incorrectly? The control board manages all wash cycles and safety functions. Moderate DIY repair.

Wire harness assembly for washers and laundry centers. Replaces damaged, frayed, or corroded wiring connections. Essential for restoring internal electrical routing.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This replacement screw secures appliance panels and components. With a #10-16 thread and 0.75-inch length, it replaces stripped, rusted, or missing hardware to restore a tight, rattle-free fit and reduce vibration and noise.

• Fastens cabinet panels, brackets, or internal parts in washers and dryers
• Direct replacement for worn or lost screws to keep assemblies aligned and secure
• Helps address loose/vibrating panels, rattling noises, or visible gaps/misalignment
• Spec: #10-16 thread; 0.75-inch length

• Disconnect power; for washers, also shut off water supply
• Match the original screw location; start threads by hand to prevent cross-threading
• Use a driver that fits the screw head properly; tighten snugly without overtightening

Secures hoses to pumps, tubs, and valves preventing leaks. Replace if worn, loose, or causing drips during cycles. Confirm fit with your model number.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Fix a washer that fills slowly, won't fill, or leaks water when off with this water inlet valve. DIY repair takes about 30 minutes with basic tools.

Connects the detergent dispenser to the wash tub in your washer. Replace if cracked, leaking, or causing water damage to other components during cycles.

Secures hoses to fittings, preventing leaks in water and drain lines. Replace when connections loosen or leaks appear. Verify fit with your model number.

Direct-fit outer cabinet housing that encases and protects internal washer components. Replace if cracked, damaged, or worn to restore proper alignment.

Rubber O-ring seal prevents water leaks at hose connections and fittings. Replace when worn or cracked to restore tight seal and stop dripping. Verify fit.

Fix a broken or missing detergent dispenser cover that's cracked or won't guide proper detergent placement. Simple 5-minute replacement repair.

Detergent drawer broken, cracked, or won't open? This drawer holds and dispenses detergent during wash cycles. Simple snap-in replacement, no tools needed.

Fix a broken or cracked dispenser drawer handle that won't open properly. Simple snap-in replacement takes minutes. Fits front load washers.

This dispenser assembly replaces a worn or damaged refrigerator dispenser to restore reliable dispensing of water and ice. It provides the dispenser housing and interface needed for proper user operation and sealing at the door. What it does:

• Houses the dispenser components and provides the push-lever/door opening for water and ice delivery
• Restores a broken, cracked or loose dispenser opening that causes poor engagement or cosmetic damage
• Helps stop minor leaks or drips at the dispenser area when seals and gaskets are intact
• Eliminates sticking or misaligned dispenser operation that prevents normal dispensing

• Disconnect power and shut off the water supply before beginning any work.
• Installation typically requires removing the refrigerator door panel(s) and detaching the old dispenser from the inner door; keep fasteners for reuse unless replacements are provided.
• Handle plastic parts gently to avoid cracking; inspect door seals and gaskets and replace if worn.
• After installation, restore power and water, then test dispenser operation and check for leaks.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Seals hot and cold water connections to your washer's dispenser. Replace if you notice leaking at the inlet assembly. Confirm fit with your model number.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
