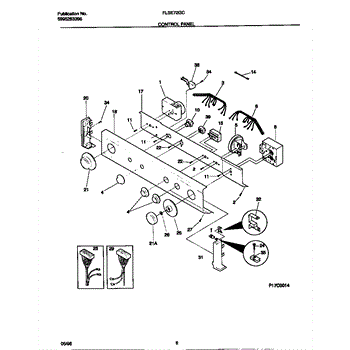

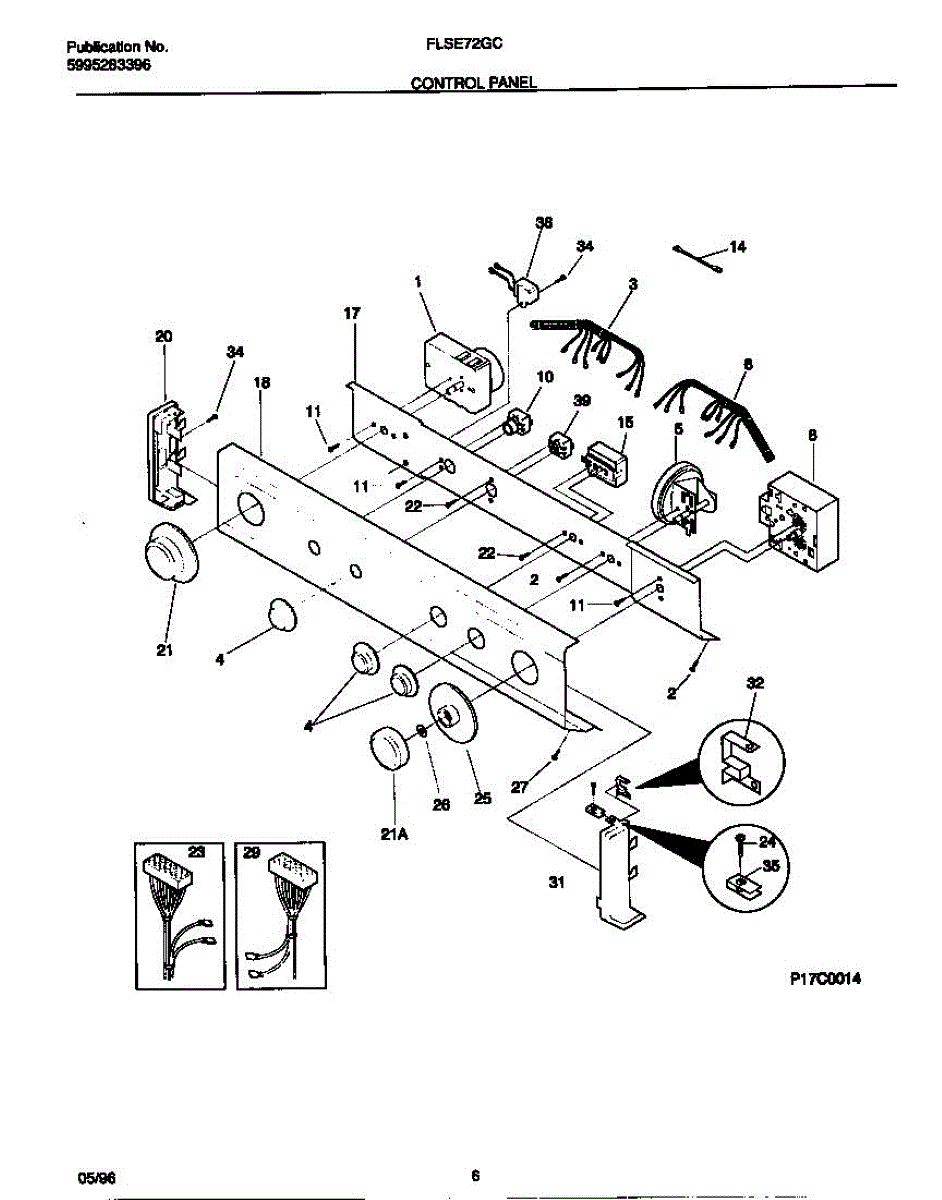

Parts for Frigidaire FLSE72GCT2: 04 - Control Panel Parts

This dryer timer is the cycle control that advances your dryer through Timed and Auto Dry settings. Replacing a failed timer restores proper cycle progression, start/stop, and end-of-cycle shutoff.

• Advances the cam and internal contacts to move the dryer through heat, motor, and cool-down steps
• Governs run time on Timed Dry and Auto Dry cycles
• Routes power to the correct circuits in sequence; a failed timer may not advance or may stop early
• Common symptoms include timer knob not moving, dryer running indefinitely, or not starting on certain settings

• Disconnect power; for gas models, also shut off gas
• Remove knob/dial, open the console, and unmount the timer
• Label or photograph wiring; transfer wires one at a time to the new timer
• Reassemble and test both a Timed Dry and an Auto Dry cycle

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This wiring harness connects the washer control board to console switches and sensors, restoring reliable electrical communication so the machine can receive user inputs and run cycles correctly. What it does

• Links the control board to door switch, cycle selectors, and other console components so commands register.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Helps stop electrical shorts, error codes, or failure-to-start symptoms related to broken control connections.
• Restores factory routing and connector fit for secure, vibration-resistant connections.

• One wiring harness as shown.

• Always unplug the washer or shut off power at the breaker before servicing.
• Match connector shapes and wire colors to OEM locations; avoid forcing connectors.
• Route harness along original clips and channels to prevent pinching or rubbing.

This mechanical cycle timer controls the sequence and duration of wash, rinse and spin functions in compatible top-load washing machines, restoring proper cycle advancement and timing. What it does:

• Advances the washer through timed cycles so selected wash, rinse and spin functions run in the correct order.
• Routes power to the washer's motor and valves at the right points in the cycle.
• Commonly replaces timers that cause machines to get stuck on one cycle, fail to advance, or not complete a cycle.
• Works with the machine's existing control knobs and wiring harness to restore automatic cycle sequencing.

• Disconnect power to the washer before beginning any service to avoid electrical shock.
• Service typically requires access behind the console or control panel; remove panels carefully and keep fasteners organized.
• Note and photograph wiring connections before removal; reconnect wires to the same terminals.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

PPH ab st/z/ch `6 - 18x.60

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip
