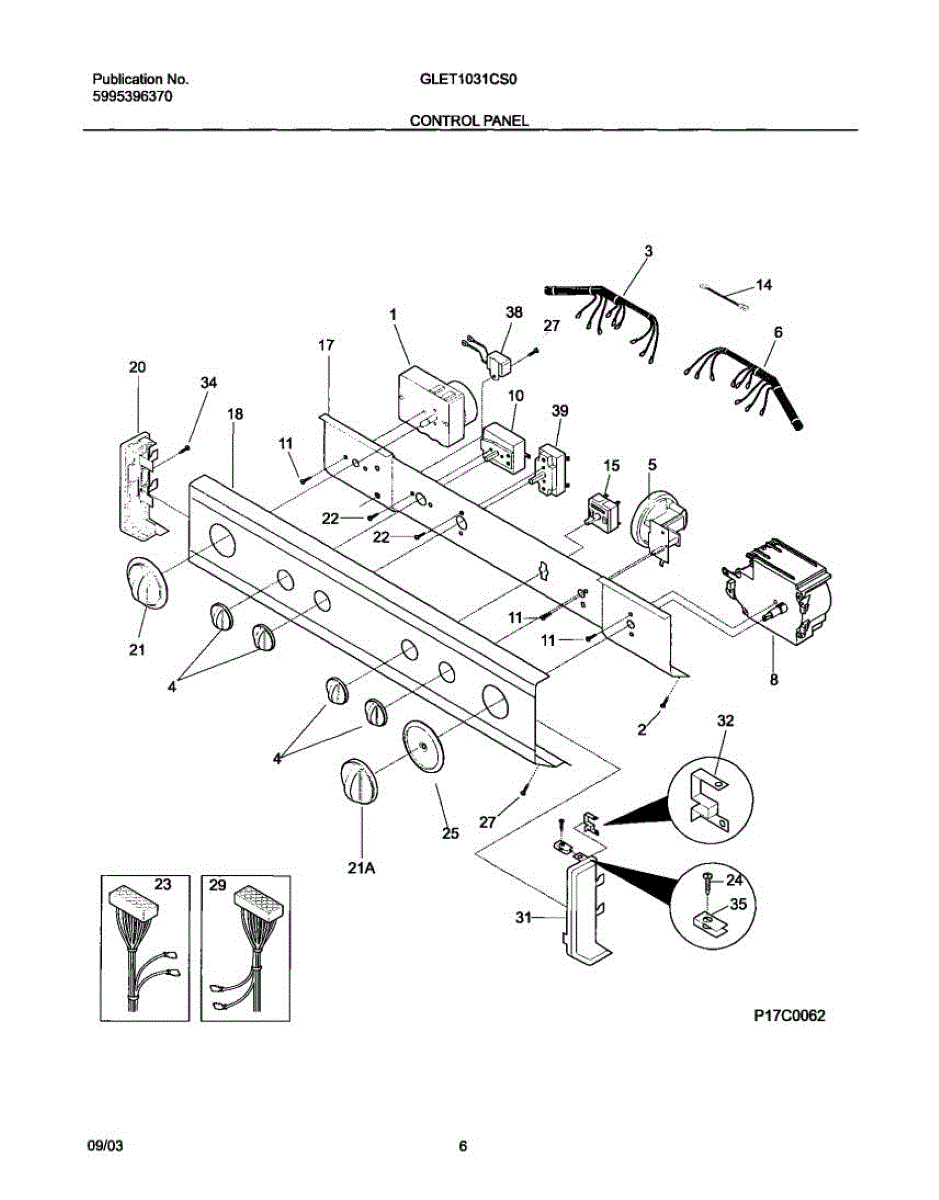

Parts for Frigidaire GLET1031CS0: 07 - Control Panel Parts

This dryer timer is the cycle control that advances your dryer through Timed and Auto Dry settings. Replacing a failed timer restores proper cycle progression, start/stop, and end-of-cycle shutoff.

• Advances the cam and internal contacts to move the dryer through heat, motor, and cool-down steps
• Governs run time on Timed Dry and Auto Dry cycles
• Routes power to the correct circuits in sequence; a failed timer may not advance or may stop early
• Common symptoms include timer knob not moving, dryer running indefinitely, or not starting on certain settings

• Disconnect power; for gas models, also shut off gas
• Remove knob/dial, open the console, and unmount the timer
• Label or photograph wiring; transfer wires one at a time to the new timer
• Reassemble and test both a Timed Dry and an Auto Dry cycle

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Selector Switch Knob is an OEM part for Frigidaire laundry centers. This knob is a component that allows users to select the desired settings for their washing or drying cycles. Positioned on the control panel of the laundry center, the knob translates user input into action, enabling the selection of different modes and options such as wash cycle type, temperature settings, and drying times.

Causes of damage to the selector switch knob often involve physical stress, such as over-tightening or rough handling, which can lead to cracks or breakage.

Symptoms of a bad Selector Switch Knob include:

• Difficulty in turning the knob
• The knob not engaging with the selector switch properly
• Visible cracks or breakage on the knob
• The knob falling off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a factory switch used in the appliance's control/safety circuit. Replacing a worn or failed switch restores reliable signaling so the selected function engages properly and the unit responds consistently to user inputs and status conditions.

• Provides an electrical on/off signal to the control or safety circuit
• If faulty, selected functions may not activate or may be intermittent
• Can trigger error codes related to a switch input, depending on model

• Disconnect power before servicing; turn off gas/water if applicable
• Note/photograph wire locations and transfer connectors one at a time
• Verify actuator alignment and secure mounting before reassembly
• After installation, run a test cycle to confirm proper operation

The Start Switch is an OEM replacement part for Frigidaire dryers. This part initiates the dryer's cycle once the user selects the desired settings. By pressing the start switch, the motor activates, and the drying process begins, ensuring clothes are dried according to the selected specifications.

Symptoms of a bad Start Switch include:

• The dryer not starting when the switch is pressed
• Intermittent starting issues, where the dryer sometimes starts and sometimes doesn’t
• The need to hold the switch in place to keep the dryer running
• Unusual noises when the switch is pressed

Causes for a malfunctioning Start Switch can include electrical issues, such as faulty wiring or connections, wear and tear from frequent use, or internal failures within the switch mechanism that prevent it from signaling the motor to start.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

White. Left hand side

Color: white. Measures about 2 inches in Diameter.

The Timer Knob is an OEM part for Frigidaire dryers. This part allows users to set and control the drying cycle by turning the timer to the desired setting, ensuring proper operation and timing of the dryer.

Causes of a bad timer knob can include wear and tear from frequent use, physical damage such as cracking or breaking, or the internal mechanism wearing out over time, making it difficult to turn or set the timer accurately.

Symptoms of a bad timer knob include:

• The knob being difficult to turn or slipping
• The dryer not starting or stopping at the correct times
• The timer not advancing through the cycle
• The knob being loose or falling off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

White. Right hand side

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This terminal block screw secures the power cord leads to the appliance's terminal block, helping maintain a tight, reliable electrical connection. Replace missing, stripped, or heat-damaged screws to restore proper clamping of the wire lugs.

• Clamps incoming power wires to the terminal block for a secure electrical connection
• Replaces stripped, corroded, or missing terminal screw
• Designed to fit the original terminal block hardware locations

What's included: 1 terminal block screw Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block (location varies by model); note wire positions
• Inspect terminal block and wire lugs; replace any heat-damaged components
• Install and tighten the new screw securely without over-tightening; reinstall access cover and verify strain relief is in place before restoring power

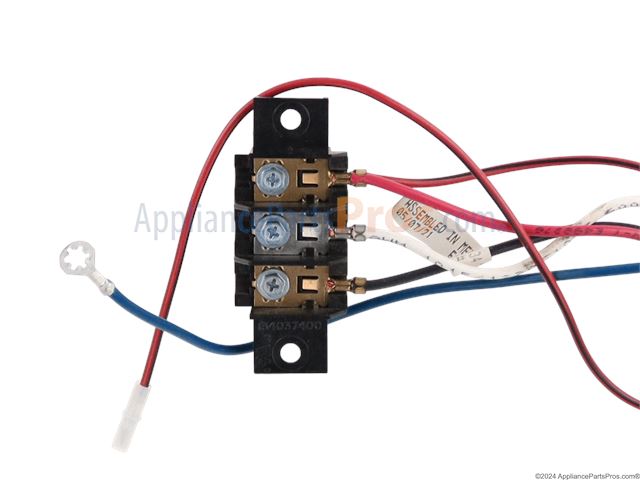

The Terminal Block is an OEM replacement part for Frigidaire clothes dryers. It is the part the power cord connects to. This kit includes 3 screws and 3 terminals.

Causes of a bad terminal block can include damage from age, overheating from worn wires or loose connections, or improper installation during manufacturing.

Symptoms of a bad terminal block include:

• The dryer not powering on
• Intermittent heating issues
• Loose, frayed, or damaged wires

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.
