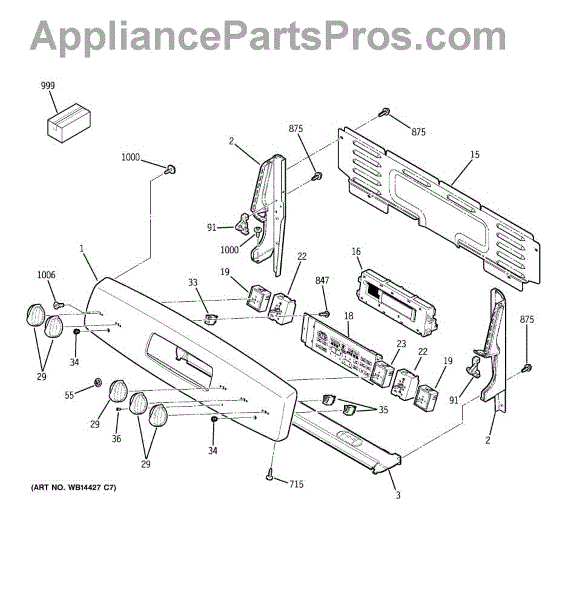

Parts for Ge JB655DT1BB: 01 - Control Panel Parts

This trim and bracket assembly secures the control panel trim and restores a flush, stable fit and finish. It replaces damaged or missing trim supports so the appliance looks and functions properly. What it does:

• Holds and aligns the control panel/face trim to prevent gaps or misalignment
• Replaces broken or bent brackets that cause loose or rattling trim
• Restores proper fit and appearance after impact or wear
• Helps maintain seal and stability around the control area

• Disconnect power to the appliance before beginning any work
• Remove the existing trim pieces and any mounting screws to access the bracket
• Align the new bracket and secure with the original screws; replace trim and test for fit
• If screws or clips are damaged or missing, replace them with OEM fasteners for proper fit

Restore reliable oven operation with this electronic oven control board. It governs the bake/broil relays, regulates temperature with the sensor, and runs the display and keypad so settings respond and heat is accurate.

• Interprets keypad inputs and switches oven heating circuits through onboard relays
• Works with the temperature sensor to maintain the set temperature during bake and broil
• Powers the clock/temperature display and stores oven settings
• Common signs of a failed board: blank or flickering display, unresponsive keys, no bake/broil heat, erratic temperatures, or recurring control error codes

• Disconnect power at the breaker before servicing
• Handle the board by the edges and protect against static discharge
• Photograph wiring and transfer any brackets, spacers, or the overlay from the old board
• Seat ribbon cables/connectors fully and verify operation after reassembly

The Surface Burner Switch is an OEM part for GE electric ranges. This switch controls the heat level of the surface burner, allowing for precise temperature adjustments during cooking.

Common causes of failure include electrical issues, wear from frequent use, or damage from overheating. A malfunctioning switch can prevent the burner from operating correctly, affecting your ability to cook efficiently.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating or only heating intermittently
• Inability to adjust the burner’s temperature
• Burner staying on high heat regardless of setting
• Burner not turning on at all

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Element Control is an OEM part for GE ranges. It regulates the heat output of the surface elements on the cooktop, allowing users to adjust the cooking temperature precisely.

Over time, the surface element control can wear out due to regular use, electrical issues, or exposure to high temperatures. If it fails, it can lead to inconsistent heating or no heat at all, affecting your cooking performance.

Symptoms of a bad surface element control include:

• Inconsistent or no heat from the surface elements
• The inability to adjust the temperature settings
• The surface element staying on despite being turned off
• Sparking or unusual noises from the control area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM part for GE ranges. This part controls the temperature of the surface burners by regulating the power sent to the heating elements, allowing for precise heat adjustments during cooking.

Causes of a bad infinite control switch can include electrical issues such as short circuits, wear and tear from regular use, or internal mechanical failures.

Symptoms of a bad infinite control switch include:

• The burner not heating up or getting stuck on one temperature
• Inconsistent or erratic heating
• Difficulty in adjusting the burner temperature
• The burner not turning off or on properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This logo badge is the decorative nameplate used on select cooking appliances. Replacing a missing or worn emblem restores the finished factory look and keeps the front of your appliance looking complete and consistent with the original design.

• Cosmetic component that displays the appliance logo and completes the front panel or door
• Replaces a badge that is missing, cracked, peeling, or discolored
• Helps refresh the appliance's appearance without affecting operation
• Common signs: badge fell off, won't adhere, looks faded or damaged

• Disconnect power before working near control panels or doors
• Note the badge's original location and orientation before removal
• Use a non-marring tool to gently lift the old emblem if present; avoid scratching finishes
• Clean and dry the surface thoroughly before pressing the new badge into place

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Black. 8-18 x 5/16 inch.

White. 8-18 x 5/16 inch.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Package of 12

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
