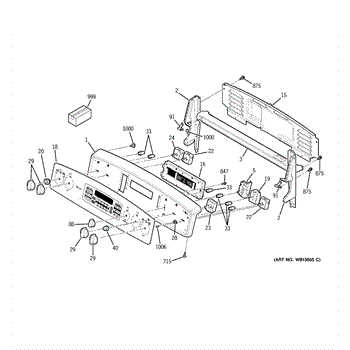

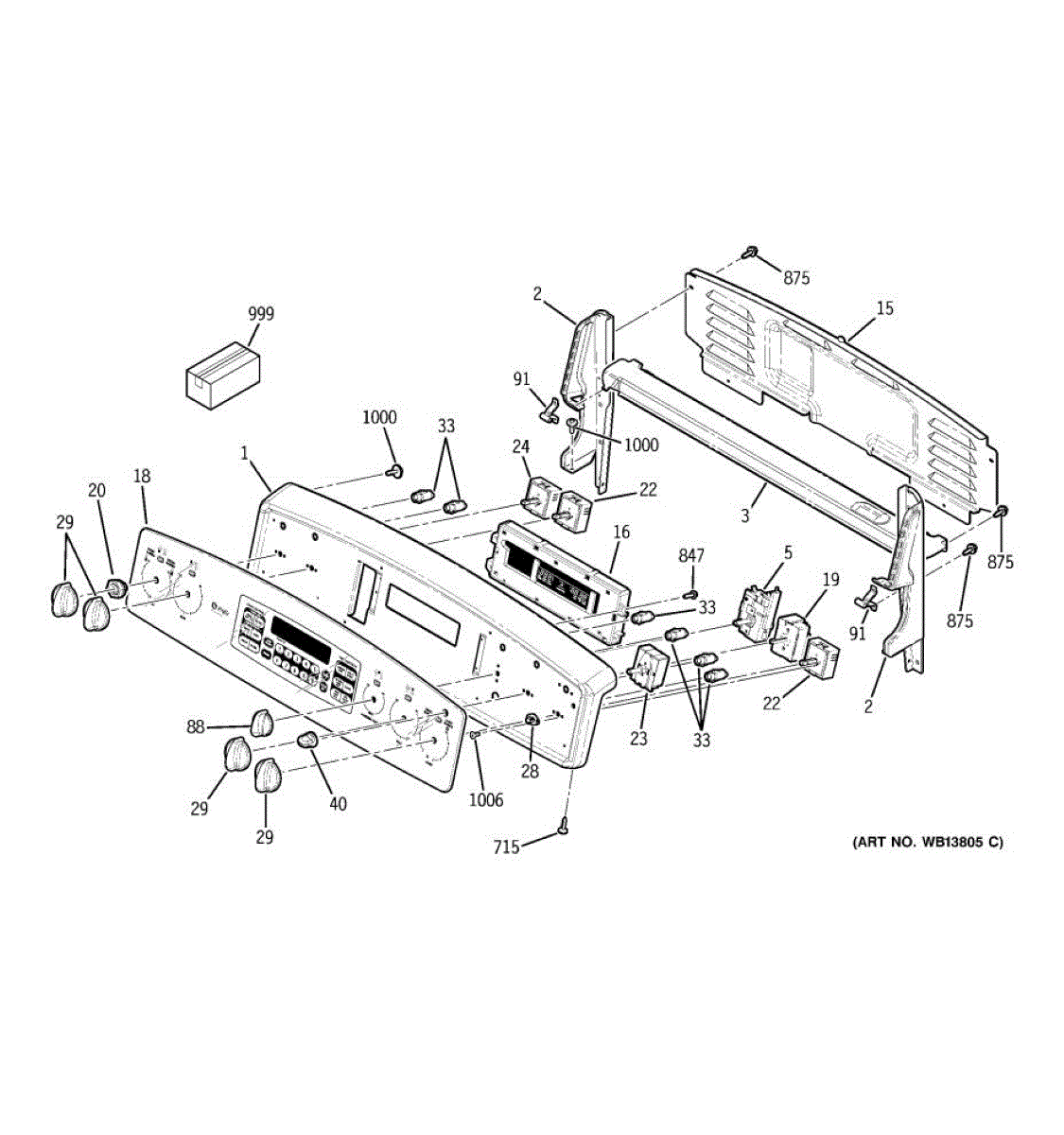

Parts for Ge JB968BK5BB: 01 - Control Panel Parts

Black. Right hand side

Black. Left hand side

This thermostat regulates and maintains the appliance's internal temperature, helping keep food at the correct cooling level and preventing excessive compressor run time. It directly senses temperature and signals the cooling system to cycle on and off. What it does:

• Senses internal cabinet temperature and opens/closes the circuit to control cooling cycles
• Stops cooling when desired temperature is reached and restarts it when the temperature rises
• Can cause the appliance to run constantly, not cool, or have temperature swings when faulty
• Works with the control system to maintain stable storage temperatures

• Disconnect power before testing or replacing the thermostat to avoid shock or damage
• Handle sensing element/capillary carefully to avoid kinks or damage
• Reinstall in the same position and orientation as the original for proper sensing

This crystal retainer secures the clear lens on the appliance's control panel, keeping it properly seated and protected. Replacing a damaged or missing retainer restores a snug fit and helps prevent the lens from shifting or rattling.

• Holds the lens/crystal firmly in place to protect the window over the clock/timer or display
• Maintains proper alignment and a clean, finished appearance around the panel window
• Helps reduce vibration, rattling, or gaps around the lens area
• Failure may show as a loose or missing window, uneven fit, or buzzing from the panel

• Disconnect power at the breaker before servicing
• Access the retainer from behind the control panel; remove covers/screws as needed to reach the lens area
• Support the lens while removing/installing the retainer so it doesn't fall
• Wear gloves and eye protection; sheet-metal edges can be sharp

The Infinite Control Switch is an OEM part for GE ranges and cooktops. This switch regulates the heat levels of the burners, allowing users to adjust the cooking temperature to their desired setting. It ensures that each burner provides consistent and controllable heat for precise cooking.

Causes of a bad infinite control switch can include regular wear and tear, electrical surges, or damage from spills and splashes. Over time, these factors can lead to the switch malfunctioning, which may result in poor temperature control or complete failure of the burner.

Symptoms of a bad infinite control switch include:

• The burner not heating up or heating inconsistently
• The burner staying on high heat regardless of the setting
• Difficulty adjusting the burner temperature
• The switch feeling loose or unresponsive

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM replacement part for GE electric stoves. This component acts as the main selector switch for a Dual Coil Element stove to function in different modes and settings.

Symptoms of a bad infinite control switch include:

• Difficulty selecting or functioning in certain cooking modes or programs
• Stove burners or ovens not igniting or heating as selected
• Controls flickering, blinking, or becoming unresponsive

Causes of a bad control switch can be normal wear from frequent use over time, loose connections from vibration, or potential spills that cause internal damage.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This crystal mount secures the small clear lens ("crystal") in the appliance's panel opening, keeping it properly seated and protecting internal components. Replace a damaged or missing mount to restore a snug, finished fit and reliable indicator visibility. What it does:

• Holds the lens firmly in place within the console or backsplash opening
• Helps shield internal controls from grease, spills, and heat around the opening
• Restores proper appearance and panel feel when the original mount is cracked or warped
• Common symptoms: loose or missing lens, rattling panel, visible gap, or a lens that won't stay clipped

• 1 crystal mount

• Disconnect power and allow the appliance to cool before servicing
• Access the panel area; remove screws/clips to release the existing lens and mount
• Transfer the lens to the new mount, align tabs, and secure with existing fasteners
• Do not overtighten; verify the lens sits flush and operates as intended

The Knob is an OEM replacement part for GE ranges. This knob is responsible for operating the temperature control dials on the electric range. Over time, knobs can become worn, cracked or damaged making them difficult to turn accurately. Color: black. Measures about 2 inches in diameter.

Causes of a bad knob can include normal wear and tear from repeated use over many years. They can also be damaged if the range surface is cleaned with harsh chemicals or abrasive cleaners.

Symptoms of a bad knob include:

• Difficulty turning or toggling between temperature/time settings
• Poor response or inconsistencies when adjusting the knob
• Loose, wiggly or unstable feel that doesn't stay securely in position
• Cracks, chips or obvious signs of physical damage

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: glossy black. Measures about 1 inch in diameter, and 1 inch deep.

Color: Black

Black. 8-18 x 5/16 inch.

Package of 12

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
