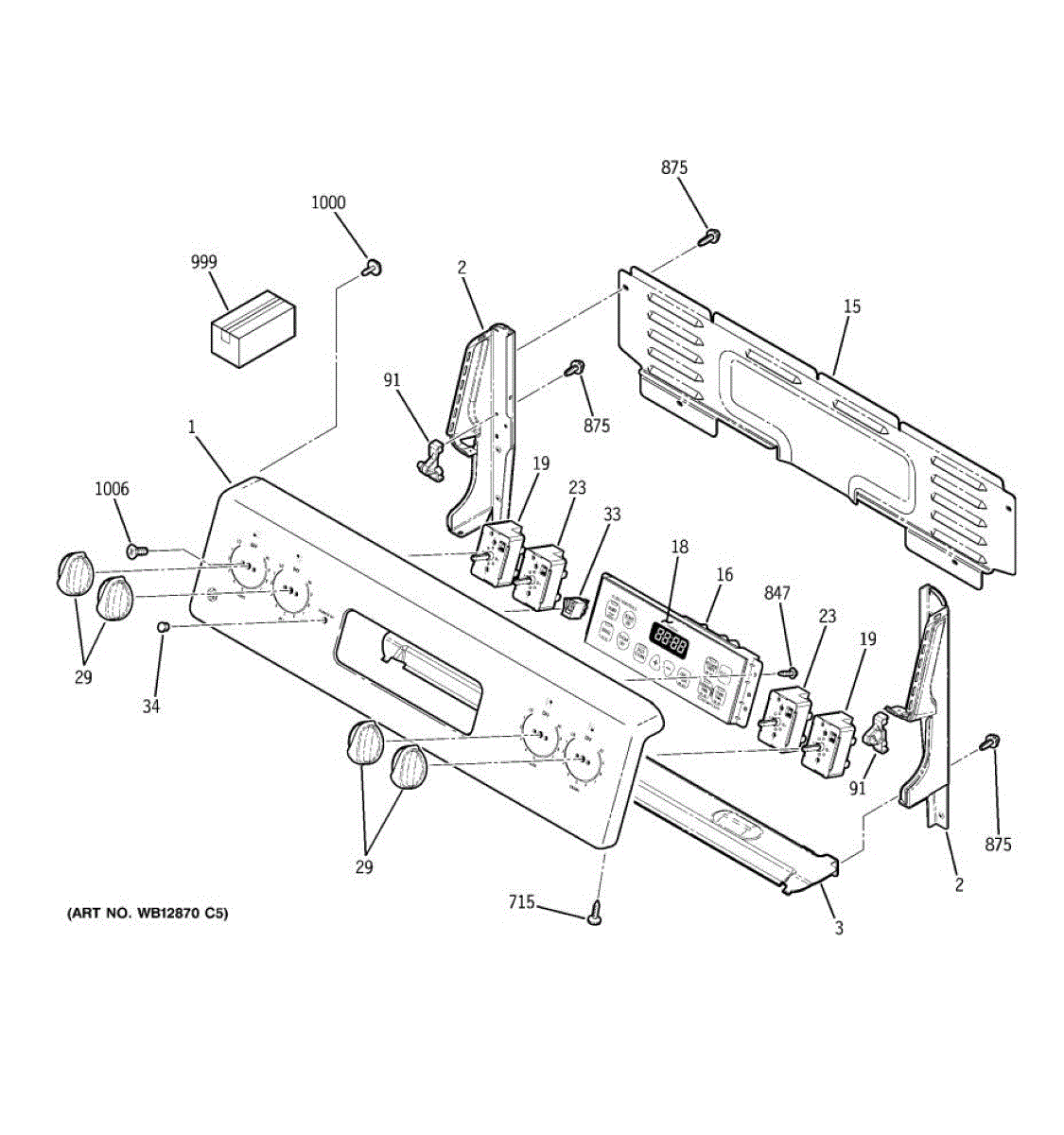

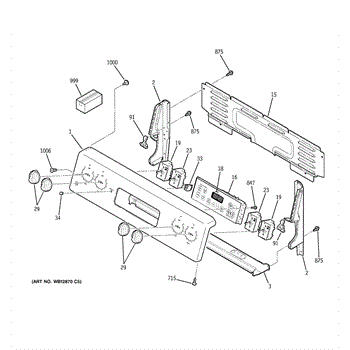

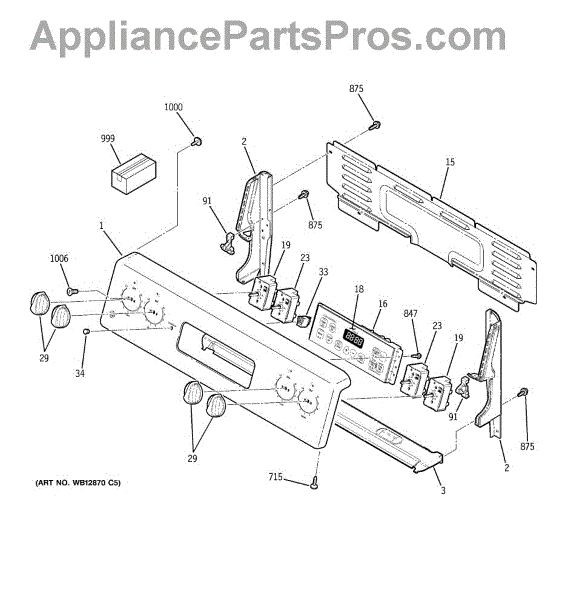

Parts for Ge JBP35DM1CC: 01 - Control Panel Parts

Color: Black


Color: Bisque


Color: White


The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

The Faceplate Graphics is an OEM part for GE ranges. It is responsible for covering and protecting the control panel, while also displaying the necessary graphics and labels for operating the oven.

Causes of a bad faceplate graphics can include exposure to high temperatures, wear and tear over time, or damage due to cleaning with harsh chemicals.

Symptoms of a bad faceplate graphics include:

• Faded or illegible graphics
• Cracks or peeling of the faceplate
• Difficulty in identifying or using controls
• Discoloration or warping of the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Overlay is an OEM replacement part for GE ovens. This overlay is essentially the interface between you and your oven's control board. It features buttons and symbols that allow you to set temperatures, cooking modes, and timers. The overlay is designed to fit directly over the control board, providing a user-friendly interface for your appliance.

Causes for a malfunctioning Oven Overlay can include wear and tear from frequent use, damage from cleaning solutions or spills, or issues with the adhesive that keeps it attached to the control board.

Symptoms of a bad Oven Overlay include:

• Unresponsive or inconsistent buttons
• Peeling or bubbling of the overlay material
• Difficulty in setting cooking modes or temperatures
• Error messages that may indicate a communication issue between the overlay and the control board

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement control knob presses onto the range/cooktop's infinite switch shaft to turn a surface element on/off and adjust heat levels. It restores smooth, dependable temperature selection and a finished look when the original knob is cracked, stripped, or missing.

• Mounts on the surface burner's infinite switch to select Low-to-High settings and Off
• Provides direct, smooth control of the surface heating element
• Typical symptoms: broken or missing knob, stripped hub that won't turn the switch, loose/wobbly fit
• Replacing the knob alone will not resolve the issue

• Disconnect power at the breaker before servicing
• Pull the old knob straight off the switch shaft—avoid prying on the control panel
• Align the new knob with "Off" and press straight on until fully seated
• Verify smooth rotation and proper pointer alignment with the panel markings

Color: White

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Black. 8-18 x 5/16 inch.

White. 8-18 x 5/16 inch.

Bisque. 8-18 x 5/16 inch.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
