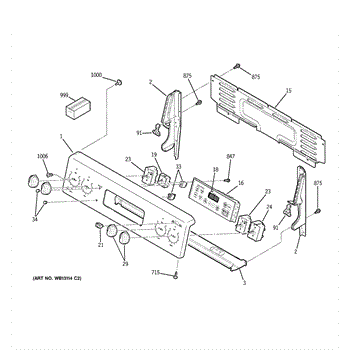

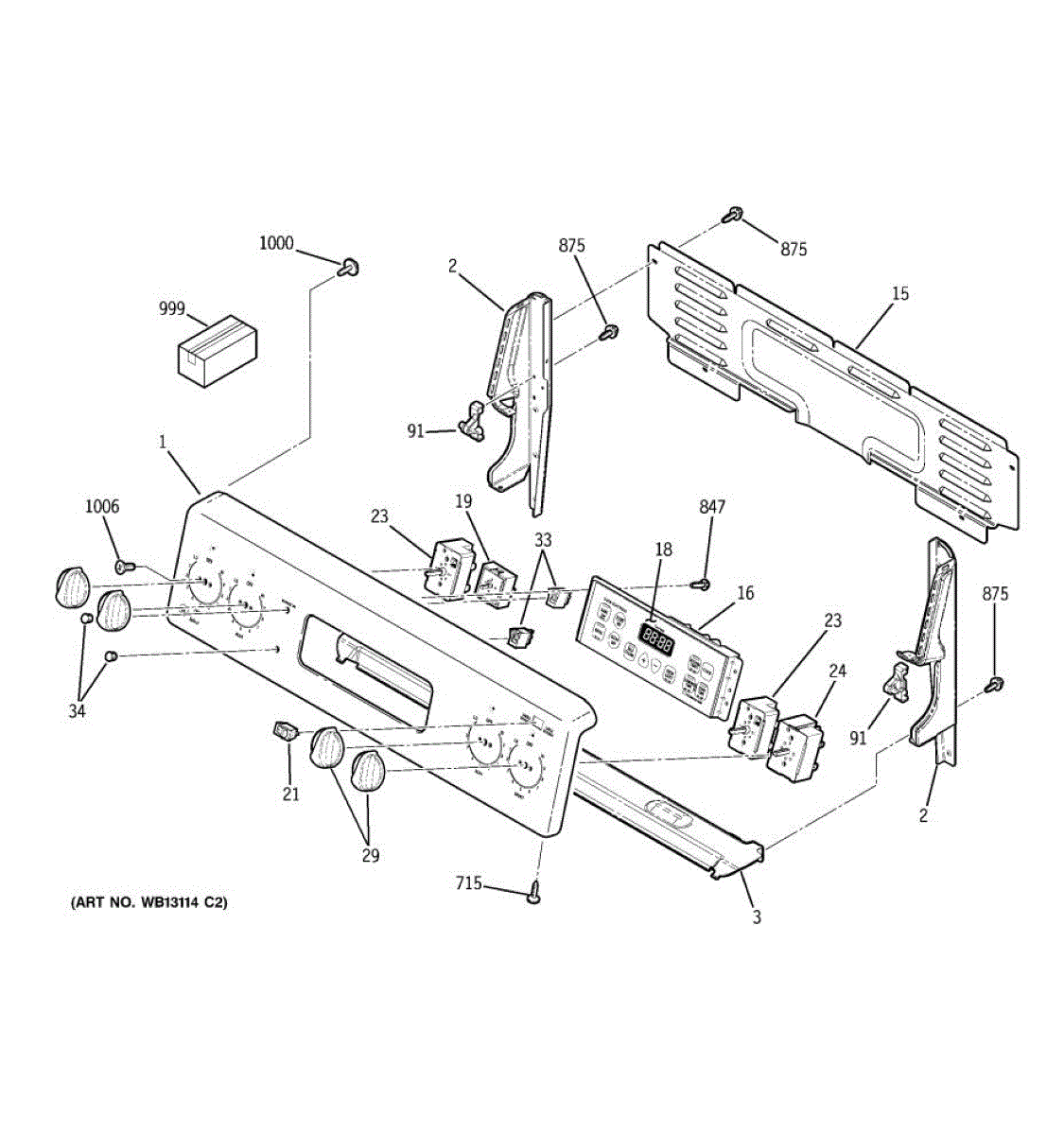

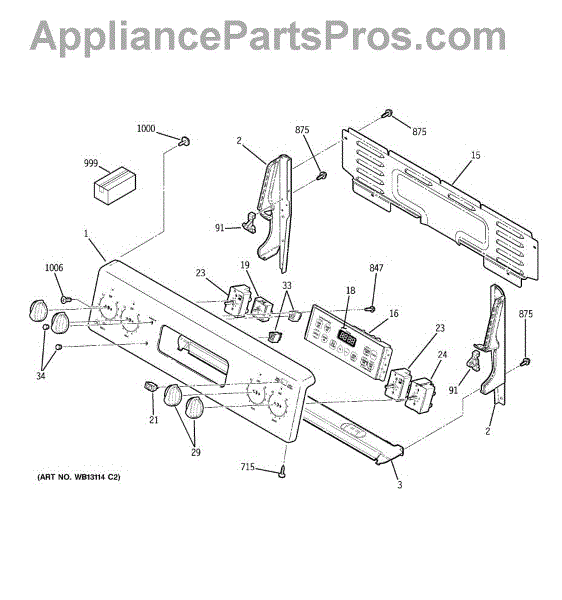

Parts for Ge JBP66BK3CT: 01 - Control Panel Parts

Color: Bisque

Color: Black. Right hand side. For left hand side use WB36T10255

Color: Black. Left hand side. For right hand use WB36T10254

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Bisque

Color: White

Color: Black

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Restore reliable on/off control of your cooking surface. This surface element rocker switch features a white actuator and replaces a worn, loose, or heat-damaged switch that can cause no heat, stuck-on, or intermittent operation.

• Switches power to a surface element when toggled on; disconnects power when off
• Installs in the control panel; white rocker matches white control finishes
• Common symptoms: element won't turn on or won't turn off; intermittent heating; arcing/discoloration; loose or broken rocker
• Helps restore safe, consistent element control

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel area; photograph wiring and transfer wires to the new switch one at a time
• Secure the switch in the panel, reassemble, and restore power
• Match each wire position to the same terminal layout

The Rocker Switch is an OEM part for GE ranges. This switch is used to control the surface heating elements, allowing users to turn them on or off and adjust the heat levels. It is designed to fit securely into the range's control panel, providing reliable operation and ease of use.

Causes of a bad switch rocker element can include regular wear and tear, electrical issues, or damage from spills or high temperatures. Over time, the internal contacts of the switch can degrade, leading to malfunction.

Symptoms of a bad switch rocker element include:

• The heating element not turning on or off
• Difficulty in adjusting the heat levels
• The switch feeling loose or unresponsive
• Flickering or intermittent operation of the heating element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM part for GE ranges. This part controls the temperature of the surface burners by regulating the power sent to the heating elements, allowing for precise heat adjustments during cooking.

Causes of a bad infinite control switch can include electrical issues such as short circuits, wear and tear from regular use, or internal mechanical failures.

Symptoms of a bad infinite control switch include:

• The burner not heating up or getting stuck on one temperature
• Inconsistent or erratic heating
• Difficulty in adjusting the burner temperature
• The burner not turning off or on properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Bisque

Color: Black

Color: White

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Black. 8-18 x 5/16 inch.

White. 8-18 x 5/16 inch.

Bisque. 8-18 x 5/16 inch.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
