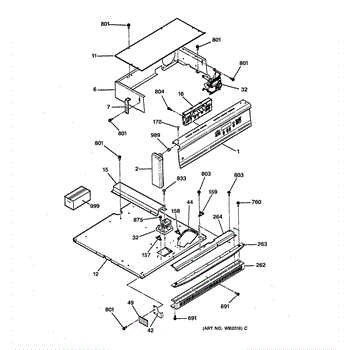

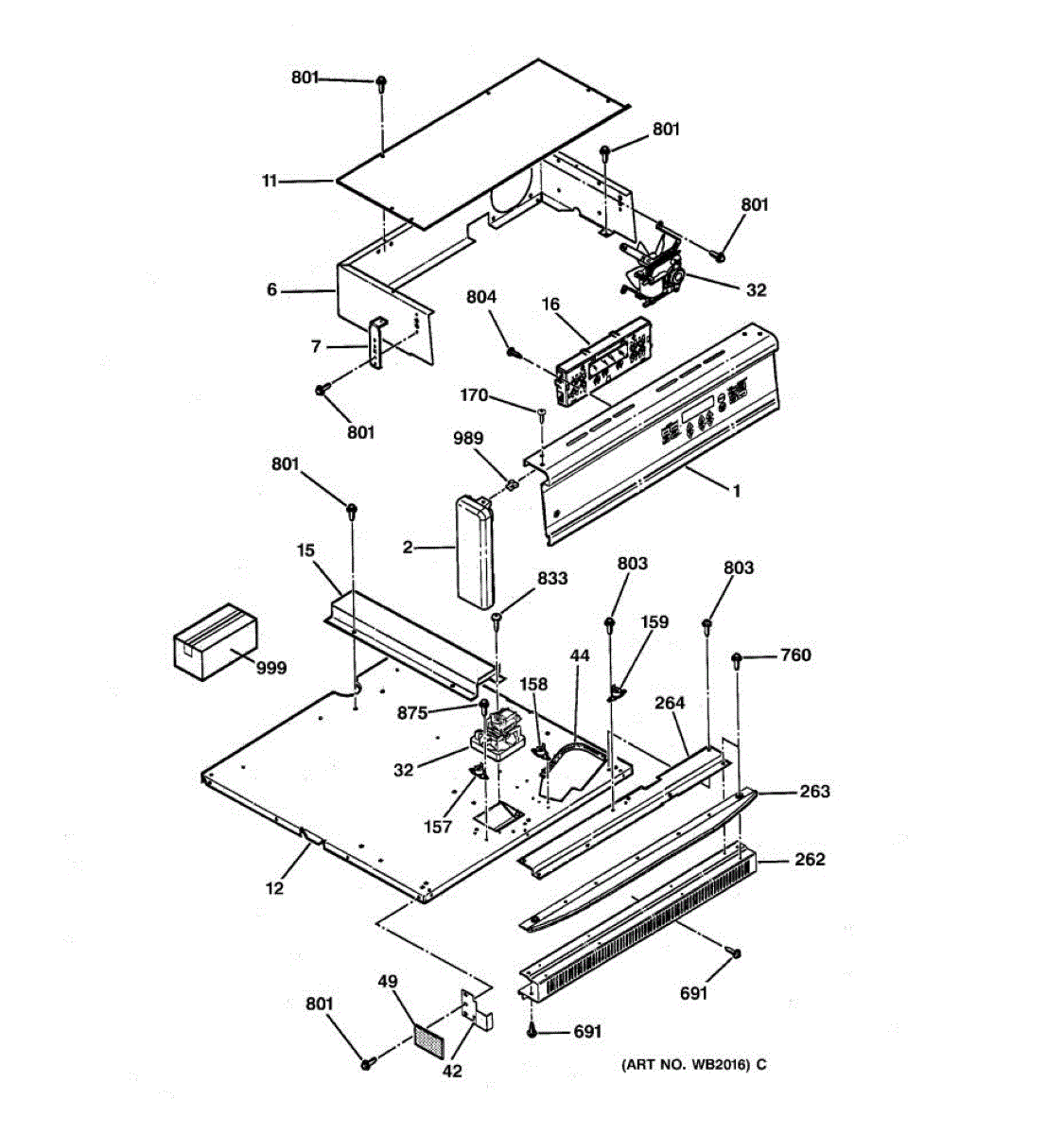

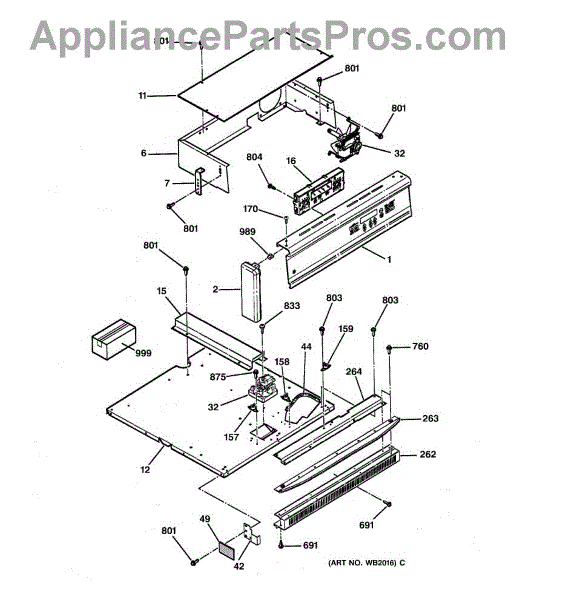

Parts for Ge JGRP17WEW1WW: 01 - Control Panel Parts

A replacement control panel bracket that secures the oven/range control console to the chassis, restoring a stable, aligned control panel for safe operation and clean appearance. Fits the OEM mounting location and restores proper panel support. What it does

• Provides a secure mounting point to hold the control/console assembly in place.
• Prevents a loose, wobbly, or sagging control panel that can cause buttons or touchpads to misalign.
• Stops rattling or vibration noise from the control area during use.
• Helps maintain correct spacing so knobs, buttons and electronic controls operate reliably.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Basic hand tools (screwdriver, nut driver) are typically required; follow the OEM service instructions for disassembly/reassembly.
• Handle surrounding trim, glass, and control surfaces carefully to avoid damage.
• If electronic components were removed, connections before restoring power and test functions after installation.

Fix excessive fan noise or overheating with this cooling fan assembly. Common fix for loud bearings or warped blades. Takes about 5-10 minutes to replace.

Fix a noisy or non-working convection fan with this motor assembly. Restores even heating and airflow in your oven. Takes about 30 minutes to install.

If your oven won't heat but the igniter glows, the thermal limit switch may have tripped. This safety cutoff prevents overheating. DIY-friendly repair.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Insulation panel that fits on top and sides of your oven cavity. Replace if torn, compressed, missing, or damaged to restore heat retention and efficiency.

Black I-brow trim piece that covers the door opening and control area on your oven. Replace if cracked, faded, or missing to restore a clean look.

Replace your cracked or missing range vent trim extension. This cosmetic trim piece covers the vent extension area for a finished appearance.

Color: White. For black order WB7X7183. Oven door handle endcap.

Wire harness that connects the control valve to the oven's electrical system. Replace if wires are frayed, connectors are damaged, or harness is broken.

Mounting screw for securing range components and panels. Replace if stripped, rusted, missing, or broken to properly fasten parts during repairs.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or con

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it co

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

White trim screw for ovens and ranges. Secures trim panels and decorative components. Replace missing, stripped, or damaged screws during repairs.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Replacement mounting screw for securing panels, brackets, and components inside your range or oven. Restores proper fit when original is missing or stripped.

Package of 12

Mounting screw for range or cooktop installation. Secures components during assembly. Replace if lost, stripped, or corroded. Essential hardware piece.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Black. 8-18 AB HXW 3/8

Nickel

Nickel

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

Secures and routes electrical cables inside your oven. Replace if damaged, cracked, or missing to prevent wire wear and maintain safe operation. Verify fit with your model number before ordering.
