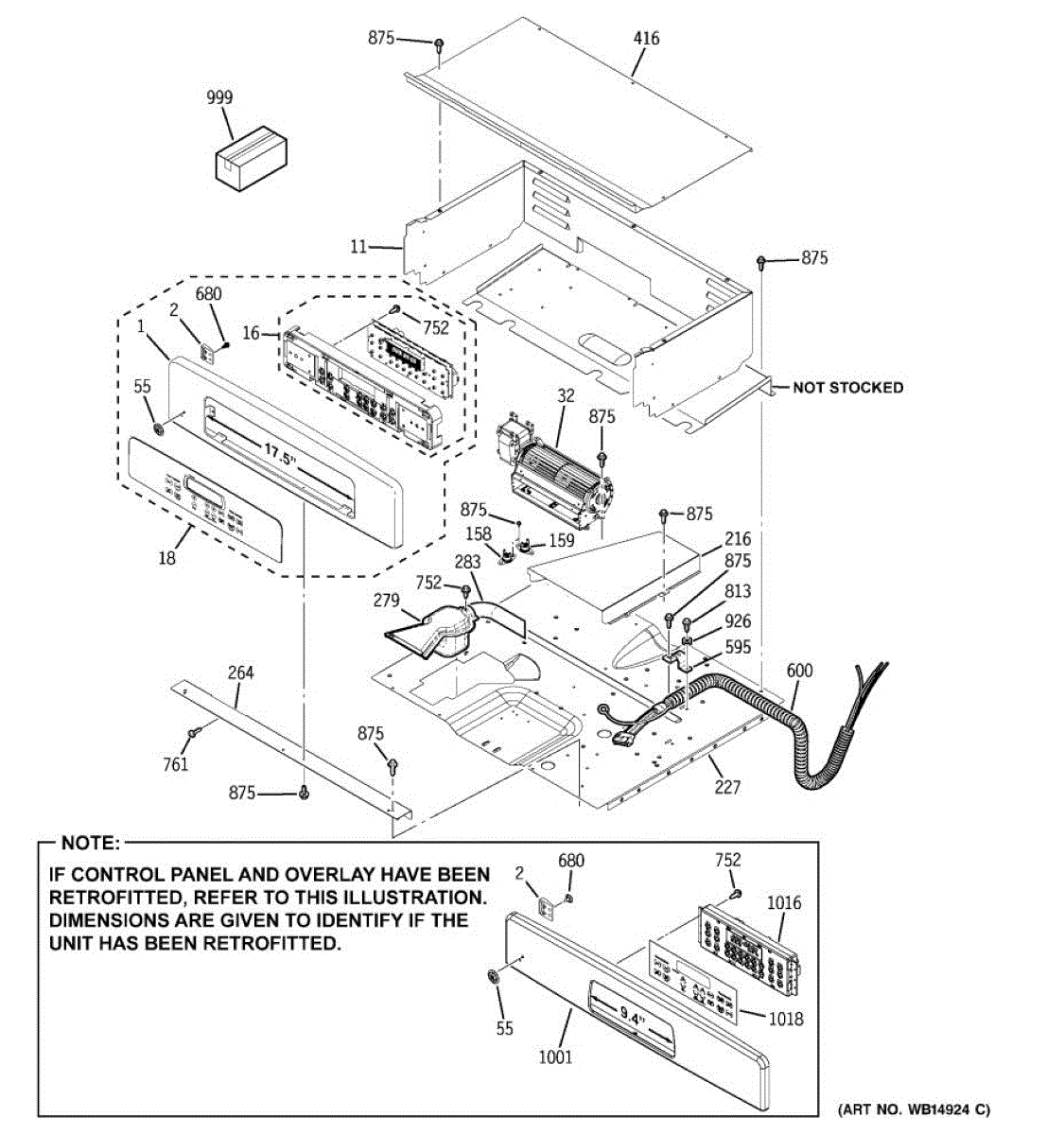

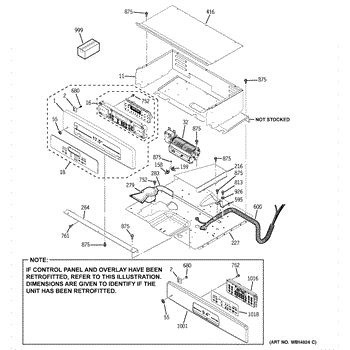

Parts for Ge JKP30CM2CC: 01 - Control Panel Parts

Control support trim provides a stable mounting point for the oven or range control console and circuit board, restoring proper alignment and helping prevent the control module from shifting or rattling during use. What it does:

• Secures the control console and associated circuit board to the appliance frame to maintain correct alignment.
• Reduces or eliminates loose, rattling, or misaligned control panels that can affect button/knob operation.
• Helps protect the control module from movement-related stress during normal use or door operation.
• Used when the original support is cracked, bent or missing and when replacing a damaged console assembly.

• Always disconnect power to the appliance before beginning any service.
• Access typically requires removing the control/console assembly; retain original screws and mounting hardware if reusable.
• Handle the control board and ribbon cables carefully to avoid damage; avoid touching electronic contacts.
• Test console alignment and operation before fully reassembling trim and tightening fasteners.

This fan housing is the replacement assembly that supports and secures the appliance fan, directing airflow to keep internal components cooled and operating efficiently. Restores proper airflow and helps reduce overheating-related issues. What it does

• Holds the fan motor and blades in the correct position to channel airflow through the appliance.
• Maintains stable airflow to help evaporator, condenser, or electronic components stay cool.
• Can resolve symptoms such as noisy or wobbling fan operation, poor cooling, or intermittent motor contact caused by a damaged or cracked housing.
• Keeps the fan properly aligned to prevent rubbing, vibration, or premature motor wear.

• One fan housing assembly.

• Disconnect power before inspecting or replacing the housing to avoid shock or injury.
• Verify mounting tabs and mating surfaces are intact; replace any damaged fasteners or clips as needed.
• Handle plastic housings carefully to avoid cracking; follow OEM service instructions for access and reassembly.
• If noise or poor airflow persists after installation, inspect the fan blade and motor for separate wear or damage.

This logo badge is the decorative nameplate used on select cooking appliances. Replacing a missing or worn emblem restores the finished factory look and keeps the front of your appliance looking complete and consistent with the original design.

• Cosmetic component that displays the appliance logo and completes the front panel or door
• Replaces a badge that is missing, cracked, peeling, or discolored
• Helps refresh the appliance's appearance without affecting operation
• Common signs: badge fell off, won't adhere, looks faded or damaged

• Disconnect power before working near control panels or doors
• Note the badge's original location and orientation before removal
• Use a non-marring tool to gently lift the old emblem if present; avoid scratching finishes
• Clean and dry the surface thoroughly before pressing the new badge into place

This limit switch is a safety cutoff that helps stop power to heating circuits when a fault or over-temperature condition occurs, protecting the appliance and reducing fire risk. It's a direct-fit replacement part designed to restore proper safety control. What it does

• Opens the circuit to shut off heating when the temperature climbs above safe limits
• Prevents continuous heating during thermostat or control failures
• Common symptom: oven or cooktop won't heat or keeps shutting off unexpectedly
• Common symptom: burner or element fails to stay on despite control inputs

• One limit switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle and route wires carefully; match wire connections exactly per the wiring diagram
• If mounting hardware or connectors are missing on your unit,

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This electrical top cover protects the range's wiring and terminal connections at the rear top area, helping keep wiring secure and shielded from dust and contact hazards. It restores the factory appearance and basic wiring protection. What it does:

• Covers and protects the range's rear-top electrical terminals and wiring harness
• Helps prevent accidental contact with live terminals and reduces debris buildup
• Keeps wiring routed and secured to reduce strain on connections
• Restores the appliance's finished appearance where the cover was missing or damaged

• Disconnect power to the appliance at the breaker or unplug before servicing
• Access may require removal of a back panel or lifting the cooktop depending on model
• Secure with the original screws or fasteners; do not overtighten plastic mounting points
• If terminals or wiring show damage or corrosion, replace or repair those components before reassembly

This conduit wire assembly routes and protects electrical wiring for the appliance, restoring secure connections and safe signal/power routing. It's a direct-fit wiring harness used where factory conduit is required. What it does

• Replaces damaged or frayed conduit wiring to restore safe electrical routing
• Protects internal wires from chafing, heat, and vibration
• Ensures stable power/signal connections between components
• Helps eliminate intermittent electrical faults caused by broken wiring

• One conduit wire assembly as shown

• Recommended for installers or experienced DIYers; disconnect power before servicing
• Verify wire routing and connector orientation match factory harness before finalizing
• Inspect connectors and surrounding components for damage; replace other damaged pieces as needed
• Secure conduit with existing clips or fasteners; do not over-tighten

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This replacement faceplate restores the front control panel appearance and provides a secure mounting surface for the console buttons and display. It helps keep controls aligned and protects internal components from spills and wear. What it does:

• Replaces a cracked, warped, or cosmetically damaged control panel faceplate
• Provides a flat, stable surface so buttons and touch controls operate correctly
• Helps prevent spills and debris from reaching internal electronics
• Restores original fit-and-finish for a clean, factory appearance

• Disconnect power (unplug appliance or switch off circuit) before starting any work
• Removal typically requires loosening console screws or clips; keep track of fasteners
• Handle carefully to avoid scratching the finish or damaging mounting tabs

This faceplate is the front cover for the control panel. It restores a finished look and helps protect and support the control assembly so the controls align and operate correctly.

• Covers and shields the control assembly from everyday use
• Provides secure mounting and proper alignment for controls
• Replace if cracked, warped, or if mounting tabs are broken
• Common signs include a loose or missing cover, rattling panel, or misaligned controls

• Disconnect power at the breaker before servicing
• Remove screws/retainers to lift the control panel; support the board and wiring
• Transfer any existing brackets or clips to the new faceplate as needed
• Reinstall, restore power, and test
