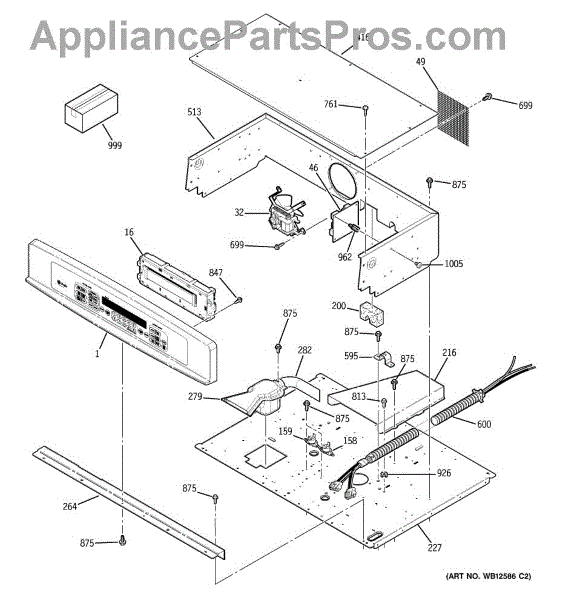

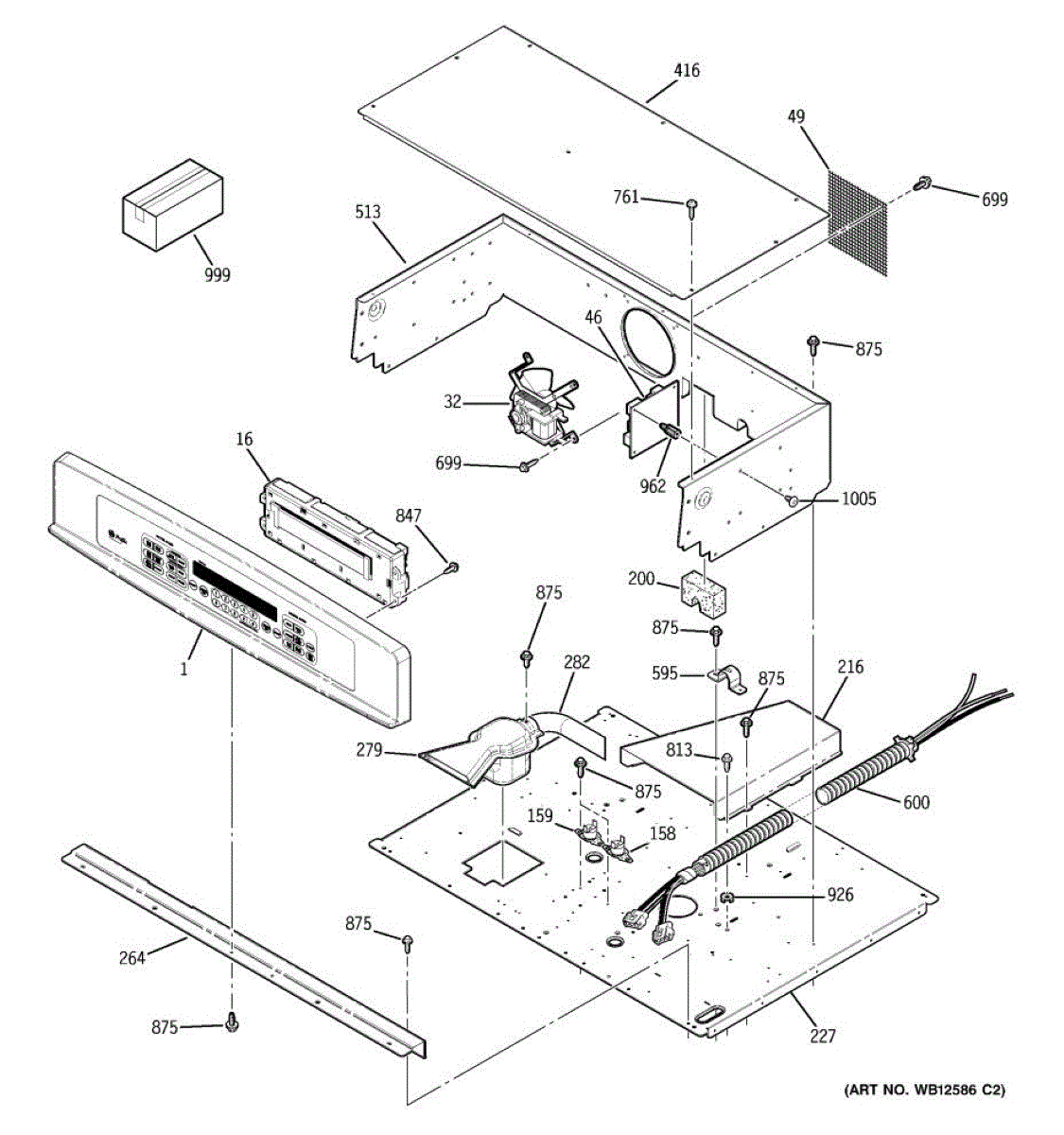

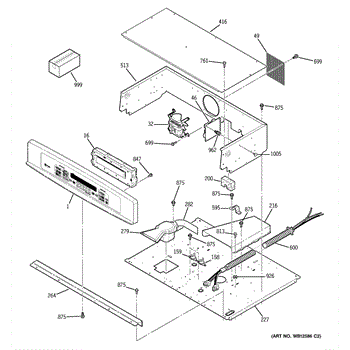

Parts for Ge JT952BF5BB: 01 - Control Panel Parts

The control board assembly is intended for use with wall ovens. This part can be found near the top of the oven, where a small screen gives information about time, temperatures, or applicable error codes. The purpose of the control board assembly is to monitor and control the temperature, time, and other aspects of the cooking cycle. In some cases, the control board assembly will go bad and require a replacement. A screwdriver will be needed for the process. A pair of work gloves are also useful for protecting the hands of the user. Before starting, make sure the oven is not connected to power. There are several screws that hold the control board assembly to the appliance. These should be loosened to pull the board away from the oven. Make a note of where the wires are located before disconnecting them and removing the control board assembly. Install the new component and plug it in before using it.This is an authentic OEM replacement part that is made to be used with wall ovens and microwave oven combo appliances created by General Electric. This part comes as a single component.

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

This electronic oven control (ERC) is the main user interface and control board that manages oven functions and timing, restoring reliable cycle control and display feedback for affected ranges. What it does:

• Receives input from the touchpad/knobs and controls bake/ broil cycles, timers and display functions
• Regulates oven heating commands sent to the relay/line outputs (symptoms: oven won't heat or maintains incorrect temperature)
• Restores display/clock functionality and control responsiveness when the original board is faulty
• Can resolve issues like unresponsive controls, blank or erratic display, or error codes tied to the control electronics

• One electronic oven control (ERC) board

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board carefully and avoid touching circuit traces or connectors; use ESD precautions where possible
• Follow the appliance service manual for access steps—installation typically requires removing the console or rear access panel and disconnecting ribbon/plug connectors

This bimetal limit thermostat is a temperature-safety control that interrupts power when oven temperature rises above its design point, protecting the appliance and helping maintain safe operation. What it does:

• Acts as an over-temperature cutoff that opens when the internal sensor reaches its trip temperature
• Prevents continued heating during an overheat condition
• Can stop heating element operation or clock/regulator cycling when the limit is open
• Common symptom: oven or broil element stops coming on or oven heats uncontrollably before shutting down

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the oven back panel or control housing; follow the service manual for your model
• Note and label wiring before removal to ensure correct reconnection

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
