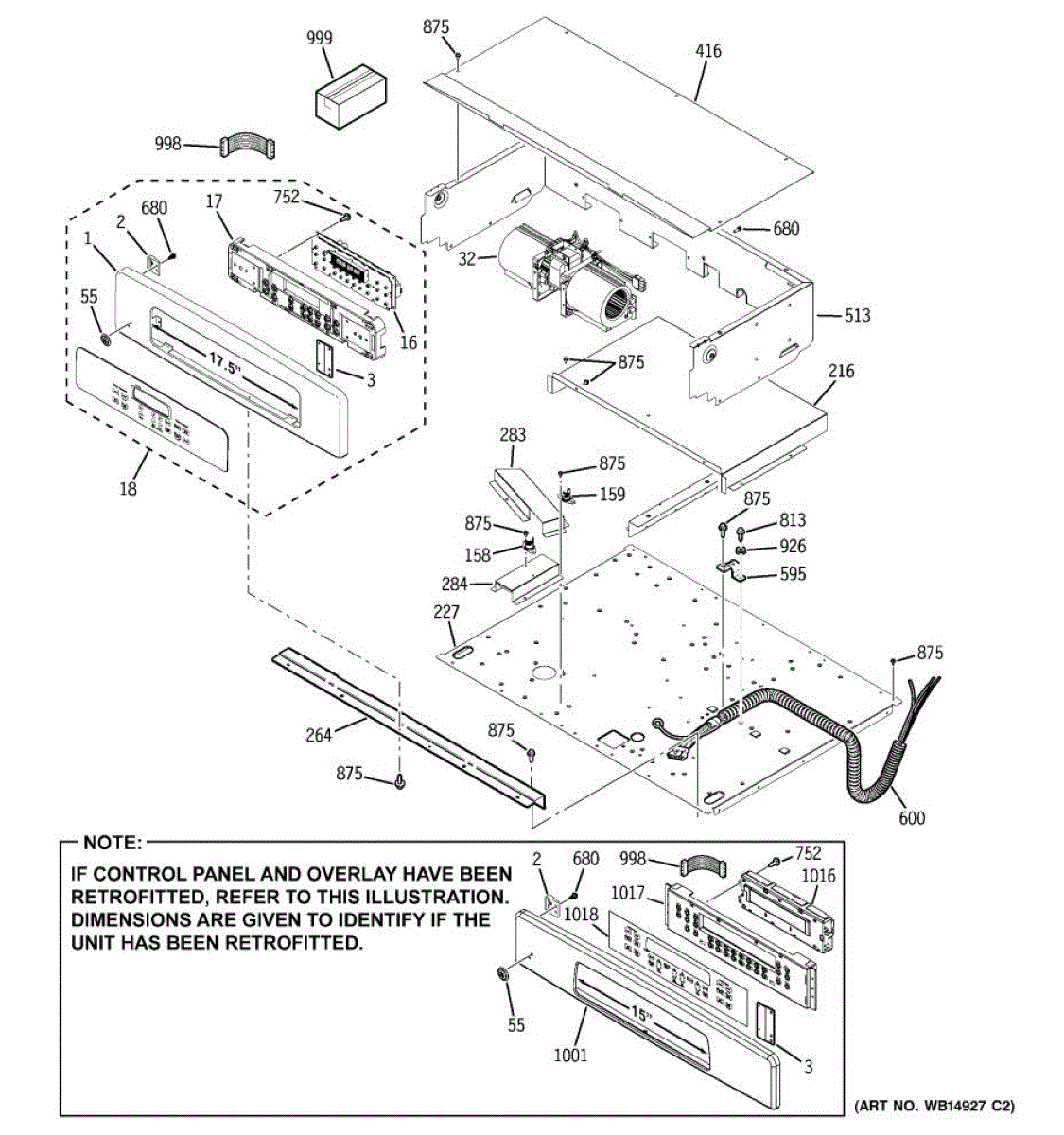

Parts for Ge JTP55CM1CC: 01 - Control Panel Parts

Control support trim provides a stable mounting point for the oven or range control console and circuit board, restoring proper alignment and helping prevent the control module from shifting or rattling during use. What it does:

• Secures the control console and associated circuit board to the appliance frame to maintain correct alignment.
• Reduces or eliminates loose, rattling, or misaligned control panels that can affect button/knob operation.
• Helps protect the control module from movement-related stress during normal use or door operation.
• Used when the original support is cracked, bent or missing and when replacing a damaged console assembly.

• Always disconnect power to the appliance before beginning any service.
• Access typically requires removing the control/console assembly; retain original screws and mounting hardware if reusable.
• Handle the control board and ribbon cables carefully to avoid damage; avoid touching electronic contacts.
• Test console alignment and operation before fully reassembling trim and tightening fasteners.

The Fan Kit is an OEM part for GE ovens and ranges. This part regulates the internal temperatures and preventing overheating.

Causes of a bad Fan Kit can stem from motor failure due to wear and tear, obstructions or debris blocking proper airflow, or damage to the fan blades or housing.

Symptoms of a bad Fan Kit include:

• Excessive heat buildup inside the oven cavity
• Failure of the oven to maintain consistent temperatures
• Strange noises or lack of airflow from the fan

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This logo badge is the decorative nameplate used on select cooking appliances. Replacing a missing or worn emblem restores the finished factory look and keeps the front of your appliance looking complete and consistent with the original design.

• Cosmetic component that displays the appliance logo and completes the front panel or door
• Replaces a badge that is missing, cracked, peeling, or discolored
• Helps refresh the appliance's appearance without affecting operation
• Common signs: badge fell off, won't adhere, looks faded or damaged

• Disconnect power before working near control panels or doors
• Note the badge's original location and orientation before removal
• Use a non-marring tool to gently lift the old emblem if present; avoid scratching finishes
• Clean and dry the surface thoroughly before pressing the new badge into place

Restore safe, reliable heating with this bimetal limit switch. It senses excessive temperature inside your range or cooktop and opens the circuit to prevent overheating, then automatically resets once the area cools to a safe level.

• Monitors temperature and interrupts power when a preset limit is reached
• Automatically resets after cooling to resume normal operation
• Helps protect heating components, wiring, and controls from heat damage
• Common signs of failure: little or no heat, intermittent cycling, or overheating; fails continuity testing

• Disconnect power and allow the appliance to cool completely before servicing
• Access the switch location; note wire positions and transfer them one at a time to the new switch
• Mount the new switch in the same orientation; ensure proper thermal contact as designed
• Inspect connectors for heat damage, replace if needed, then reassemble and test operation

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This top insulation retainer secures oven/range insulation in place behind the cooktop or control panel so insulation stays put and helps maintain safe, even operation. It's a small but important fastener for proper internal fit. What it does:

• Holds top insulation or thermal blanket securely to the appliance chassis
• Prevents insulation from shifting, sagging, or contacting hot components
• Helps reduce heat transfer and maintains proper airflow around elements
• Commonly replaced when clips are broken, missing, or insulation is loose

• Basic hand tools may be required; inspect surrounding insulation and panels for damage before reassembly
• Replace only with the correct retainer to ensure proper fit and securement
• Disconnect power or gas and allow appliance to cool before accessing internal components

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This wiring harness connects the appliance control keypad to the main control assembly, restoring reliable keypad signaling and touch response. Designed to replace a damaged or faulty keyboard harness for proper console operation. What it does:

• Transfers keypad/button signals to the control board so commands are registered.
• Replaces frayed, broken, or corroded wiring that can cause intermittent or no response from the keypad.
• Helps resolve symptoms such as unresponsive buttons, erratic console behavior, or control errors related to the keypad connection.
• Maintains correct connector fit and wire routing to preserve factory electrical paths.

• One keyboard wiring harness as shown.

• Disconnect power to the appliance before starting any repair to avoid shock or component damage.
• Handle connectors gently; align and seat each plug fully to ensure secure electrical contact.
• Route the harness following factory clips and channels to prevent pinching or heat exposure.

This electronic oven control replaces the failed ERC3DD control assembly to restore oven functions and user interface. It manages cooking cycles and display feedback so the range responds properly to settings and commands. What it does:

• Controls bake, broil and timing functions through the oven's user interface
• Manages display and keypad communication so selections and status are shown
• Can correct symptoms like unresponsive controls, incorrect cycle behavior, or lack of oven response
• Works as the main logic board that coordinates heating elements and safety features

• One electronic oven control assembly (ERC3DD)

• Always disconnect power at the household breaker before servicing the appliance
• Handle the control board assembly carefully to avoid damage to connectors and the display
• Use basic hand tools and follow OEM service instructions for proper connector seating and grounding

Button board housing that holds the control buttons and secures the control board, restoring stable button alignment and protecting electronics for reliable operation and improved appearance. What it does:

• Secures and positions the button board and PCB so button presses register consistently.
• Protects control electronics from exposure, flexing, or damage caused by a cracked or warped panel.
• Replaces a broken, loose, or cosmetically damaged control panel housing.
• Can help resolve symptoms such as unresponsive, sticking, or intermittently working buttons.

• Disconnect power to the appliance before starting any repair.
• Removal of the control panel and careful handling of ribbon cables/connectors is required; keep track of fasteners and orientation.
• Avoid touching circuit contacts and handle the PCB and flex cables by their edges.
