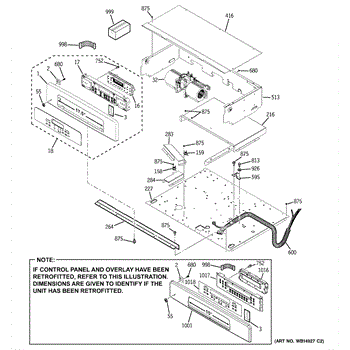

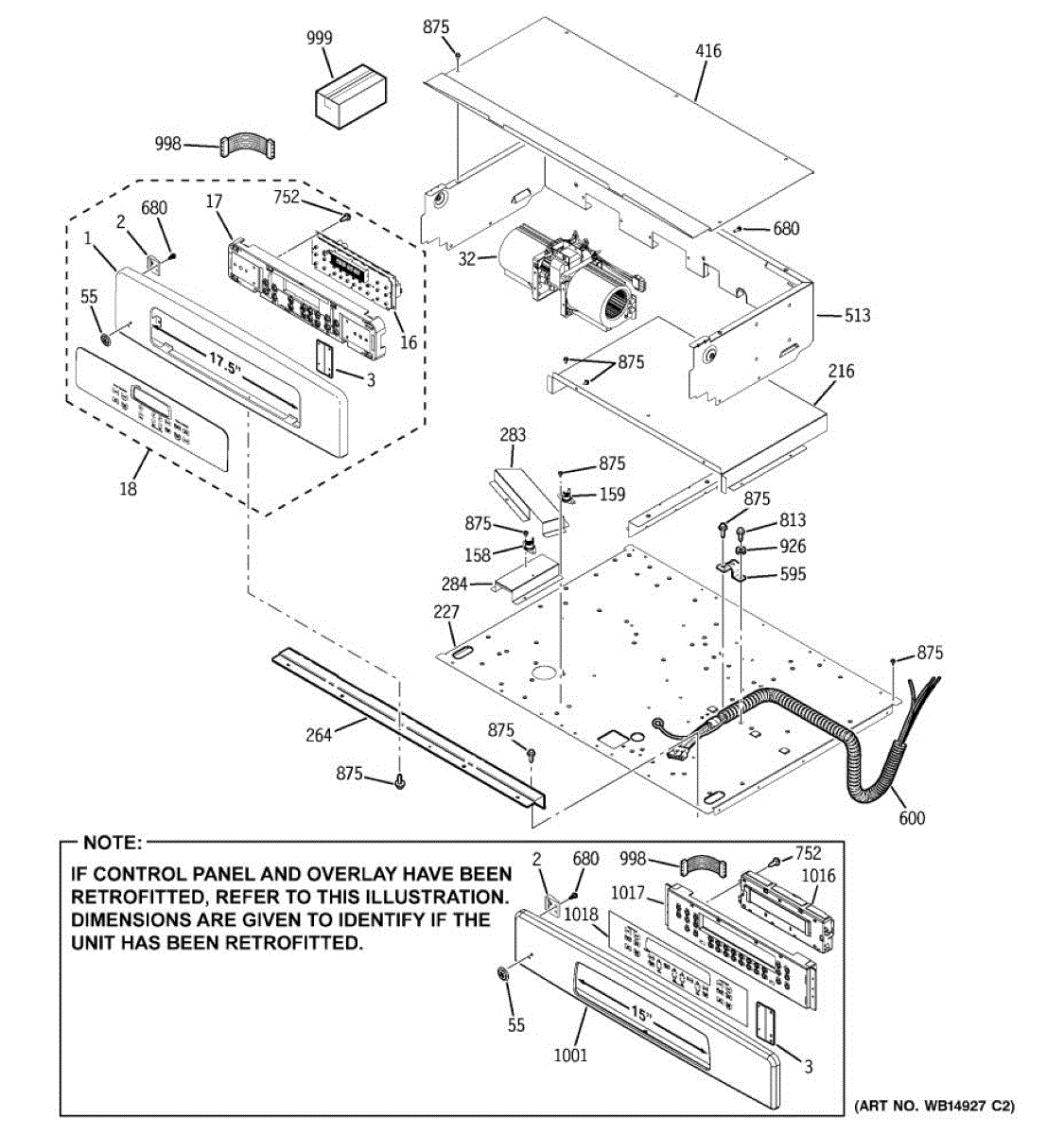

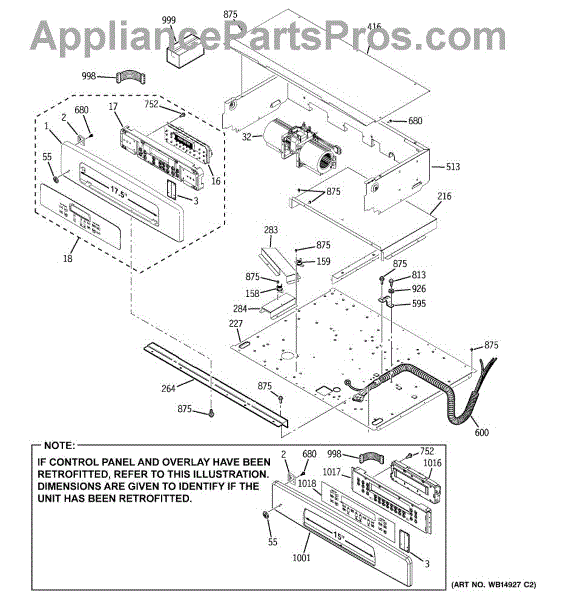

Parts for Ge JTP55CM2CC: 01 - Control Panel Parts

Control panel touch pad for your oven. Installs on the front control area. Replace if cracked, unresponsive, worn from use, or missing buttons.

Mounting bracket that secures the control console and circuit board to the oven frame. Replace if cracked, broken, or causing misalignment issues.

Fix oven shutting off at high temps or frozen control panel. This cooling fan motor prevents overheating electronics. DIY repair takes 15-30 minutes.

Decorative nameplate badge for oven and range front panels. Replaces missing, worn, or damaged emblems to restore factory appearance. Includes adhesive.

Oven overheating or won't heat properly? This thermal limit switch monitors temperature and cuts power to prevent damage. Resets automatically when cooled.

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Secures oven insulation behind the cooktop or control panel. Replace this retainer clip if broken, missing, or no longer holding insulation in place.

Inner vent trim piece for wall ovens. Installs around the interior ventilation area to provide a finished look. Replace if cracked, discolored, or missing.

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

Wire harness assembly for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, damaged, or connections are loose.

Replacement mounting screw for refrigerators. Secures brackets, panels, handles, and covers. Replace lost, stripped, or damaged screws to restore stability.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Range ground washer ensures proper electrical grounding. Prevents shock hazards and ensures safe operation. Quick 5-minute repair for most models.

Connects the control keypad to the main control board in your oven. Replace if wires are damaged, connectors are broken, or harness is worn or melted.

This electronic oven control replaces the failed ERC3DD control assembly to restore oven functions and user interface. It manages cooking cycles and display feedback so the range responds properly to settings and commands. What it does:

• Controls bake, broil and timing functions through the oven's user interface
• Manages display and keypad communication so selections and status are shown
• Can correct symptoms like unresponsive controls, incorrect cycle behavior, or lack of oven response
• Works as the main logic board that coordinates heating elements and safety features

• One electronic oven control assembly (ERC3DD)

• Always disconnect power at the household breaker before servicing the appliance
• Handle the control board assembly carefully to avoid damage to connectors and the display
• Use basic hand tools and follow OEM service instructions for proper connector seating and grounding

Button board housing secures control buttons and PCB in your oven's control panel. Replace if cracked, broken, or worn to restore stable button alignment.

Replace your oven's worn, cracked, or faded touchpad faceplate. This control panel overlay restores the appearance and button responsiveness of your oven.
