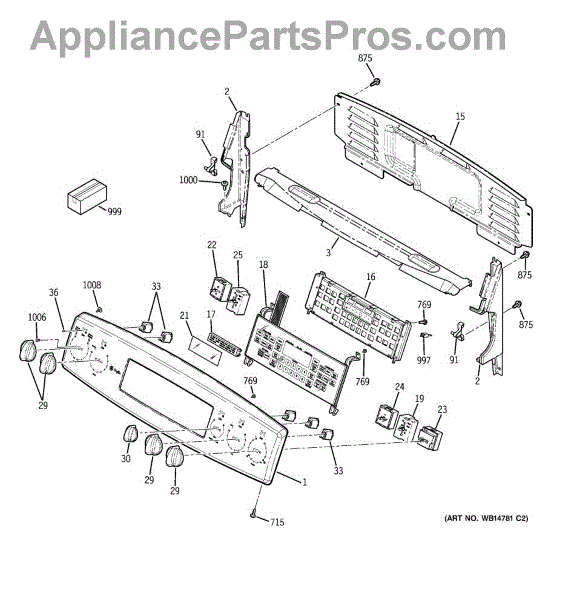

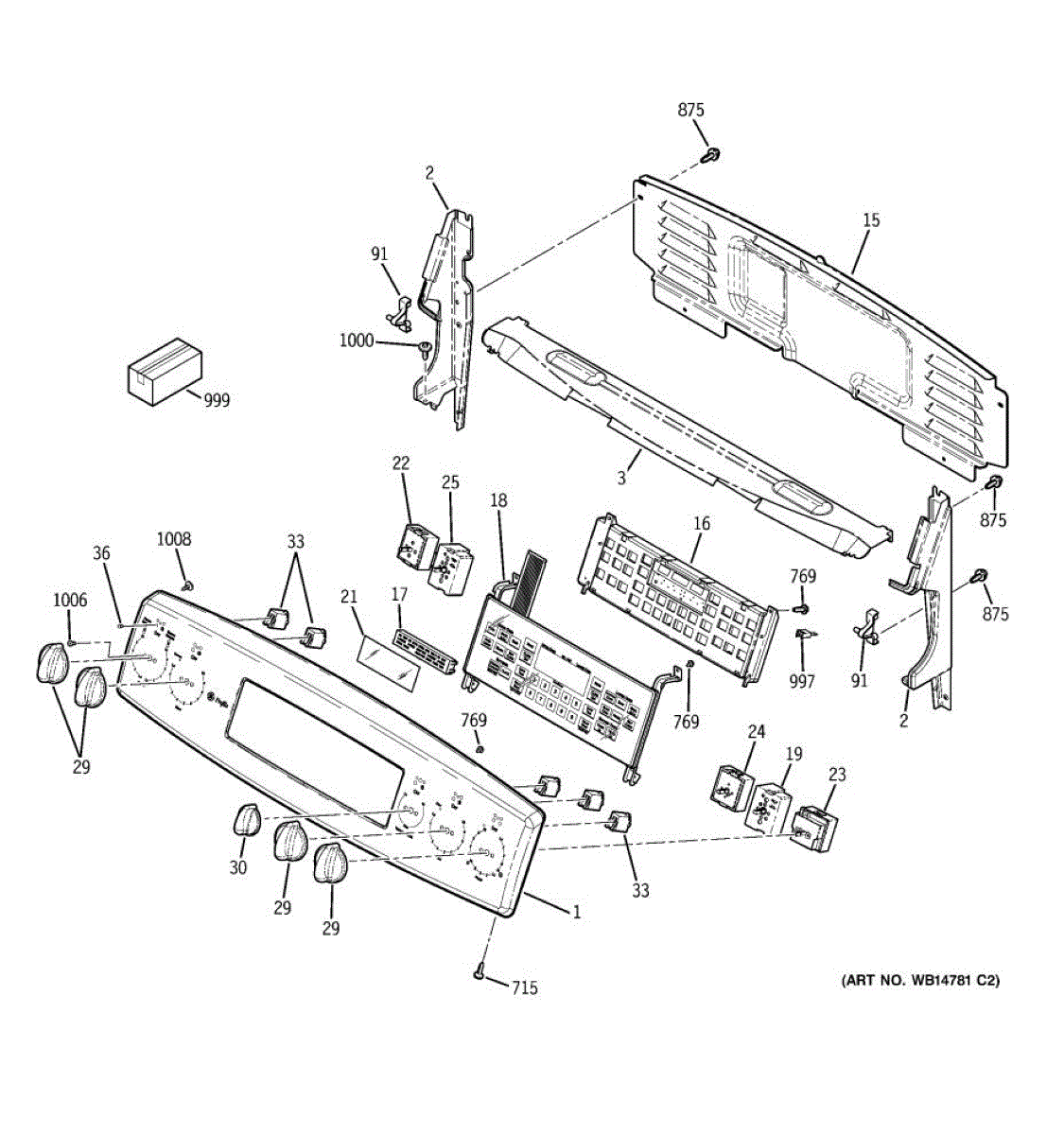

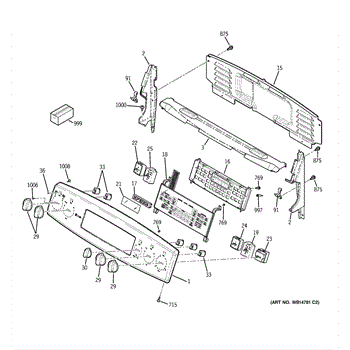

Parts for Ge PB975DP2BB: 01 - Control Panel Parts

This guide & overlay assembly replaces the worn or damaged trim piece that guides and covers the appliance control area, restoring a clean, secure panel appearance and proper button/knob alignment. What it does:

• Provides the outer trim/guide for the control panel so buttons and knobs seat correctly
• Protects underlying switches and electronics from spills and debris
• Restores alignment and prevents sticking or misaligned controls caused by a damaged guide
• Improves the appliance's appearance by replacing faded, cracked, or peeled overlays

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the overlay carefully to avoid scratching or bending during installation
• Installation typically requires removing the control panel or bezel; follow the OEM service instructions
• Use appropriate tools and keep track of screws and clips

Color: White - Membrane Switch Panel

Color: Black - Membrane Switch Panel

The Surface Element Control is an OEM part for GE ranges. It regulates the heat output of the surface elements on the cooktop, allowing users to adjust the cooking temperature precisely.

Over time, the surface element control can wear out due to regular use, electrical issues, or exposure to high temperatures. If it fails, it can lead to inconsistent heating or no heat at all, affecting your cooking performance.

Symptoms of a bad surface element control include:

• Inconsistent or no heat from the surface elements
• The inability to adjust the temperature settings
• The surface element staying on despite being turned off
• Sparking or unusual noises from the control area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This filter clock display is the replacement display assembly that shows the refrigerator clock and filter status indicators, helping you know when a water filter needs changing and restoring normal display function. What it does:

• Shows the refrigerator clock and elapsed time indicator for the water filter
• Displays filter status prompts so you can tell when a replacement is due
• Restores a blank, faded, or unresponsive filter/clock display
• Helps reset or update the filter life indicator when paired with proper reset steps

• Disconnect power to the appliance before beginning any work to avoid shock or injury.
• Handle the display assembly carefully to avoid scratching or damaging the lens or contacts.
• Small tools may be required to remove the control panel; keep track of screws and retainers.
• Follow model-specific disassembly and reassembly instructions.

The Surface Burner Switch is an OEM part for GE electric ranges. This switch controls the heat level of the surface burner, allowing for precise temperature adjustments during cooking.

Common causes of failure include electrical issues, wear from frequent use, or damage from overheating. A malfunctioning switch can prevent the burner from operating correctly, affecting your ability to cook efficiently.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating or only heating intermittently
• Inability to adjust the burner’s temperature
• Burner staying on high heat regardless of setting
• Burner not turning on at all

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This infinite control switch regulates power to a range or cooktop surface element so you can set and maintain the desired heat level. Replacing a worn switch restores smooth, predictable burner control from low simmer to full heat.

• Regulates power to the surface element by cycling on/off to match the selected setting
• Fixes a burner that only works on High or won't heat at all
• Addresses erratic heating or inability to adjust temperature accurately
• Restores consistent cycling for even, repeatable cooking performance

• Disconnect power at the breaker before servicing
• Remove the knob and access the switch from behind the control panel
• Note terminal positions and transfer wires one at a time to the same labeled terminals on the new switch
• Secure the switch, reassemble panels and knob, then test all heat settings

The Infinite Control Switch is an OEM part for GE ranges. This part controls the temperature of the surface burners by regulating the power sent to the heating elements, allowing for precise heat adjustments during cooking.

Causes of a bad infinite control switch can include electrical issues such as short circuits, wear and tear from regular use, or internal mechanical failures.

Symptoms of a bad infinite control switch include:

• The burner not heating up or getting stuck on one temperature
• Inconsistent or erratic heating
• Difficulty in adjusting the burner temperature
• The burner not turning off or on properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob is an OEM replacement part for GE ranges. It attaches to the switch stems to safely turn individual cooking zones on and off as needed. Color: white. It measures about 2 inches in diameter.

Causes of a faulty burner knob typically stem from material fatigue over extended use. Constant rotation can microscopically crack plastic where the knob attaches to the internal switch. Accumulated dirt and grime may also degrade smooth movement.

Symptoms include:

• Loose connection to the switch impeding full activation of coils
• Worn knobs could unexpectedly adjust settings or switch elements on/off.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob is an OEM replacement part for GE ranges. This knob is responsible for operating the temperature control dials on the electric range. Over time, knobs can become worn, cracked or damaged making them difficult to turn accurately. Color: black. Measures about 2 inches in diameter.

Causes of a bad knob can include normal wear and tear from repeated use over many years. They can also be damaged if the range surface is cleaned with harsh chemicals or abrasive cleaners.

Symptoms of a bad knob include:

• Difficulty turning or toggling between temperature/time settings
• Poor response or inconsistencies when adjusting the knob
• Loose, wiggly or unstable feel that doesn't stay securely in position
• Cracks, chips or obvious signs of physical damage

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

White

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

Black. 8-18 x 5/16 inch.

White. 8-18 x 5/16 inch.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Package of 12

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

Size: 8-18 BA POR 3/4 SN
