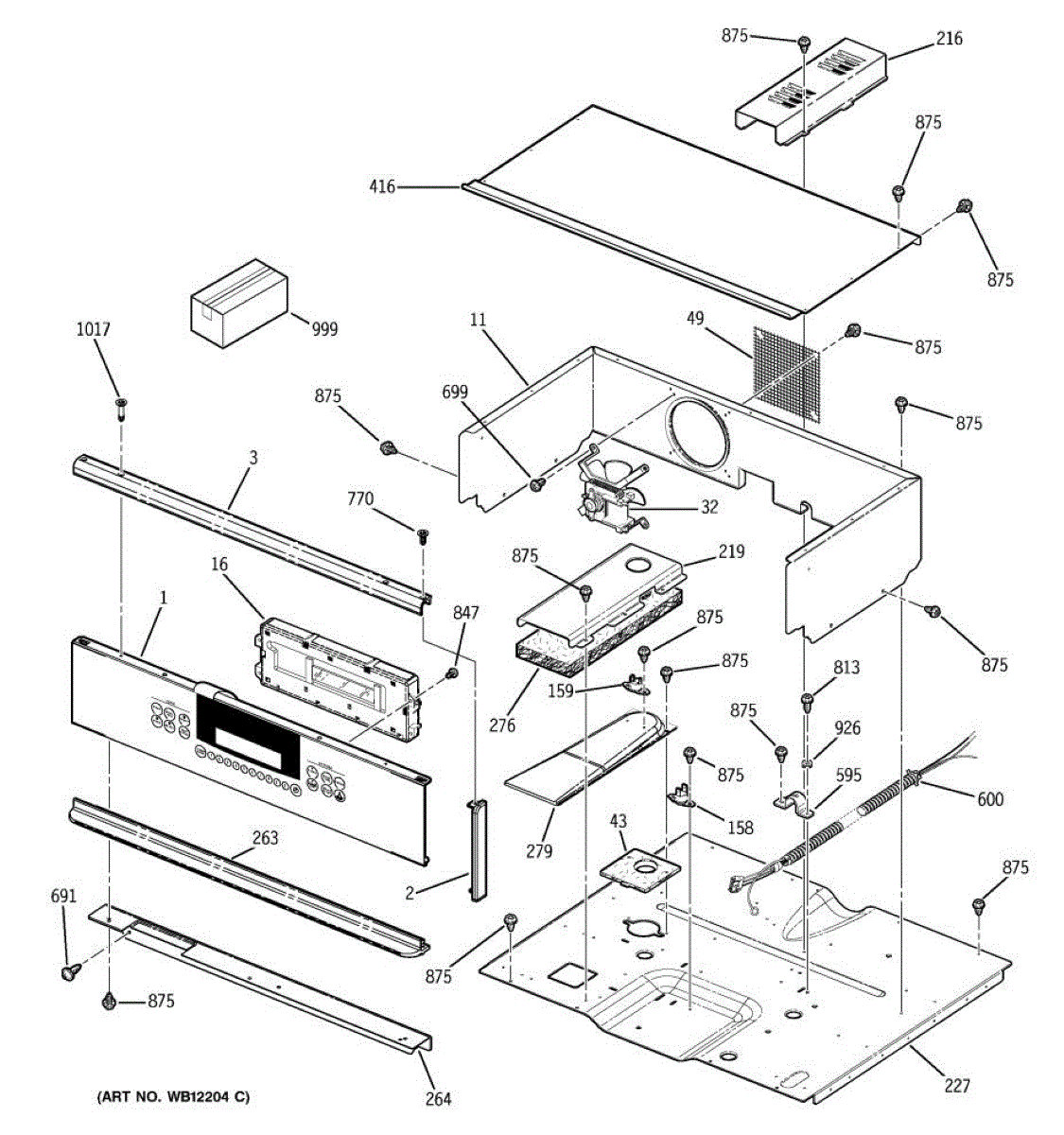

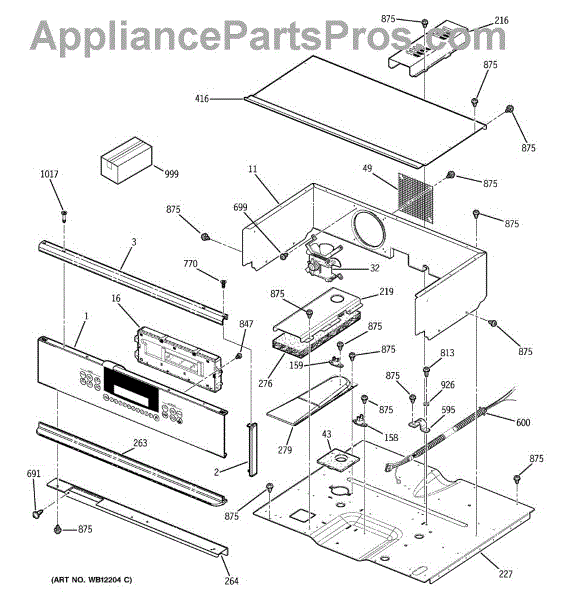

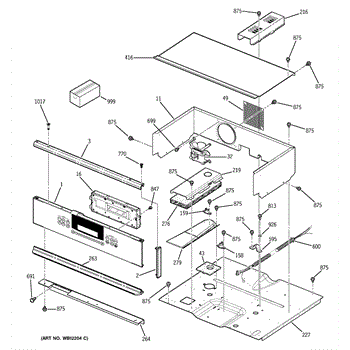

Parts for Ge ZEK937BD1BB: 01 - Control Panel Parts

This right-side black end cap covers and finishes the exposed end of a trim or rail, restoring the appliance's appearance and preventing contact with sharp edges. It's a simple cosmetic and protective replacement. What it does:

• Caps the right end of the trim/rail to provide a finished look and protect edges.
• Helps hold the trim in place and prevents debris from entering the trim channel.
• Common replacement for cracked, chipped, loose, or missing end caps that expose sharp edges or leave a gap.
• Restores proper alignment and reduces rattling caused by a damaged or missing end piece.

• One right-side end cap, black

• Typically snaps into place; may require removing adjacent trim or a few fasteners to install.
• Inspect mating surfaces for broken clips or debris and replace any damaged fasteners.
• Turn off and unplug the appliance before accessing trim near electrical components.
• Handle plastic parts carefully to avoid cracking during removal or installation.

This convection fan assembly circulates heated air inside the oven cavity for more even baking and roasting. Replacing a worn or noisy fan restores proper airflow and helps maintain stable temperatures during convection cooking.

• Moves hot air across the cavity during convection modes for uniform results
• Helps the oven recover heat faster and reduces hot/cold spots
• Common symptoms of failure: loud humming, squealing, or rattling; fan not spinning; poor or uneven convection performance
• Can cause longer cook times or inconsistent browning when not working properly

• Disconnect power at the breaker and allow the appliance to cool completely
• Access the convection fan from the rear panel or interior back cover, depending on model; retain all screws and shielding
• Note wire locations and mounting orientation; install the new assembly in the same position
• Before restoring power, ensure the blade spins freely and does not contact the shroud or liner

Ranges, wall ovens, and microwaves require a hub blade assembly in order to operate efficiently. The hub blade works inside the device to help with the various heating cycles. With use, because of misuse, or as a result of accidental damage, the hub blade may stop working. When this component is no longer functioning, a replacement part is required. If the oven isn't warming correctly, the hub blade assembly may be the issue.Replacing the hub blade assembly is a simple process. A screwdriver, socket set, adjustable wrench, and wrench set are required. Always disconnect appliances before replacing components. Wear gloves for safety. The hub blade assembly is located inside the oven. To access it, the back of the appliance has to be removed. Be sure all parts are replaced and secured before turning the device back on.This hub blade assembly is a genuine OEM replacement part. It is sourced directly from the manufacturer. The part is sold as an individual unit and made of high-quality, durable materials. The hub blade assembly can be installed in various models of ranges, wall ovens, and microwave oven combination appliances. It is compatible with General Electric, Hotpoint, and RCA brand devices.

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Black. 8-18 AB HXW 3/8
