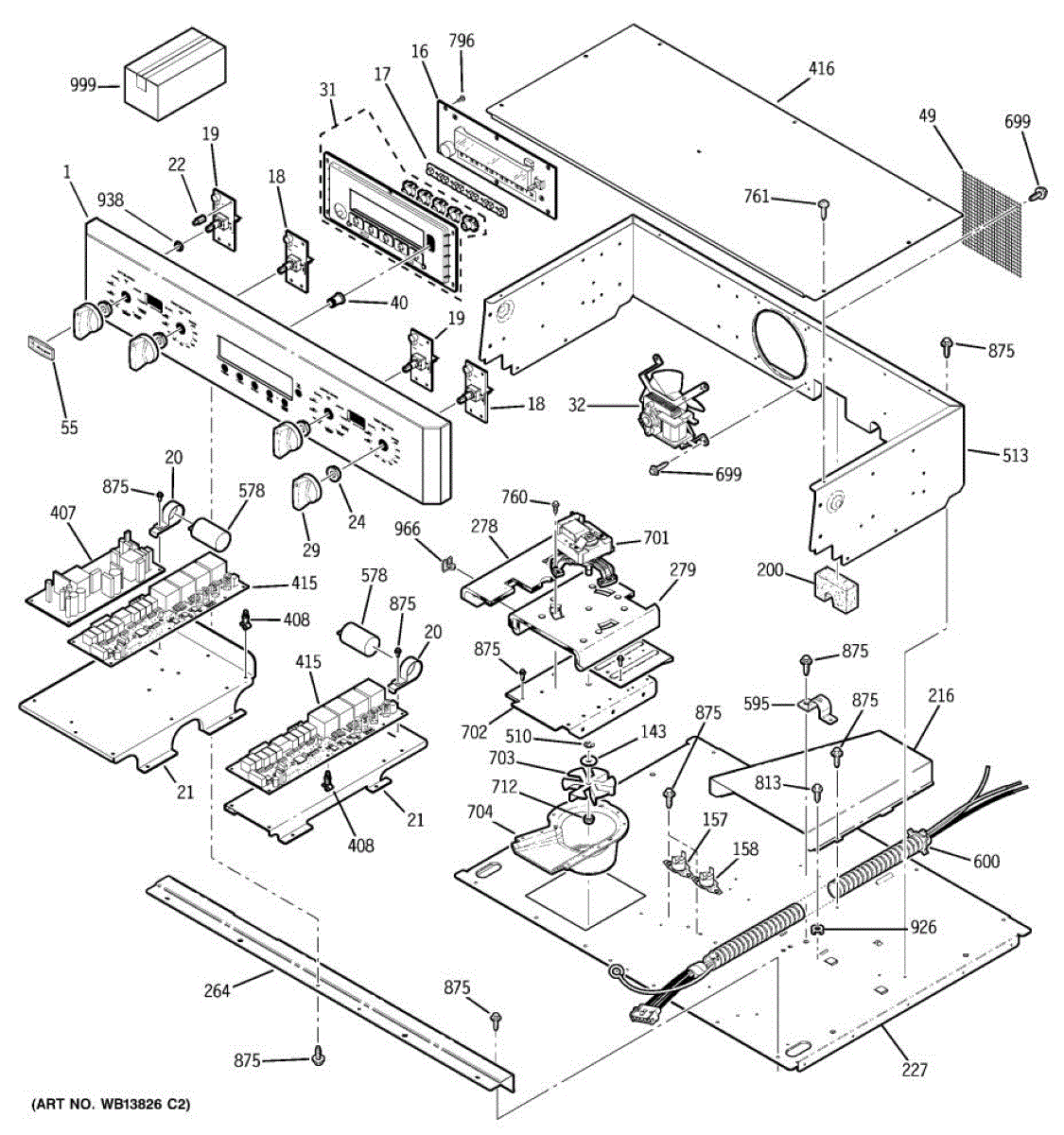

Parts for Ge ZET2SL1SS: 01 - Control Panel Parts

This control panel assembly restores the front console and user controls on a 30" range so you can select oven and cooktop settings easily and reliably. It replaces a damaged or non-responsive control panel to return normal operation. What it does:

• Houses the oven and cooktop control buttons/knobs and display for user input
• Routes signals from user controls to the range's control electronics
• Commonly used when buttons, touch controls, or the display are cracked, worn, or unresponsive
• Helps stop intermittent control failures caused by damaged front-panel components

• One control panel assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Some models require removing trim or bezels; retain screws and hardware for reassembly
• Handle the assembly carefully to avoid damaging the display or ribbon connectors

This control panel bushing cushions and supports the appliance control panel, helping prevent wear where the panel contacts the cabinet. It restores proper panel fit and can reduce rubbing, vibration noise, and edge damage. What it does:

• Acts as a spacer/cushion between the control panel and cabinet to prevent metal-on-metal contact
• Helps maintain correct panel alignment and fit
• Reduces squeaks, rattles, and vibration-related noise from the control area
• Protects panel edges and mounting points from wear and abrasion

• One control panel bushing as shown

• Disconnect power to the appliance before beginning any work
• Generally accessed by removing the control panel or its trim; retain all mounting hardware
• Inspect surrounding mounting holes and clips; replace if damaged

This lower cooling fan assembly circulates air to cool internal components and help maintain proper airflow in the appliance. Replacing a worn fan restores quieter operation and helps prevent overheating of electrical parts. What it does:

• Moves air through the appliance cabinet to aid component cooling and temperature regulation.
• Reduces hot spots around controls, electronics, and motors that can cause premature failure.
• Commonly used when you hear unusual noise from the lower area or detect reduced airflow.
• Supports overall appliance performance and reliability by maintaining designed ventilation.

• One lower cooling fan assembly as shown

• Disconnect power before attempting any service to avoid electric shock.
• Inspect surrounding mounts and ducts for damage; replace any broken clips or supports.
• Use basic hand tools; confirm correct orientation and secure mounting before restoring power.

A small adhesive MG logo emblem that restores the original appearance of your appliance. This peel-and-stick badge replaces a worn, faded or missing logo to keep the exterior looking factory-fresh. What it does:

• Cosmetic replacement for a missing, scratched or faded MG emblem
• Adheres to control panels, doors or trim where the original badge was located
• Restores brand identification and a finished appearance to the appliance
• Simple adhesive design avoids the need for fasteners or tools

• Clean and dry the mounting surface before applying to ensure good adhesion
• Peel backing and press firmly in place, aligning carefully before contact
• Avoid repositioning once attached; removal may damage the emblem or finish
• For safety, disconnect power before working near electrical controls or panels

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

This relay board assembly switches line power to the range/oven's heating circuits under the direction of the electronic control, helping restore reliable bake/broil operation when relays or board components fail. What it does

• Controls power to the bake and broil elements via onboard relays
• Executes low-voltage commands from the control to switch high voltage to the heating circuits
• Failure symptoms can include no heat in bake or broil, one element not working, or intermittent heating
• Burn marks or a stuck/clicking relay on the board may be visible indicators of failure

• 1 relay board assembly

• Disconnect power at the breaker before servicing; this board carries live voltage
• Access location varies by model; photograph and label all wires for correct reassembly
• Handle the board by its edges and observe ESD precautions
• Ensure all connectors are fully seated and the board is securely mounted before restoring power

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This is a small replacement screw used to secure appliance panels and components, restoring proper fit and preventing loose parts. It's a direct-fit fastener commonly used in various GE appliance assemblies. What it does

• Secures trim, panels, brackets or control components to prevent movement and rattling.
• Replaces missing, stripped, or corroded screws that can allow gaps or vibration.
• Helps restore proper alignment of parts that can cause noise or loose-feeling doors/panels.

• Use the matching screw hole and thread; do not force or cross-thread the screw.
• Hand-start the screw, then tighten with the correct screwdriver to a snug fit—avoid over-tightening.
• Disconnect power before working near electrical components; follow appliance safety procedures.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This nut secures the control panel encoder shaft so the selector knob stays firmly in place and maintains reliable signal contact. A small but essential fastener for stable user control and consistent cycle selection. What it does:

• Secures the encoder/shaft to the control panel assembly to prevent wobble or loosening
• Helps keep the encoder's electrical contact aligned for accurate signal input
• Can resolve symptoms like a loose or spinning selector knob or intermittent control responses
• Designed for direct replacement of the original mounting nut for the encoder

• One nut encoder (quantity: 1)

• High-level task: remove control panel or console to access the encoder shaft; reassemble panels after replacement
• Use proper tools to avoid stripping the nut or damaging the encoder shaft
• Power off and unplug the appliance before beginning any work to avoid shock or damage

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
