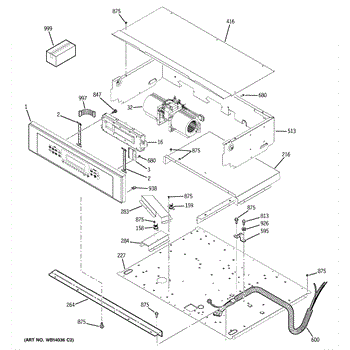

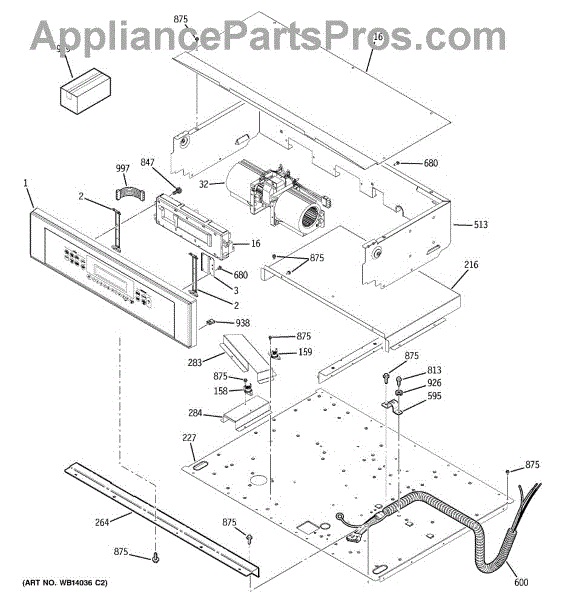

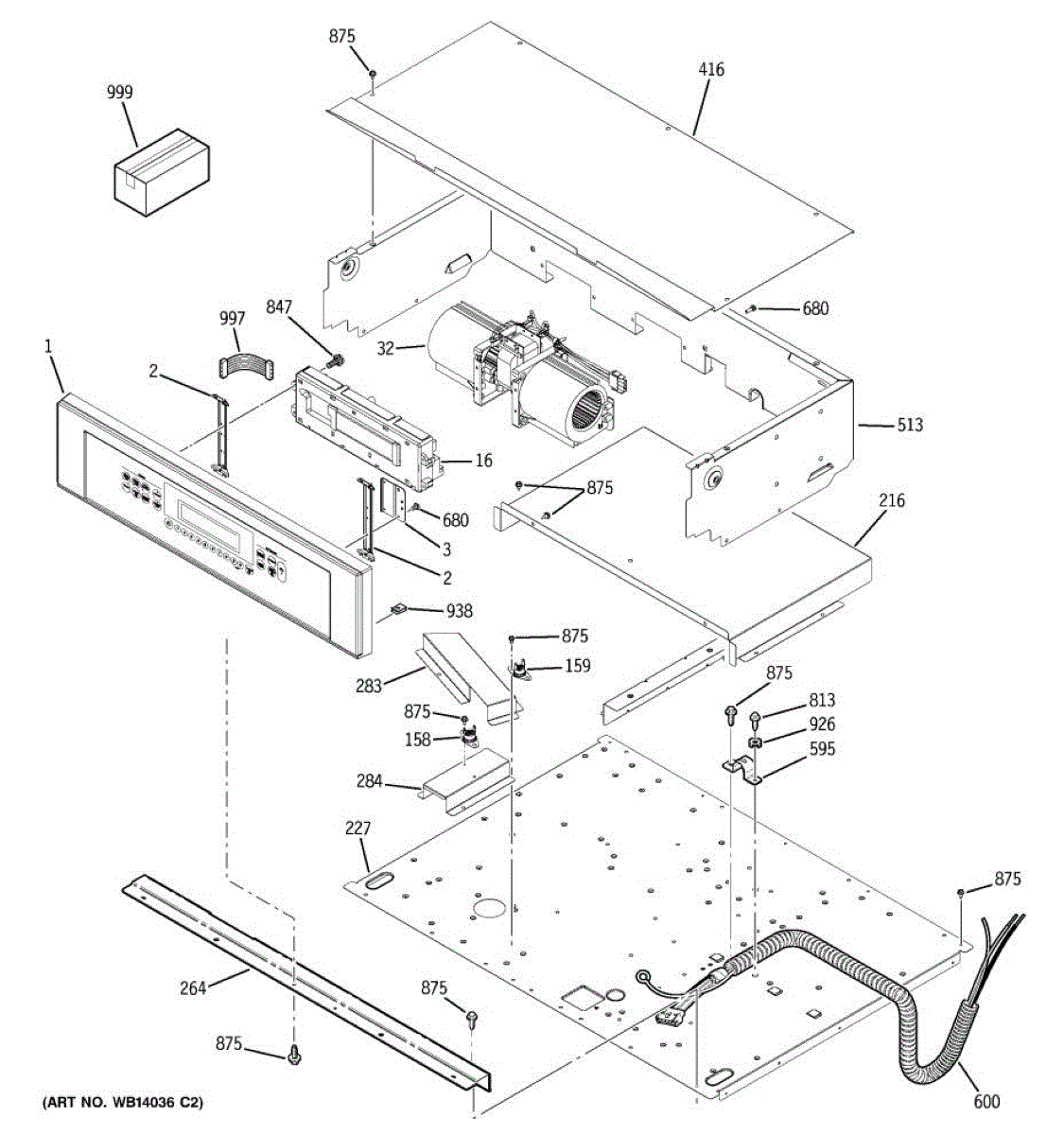

Parts for Ge ZET938BM2BB: 01 - Control Panel Parts

This offset bracket secures and repositions appliance components to restore proper alignment and support. It replaces a worn or damaged mounting bracket to stop movement and help eliminate noise or misalignment issues. What it does:

• Provides a stable mounting point for panels or assemblies that need offset positioning
• Restores proper alignment when a bracket is bent, cracked, or missing
• Helps stop rattling, vibration, or sagging caused by a loose support
• Works as a direct-fit replacement for the OEM offset bracket

• Disconnect power to the appliance before starting any repair
• Access may require removing exterior panels or trim; keep fasteners organized
• Use the existing mounting hardware unless replacements are specified

Fixes unresponsive oven controls, incorrect temperatures, and timer failures. This electronic control board manages all oven functions. Moderate DIY repair.

The Fan Kit is an OEM part for GE ovens and ranges. This part regulates the internal temperatures and preventing overheating.

Causes of a bad Fan Kit can stem from motor failure due to wear and tear, obstructions or debris blocking proper airflow, or damage to the fan blades or housing.

Symptoms of a bad Fan Kit include:

• Excessive heat buildup inside the oven cavity
• Failure of the oven to maintain consistent temperatures
• Strange noises or lack of airflow from the fan

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bimetal limit switch monitors a radiant surface element's temperature and opens the circuit if it overheats, helping your cooktop maintain safe, consistent heating while protecting wiring and controls from damage. What it does:

• Senses surface element temperature via a bimetal sensor
• Opens/closes the circuit to limit element temperature and prevent overheating
• Helps the burner cycle properly for more consistent heat
• Common symptoms: no heat, low heat/cycles off too soon, overheating, or erratic cycling

• One bimetal limit switch

• Disconnect power at the breaker before servicing
• Access the element, note wire positions, and transfer leads to the new switch one at a time
• Mount firmly to the element/bracket so the sensor has correct contact
• Do not bend or adjust the sensor; replace if damaged

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Secures oven insulation behind the cooktop or control panel. Replace this retainer clip if broken, missing, or no longer holding insulation in place.

Inner vent trim piece for wall ovens. Installs around the interior ventilation area to provide a finished look. Replace if cracked, discolored, or missing.

This oven exhaust duct channels hot air and cooking fumes out of the oven cavity to the range venting system, helping maintain proper oven temperature and reduce smoke or odors. Replace a damaged or corroded duct to restore correct venting. What it does:

• Directs hot air and combustion/steam fumes from the oven cavity into the vent ductwork
• Helps maintain consistent oven temperature by providing a clear exhaust path
• Can reduce smoke, burning smells, or poor broil performance when functioning properly
• Prevents loose metal or debris from obstructing the vent path

• One oven exhaust duct

• Disconnect power to the range (and gas supply if applicable) before beginning work
• Access typically requires removing the oven back panel or range back; keep fasteners for reinstallation
• Watch for sharp sheet-metal edges and wear gloves and eye protection
• Reinstall panels and secure all fasteners; test oven operation and venting after replacement

Replacement mounting screw for refrigerators. Secures brackets, panels, handles, and covers. Replace lost, stripped, or damaged screws to restore stability.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

Black. 8-18 AB HXW 3/8

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.
