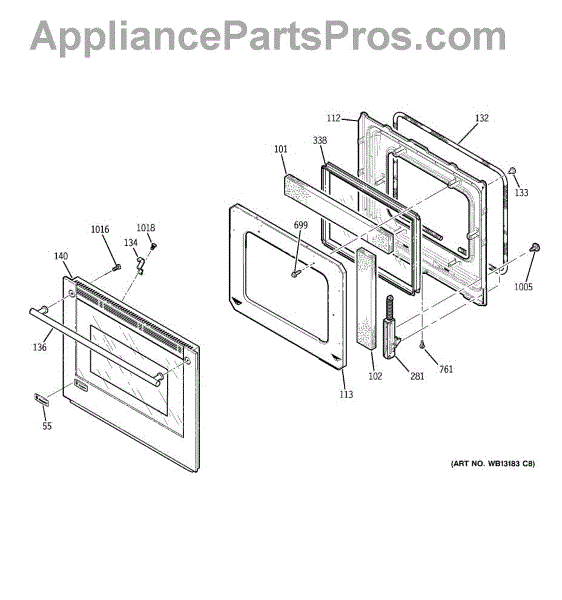

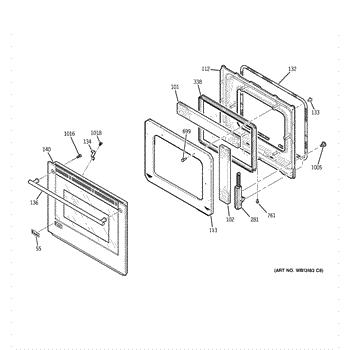

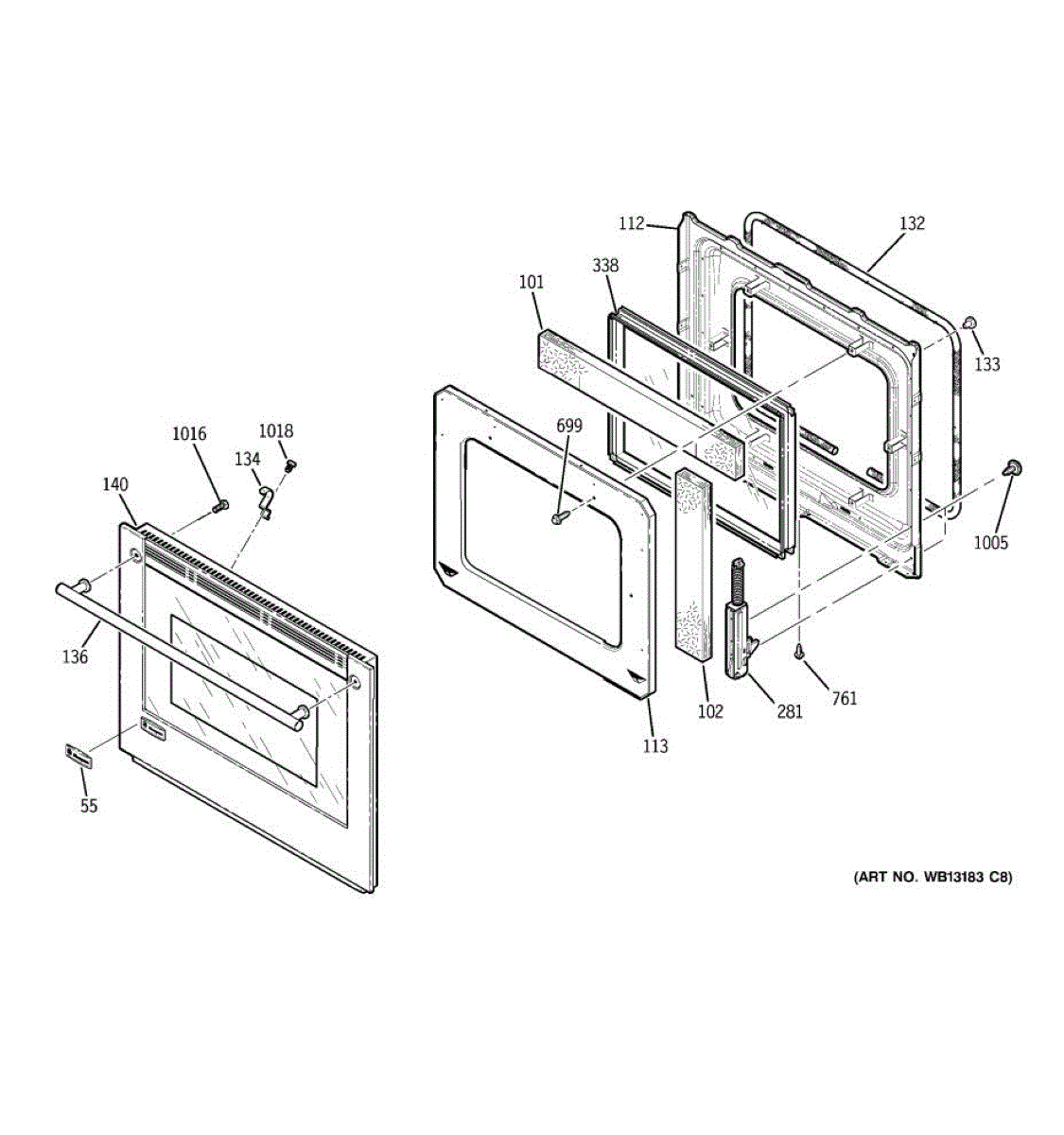

Parts for Ge ZET938BM2BB: 03 - Door Parts

A small adhesive MG logo emblem that restores the original appearance of your appliance. This peel-and-stick badge replaces a worn, faded or missing logo to keep the exterior looking factory-fresh. What it does:

• Cosmetic replacement for a missing, scratched or faded MG emblem
• Adheres to control panels, doors or trim where the original badge was located
• Restores brand identification and a finished appearance to the appliance
• Simple adhesive design avoids the need for fasteners or tools

• Clean and dry the mounting surface before applying to ensure good adhesion
• Peel backing and press firmly in place, aligning carefully before contact
• Avoid repositioning once attached; removal may damage the emblem or finish
• For safety, disconnect power before working near electrical controls or panels

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

The Oven Door Gasket is an OEM part for GE ovens. It creates a seal between the oven door and the oven frame, preventing heat from escaping during cooking. This gasket is essential for maintaining consistent oven temperatures, which ensures even cooking and energy efficiency.

You should replace the oven door gasket if it becomes worn or damaged. Common causes of a bad gasket include repeated exposure to high temperatures, normal wear and tear, or physical damage from cleaning or accidental impacts. A compromised gasket can lead to heat loss, uneven cooking, and increased energy consumption.

Symptoms of a bad oven door gasket include:

• Heat escaping from around the oven door
• Longer cooking times or unevenly cooked food
• Visible cracks, tears, or deformation in the gasket
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This oven door clip secures the oven door or inner door components to the hinge assembly, restoring proper door alignment and a stable seal for safe, efficient cooking. It's a compact, direct-fit mounting clip used on many GE ovens. What it does:

• Secures the oven door or inner panel to the hinge or mounting point
• Helps maintain correct door alignment and a tight oven seal
• Can eliminate door movement, sagging, or uneven closing
• Works as a replacement for a worn, broken, or missing door clip

• Disconnect power to the appliance before servicing to avoid electrical shock
• Support the oven door or remove it per manufacturer instructions before replacing the clip
• Use basic hand tools; avoid forcing parts—ensure clip seats fully on the hinge/mount

This right-side door hinge secures and guides the appliance door for correct alignment and smooth operation. Replacing a worn hinge restores proper closing and prevents door sag or uneven gaps. What it does:

• Supports the door pivot and maintains correct door alignment.
• Enables smooth opening and closing of the door.
• Prevents door sag, binding, or misaligned gaps that can affect seal performance.
• Helps eliminate rubbing, scraping, or unusual door movement.

• Disconnect power to the appliance before starting and remove any stored items from the door.
• Support the door while removing/installing the hinge to prevent dropping or damage.
• Reuse existing screws only if they are undamaged; replace damaged fasteners.
• Check door alignment after installation and make minor adjustments as needed for an even seal.

A direct-replacement left door hinge that restores proper door alignment and smooth opening on compatible appliances. Helps keep doors closing securely to maintain temperature and reduce wear on seals and hardware. What it does

• Supports the left side of the appliance door and provides a pivot point for opening and closing.
• Restores proper door alignment to help ensure an even seal and consistent internal temperature.
• Reduces door sag and uneven wear that can lead to gaps or rubbing.
• Works with existing pins, screws and strike hardware when the original hinge is worn or damaged.

• Basic mechanical replacement; remove power or disconnect appliance if required by your model before starting.
• Retain original fasteners and hinge pins unless replacements are specified by the manufacturer.
• Align door carefully and tighten fasteners gradually to avoid binding or misalignment.

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is a 1/4-28 hex washer head machine screw with a 7/8 inch length and zinc plating, used to secure components in appliances. It replaces stripped or missing fasteners and restores proper fit and alignment. What it does

• Secures panels, brackets, or hardware where a 1/4-28 hex washer head screw is specified
• Provides a wide bearing surface to reduce pull-through on sheet metal or bracket parts
• Zinc plating resists corrosion in typical household appliance environments
• Common symptom: loose, rattling, or misaligned panels caused by missing or damaged screws

• Replace only with the matching thread size and head style to ensure proper fit
• Hand-start threads to avoid cross-threading; tighten to snug (do not overtighten)
• Use proper safety gear and disconnect power to the appliance if working near electrical components
• If multiple fasteners are corroded or missing, inspect adjacent hardware and replace as needed

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.
