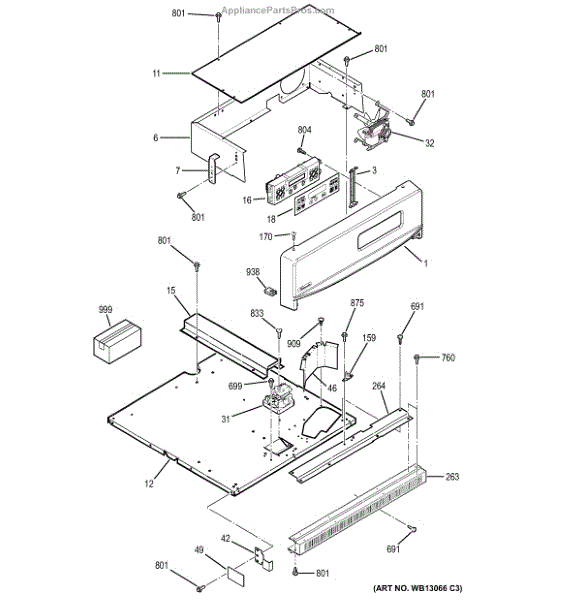

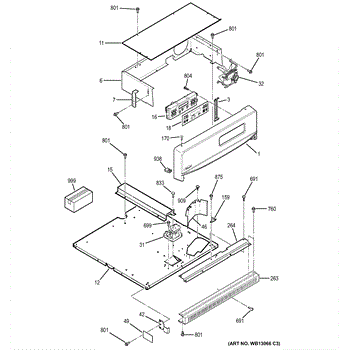

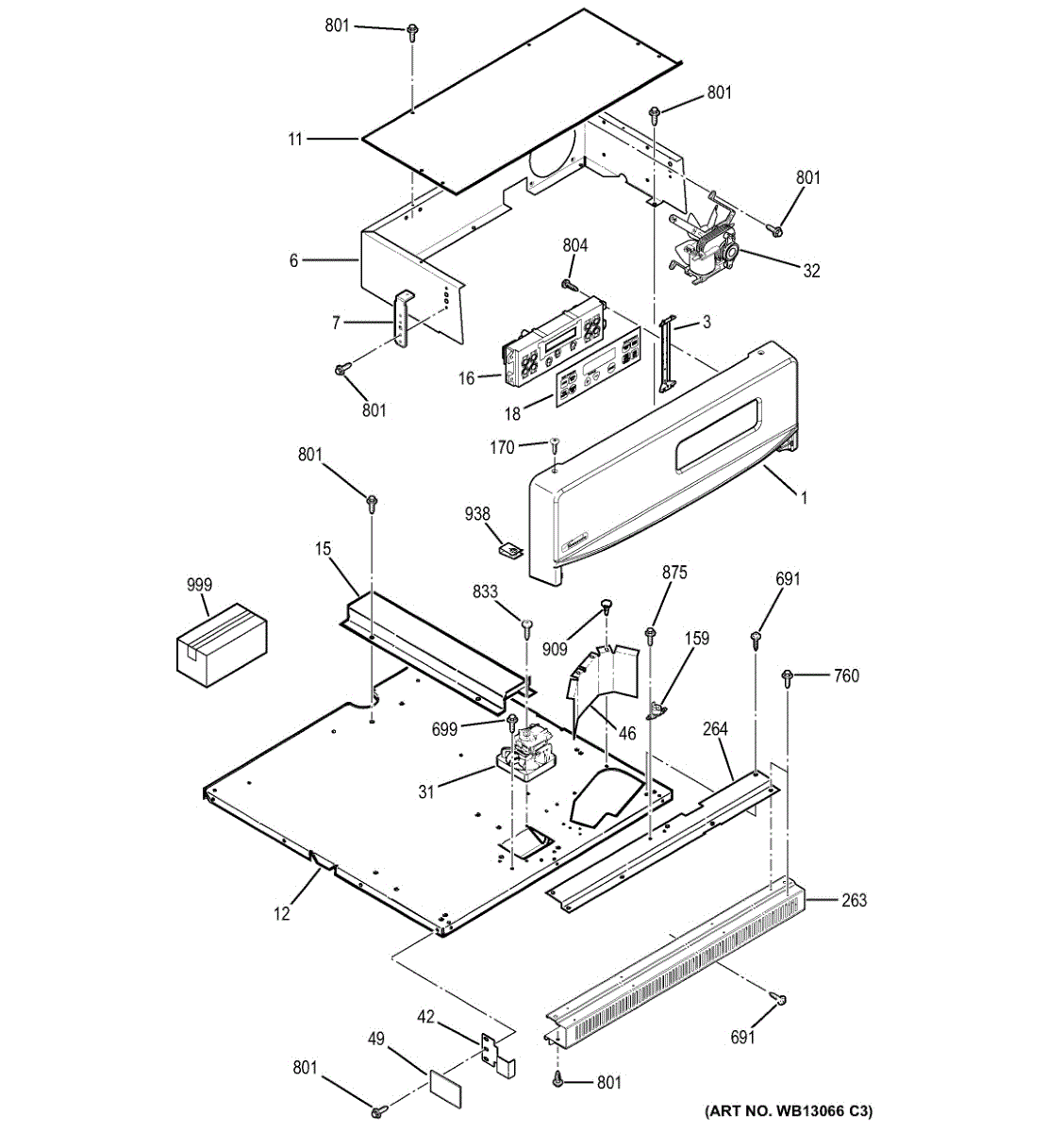

Parts for Ge JGRP20SEN2SS: Control Panel Parts

A replacement control panel bracket that secures the oven/range control console to the chassis, restoring a stable, aligned control panel for safe operation and clean appearance. Fits the OEM mounting location and restores proper panel support. What it does

• Provides a secure mounting point to hold the control/console assembly in place.
• Prevents a loose, wobbly, or sagging control panel that can cause buttons or touchpads to misalign.
• Stops rattling or vibration noise from the control area during use.
• Helps maintain correct spacing so knobs, buttons and electronic controls operate reliably.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Basic hand tools (screwdriver, nut driver) are typically required; follow the OEM service instructions for disassembly/reassembly.
• Handle surrounding trim, glass, and control surfaces carefully to avoid damage.
• If electronic components were removed, connections before restoring power and test functions after installation.

This electronic oven control board manages the oven's heating functions, temperature regulation, and display/clock. Replacing a failed board restores accurate temperature control and responsive controls so your oven can heat and keep time reliably.

• Controls power to bake and broil elements based on user input and sensor feedback
• Regulates oven temperature and cycle timing
• Drives the display and processes keypad/selector inputs
• Common failure symptoms: no heat, won't start, blank/unresponsive display, beeping/error codes, inaccurate oven temperature

• Disconnect power at the breaker before servicing
• Handle the board with ESD care; avoid touching component contacts
• Note/photograph wire positions; transfer connectors one at a time and reuse existing brackets as needed
• After reassembly, restore power, set the clock, and test bake/broil per the service sheet

This control panel overlay replaces the printed faceplate on the oven/range electronic control. It restores clear, readable button legends and a clean factory look while shielding the touchpad area from everyday wear.

• Provides the printed graphics/labels for buttons and display windows on the control panel
• Adheres over the keypad/control area to finish and protect the surface
• Typical replacement reasons: faded or worn text, peeling/bubbling film, cracks, discoloration, or damaged faceplate
• Addresses readability/appearance; electrical input or display issues usually involve the keypad or control board

• Disconnect power at the breaker before servicing
• Remove the control panel/backguard per your model's service information to access the overlay area
• Carefully peel the old overlay and clean adhesive residue; align the new overlay using the display and key outlines, then press firmly from the center outward
• Avoid touching the adhesive or stretching the film; reassemble the panel before restoring power

This fan assembly restores proper airflow inside your appliance, moving air to cool internal components and support ventilation. Replace a seized, noisy, or non-running fan to prevent overheating and bring back efficient, quieter operation.

• Circulates air through the appliance for cooling and/or ventilation
• Helps maintain safe operating temperatures and consistent performance
• Common symptoms: no or weak airflow, fan won't start or runs intermittently, loud grinding/squealing/rattling, excessive vibration
• A failed fan can lead to overheating or thermal safety shutdowns

• Disconnect power at the breaker before servicing
• Access the fan per your model's service information; note wire locations and mounting orientation
• Transfer any brackets, screws, or gaskets from the original
• Ensure the fan wheel spins freely and nothing contacts it before restoring power

This convection fan assembly circulates heated air inside the oven cavity for more even baking and roasting. Replacing a worn or noisy fan restores proper airflow and helps maintain stable temperatures during convection cooking.

• Moves hot air across the cavity during convection modes for uniform results
• Helps the oven recover heat faster and reduces hot/cold spots
• Common symptoms of failure: loud humming, squealing, or rattling; fan not spinning; poor or uneven convection performance
• Can cause longer cook times or inconsistent browning when not working properly

• Disconnect power at the breaker and allow the appliance to cool completely
• Access the convection fan from the rear panel or interior back cover, depending on model; retain all screws and shielding
• Note wire locations and mounting orientation; install the new assembly in the same position
• Before restoring power, ensure the blade spins freely and does not contact the shroud or liner

A limit switch that stops power when temperatures exceed safe levels, preventing overheating and protecting the appliance and its controls. Installs at the heat source to help maintain safe operation and reliable performance. What it does:

• Acts as a temperature-activated safety cutoff to interrupt power when temps climb too high
• Can prevent continuous heating and protect control components from heat damage
• A failed switch may cause intermittent operation, no heat to the element, or a complete shutdown
• Works as a protective device in heating circuits and safety interlocks

• Disconnect power to the appliance before servicing to avoid shock or burns
• Verify correct part placement and wire connections; note terminal locations before removal
• Test continuity with a multimeter to confirm failure before replacing

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage
