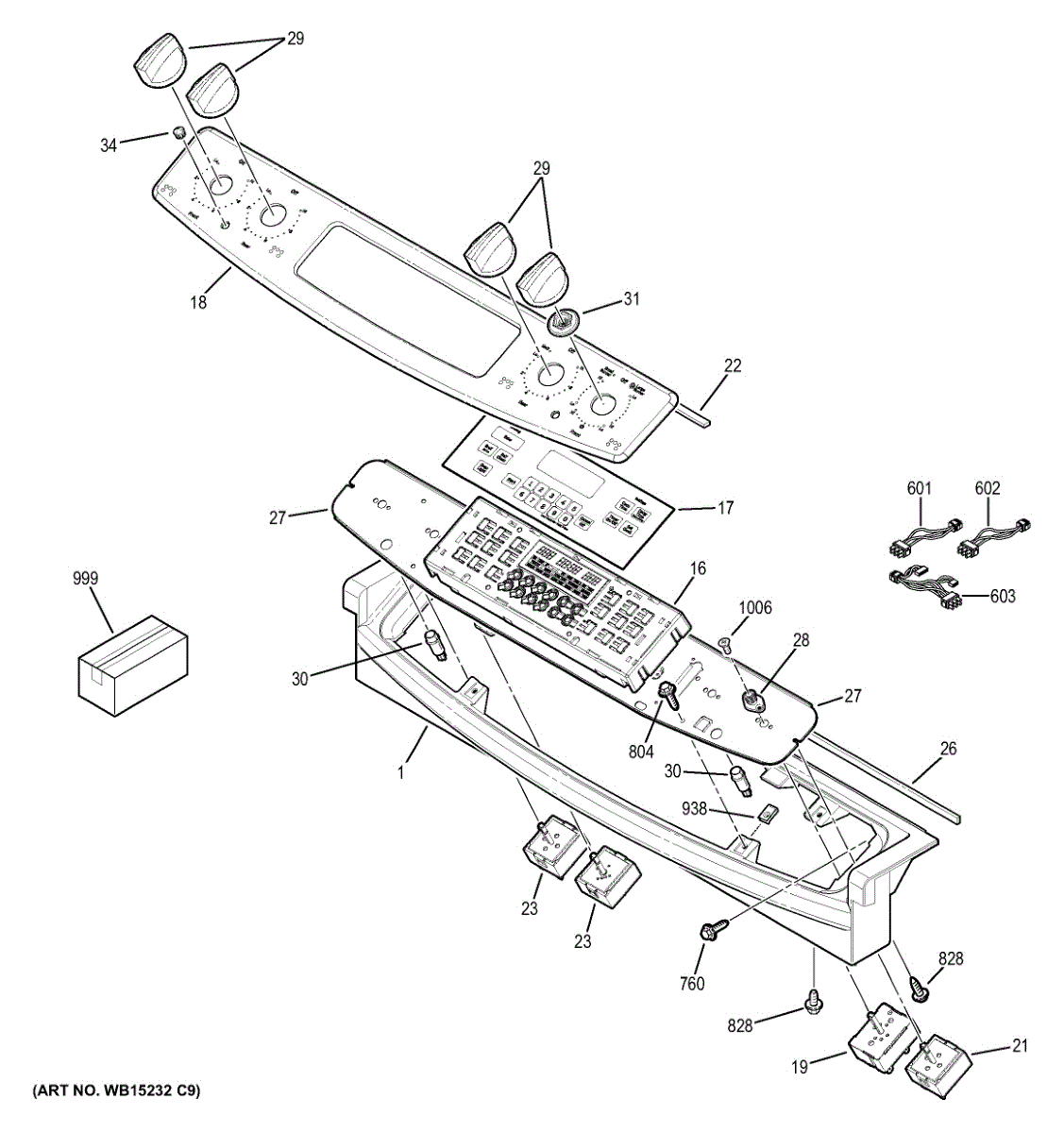

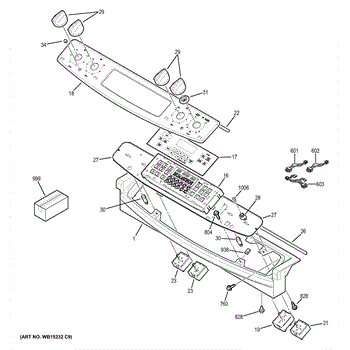

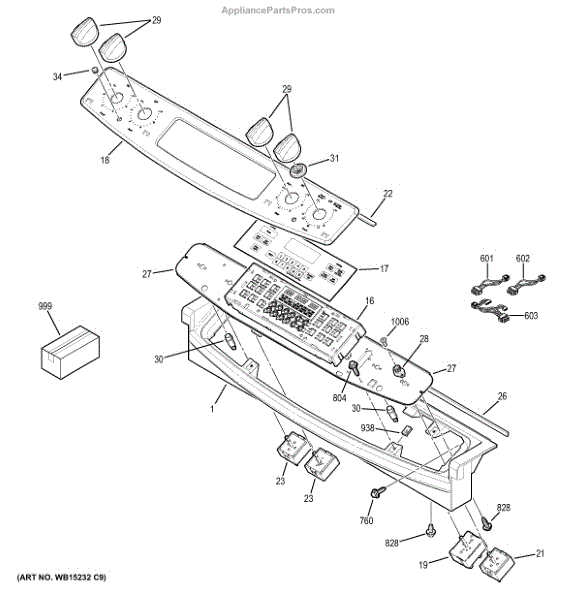

Parts for Ge JS630DF3WW: Control Panel Parts

This control panel assembly houses the user interface and display for the oven/range console, restoring readable displays and responsive buttons. Use it to replace a cracked, unresponsive, or malfunctioning front control console and regain normal oven control. What it does:

• Provides the button/touch interface and display for oven/range controls
• Replaces damaged or cracked console surfaces that block or misregister inputs
• Restores operation when buttons are sticky, unresponsive, or display is blank/intermittent
• Works as the main user interface for setting temperature, timers, and modes

• Disconnect power to the appliance at the breaker or unplug before starting.
• Handle the assembly carefully to avoid damaging the display, glass, or internal PCB and connectors.
• Use basic hand tools to remove the outer trim and mounting screws; support the panel while disconnecting wiring.

This genuine replacement part is an oven control board. The oven control board is the main circuit board that controls the ovens' essential functions. If the oven isn't heating properly, not turning on, or showing an error code on the digital display, it might be time to replace the control board. Replacing a control board may seem like a difficult task, but it is a relatively simple process. Start by unplugging the range. After that, move the appliance away from the wall to gain access to the back. Remove the upper back panel, and locate the control board. Take note of the orientation of the wires using a phone camera. Then detach the wire harness from the old control board. Remove any individual wires with a pair of needle-nose pliers. Then re-attach the wires to the new control board in the correct terminals. Snap the new control board into place and re-install the upper back panel of the range.This OEM replacement part is compatible with General Electric, Hotpoint, and RCA brand ovens.

The Infinite Warmer Switch is an OEM part for GE ranges. It is designed to control the temperature settings of the warmer elements, allowing you to adjust the heat level for precise cooking and warming.

Causes of a bad infinite warmer switch can include electrical issues such as short circuits, wear and tear from frequent use, or internal component failure that affects the switch's ability to regulate power.

Symptoms of a bad Infinite Warmer Switch include:

• Inability to adjust the temperature of the warmer element
• Warmer element remains cold or overheats regardless of the setting
• Intermittent functioning or complete failure to operate

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM component specifically designed for GE ranges. This particular switch operates the infinite heat settings on the front left cooking element.

Causes of switch malfunctions can include repeated toggling over years of usage. Electrical fluctuations or physical impacts could potentially degrade internal connections as well.

Symptoms include:

• Inability to select certain heat levels for the front left burner
• Erratic or unresponsive behavior from the infinite switch
• Inaccurate temperature control of associated burner

This genuine GE switch is compatible with Hotpoint, RCA and select Kenmore ranges too.

A replacement gasket faceplate that seals the appliance faceplate to help keep out moisture, dust and debris while restoring a snug fit and reducing rattling. Fits select GE appliances as the factory-style replacement. What it does:

• Seals the faceplate to the cabinet, helping prevent drafts and moisture intrusion.
• Replaces worn, cracked or deformed gaskets that cause visible gaps or uneven fit.
• Helps reduce faceplate movement and rattling during operation.
• Use when you see splits, compression set, or persistent gaps around the faceplate.

• Disconnect power to the appliance and remove any panels necessary to access the gasket.
• Carefully remove the old gasket and clean the mating surfaces of adhesive, dirt and debris.
• Align the new gasket in the mounting channel and press into place; replace any damaged clips or fasteners.
• Follow the appliance service manual for model-specific steps.

The Infinite Switch Control is an OEM part compatible with GE ranges and ovens. It is a crucial component that allows users to precisely control and adjust the temperature or heating levels of the cooktop surface burners or oven.

Symptoms of a faulty infinite switch control:

• Erratic temperature regulation or inability to maintain the desired heat setting
• Surface burners or oven not heating properly or not heating at all
• Indicator lights not functioning correctly
• Burnt or melted switch knobs or control panel

Causes of a bad infinite switch control can include electrical malfunctions, physical damage, overheating, or general wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and oven models.

This control panel gasket seals the appliance console to help keep moisture, grease, and debris out of the control area and maintain a tidy, responsive panel. It replaces worn or damaged seals that let contaminants reach electronics. What it does:

• Creates a protective seal around the control panel to reduce moisture and grime intrusion
• Helps prevent dirt and cooking residue from collecting under buttons and behind the console
• Reduces the chance of control panel corrosion and intermittent button response caused by contamination
• Restores a flush fit and finished appearance to the console area

• Disconnect power to the appliance before starting any repair to avoid shock or unexpected operation.
• Remove the control panel or console per the service manual to access the old gasket; follow OEM disassembly steps.
• Clean mating surfaces of old adhesive or debris before installing the new gasket for a secure fit.
• If adhesive is used, allow proper cure time and verify proper alignment before reassembly.

This crystal mount secures the small clear lens ("crystal") in the appliance's panel opening, keeping it properly seated and protecting internal components. Replace a damaged or missing mount to restore a snug, finished fit and reliable indicator visibility. What it does:

• Holds the lens firmly in place within the console or backsplash opening
• Helps shield internal controls from grease, spills, and heat around the opening
• Restores proper appearance and panel feel when the original mount is cracked or warped
• Common symptoms: loose or missing lens, rattling panel, visible gap, or a lens that won't stay clipped

• 1 crystal mount

• Disconnect power and allow the appliance to cool before servicing
• Access the panel area; remove screws/clips to release the existing lens and mount
• Transfer the lens to the new mount, align tabs, and secure with existing fasteners
• Do not overtighten; verify the lens sits flush and operates as intended

This replacement control knob restores a worn or broken dial so you can set cooktop or oven controls precisely. It matches the OEM shape and grips the control shaft for reliable turning and selection. What it does:

• Replaces a cracked, stripped, or missing control knob to restore manual control
• Provides a secure fit on the control shaft so settings stay where you set them
• Restores tactile feedback for accurate temperature or burner selection
• Helps eliminate slipping or looseness that prevents proper function

• Remove power to the appliance before servicing (unplug or switch off circuit breaker)
• Pull the old knob straight off the control shaft; press the new knob onto the shaft until fully seated
• If the knob will not engage, verify shaft type and orientation before forcing

This indicator light installs in the control panel and illuminates to show when the monitored circuit is powered, restoring a clear visual status cue so you know at a glance when the appliance function is active.

• Provides a visible ON indication when the circuit it monitors is energized
• Typically used to indicate a surface unit, oven, or other energized function on the control panel
• Restores clear, reliable status feedback during operation
• Symptoms: light does not illuminate, stays on constantly, flickers intermittently, or lens shows heat damage

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the rear of the control panel; note wire locations or take a photo before removal
• Move wires to the new light and secure it in the panel without pinching leads
• Restore power and test for proper illumination

This crystal retainer secures the clear lens on the appliance's control panel, keeping it properly seated and protected. Replacing a damaged or missing retainer restores a snug fit and helps prevent the lens from shifting or rattling.

• Holds the lens/crystal firmly in place to protect the window over the clock/timer or display
• Maintains proper alignment and a clean, finished appearance around the panel window
• Helps reduce vibration, rattling, or gaps around the lens area
• Failure may show as a loose or missing window, uneven fit, or buzzing from the panel

• Disconnect power at the breaker before servicing
• Access the retainer from behind the control panel; remove covers/screws as needed to reach the lens area
• Support the lens while removing/installing the retainer so it doesn't fall
• Wear gloves and eye protection; sheet-metal edges can be sharp

This snap-in indicator lens covers and diffuses a panel light, restoring clear status visibility while protecting the lamp opening. Replace a cracked, missing, or discolored lens to keep your appliance looking clean and functioning safely. What it does:

• Snaps into the panel to cover and protect the indicator light opening
• Diffuses the lamp for clear, consistent visibility
• Helps keep out dust, grease, and moisture
• Common symptoms: lens missing or cracked, won't stay seated, yellowed/opaque, indicator hard to see

• 1 snap-in indicator lens

• Disconnect power before servicing
• Access the control/backguard area as required by your model
• Release the old lens tabs and remove; align the new lens and press until it snaps flush
• Do not force; ensure correct orientation to avoid damaging the panel

This wire harness connects the infinite burner control to the cooktop's wiring, restoring proper electrical routing for surface element regulation. It replaces a damaged or worn harness to help re-establish safe, reliable burner control. What it does:

• Provides the correct wiring connection between the infinite switch and cooktop terminals.
• Restores electrical continuity when a frayed, burned, or disconnected harness prevents burner operation.
• Helps eliminate intermittent or no-heat symptoms caused by broken wires or loose terminals.
• Maintains OEM routing and connector fit for consistent control response.

• One wire harness for infinite control (exact OEM configuration)

• Disconnect all power to the range at the breaker before starting work.
• Handle connectors gently; use proper tools to release terminals without bending.
• Verify proper connector seating and secure routing away from heat sources before restoring power.
• If terminals or the infinite switch show damage, replace the affected components as recommended.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
