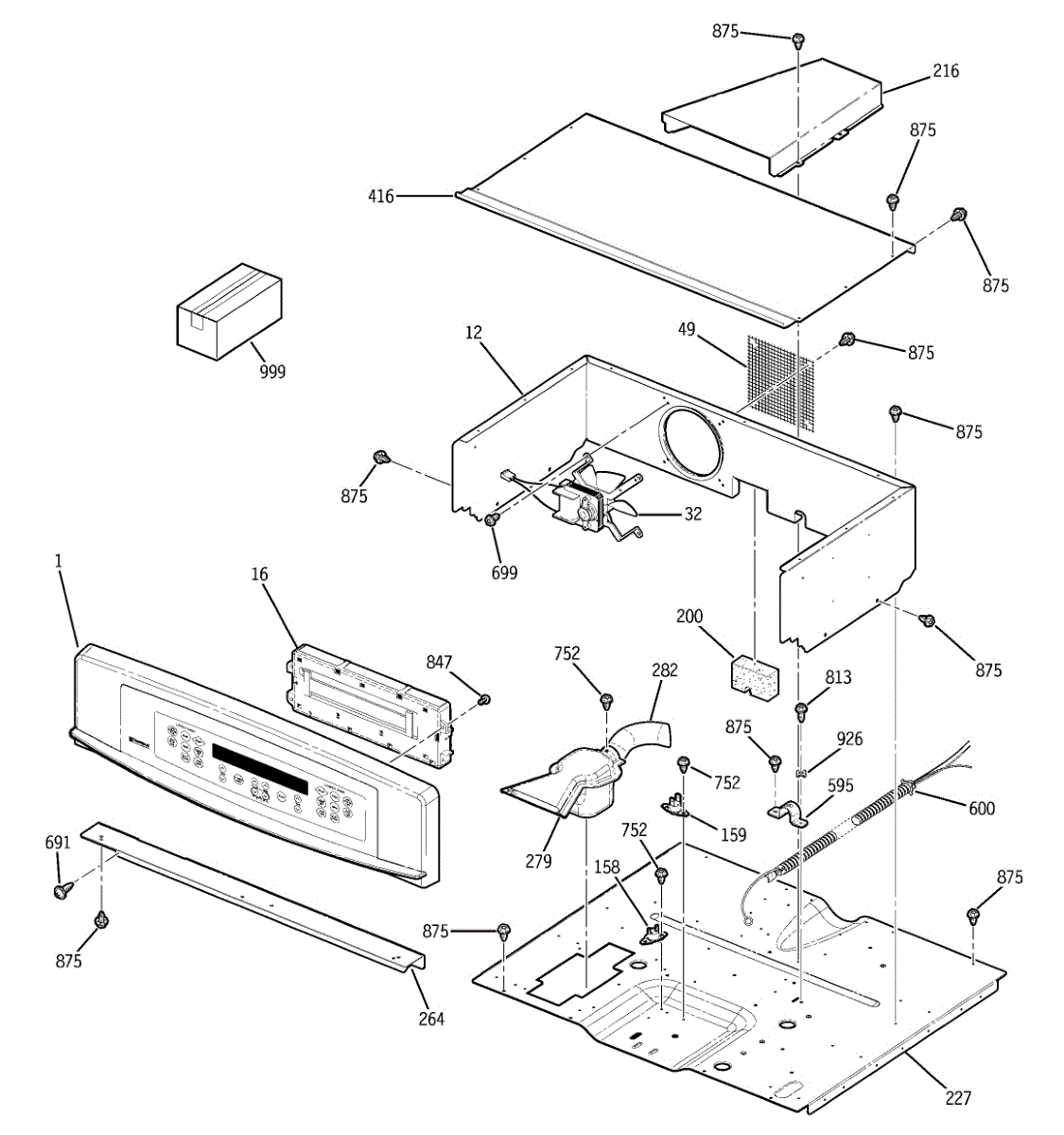

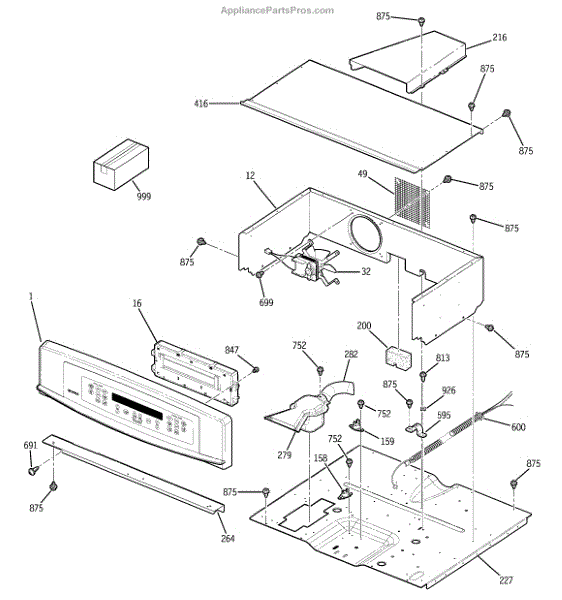

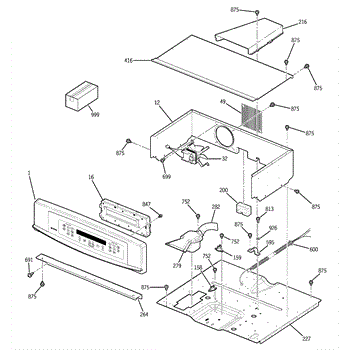

Parts for Kenmore 911.47742201 (91147742201, 911 47742201): Control Panel Parts

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What it does

• Detects the lower/locked position of the door latch so the control can allow oven/cook functions
• Stops appliance operation or shows lock-related faults when the door isn't secured
• Commonly fails after wear, leading to lock faults, inability to start, or door-lock errors
• Works as the electrical sensor portion of the door/lock mechanism

• One lower limit switch (lock)

• Disconnect power to the appliance before starting any service
• Replacement may require removing the door or access panel and detaching the lock/latch assembly
• Handle small fasteners and electrical connectors carefully; note connector locations before removal

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8

This factory-style main lower wire harness connects the cabinet's lower electrical components so controls, motors and sensors receive power and signals. Replacing a damaged harness restores proper electrical routing and reliable operation. What it does:

• Routes power and signal connections between lower control components, switches and motors
• Restores electrical continuity when wires or connectors are damaged or corroded
• Helps stop intermittent power loss, unresponsive lower controls or component failures
• Keeps wiring organized and secured to prevent shorts or chafing

• Disconnect all power before starting work to avoid shock or damage
• Inspect connectors and routing; replace only if the harness and terminals match the original
• Handle terminals carefully and secure the harness to factory clips to prevent rubbing or strain
