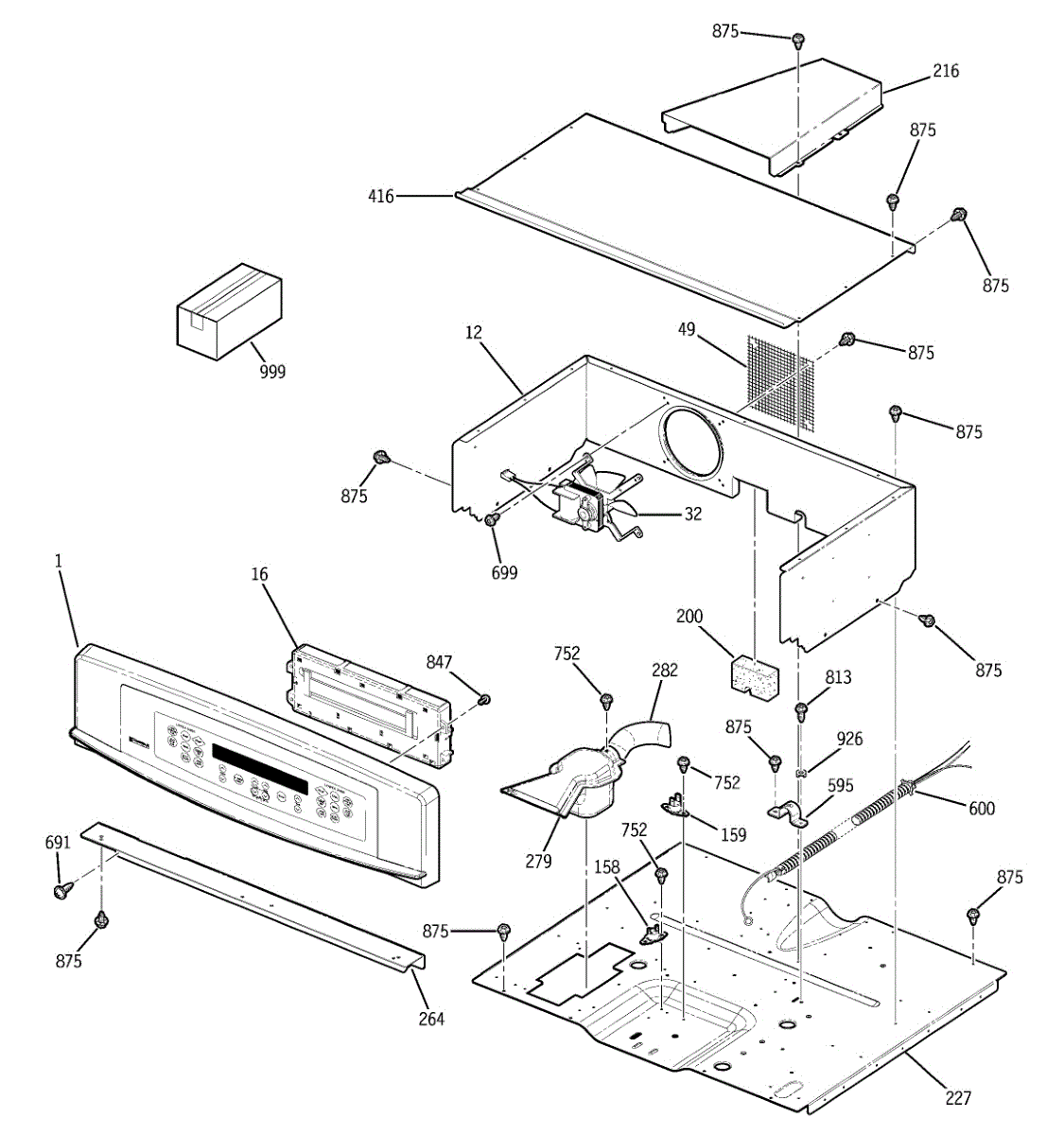

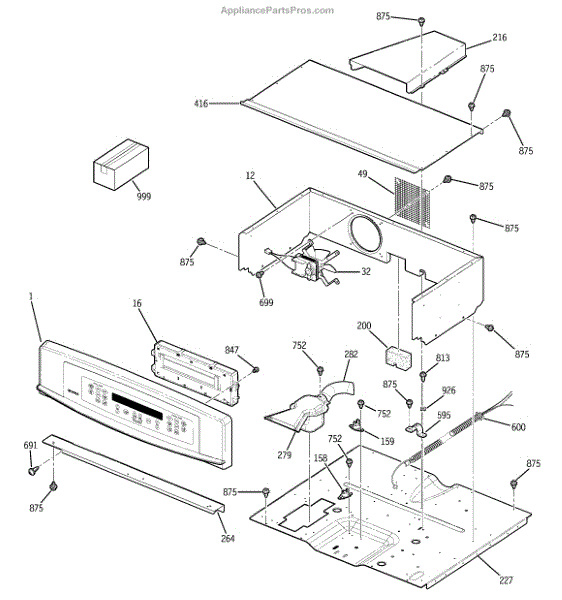

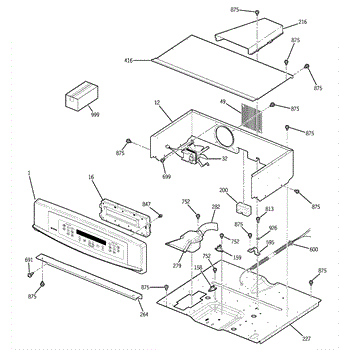

Parts for Kenmore 911.47749201 (91147749201, 911 47749201): Control Panel Parts

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves a

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What

Protective cover that shields wiring at the top of your oven. Replace if cracked, broken, or missing to protect electrical connections and components.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

Duct vent inlet for wall ovens. Channels air from the oven cavity to the exhaust system. Replace if cracked, damaged, or broken to restore proper ventilation.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

Conduit wire assembly for wall ovens. Routes electrical connections between components. Replace if wiring is damaged, frayed, or exposed.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance component

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Nickel

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

This factory-style main lower wire harness connects the cabinet's lower electrical components so controls, motors and sensors receive power and signals. Replacing a damaged harness restores proper electrical routing and reliable operation. What it does:

• Routes power and signal connections between lower control components, switches and motors
• Restores electrical continuity when wires or connectors are damaged or corroded
• Helps stop intermittent power loss, unresponsive lower controls or component failures
• Keeps wiring organized and secured to prevent shorts or chafing

• Disconnect all power before starting work to avoid shock or damage
• Inspect connectors and routing; replace only if the harness and terminals match the original
• Handle terminals carefully and secure the harness to factory clips to prevent rubbing or strain
