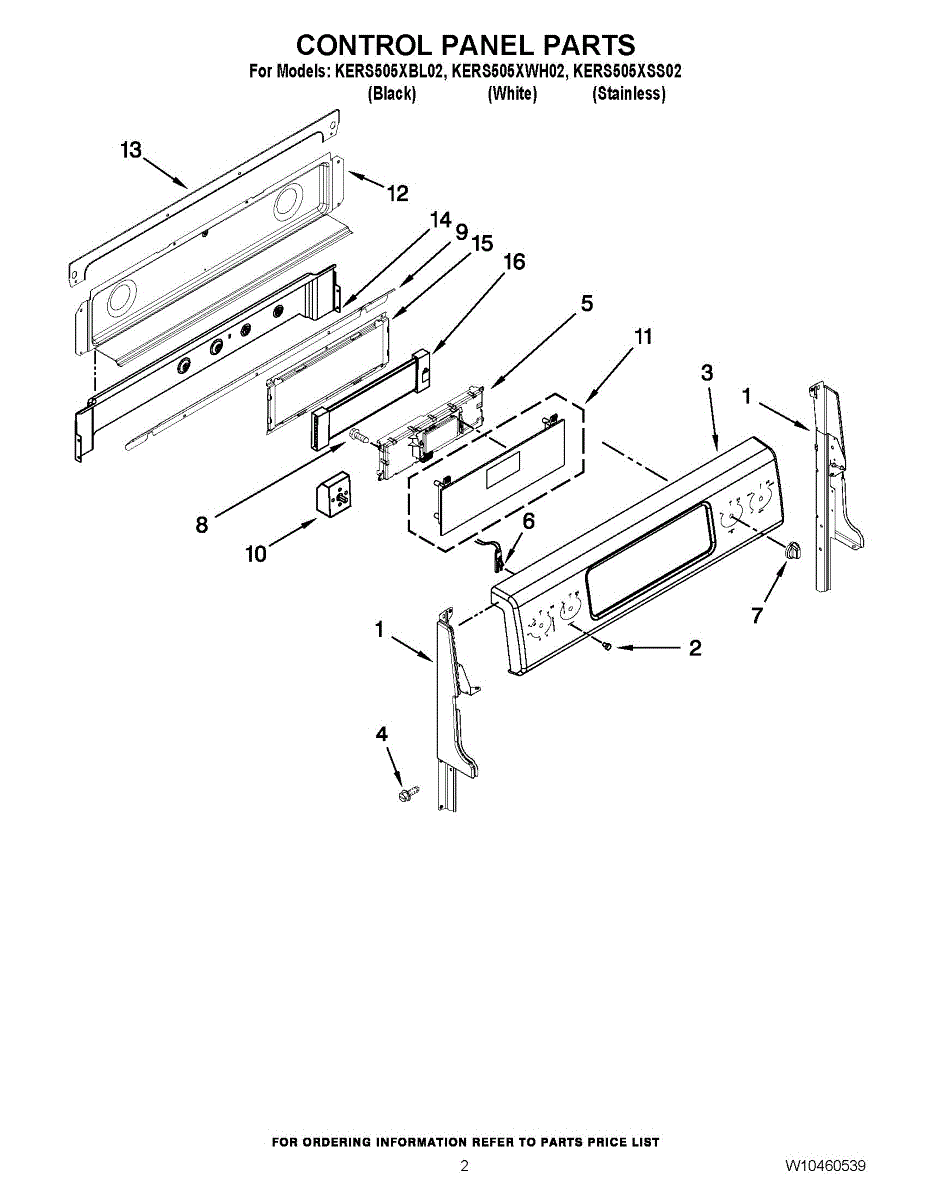

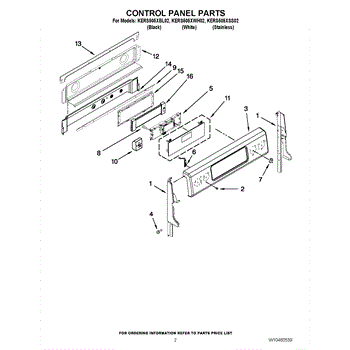

Parts for Kitchenaid KERS505XBL02: 02 - Control Panel Parts

Color: Black

Color: White

Color: White

Color: Black

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: Black. For biscuit order 98008169. For white order WP98008544.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This replacement control knob restores a range or cooktop's user control, making it easy to set or change heat and function settings. Simple to install, it refreshes worn or broken knobs so you can operate controls safely and accurately. What it does

• Provides a firm, easy-to-grip control for adjusting temperature and function settings
• Replaces cracked, stripped, or missing knobs that slip or won't turn
• Restores clear pointer alignment so settings register correctly
• Helps prevent accidental changes by fitting securely on the control shaft

• Disconnect power to the appliance before servicing for safety
• Pull the old knob straight off the control shaft; some models may require loosening a set screw
• Align the new knob's splines or hub with the control shaft and press firmly until seated
• Test control operation after installation; stop if it resists or binds

This control knob replaces a worn, cracked or missing appliance knob to restore safe, easy control of oven or range settings. It provides a simple push-on replacement so you can turn controls smoothly and confidently. What it does:

• Replaces a damaged or missing control knob so you can set temperatures or functions accurately
• Restores secure grip and tactile feedback for safer operation
• Helps stop slipping or inconsistent control caused by stripped or broken knobs
• Fits the original control shaft design for a direct replacement

• Disconnect the appliance from power before servicing to avoid injury.
• Remove the old knob by pulling straight off the control shaft; align and push the new knob onto the shaft until seated.
• If the knob feels loose or won't fit, verify shaft style and part number before forcing.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This infinite switch controls a surface burner's variable heat levels on electric ranges, restoring precise temperature control for cooking. It replaces a worn or failed control to help burners reach and hold chosen settings. What it does:

• Regulates power to a surface element across variable heat settings for precise cooking control
• Commonly replaces a switch that won't heat, won't turn off, or only works on some settings
• Stops erratic cycling or inconsistent burner heat caused by a failing control
• Works with compatible top burner assemblies that use a triple-contact infinite switch

• One infinite switch assembly

• Disconnect power at the breaker or unplug the range before starting any repair
• Remove the cooktop or control panel as needed to access and replace the switch; keep track of wire locations
• Verify switch function with a multimeter and follow all safety guidelines and OEM instructions

This surface burner infinite switch is the behind-the-knob control for an electric cooktop or range. It regulates power to a single surface element so you can dial in and maintain the heat you need.

• Regulates on/off power cycling to a coil or radiant surface element for variable heat control
• Helps address issues such as a burner not heating, only heating on high, not turning off, or fluctuating temperature
• Installs behind the control panel; connects with spade terminals to line, load, and element leads
• Single-surface-element control for one burner position

• Disconnect power before servicing; this component carries high voltage
• Note wire positions or transfer one wire at a time from the old switch to the new switch
• Secure the switch to the control panel and align the shaft with the control knob
• Reassemble and verify smooth low-to-high burner operation

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops, intricately designed to regulate the heat of the burners. This essential component allows for precise temperature control, enabling users to adjust the heat setting from low to high with infinite variability, hence its name.

The primary causes for these issues often stem from electrical problems within the switch itself, such as worn contacts or internal components failing.

Symptoms of a malfunctioning Infinite Switch include:

• The burner not heating up or only reaching a single temperature, regardless of the setting
• The burner heating intermittently or not turning on at all
• Unpredictable temperature fluctuations, making cooking difficult and unreliable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This Rear Cover replaces the dryer's rear cabinet panel to protect internal components and restore the appliance's exterior integrity. It keeps wiring and assemblies enclosed and helps maintain safe, reliable operation. What it does:

• Covers and protects the dryer's internal components at the back of the cabinet
• Prevents debris and lint from entering internal assemblies
• Restores proper mounting for rear-mounted components and wiring
• Helps reduce rattles or vibration caused by a damaged or missing rear panel

• One rear cover

• Disconnect power (unplug electric or shut off gas and breaker) before servicing
• May require removal of the dryer drum or access panels to fit and secure the cover
• Use appropriate hand tools; tighten fasteners snugly but do not overtighten
