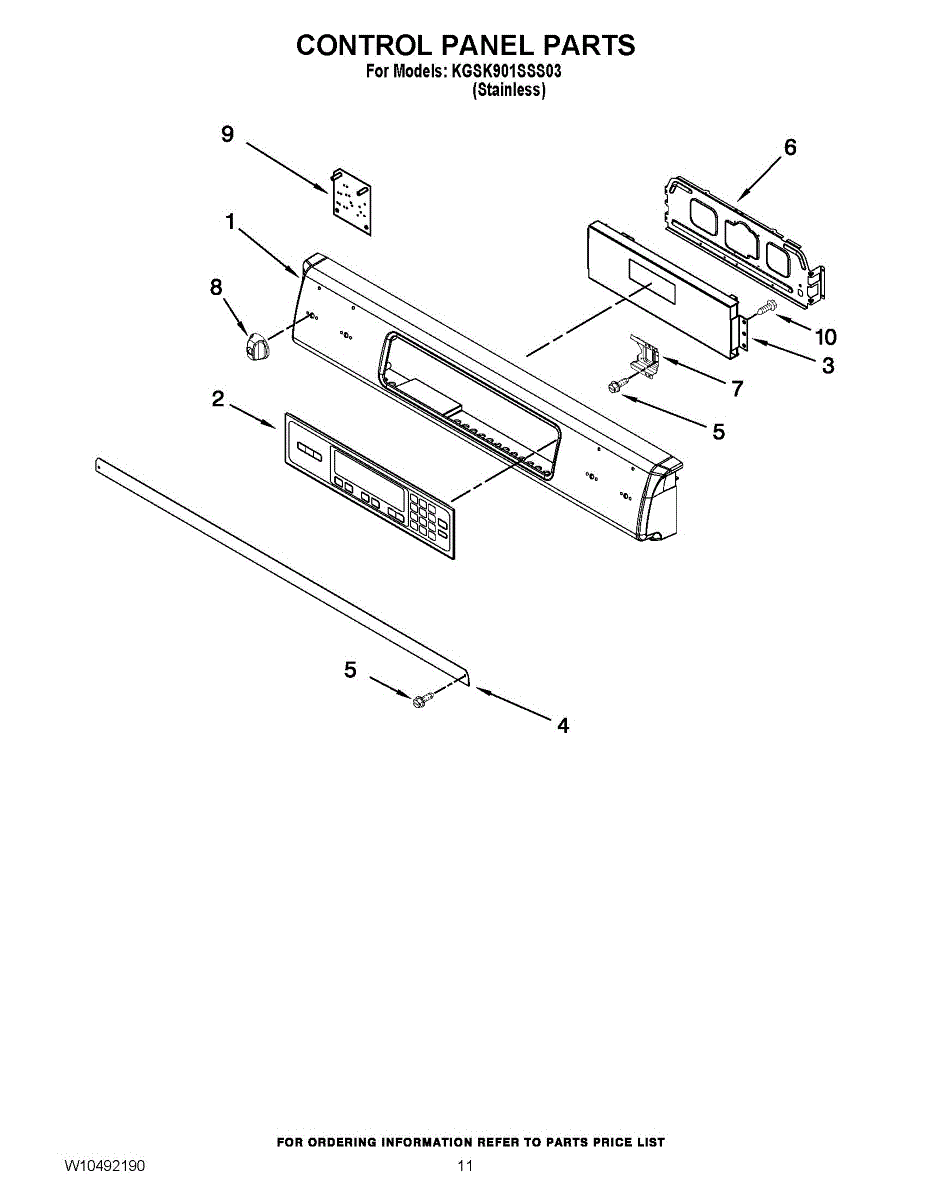

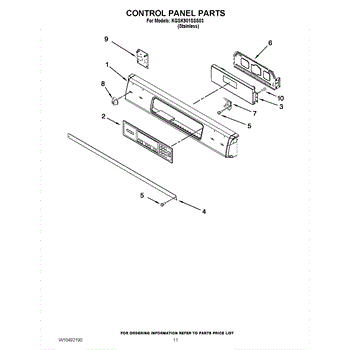

Parts for Kitchenaid KGSK901SSS03: 08 - Control Panel Parts

Color: Stainless

*** Note: Per factory, ribbon connector is part# WPW10237644

This is a Whirlpool oven control board. It manages and monitors oven temperatures and features a digital display. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction. If the user interface is blank or not responding to input, the control board has likely shorted out.Before installing this part, be sure to cut power to the appliance and allow it to cool completely. The stove may need to be pulled away from the wall to access the screws holding the control panel in place. Remove the screws from each side of the control panel to gain access to the old control board. Disconnect any wire harnesses connected to it and remove any screws mounting it in place before installing the new part.This is a genuine OEM part compatible with ranges manufactured by KitcheAid, but may also work with other Whirlpool brands, including Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product is just the panel and contains no additional parts or hardware.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement control knob for gas ranges — a direct-fit knob that restores safe, reliable control of burner or oven settings. It replaces worn, cracked, or missing knobs so you can set heat levels with confidence. What it does

• Provides a secure grip and positive detent for selecting burner or oven settings
• Replaces cracked, stripped, or missing knobs that slip or won't turn
• Restores clear position indication for accurate temperature/power selection
• Helps prevent accidental setting changes from loose or damaged knobs

• Always turn gas supply and electrical power to the appliance off before servicing
• Pull old knob straight off the valve stem; align splines and push the new knob firmly onto the stem until fully seated
• Verify knob turns smoothly and seats fully on all selected positions before use
• If the knob does not fit or turn correctly, stop and confirm the valve stem type and part number before attempting further use

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function
