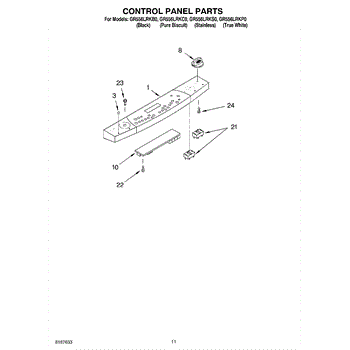

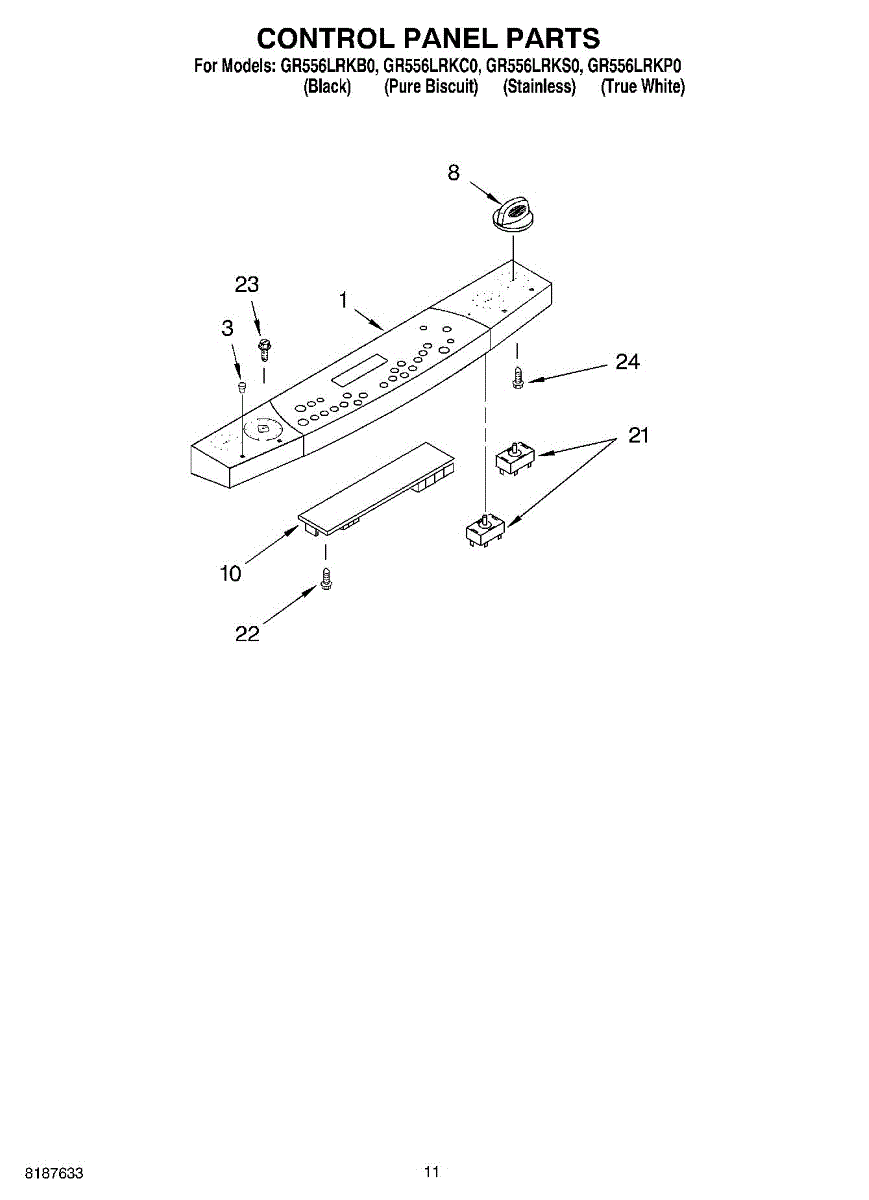

Parts for Whirlpool GR556LRKS0: 07 - Control Panel Parts, Miscellaneous Parts

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

This infinite switch controls the variable heat settings for a cooktop surface burner so you can adjust cooking temperature smoothly and restore proper burner operation. What it does:

• Regulates power to a surface heating element so burners heat at selected settings
• Replaces a worn or failed control that causes burners to stay off or not heat properly
• Fixes burners that only work on one setting or won't respond to the knob
• Helps eliminate inconsistent or fluctuating burner temperatures

• Disconnect power to the range before starting any work to avoid electrical shock
• Accessible from the cooktop or back panel depending on model; remove panels carefully
• Note wire locations or take a photo before disconnecting; reconnect wires to matching terminals

For small element with rating of 1800Watt. Typically for right front or left rear element.

This dual infinite surface element switch controls the inner and outer sections of a dual burner. Replacing a faulty switch restores proper selection and smooth temperature control when the burner won't heat, stays on high, or behaves erratically.

• Varies power to both circuits of a dual surface element for adjustable heat
• Enables inner-only or both-ring operation, based on knob position
• Interfaces with the control knob to set and modulate heat levels
• Typical symptoms: no heat, only one ring heats, stuck on high, won't shut off, or inconsistent temperatures

• Disconnect power at the breaker before servicing; ranges use high voltage
• Note terminal labels and wire positions; transfer wires one at a time to matching terminals on the new switch
• Secure the switch to the control panel, align the shaft, and reinstall the knob

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function

Size: 10-16 x 3/8 inch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

The Oven Liner Touch Up Paint is an OEM part for Whirlpool ovens. This 2 oz warm white touch-up paint is designed to cover minor scratches, chips, and blemishes on the oven liner, restoring its appearance and protecting it from further damage.

Causes of a bad oven liner include exposure to high temperatures, accidental impacts, and abrasive cleaning materials, which can lead to scratches, chips, and discoloration. Over time, these imperfections can worsen, making it necessary to use touch-up paint to maintain the oven liner’s integrity.

Symptoms of a bad oven liner include:

• Visible scratches or chips on the oven interior
• Discoloration or fading of the liner
• Increased difficulty in cleaning the oven liner
• Potential rust or corrosion in affected areas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Used from harness to top.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Specs: 10-16 x 1/2 inch.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
