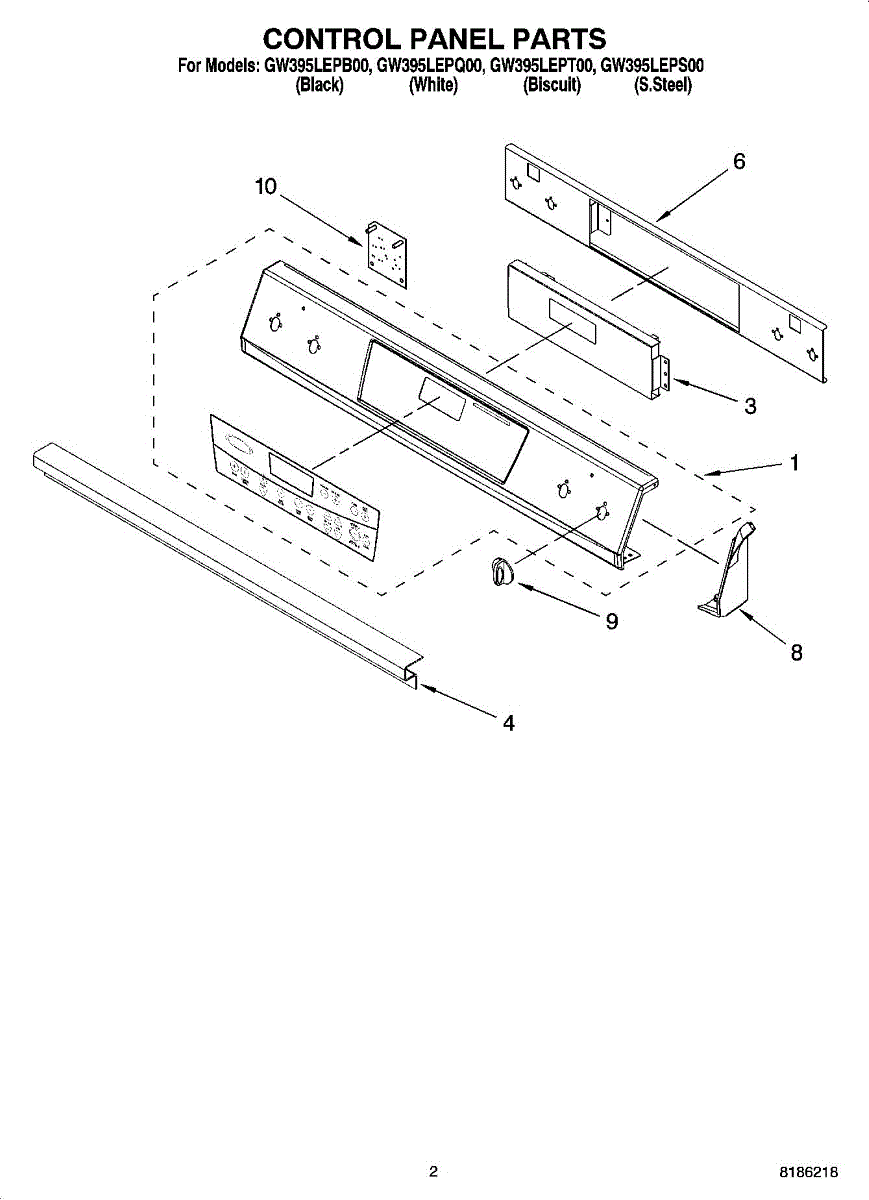

Parts for Whirlpool GW395LEPS00: 02 - Control Panel Parts

Includes control panel and overlay.

Replacement mounting screw for securing panels and components. Install when original screw is stripped, missing, or damaged to prevent rattling.

This OEM replacement part is an oven control board. The control board serves as the main computer to the oven and controls all its essential functions such as baking, maintaining temperature, as well as turning it on and off. If the oven is no longer turning on, or there is an error code on the digital display, this could mean that the control board is no longer operable. Luckily replacing a control board is a relatively simple process.To begin, make sure to unplug the oven. After the power has been shut off, proceed to remove the upper back panel of the range. Once removed gain access to the old control board and snap it out of the locking tabs holding it in place. Take note of the orientation of the wires by taking a photo with a phone camera. Remove the wire harness and individual wires from the old board and place them into the correct terminals of the new board. Snap the new board back in place and reinstall the upper back panel.This genuine replacement part is sold individually and is compatible with General Electric, Hotpoint, and RCA brand ovens.

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
