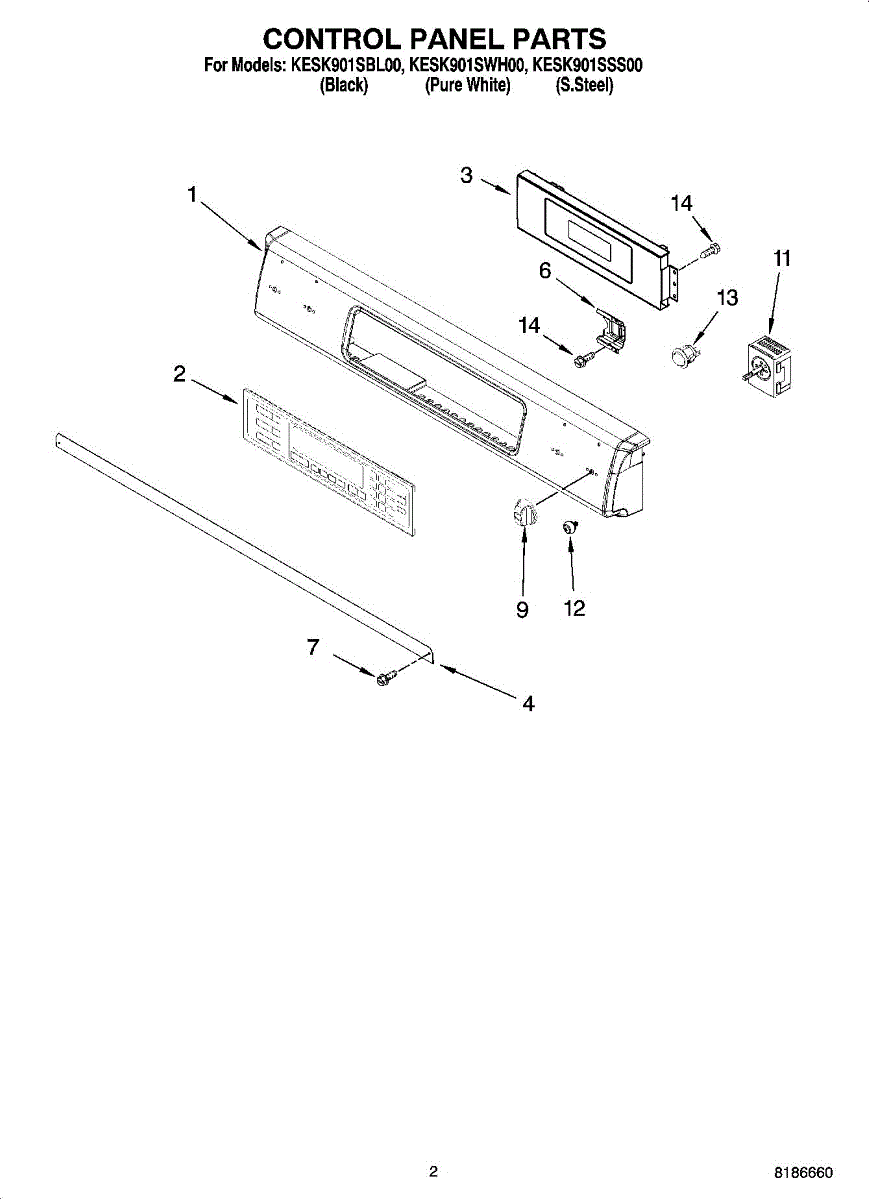

Parts for Kitchenaid KESK901SSS00: 02 - Control Panel Parts

*** Note: Per factory, ribbon connector is part# WPW10237644

This electronic control board is the oven range user interface that manages cooking functions and display feedback so your appliance responds correctly to touchpad commands and cycle selections. What it does

• Receives input from the touchpad and sends commands to heating elements and relays
• Manages oven modes, timers, and display readouts
• Can cause display errors, unresponsive controls, or inability to start cooking when failing
• Works with related relay and sensor components to coordinate oven operation

• Disconnect power at the breaker before accessing the control area to prevent shock
• Handle the board by the edges and avoid touching contacts to prevent static damage
• Verify wiring connections match the old board before finalizing installation

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dual infinite switch controls power to a dual surface burner on an electric range or cooktop. Replacing a failed switch restores smooth heat control and proper inner/outer ring selection for accurate simmer-to-boil performance. What it does:

• Regulates power sent to the inner and outer sections of a dual surface element
• Provides variable heat levels from low to high
• Lets you select small (inner) or large (dual-ring) cooking zones
• Common failure symptoms: burner stuck on high or won't turn off, won't heat or heats erratically, cannot switch between inner-only and dual-ring modes

• 1 dual infinite surface element control switch

• Disconnect power at the breaker before servicing
• Access the control panel; remove the knob and switch mounting hardware as required by your model
• Label or photograph wiring and transfer each wire to the same terminal on the new switch
• After reassembly, test both inner-only and dual-ring settings to ensure proper operation

An infinite switch that controls the heat level for an electric range surface element, allowing smooth temperature adjustments and reliable burner control. Replaces a faulty control to restore consistent element heating and variable heat settings. What it does:

• Regulates power to a single electric surface element so the burner can vary between low and high heat.
• Used when a burner won't heat, stays at one temperature, or heats inconsistently.
• Replaces the control behind the range knob to return normal temperature responsiveness.
• Matches the original function and is intended for surface (coil/glass-top) element control.

• Disconnect the range from power at the breaker before starting any repairs.
• Keep terminals and wiring dry; avoid touching exposed contacts during installation.

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This is the variable heat control for an 8-inch surface element. When the switch fails, the burner may stop heating, stay on high, or lose precise temperature control—replacing it restores smooth, adjustable cooking performance. What it does:

• Regulates power to the 8-inch surface element for variable heat settings
• Common symptoms: burner only on high, no heat, won't shut off, or won't adjust temperature
• Restores proper cycling of the element for consistent heating
• Matches the 8-inch element position designated on the appliance

• 1 surface burner infinite switch

• Disconnect power at the breaker before servicing
• Remove the control knob and access the switch from the control panel/rear panel
• Transfer wires one at a time from the old switch to the same terminals on the new switch
• Secure the switch, reinstall panels/knob, and test the 8-inch burner operation

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

Color: White

Color: Black

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
