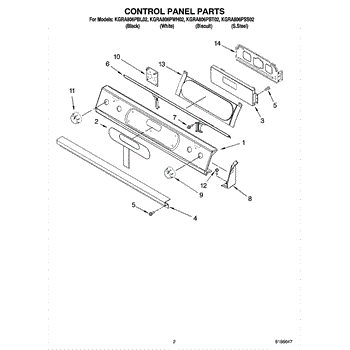

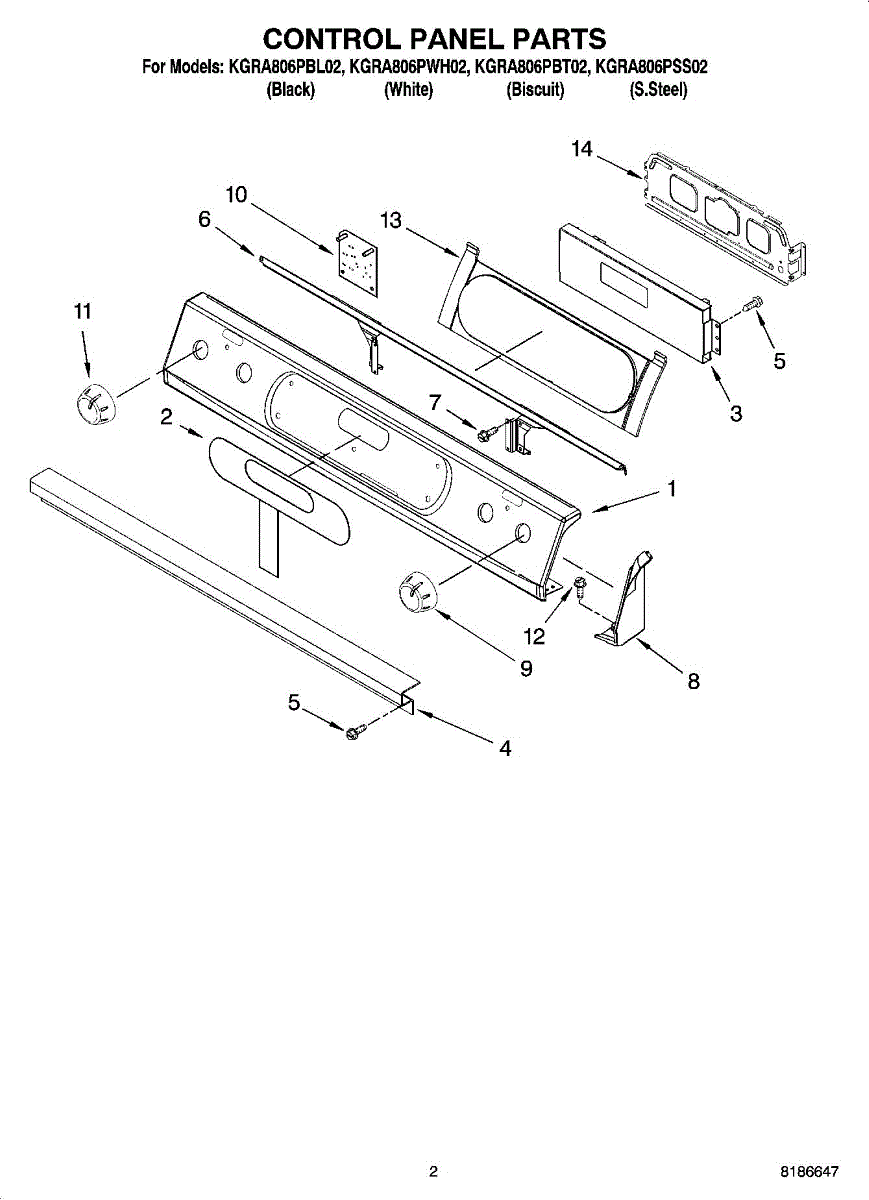

Parts for Kitchenaid KGRA806PBL02: 02 - Control Panel Parts

This membrane switch touch pad replaces the user-interface panel that registers key presses and sends commands to the appliance control. Restores responsive button operation and reliable touch control for the console. What it does:

• Registers user button presses and transmits signals to the control board
• Replaces worn, faded, or unresponsive touch buttons to restore normal operation
• Can resolve intermittent or non-working console buttons and display input issues
• Fits into the console assembly and mates with the control electronics

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove control console trim carefully to avoid damaging clips or ribbon cable
• Handle the flex/ribbon connector and contacts gently; avoid touching conductive traces

This membrane switch in a stainless finish is the touchpad/keypad behind the oven or range control console. It registers your button presses and sends them to the control board to restore reliable input when keys stop responding.

• Provides the touch-sensitive keypad for selecting bake, broil, temperature, timer, and other functions
• Ribbon cable carries keypad signals to the electronic control (clock/oven control)
• Typical symptoms of failure: some or all keys unresponsive, intermittent inputs, unintended beeps, or keypad-related error messages
• A failed keypad can prevent the appliance from starting or accepting commands

• Disconnect power at the breaker before servicing
• Remove the control console/rear cover to access the keypad and control board
• Carefully unplug the ribbon cable; avoid creasing and keep contacts clean
• Align and mount the new membrane, reconnect, reassemble, and test all keys

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable
