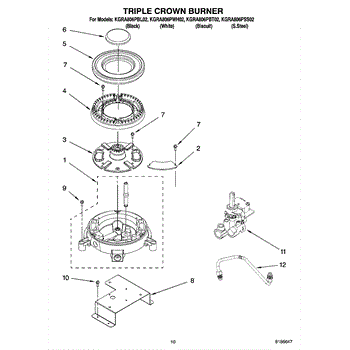

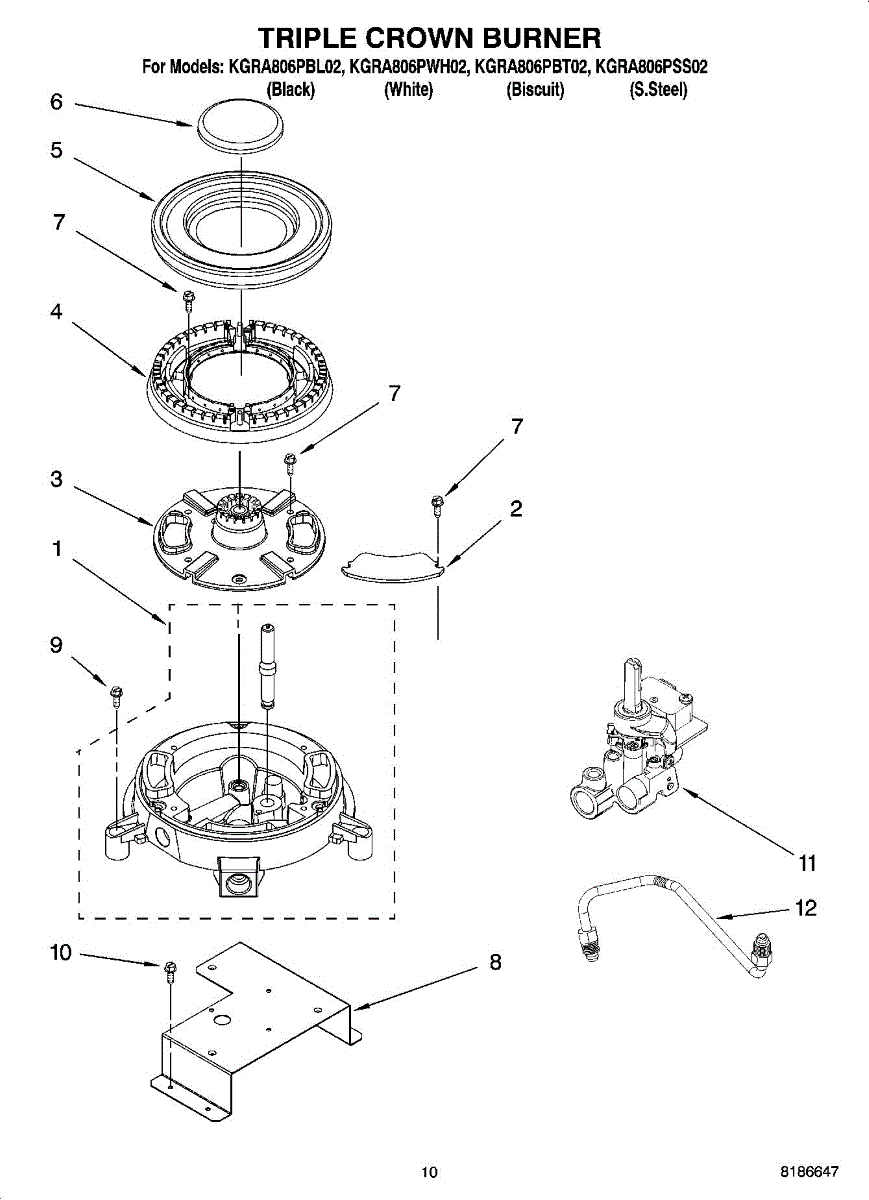

Parts for Kitchenaid KGRA806PBL02: 08 - Triple Crown Burner, Optional Parts

This internal triple crown burner head replaces the inner burner component that supports the burner cap and helps shape the flame for consistent cooking. It restores proper burner function when the inner head is damaged or warped. What it does:

• Directs gas flow to the burner ports to produce an even flame across the triple-C burner pattern
• Helps maintain stable flame for simmering and normal cooking heat
• Can resolve low, uneven, or fluctuating flame caused by a damaged or warped internal head
• Works with the matching burner cap and base to ensure correct flame distribution

• Disconnect power to the cooktop and shut off the gas supply before servicing
• Handle parts carefully to avoid bending ports or damaging mating surfaces
• Verify correct fit and orientation before reassembly; replace any other damaged burner components as needed

This replacement burner head restores the proper flame shape and heat distribution on gas cooktops with a triple-crown external burner design. It helps improve ignition and even cooking across pots and pans. What it does

• Directs and shapes the gas flame for even heat across cookware.
• Replaces damaged, corroded, or warped burner head surfaces that cause uneven heating.
• Can resolve weak, irregular, or misdirected flames and intermittent ignition at the burner.
• Works as part of the burner assembly to maintain safe, consistent combustion.

• Turn off gas supply and electrical power to the appliance before servicing.
• Remove grates and burner cap, then lift off and replace the burner head; ensure proper alignment before reassembly.
• Inspect other burner components (cap, base, or orifice) for damage or debris that may affect performance.

This inner burner cap, in a coal matte black finish, sits on the center of the burner to shape the flame and shield the burner head—helping restore even heat and reliable ignition when the original cap is worn, chipped, or missing.

• Seats on the inner burner head to focus and distribute the flame evenly
• Protects burner ports from spills and debris that can affect flame quality
• Proper seating helps maintain correct flame color and simmer performance
• Common symptoms of a damaged/missing cap: uneven or yellow flames, delayed ignition, or flame lifting

• Shut off gas/electric supply and allow the cooktop to cool completely
• Lift off the old cap; clean and dry the burner head surface before installing
• Center the new cap and align any locating features; ensure it sits flat and level
• Test the burner and reseat the cap if the flame is uneven

This screw secures panels, brackets, and internal components in your appliance, keeping assemblies tight and aligned. Replacing worn or missing hardware helps prevent vibration and rattling and restores a solid fit after service or everyday use.

• Fastens sheet-metal panels, brackets, and internal parts to the cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, corroded, or stripped screws
• Supports safe, secure reassembly during repairs

• Disconnect power; for gas appliances, also shut off the gas supply before beginning
• Support parts being removed so components aren't stressed or misaligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves when working around sharp metal edges

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This screw secures panels, brackets, and internal components in your appliance, keeping assemblies tight and aligned. Replacing worn or missing hardware helps prevent vibration and rattling and restores a solid fit after service or everyday use.

• Fastens sheet-metal panels, brackets, and internal parts to the cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, corroded, or stripped screws
• Supports safe, secure reassembly during repairs

• Disconnect power; for gas appliances, also shut off the gas supply before beginning
• Support parts being removed so components aren't stressed or misaligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves when working around sharp metal edges

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Black

Size: 1/3 oz.

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

A replacement mounting screw used to secure appliance panels and components. Restores a missing or stripped fastener so parts sit flush and stay in place for reliable operation. What it does

• Fastens panels, brackets, and trim to the appliance chassis
• Prevents rattling, loose panels, and misaligned parts when installed correctly
• Replaces missing or damaged screws to restore proper fit and function

• Disconnect power to the appliance before working on it
• Use the correct-size screwdriver or driver bit to avoid cam-out or stripping
• Install by hand until started, then snug; avoid over-tightening to prevent damage
• Keep removed hardware organized and compare to the replacement before installing

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

Specs: 25ft,14 Ga., 200 c Brown

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Size: 2.8 fl.oz tube. 748 non-corosive sealant.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Size: 10-32 inch.

Kit includes 4 pins.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
