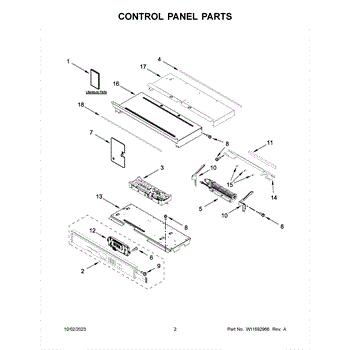

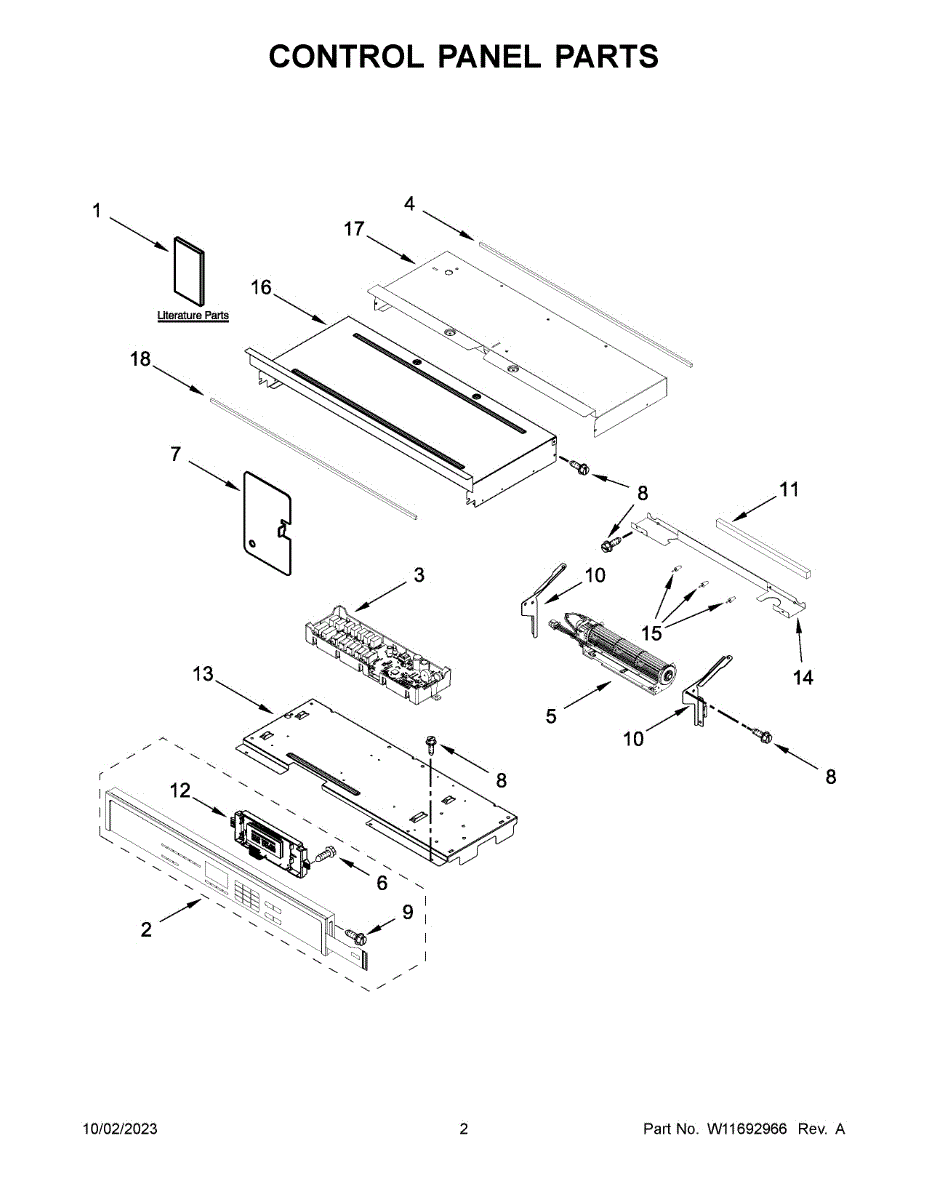

Parts for Whirlpool WOED3030LS01: Control Panel Parts

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This is a replacement oven control board from Whirlpool. The control board's job is to take user inputs, display information, and monitor/manage the function of the oven. The display shows the user the time and/or temperature, as well as timer-related information. Over time, the oven control board can deteriorate due to the effects of heat, moisture, spills, and more. Signs that the oven control board might be failing or have failed include intermitting problems with the display or oven functions, or lack of functionality. Replacing the control board is the only way to fix the problem. First, unplug the oven. Next, remove the cowling/cover over the control board. Locate the four mounting screws and remove them. Disconnect the wiring from the old board. Install the new board by following these steps in reverse.This is a genuine OEM part. It's sold individually, and will fit Whirlpool, KitchenAid, and Maytag ovens.

This main wiring harness routes power and signals between controls and major appliance components, restoring electrical connections for proper operation. Replaces a damaged or burned harness to address intermittent power, no-start, or control-function failures. What it does:

• Carries power and control signals between the control board and components
• Restores broken or shorted circuit paths that can cause intermittent operation or no power to subsystems
• Prevents arcing and poor connections that can lead to component failures or unusual behavior
• Matches OEM connector types and routing to ensure correct fit and function

• One main wiring harness (double-connector M22), as shown

• Disconnect power before servicing; verify power is off at the breaker
• Compare connector count and routing to the original harness before installation
• Secure harness away from moving parts and heat sources; use existing clips or ties

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
