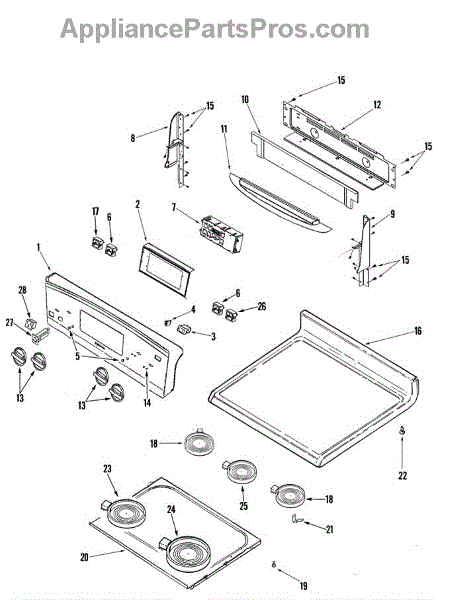

Parts for Jenn-Air JER8885RCB: Control Panel / Top Assembly Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Black. Right hand side

Color: stainless steel. Measures about 2 inches in diameter.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Black

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

This surface heating element restores dependable heat on your electric range or cooktop. Replace a failed top burner to regain consistent boiling and simmering performance when one position stops heating, heats unevenly, or cycles unpredictably.

• Converts electrical power into heat for cookware on the cooktop
• Replaces a burned-out/open surface burner to restore normal operation
• Helps fix: no heat, intermittent heat, or uneven heating at a burner position
• Matches the original footprint and connections for proper fit and function

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; wear appropriate hand and eye protection
• Access the element per your service manual; note wire locations and transfer any mounting clips/brackets from the old part if present
• Seat terminals fully and secure the element before reassembly; test on low and high settings

This surface element infinite switch controls power to an electric cooktop burner, allowing smooth adjustment from low to high heat. Replace a faulty switch to restore consistent, reliable temperature control on your range's surface burner.

• Regulates on/off cycling of the surface element to maintain the selected heat level
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or heat changes erratically
• Restores full range of settings across the knob from simmer to full power
• Helps resolve intermittent heating caused by worn internal contacts

• Disconnect power at the breaker or unplug the range before servicing
• Remove the knob and access the control panel to reach the switch
• Photograph or label wires; transfer them one at a time to matching terminals on the new switch
• Secure the switch, reinstall the knob and panel, then test all heat settings
