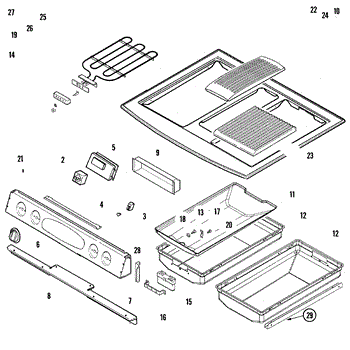

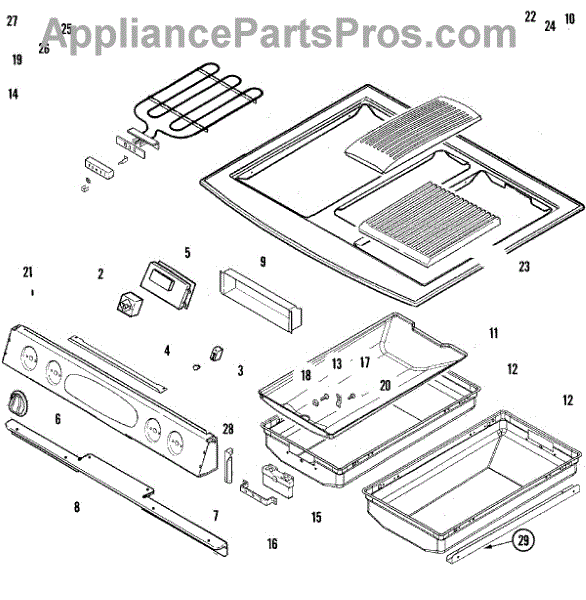

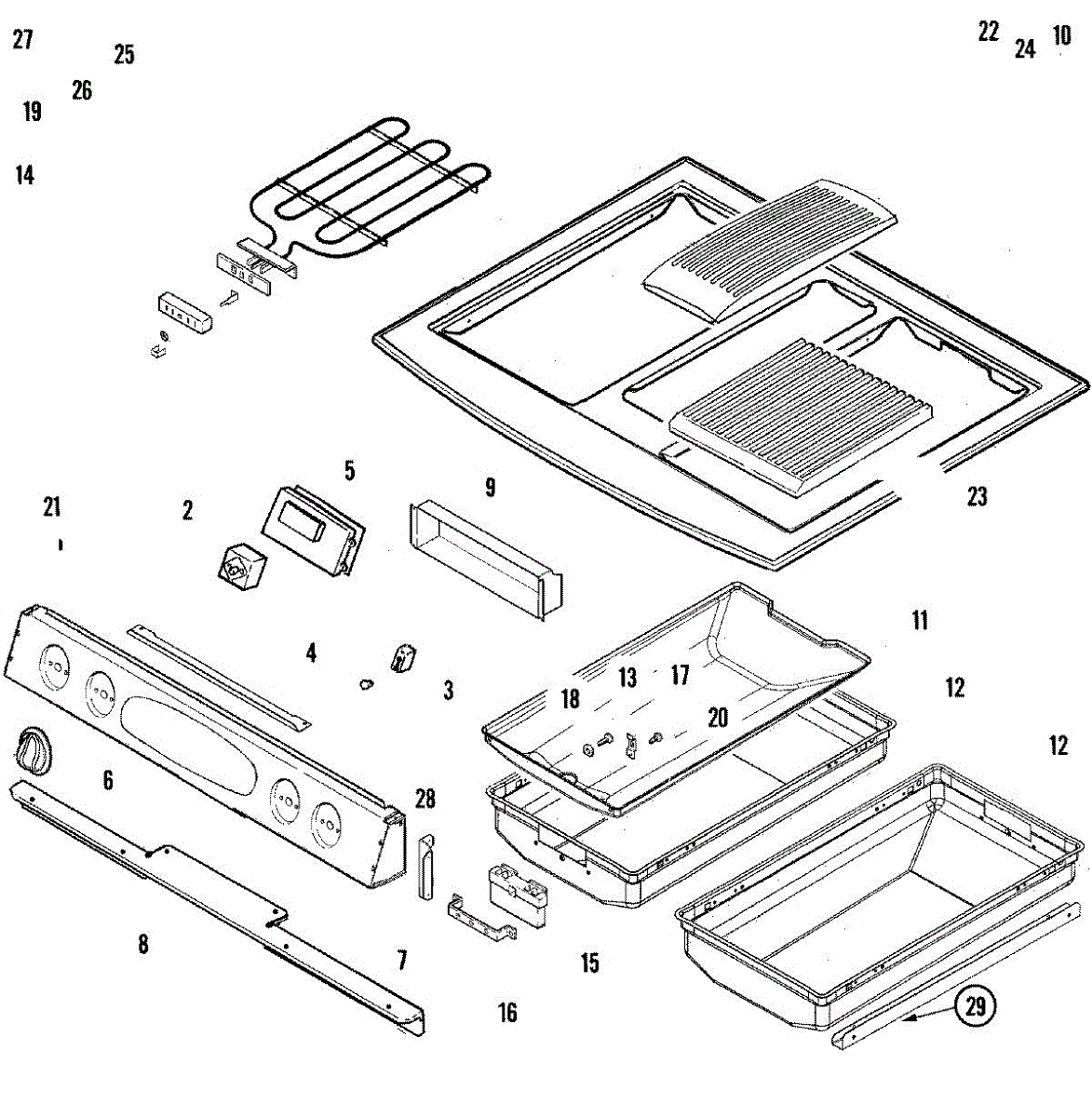

Parts for Jenn-Air JES9750AAB: 03 - Control Panel / Top Assy Parts

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

To order indicator light use WP903115.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

Screw: 8-16 x 3/8 inch.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This part has been discontinued by the manufacturer and is no longer available.

This wire harness, also called a contact wire assembly, restores reliable factory connections between the appliance's controls and components. Replacing a damaged harness helps resolve intermittent or failed operation caused by burnt, brittle, or loose wiring and terminals.

• Provides the electrical pathway between controls, switches, and related components
• Can help address intermittent operation or a component that won't run/respond
• Replaces wiring with burned, melted, cut, or corroded insulation/terminals
• Restores proper routing and insulation to reduce shorts, arcing, or overheating

• Disconnect power at the breaker before servicing; also shut off gas supply
• Access the harness by removing necessary panels/knobs; label or photograph connections for reference
• Route the new harness in the original clips/grommets, away from sharp edges and hot or moving parts
• Push connectors on fully until secure; reassemble and test operation

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

This bracket supports the oven's grill/broiler pan, holding the pan securely during broiling and grilling so food cooks evenly and the pan stays stable. It replaces a worn or broken support bracket. What it does:

• Secures the grill/broiler pan in position so it doesn't shift during use
• Helps maintain proper pan alignment for even browning and cooking
• Prevents rattling or sagging caused by a damaged bracket
• Restores safe support for loading and removing the broiler/grill pan

• One grill pan support bracket

• Designed for oven internal use;
• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Install with existing fasteners; replace any damaged clips or screws if needed

This clip secures appliance panels or small components to maintain alignment and reduce vibration, restoring the original fit where a worn or broken fastener allows movement or rattling. Simple, direct-fit replacement when the original clip fails. What it does:

• Holds trim, panels, or small components in position to prevent rattling and shifting.
• Replaces broken or missing fasteners that allow loose or misaligned parts.
• Helps keep wiring harnesses or insulation routed and secured in assemblies.
• Small, inexpensive part commonly used wherever a retaining clip is specified.

• Always disconnect power (unplug or shut off circuit) before servicing the appliance.
• Remove panels or trim per the manufacturer service sheet to access the clip; note the clip orientation before removal.
• Use appropriate tools (needle-nose pliers, trim tool) and avoid over-bending the clip or adjacent parts.
• Replace them with the correct OEM-specified clips for reliable fit.

This speed nut is a stamped metal retaining clip designed to hold screws or fasteners securely to appliance panels and trim. It provides a simple, vibration-resistant connection that keeps covers and components in place. What it does:

• Secures screws to thin sheet metal or panel edges where a threaded hole isn't available
• Provides a firm, vibration-resistant attachment for panels, trim, or small components
• Helps prevent screws from loosening or backing out during normal use
• Commonly used where a captive nut or clip is required for assembly or repair

• One speed nut / retaining clip

• Disconnect power and unplug the appliance before starting any repair
• Position the clip over the panel edge or hole so the screw can engage the clip's thread; press or tap gently until seated
• Use the correct screw size and avoid over-tightening to prevent deforming the clip or striping threads
• Wear gloves and eye protection when handling sharp sheet metal edges

Screw: 8-16 x 3/8 inch.

Includes one element and two grates. For the complete Jenn-air electric grill assembly order JEA8000ADBA.

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

Includes one element and two grates. For the complete Jenn-air electric grill assembly order JEA8000ADBA.

This grill element is the radiant heating coil used for the appliance's grill/broil function. Replacing a failed element restores strong, even radiant heat for searing, browning, and finishing as designed.

• Provides direct radiant heat for the grill/broil cycle
• Cycles under control to maintain target temperature
• Common fix for no broil/grill heat or uneven top browning
• Visible damage such as blisters, breaks, or arcing points indicates replacement is needed

• Disconnect power at the breaker or unplug before servicing; allow the unit to cool
• Access the element per your model; remove mounting screws and carefully lower/slide it out
• Disconnect the wire terminals; support wires so they don't retract into the cavity
• Attach wires to the new element, secure with original hardware, and avoid bending the coil

This part has been discontinued by the manufacturer and is no longer available.
