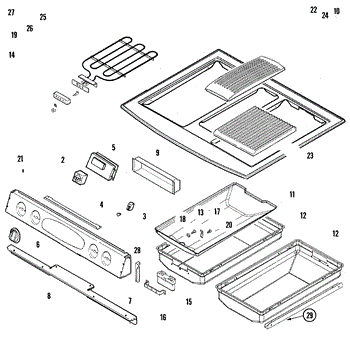

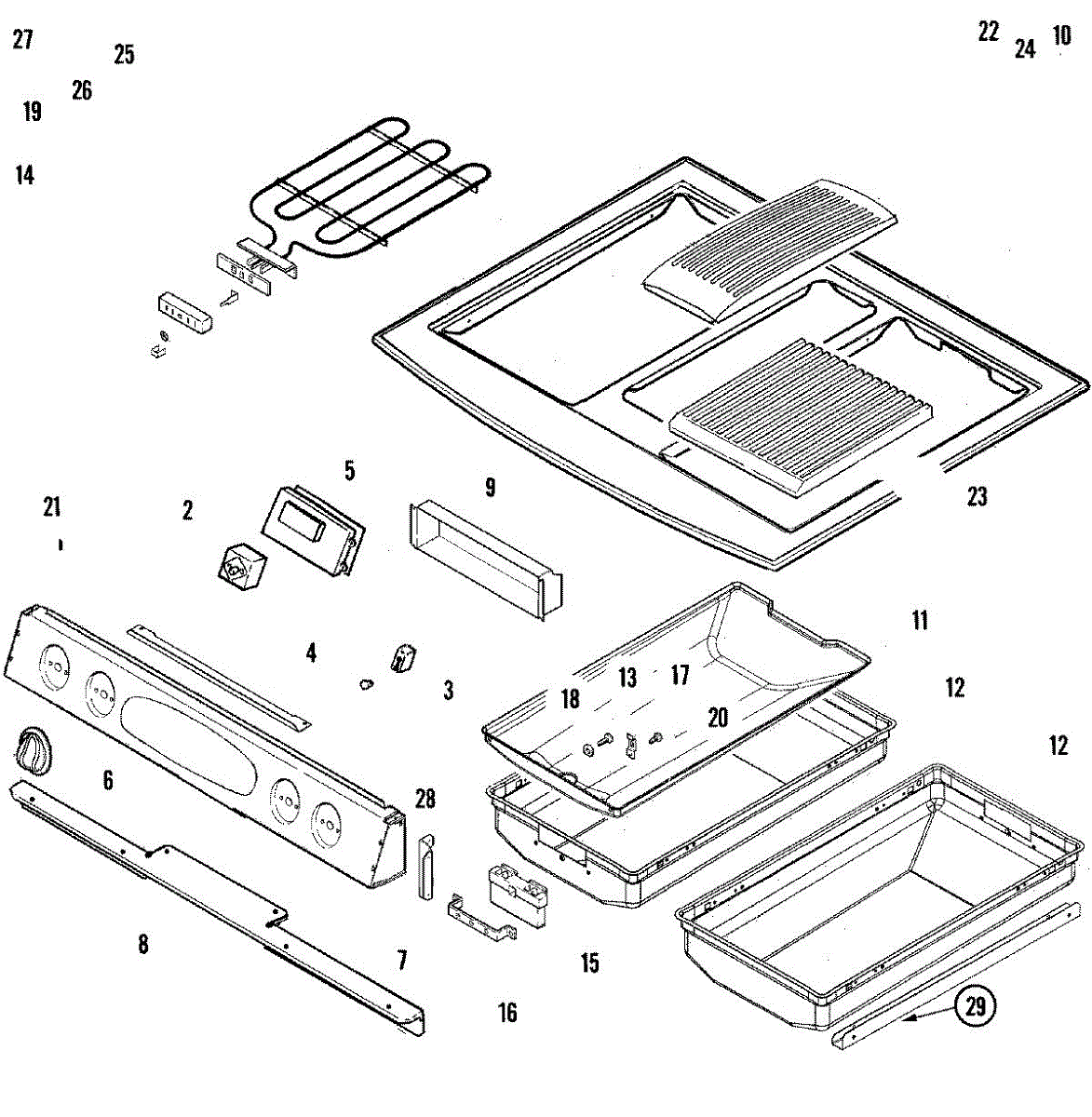

Parts for Jenn-Air JES9860AAB: 03 - Control Panel / Top Assembly Parts

This OEM replacement part is a Whirlpool control panel assembly. The control panel assembly is the component that houses the control board. It is the piece that holds the display, as well as the buttons that control the various functions of the oven.To replace the control panel assembly, gain access to the back of the stove after it has been unplugged. Remove the upper back panel of the stove, then remove the screws that secure the control panel assembly to the range. Replace the old panel with new, and refasten the screws to secure the new panel assembly. Reinstall the upper back panel and put the stove back in place.This OEM control panel assembly is sold individually. It is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore Brand stoves.

Burner stuck on high or won't turn off? This burner control switch regulates heat settings. Moderate DIY repair—label wires before swapping.

To order indicator light use WP903115.

Professional repair service for oven control boards that includes wire harness restoration to ensure proper electrical connections. This service addresses temperature control problems, timer malfunctions, and display issues. Select this repair when your oven won't maintain temperature, shows error messages, or has a blank or flickering display.

This electronic control board manages all cooking functions including oven temperature, timer operations, and burner controls. It processes input from knobs and displays and controls heating elements, gas valves, and other cooking components. Replace this board if your oven won't heat, temperature is inaccurate, or if the display shows error codes.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement 6-32 x 3/8" screw secures panels, brackets, and trim pieces on appliances. Restores proper fastening when original screws are lost or stripped.

Screw: 8-16 x 3/8 inch.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This part has been discontinued by the manufacturer and is no longer available.

Fix intermittent or failed burner operation caused by burnt or loose wiring. This wire harness restores reliable connections. 5-minute repair once disassembled.

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

Secures the broiler/grill pan in your range oven, preventing shifting during cooking. Replace if your bracket is cracked, broken, or missing.

Secures cooktop panels and components to eliminate rattling and maintain alignment. Replace when worn clips allow movement or vibration. Confirm fit with your model.

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

Screw: 8-16 x 3/8 inch.

Includes one element and two grates. For the complete Jenn-air electric grill assembly order JEA8000ADBA.

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

Includes one element and two grates. For the complete Jenn-air electric grill assembly order JEA8000ADBA.

Range not broiling or browning food evenly? A failed broil element is the likely cause. This radiant heating coil restores strong, even heat for searing.

This part has been discontinued by the manufacturer and is no longer available.
