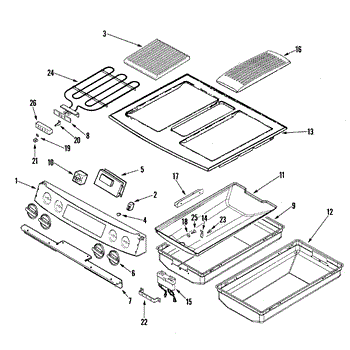

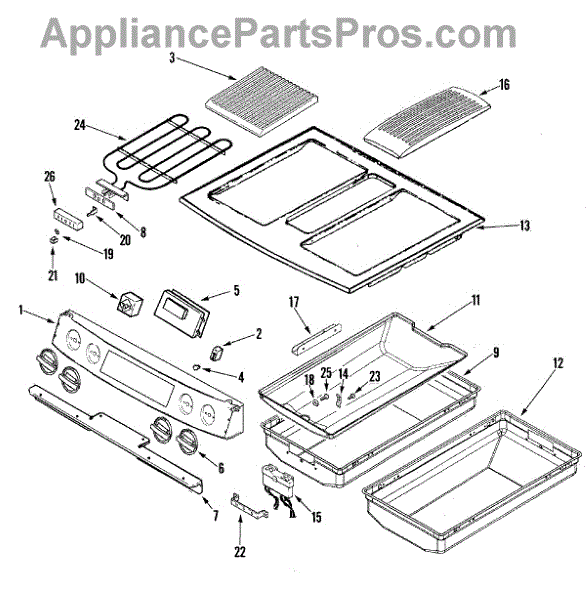

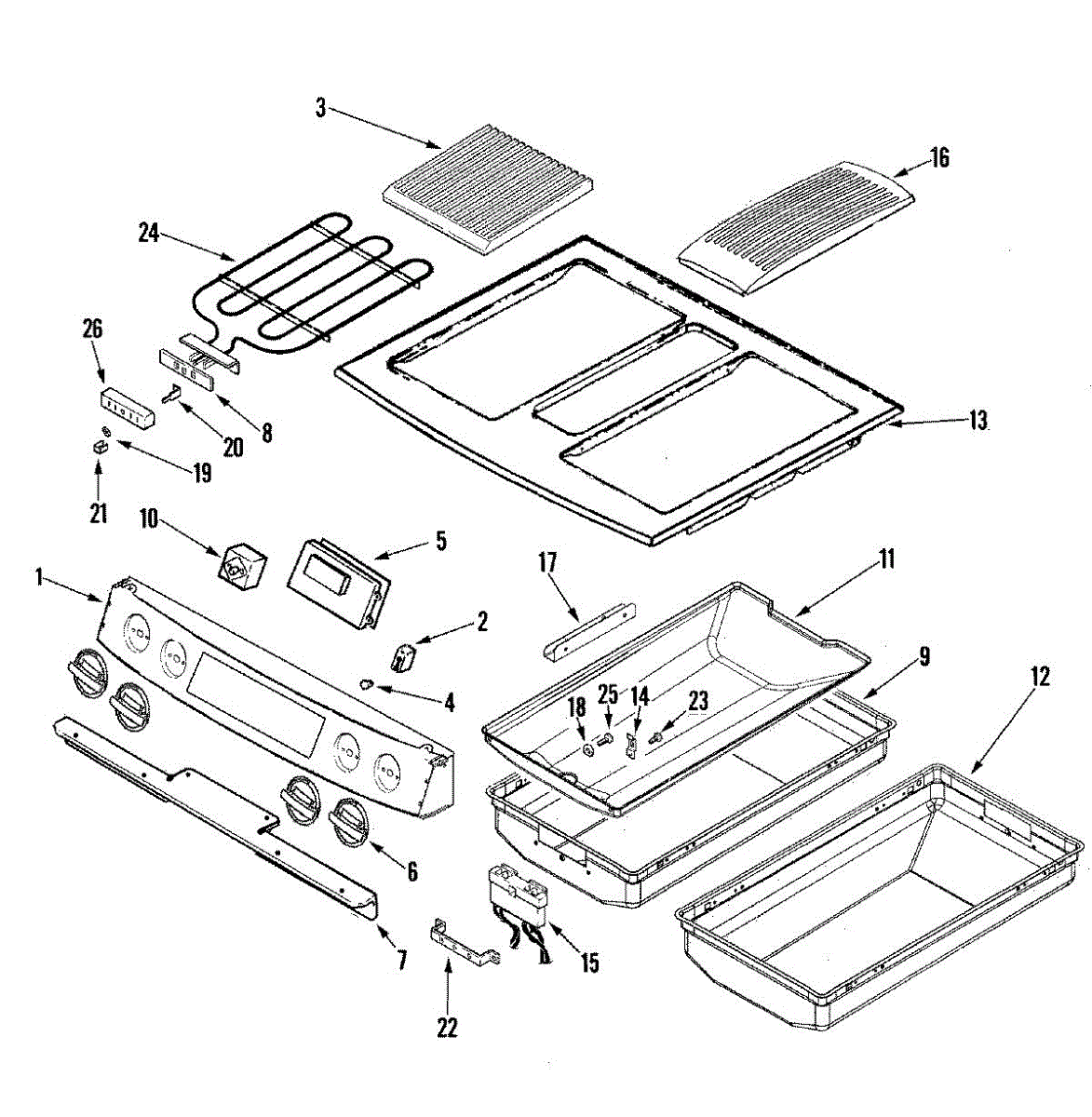

Parts for Jenn-Air JES9860BAB: 03 - Control Panel / Top Assembly Parts

Control panel assembly that restores the appliance's front user interface so you can select cycles, options and see status. Replaces cracked, faded, or unresponsive panels to return reliable push-button and display control. What it does:

• Replaces the console surface, buttons and display area so controls respond and settings are visible.
• Addresses common symptoms like unresponsive buttons, dim or blank display, or missing indicator lights.
• Mounts in the original console location and connects to the existing wiring harness for a like-for-like replacement.
• Useful when the panel is cracked, worn, or cosmetically damaged and normal control operation is affected.

• Disconnect power (and water supply for washers) before beginning any work to avoid shock or injury.
• Handle the panel and display carefully to avoid scratching the overlay or damaging connectors.
• Installation typically requires removing trim and screws, unplugging the wiring harness, then reversing steps to install the new panel.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

To order indicator light use WP903115.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This electronic clock control helps manage and monitor the features on an oven. This part is located on the front of the oven so the user can easily see the clock and start and stop times for cooking. The display can also show error codes if one of the oven parts is not working correctly. If this part is damaged, cooking may take longer, overheating may occur, or the foods may come out unevenly cooked.Replacing the part is simple and requires only a Phillips screwdriver. Disconnect the oven from power or turn off the appropriate breaker box. Open the door and access the bottom of the control panel assembly. Remove the screws and lift up on the electronic clock control to unhook it from the appliance. Unplug the wire harnesses before removing the clock. Attach the new part to the wires and screw it into the oven.This electronic clock control is made for use as a genuine OEM replacement part for Jenn Air ovens. It is sold on an individual basis and comes directly sourced from the manufacturer. This part is offered as an individual component.

The Burner Control Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows you to control the heat level of the burners, providing precise adjustments for cooking various dishes. It is designed to fit securely on the burner control shaft and is marked with temperature settings for easy operation.

Over time, the burner control knob can become worn or damaged due to frequent use, exposure to heat, or accidental impact. Replacing a faulty knob ensures accurate control of the burners and maintains the functionality of the range.

Symptoms of a bad burner control knob include:

• Cracks or breakage in the knob
• Difficulty turning or adjusting the burner
• The knob not staying securely on the control shaft
• Inaccurate temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This infinite switch controls the power level to a surface burner on an electric range or cooktop, allowing smooth, variable heat settings. Replacing a failed switch restores precise temperature control and reliable burner shutoff.

• Regulates power cycling to a surface element for low, medium, and high heat levels
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or fluctuates/uneven heat
• Mounts behind the control knob and controls a single surface burner
• Restores consistent heat selection and responsive knob control

• Disconnect power at the breaker before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure the switch, reinstall panels/knob, and test burner operation

This clip secures appliance panels or small components to maintain alignment and reduce vibration, restoring the original fit where a worn or broken fastener allows movement or rattling. Simple, direct-fit replacement when the original clip fails. What it does:

• Holds trim, panels, or small components in position to prevent rattling and shifting.
• Replaces broken or missing fasteners that allow loose or misaligned parts.
• Helps keep wiring harnesses or insulation routed and secured in assemblies.
• Small, inexpensive part commonly used wherever a retaining clip is specified.

• Always disconnect power (unplug or shut off circuit) before servicing the appliance.
• Remove panels or trim per the manufacturer service sheet to access the clip; note the clip orientation before removal.
• Use appropriate tools (needle-nose pliers, trim tool) and avoid over-bending the clip or adjacent parts.
• Replace them with the correct OEM-specified clips for reliable fit.

This speed nut is a stamped metal retaining clip designed to hold screws or fasteners securely to appliance panels and trim. It provides a simple, vibration-resistant connection that keeps covers and components in place. What it does:

• Secures screws to thin sheet metal or panel edges where a threaded hole isn't available
• Provides a firm, vibration-resistant attachment for panels, trim, or small components
• Helps prevent screws from loosening or backing out during normal use
• Commonly used where a captive nut or clip is required for assembly or repair

• One speed nut / retaining clip

• Disconnect power and unplug the appliance before starting any repair
• Position the clip over the panel edge or hole so the screw can engage the clip's thread; press or tap gently until seated
• Use the correct screw size and avoid over-tightening to prevent deforming the clip or striping threads
• Wear gloves and eye protection when handling sharp sheet metal edges

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This bracket supports the oven's grill/broiler pan, holding the pan securely during broiling and grilling so food cooks evenly and the pan stays stable. It replaces a worn or broken support bracket. What it does:

• Secures the grill/broiler pan in position so it doesn't shift during use
• Helps maintain proper pan alignment for even browning and cooking
• Prevents rattling or sagging caused by a damaged bracket
• Restores safe support for loading and removing the broiler/grill pan

• One grill pan support bracket

• Designed for oven internal use;
• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Install with existing fasteners; replace any damaged clips or screws if needed

Screw: 8-16 x 3/8 inch.

This grill element is the radiant heating coil used for the appliance's grill/broil function. Replacing a failed element restores strong, even radiant heat for searing, browning, and finishing as designed.

• Provides direct radiant heat for the grill/broil cycle
• Cycles under control to maintain target temperature
• Common fix for no broil/grill heat or uneven top browning
• Visible damage such as blisters, breaks, or arcing points indicates replacement is needed

• Disconnect power at the breaker or unplug before servicing; allow the unit to cool
• Access the element per your model; remove mounting screws and carefully lower/slide it out
• Disconnect the wire terminals; support wires so they don't retract into the cavity
• Attach wires to the new element, secure with original hardware, and avoid bending the coil

Screw: 8-16 x 3/8 inch.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information
