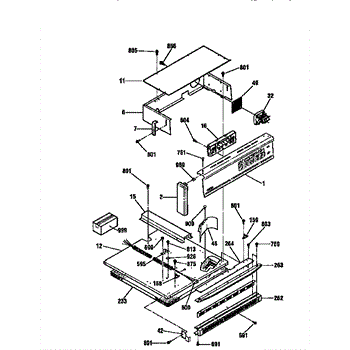

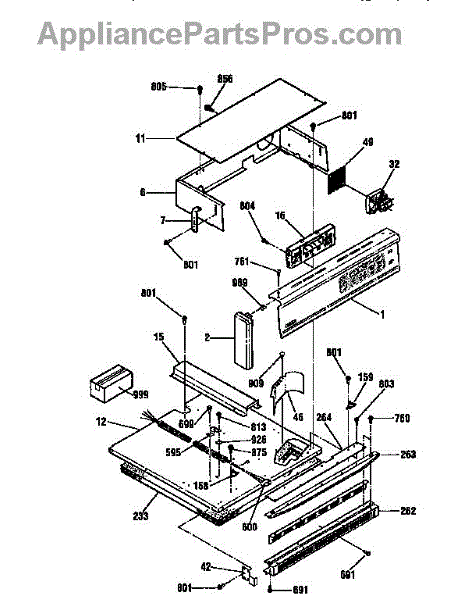

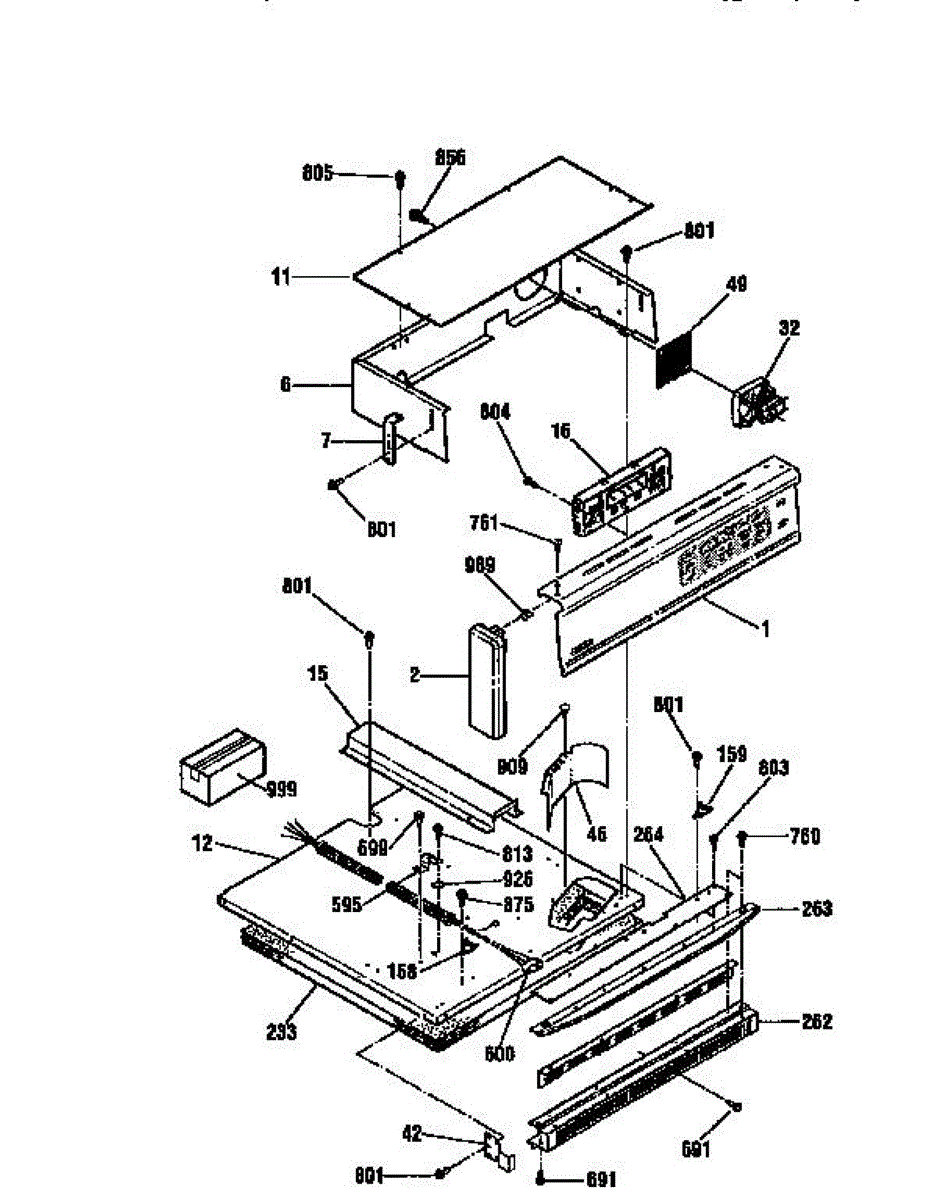

Parts for Kenmore 911.40465690 (91140465690, 911 40465690): Control Section Parts

Color: White

A replacement control panel bracket that secures the oven/range control console to the chassis, restoring a stable, aligned control panel for safe operation and clean appearance. Fits the OEM mounting location and restores proper panel support. What it does

• Provides a secure mounting point to hold the control/console assembly in place.
• Prevents a loose, wobbly, or sagging control panel that can cause buttons or touchpads to misalign.
• Stops rattling or vibration noise from the control area during use.
• Helps maintain correct spacing so knobs, buttons and electronic controls operate reliably.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Basic hand tools (screwdriver, nut driver) are typically required; follow the OEM service instructions for disassembly/reassembly.
• Handle surrounding trim, glass, and control surfaces carefully to avoid damage.
• If electronic components were removed, connections before restoring power and test functions after installation.

This lower cooling fan assembly circulates air to cool internal components and help maintain proper airflow in the appliance. Replacing a worn fan restores quieter operation and helps prevent overheating of electrical parts. What it does:

• Moves air through the appliance cabinet to aid component cooling and temperature regulation.
• Reduces hot spots around controls, electronics, and motors that can cause premature failure.
• Commonly used when you hear unusual noise from the lower area or detect reduced airflow.
• Supports overall appliance performance and reliability by maintaining designed ventilation.

• One lower cooling fan assembly as shown

• Disconnect power before attempting any service to avoid electric shock.
• Inspect surrounding mounts and ducts for damage; replace any broken clips or supports.
• Use basic hand tools; confirm correct orientation and secure mounting before restoring power.

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This I-brow trim is a replacement cosmetic trim piece that restores the finished appearance of the refrigerator door opening and control area. It helps cover gaps and worn edges for a clean, factory look. What it does:

• Replaces a damaged or faded I-brow trim piece to improve appearance
• Covers the edge between the cabinet and the control/door area
• Helps maintain a uniform finish at the refrigerator's top/front opening
• Common symptom: trim is cracked, scratched, loose, or discolored

• Intended as a direct-fit replacement; remove old trim and snap or screw new trim into place
• Disconnect power to the appliance before starting work if trim removal exposes electrical components
• Use care to avoid scratching adjacent surfaces during installation

This I-brow trim is a replacement cosmetic trim piece that restores the finished appearance of the refrigerator door opening and control area. It helps cover gaps and worn edges for a clean, factory look. What it does:

• Replaces a damaged or faded I-brow trim piece to improve appearance
• Covers the edge between the cabinet and the control/door area
• Helps maintain a uniform finish at the refrigerator's top/front opening
• Common symptom: trim is cracked, scratched, loose, or discolored

• Intended as a direct-fit replacement; remove old trim and snap or screw new trim into place
• Disconnect power to the appliance before starting work if trim removal exposes electrical components
• Use care to avoid scratching adjacent surfaces during installation

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

This wiring diagram is the OEM schematic sheet that shows the appliance's electrical layout to aid troubleshooting and correct wiring during repairs. It helps component connections and wiring routes for safe, accurate service. What it does:

• Provides the factory electrical schematic so you can identify wire routing, connector locations, and component interconnections
• Helps diagnose common electrical symptoms like no power, intermittent operation, or circuits that don't complete
• Useful when restoring wiring after parts replacement or verifying harness connections during service
• Keeps a permanent reference to prevent incorrect reconnections and reduce rework

• One wiring diagram (single schematic sheet)

• Always disconnect power (unplug appliance or shut off circuit breaker) before opening or servicing
• Use the diagram as a reference only; verify wiring colors and terminal labels on the appliance before reconnecting
• Handle the sheet carefully to avoid tearing or smudging; store with appliance documentation for future service
• If wiring appears damaged, replace affected harnesses or components rather than relying solely on the diagram
