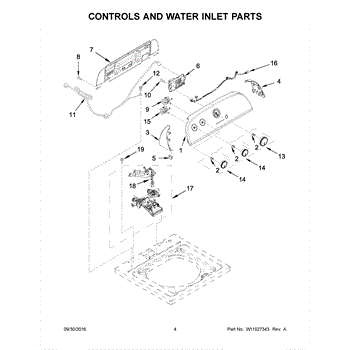

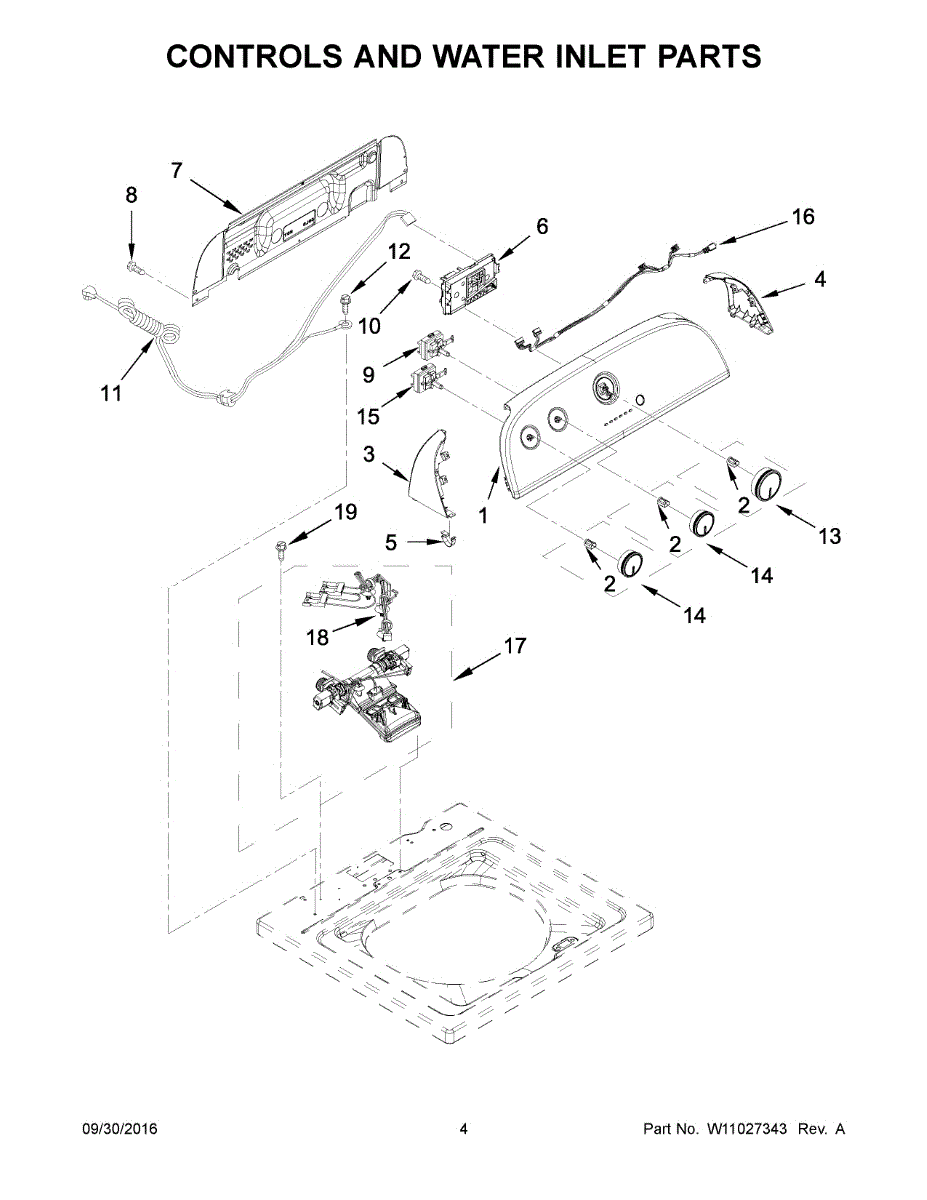

Parts for Whirlpool WTW4715EW2: 03 - Controls And Water Inlet Parts

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement control panel that restores the appliance's front surface and provides a secure mounting area for buttons and switches. Replaces a damaged or worn panel to help maintain proper control operation and appearance. What it does:

• Provides the exterior mounting surface for control buttons, knobs, and switches
• Protects internal control components from spills, grease and accidental damage
• Restores a flush, secure fit to the appliance front where the panel was cracked, warped, or dented
• Can reduce issues caused by loose or misaligned controls

• One replacement control panel

• Disconnect power to the appliance before beginning any repairs
• Typically secures with screws and may require removing trim or the main console for access
• Handle carefully to avoid scratching the finish; use appropriate tools and fasteners

This control panel is the exterior console that houses the washer/dryer controls and user interface, restoring a clean, functional front for the appliance. It replaces a damaged or worn panel to improve operation and appearance. What it does:

• Provides the mounting surface and openings for knobs, buttons, and display elements
• Protects internal control components from dust and debris
• Restores correct alignment of user controls and labels for reliable operation
• Helps resolve issues caused by cracked, warped, or cosmetically damaged panels

• One control panel assembly as shown

• Disconnect power (and water if applicable) before starting any repair
• Handle carefully to avoid scratching the finish and damaging clips or mounting tabs
• Some disassembly of the top or front may be required; follow OEM instructions
• If the panel contains attached switches or overlays, verify connectors are secure before reassembly

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear panel replaces the backguard that covers the appliance's rear housing, protecting internal components and wiring while giving the unit a finished appearance. It restores a safe, enclosed back area and helps prevent debris entry. What it does:

• Covers and protects control wiring, terminals, and components at the appliance rear
• Prevents accidental contact with electrical parts and reduces debris or grease buildup
• Restores a finished exterior back surface for safety and appearance
• Helps maintain proper airflow routing behind the appliance

• Disconnect power (unplug or shut off circuit breaker) before starting work.
• Handle edges carefully—metal panels may be sharp; wear gloves.
• Typical installation requires removing a few screws and aligning tabs; keep original fasteners if present.
• If clips, insulation, or mounting hardware are missing or damaged, replace with OEM-specified hardware for proper fit.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement power cord restores the electrical connection to your appliance so it can receive consistent power and operate safely. It's a direct-fit service part used when the original cord is damaged or no longer supplying power. What it does:

• Provides the main electrical connection from the wall outlet to the appliance
• Replaces frayed, cut, or melted cord insulation that can cause power loss or shorts
• Stops intermittent or no-power symptoms caused by a damaged cord
• Restores safe, reliable power delivery when the original cord is faulty

• Always disconnect power at the breaker or unplug the appliance before installation
• Route and secure the cord away from sharp edges, moving parts and high-heat areas

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Knob is an OEM part for Whirlpool washers and dryers. It is located on the control panel that allows you to set and adjust the timer for different wash and dry cycles.

A bad timer knob can be caused by regular use, accidental damage, or wear and tear over time. If you notice cracks, a loose fit, or difficulty in turning the knob, it may indicate a problem with the knob itself.

Symptoms of a bad timer knob include:

• Cracked or damaged knob surface
• Loose or wobbly fit of the knob on the control panel
• Inability to set or adjust the timer accurately

Replace your faulty timer knob with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Knob is an OEM component for Whirlpool dryers. As the user interface, it allows selections of temperature, settings, and time options with the twist of a finger.

Designed for comfort during extended cycles, the durable knob utilizes non-slip textured surfaces around robust internal gears. Integrated fasteners mount securely to shafts coupling knobs to their respective switches.

Causes of faulty knobs can include stripped internal teeth from mineral deposits binding moving parts or broken mounting tabs weakened through normal wear over many years.

Symptoms of a damaged knob include:

• Failure to engage settings or spin freely
• Dials loose on shaft allowing accidental shifts
• Missing labels from normal cleaning/wear reducing visibility
• Cracks or breaks compromising seal against moisture

Replace yours today with this genuine Whirlpool knob to restore easy navigation of cycles. Compatible with Kenmore and some Maytag dryers.

Rotary encoder that restores precise cycle selection and reliable knob feedback on the control panel. Replaces a worn or unresponsive cycle switch so the control board can detect the chosen program correctly. What it does:

• Senses knob/shaft position and sends cycle-selection signals to the control board.
• Restores tactile detents and accurate position indexing for the user control knob.
• Commonly fixes symptoms like the control not recognizing selected cycles, intermittent cycle changes, or a loose/unresponsive selector.
• Works as the electronic/mechanical cycle switch used by the control assembly to select programs.

• Disconnect power to the appliance before starting any service.
• Access typically requires removing the control knob and control panel—note screw and connector locations during disassembly.
• Handle the part and nearby PCB/terminals carefully to avoid bending contacts or ESD damage.
• Reassemble panels and test cycle selection through several positions to confirm correct operation before finishing.

This replacement wire harness routes power and control signals between the appliance's electrical components to restore reliable operation and proper connections. It replaces a damaged or worn harness to help stop intermittent power loss or component failures. What it does:

• Provides factory-style wiring connections for controls, motors, sensors and switches
• Restores interrupted circuits that can cause intermittent or no operation of affected components
• Replaces burnt, frayed or broken wiring that can cause arcing or poor contact
• Ensures correct routing and connector fit to prevent chafing and shorting

• Disconnect power to the appliance before starting any repair; verify power is off
• Compare the new harness to the old one for connector type and routing before installing
• Route harness to avoid sharp edges and moving parts; secure with existing clips or ties
• If connectors are damaged or corroded, replace them; do not use the appliance with exposed or repaired wiring

The Washer Water Inlet Valve is an OEM part for Whirlpool washing machines. This valve controls the flow of water into the washer, opening and closing to allow the correct amount of hot and cold water into the machine during different stages of the wash cycle.

Causes of a bad water inlet valve can include wear and tear over time, sediment build-up, or damage from high water pressure. These issues can cause the valve to malfunction, leading to improper water levels or no water entering the machine at all.

Symptoms of a bad water inlet valve include:

• Washer not filling with water
• Slow fill or no water flow
• Water leaking from the valve area
• Inconsistent water temperature during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the main wire harness that routes power and signals between an appliance's control board and electrical components, restoring reliable electrical connections for proper operation. What it does

• Carries power and control signals between the control board, motor, switches and sensors.
• Replaces damaged or burned wiring that can cause intermittent operation or loss of functions.
• Commonly used when an appliance won't start, has unresponsive controls, or experiences random shutdowns.
• Ensures secure connector mating to reduce arcing and poor electrical contact.

• Disconnect power before any repair to avoid shock or damage.
• Compare connectors and wire colors to the old harness to match before installing.
• Route harness along original clips and channels; avoid sharp edges and pinch points.
• Inspect connectors and terminals for corrosion; replace any damaged terminals for a reliable repair.

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function
