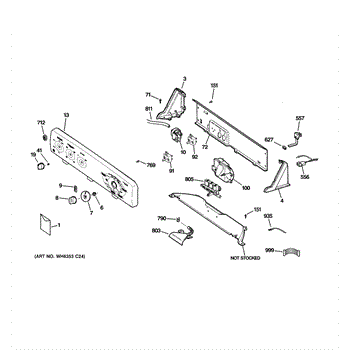

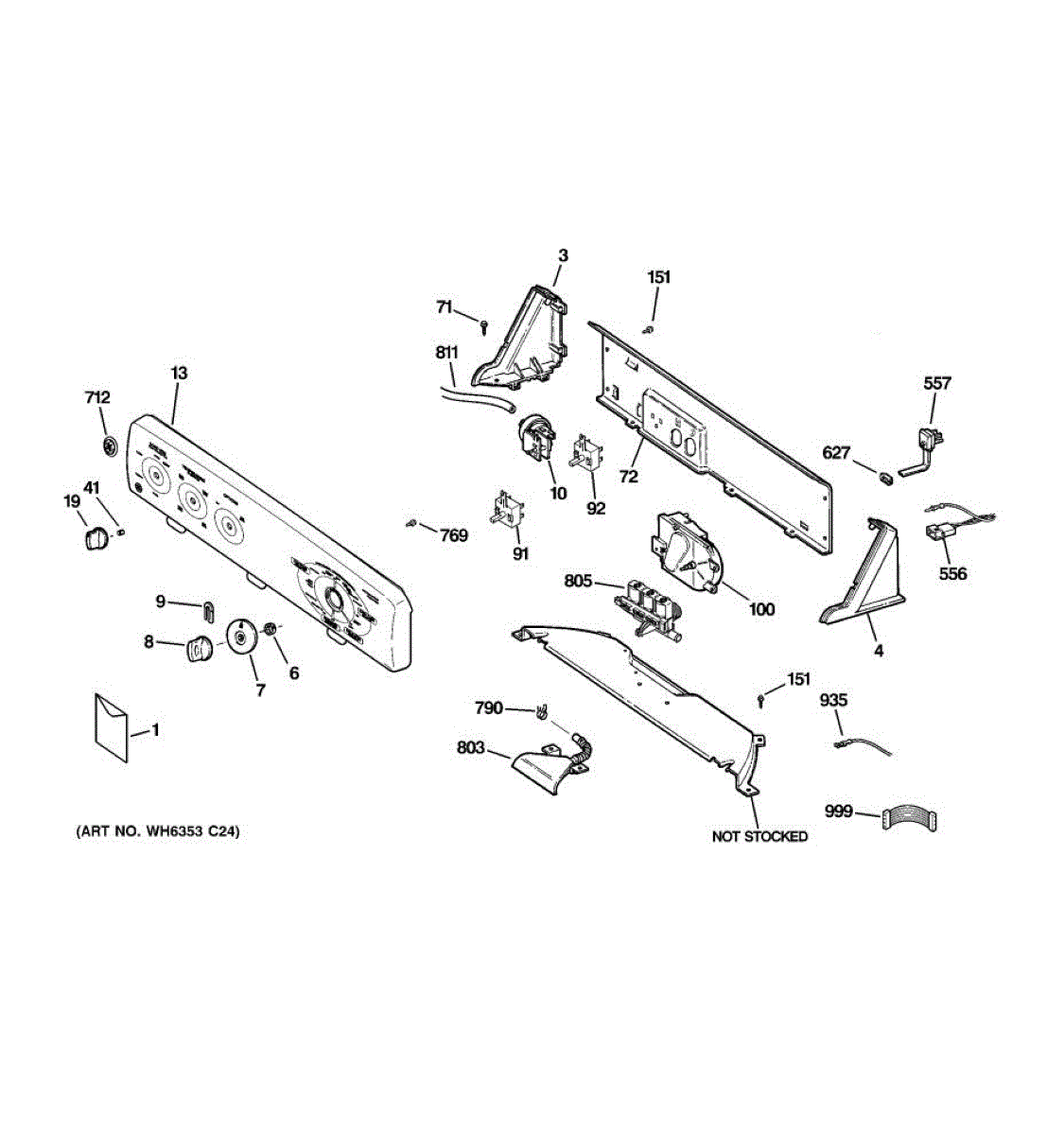

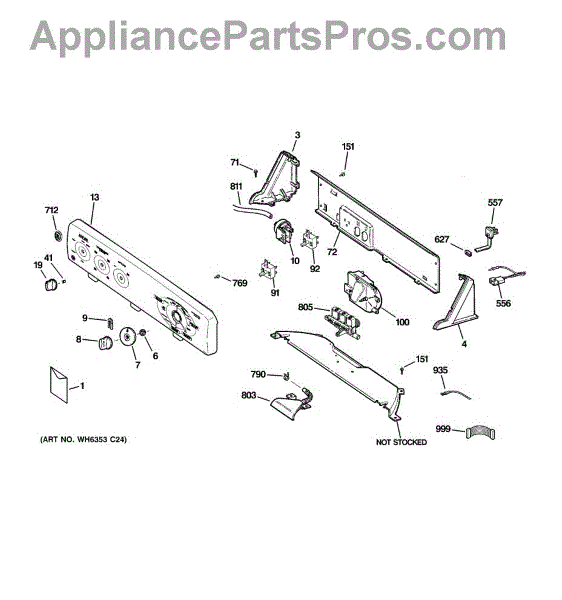

Parts for Ge GMAN3000M1WS: 01 - Controls & Backsplash Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This left-hand end cap is a direct-fit replacement part that helps secure the washer's left-side assembly and restores proper cabinet/drum alignment for smoother operation and reduced vibration. What it does:

• Caps and protects the left-side end of the washer assembly to prevent wear and debris entry
• Helps maintain proper alignment of the washer drum/cabinet on the left side
• Reduces noise, rubbing, or wobbling caused by a damaged or missing end cap
• Matches OEM fit and mounting points for straightforward replacement

• Disconnect power and water to the washer before starting any repair
• Basic hand tools may be required; some disassembly of the cabinet or front panel could be needed
• Inspect adjacent components (gaskets, seals, fasteners) for wear while replacing the end cap

This right-side end cap is a replacement trim/closure piece designed for the washer cabinet to restore proper fit and finish and help keep internals protected from debris. It replaces a damaged, cracked or missing end cap. What it does:

• Covers and protects the washer's right-side edge or mounting area from dust and moisture
• Restores a flush appearance where the original end cap was cracked or broken
• Helps prevent snagging on clothing or towels from a damaged trim piece
• Can reduce rattles or vibration caused by a loose or missing end cap

• Disconnect power to the appliance before beginning any work
• Usually secured with screws or clips; basic hand tools are typically all that's required
• Align the part to the right-side mounting location and fasten securely without over-tightening

The Compression Ring is an OEM part for GE washing machines. This ring is essential for securing the tub within the washing machine, ensuring it remains in place during the wash and spin cycles. It helps maintain the stability and proper function of the washing machine.

You should replace the compression ring if it becomes worn, cracked, or damaged. Causes of a bad compression ring can include frequent use, high-stress loads during wash cycles, or physical damage, which can lead to instability and poor washing performance.

Symptoms of a bad compression ring include:

• Excessive shaking or movement of the washing machine during cycles
• Unusual noises during operation
• The washing machine tub appearing misaligned or loose
• Ineffective washing due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Timer Knob Clip is an OEM part for GE washing machines. It secures the timer knob to the timer shaft, allowing users to set and adjust the washing cycle duration accurately.

You should replace the timer knob clip if it becomes worn out, broken, or lost. Common causes of a bad timer knob clip include regular use leading to wear and tear, physical damage from excessive force, or accidental breakage during maintenance or operation.

Symptoms of a bad timer knob clip include:

• The timer knob spinning freely without engaging
• Difficulty in setting or adjusting the timer
• The timer knob falling off or feeling loose
• The washing machine not starting or stopping cycles correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pressure Switch is an OEM part for GE washing machines. This part ensures your machine fills with the correct amount of water for the selected cycle, preventing overfilling or insufficient water levels that can lead to suboptimal washing results.

A faulty Pressure Switch can result from several issues, including clogging with detergent residue or debris, wear and tear from regular use, or electrical malfunctions affecting its responsiveness.

Symptoms of a malfunctioning Pressure Switch include:

• The washing machine overfilling or not filling enough
• Wash cycles starting or stopping unexpectedly
• Water levels not matching the selected cycle
• The machine failing to move to the next cycle stage

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Control Knob with Clip is an OEM part for GE washing machines and dryers. This knob allows users to select and control various settings and cycles on their appliance with ease.

Causes of a bad Control Knob with Clip can include constant use leading to wear and tear, accidental impacts that may crack or break the knob, or exposure to harsh cleaning agents that can cause the knob's material to degrade over time.

Symptoms of a bad Control Knob with Clip include:

• The knob failing to engage with the control panel, making it impossible to select settings.
• Cracks or breaks in the knob that prevent it from being turned.
• The knob becoming loose or falling off due to a broken clip.
• Difficulty in accurately selecting cycles due to wear on the knob's indicators.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

The Rotary Temperature Switch is an OEM replacement part for GE washers. This switch controls the temperature setting during wash cycles, accommodating various fabric types.

Causes of a bad rotary temperature switch can include wear and tear from frequent use, electrical failures, or damage due to moisture exposure. Over time, the internal components of the switch may degrade, leading to incorrect temperature settings or unresponsive controls.

Symptoms of a bad temperature switch include:

• Inability to select temperature settings
• Wash cycles running at an unexpected temperature
• Fluctuations in water temperature during the wash
• Constantly running hot or cold water into the tub

This OEM GE replacement part is compatible with Hotpoint, RCA, and some Kenmore branded washers as well.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This washer timer controls the sequence and duration of each cycle by directing power to the motor, valves, and pump. Replace it to correct issues like cycles that won't start, won't advance, stop mid-cycle, or run indefinitely. What it does:

• Routes power to the motor, water inlet valves, and drain pump to execute fill, wash, rinse, and spin
• Advances the washer through the selected cycle and times each stage
• Common failure symptoms: cycle stuck on one step, won't start, stops mid-cycle, or runs too long
• Can cause intermittent or inconsistent cycle advancement when failing

• 1 washer timer

• Disconnect power before servicing
• Access the control console; remove screws/end caps as needed and tilt it open
• Pull off the control knob and dial if present; remove the timer's mounting screws/clip and transfer wire connectors one at a time to the new timer
• Secure the new timer, reassemble, and run a test cycle

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

Harness to corset & shifter

8-18 hi/lo 5/8

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Water Inlet Fill Spout is an OEM replacement part for GE washing machines. It guides water from the inlet valve to the wash tub for a controlled flow. The fill spout is designed to reduce splashing and ensure that water is evenly distributed within the washing machine.

A bad Water Inlet Fill Spout can be due to cracks or damage from material wear, blockages caused by debris or mineral buildup, or issues with its connection to the inlet valve.

Symptoms of a malfunctioning Water Inlet Fill Spout include:

• Water splashing or leaking during the fill cycle
• Inefficient filling of the washing machine
• Visible damage or cracks in the spout
• Restricted water flow into the wash tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Triple Water Valve is an OEM part specifically designed for GE washing machines. It precisely controls the flow of water into three separate circuits to fill the tub, dispense detergent and drain dirty water.

Symptoms of a faulty valve include:

• Inability to fully or properly fill the washer
• Inadequate rinsing or failure to drain fully
• Uneven or inconsistent water levels
• Leaks or water left in the tub after cycles

Causes can be mineral buildup affecting water flow, internal component wear over time, or damage that disrupts valve operation.

This OEM GE replacement part is also compatible with Hotpoint, RCA and some Kenmore models as well.

The Pressure Switch Hose is an OEM part for GE washing machines. It connects the pressure switch to the tub, allowing the switch to monitor the water level within the washing machine. This ensures the proper amount of water is used during each cycle for efficient washing and rinsing.

You should replace this pressure switch hose if it becomes cracked, clogged, or otherwise damaged. Common causes of a bad hose include wear and tear from repeated use, buildup of detergent or debris, and damage from improper handling or installation.

Symptoms of a bad pressure switch hose include:

• Washing machine not filling with water
• Overfilling or underfilling of the tub
• Inaccurate water level detection
• Error codes related to water level issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 terminals.
