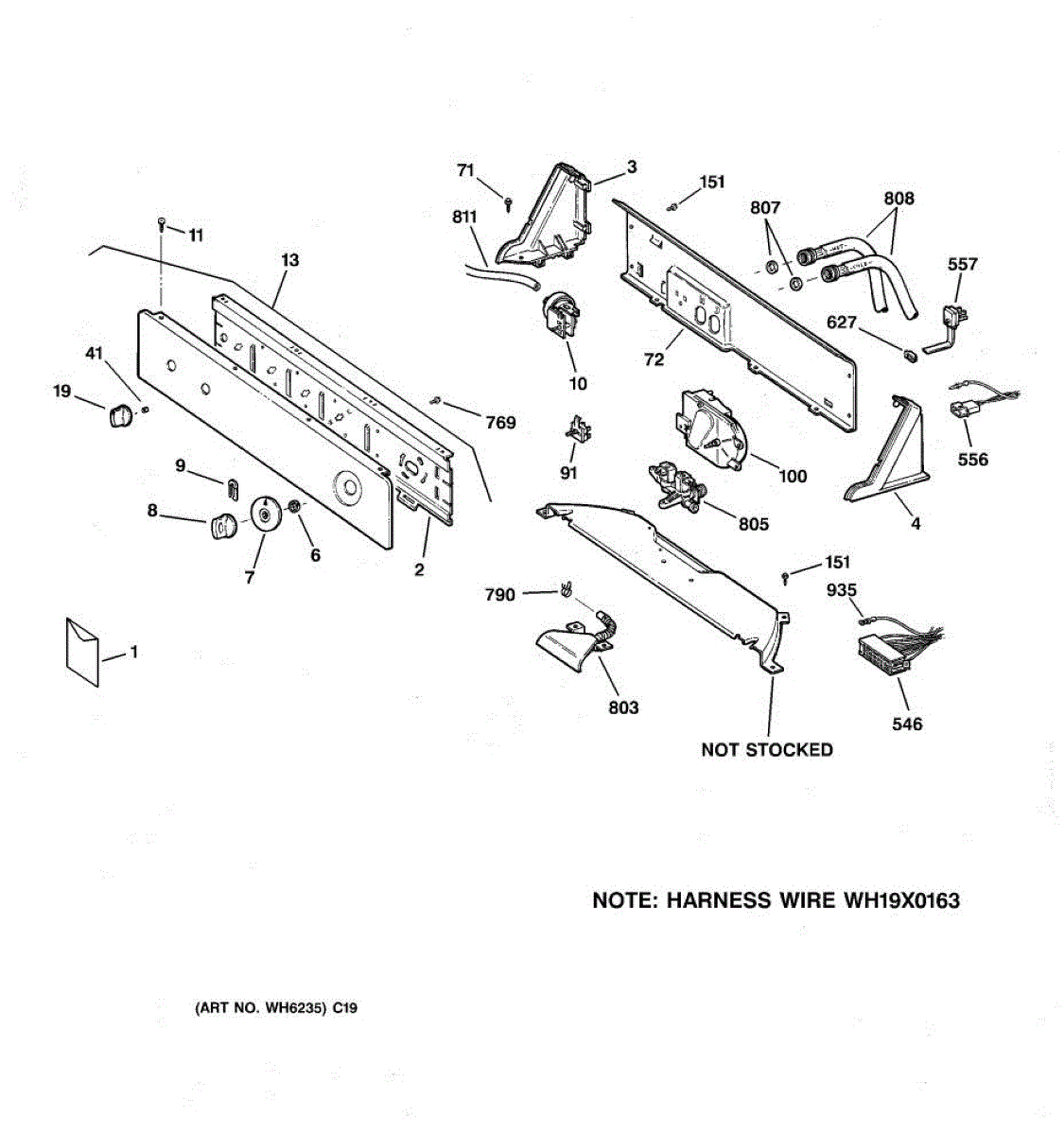

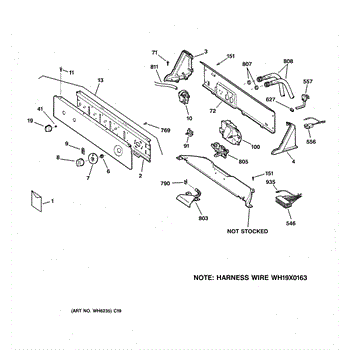

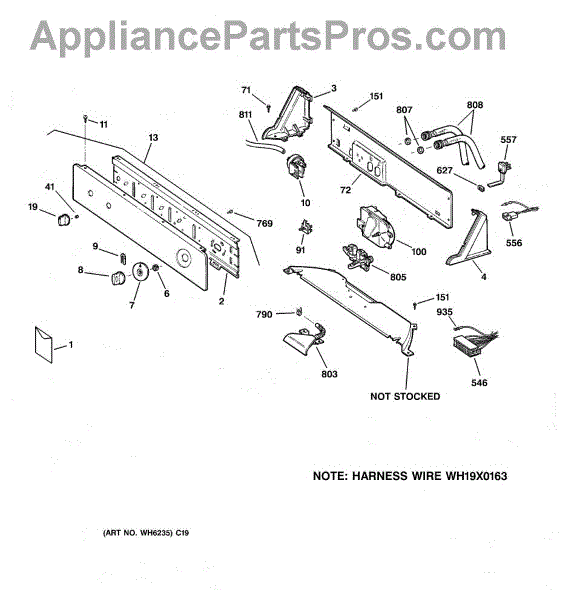

Parts for Ge WHDSR315DBWW: 01 - Controls & Backsplash Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

White. Left hand side

White. Right had side

The Compression Ring is an OEM part for GE washing machines. This ring is essential for securing the tub within the washing machine, ensuring it remains in place during the wash and spin cycles. It helps maintain the stability and proper function of the washing machine.

You should replace the compression ring if it becomes worn, cracked, or damaged. Causes of a bad compression ring can include frequent use, high-stress loads during wash cycles, or physical damage, which can lead to instability and poor washing performance.

Symptoms of a bad compression ring include:

• Excessive shaking or movement of the washing machine during cycles
• Unusual noises during operation
• The washing machine tub appearing misaligned or loose
• Ineffective washing due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replaces the cycle selector dial assembly on your washer control panel. Needed when the dial is cracked, broken, or won't turn properly with the timer.

Replacement timer control knob assembly for washers. Installs on control panel to select cycles and settings. Needed when knob is cracked, broken, worn, or won't grip timer shaft.

Secures the timer knob to the shaft for accurate cycle selection. Replace if worn, broken, or lost causing knob to spin freely. Confirm fit with model.

This water level pressure switch monitors the tub's fill level and tells the washer when to stop filling and move to the next step. Replace it to restore accurate water levels and dependable cycle progress.

• Monitors air pressure from the tub to determine the selected water level
• Signals the control to open/close the inlet valves for proper fill
• Allows agitation and spin only after the correct level is reached
• Typical symptoms: overfilling or continuous filling, underfilling/low water level, cycle won't start or advance to wash/spin

What's included: 1 pressure switch Install notes:

• Unplug the washer and turn off the water supply before servicing
• Access the control console; note wire positions or take a photo and transfer connectors one at a time
• Move the pressure hose to the new switch; ensure the hose is clear, undamaged, and fully seated
• Secure the switch, reassemble, and run a fill test to confirm proper shutoff

Mounting screw for refrigerators, dryers, and washers. Replaces lost, stripped, or corroded screws during repairs or part installations.

The Selector Knob is an OEM part for GE washing machines. This knob is used to choose different wash cycles and settings on the control panel, allowing users to customize their laundry preferences. It is designed to fit securely onto the control shaft and provide smooth operation for selecting various options.

Over time, selector knobs can wear out or become damaged due to frequent use or accidental impacts. Causes of a bad selector knob can include cracked or broken plastic, stripped or worn-out internal components, or a loose fit on the control shaft.

Symptoms of a bad selector knob include:

• Difficulty in turning the knob or selecting settings
• Knob spinning freely without changing settings
• Knob falling off or feeling loose
• Visible cracks or damage on the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

Fix a washer that won't fill with hot or cold water. This rotary temperature switch controls water temperature settings. Easy 5-minute DIY repair.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Washing machines require a timer to operate correctly. The timer is responsible for the operations of the washer, including filling and emptying the tub, how long a cycle runs, and other various cycle sequence settings. If the timer has failed or is malfunctioning, a replacement part is required.When the timer does not advance or if the machine is operating sporadically, it's an indication the timer is damaged. Replacing the timer in a washing machine is simple. The component is located in the control panel of the appliance. Disconnect the washer from its power source before starting the repair. Wear gloves for safety. Disconnect the wires on the damaged timer and reconnect to the replacement part before reassembling the washing machine. A nut driver, pliers, and screwdriver are required to complete the replacement of this timer.This timer is a genuine OEM replacement part. It is sourced from the manufacturer and sold as an individual unit. The piece is made of durable materials. This timer is compatible with washing machines produced by General Electric, RCA, and Hotpoint. It fits into several different models.

Stainless steel hex washer head screw for securing appliance panels, brackets, and trim. Replace missing, stripped, or corroded fasteners during repair.

Fix washer wiring connection issues with this terminal block housing. Connects timer wires securely. Moderate DIY repair with wiring diagram reference.

Harness to corset & shifter

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Guides water from the inlet valve into the wash tub. Replace if cracked, broken, leaking, or causing uneven water distribution in your top-load washer.

If your washer won't fill, overfills, or leaks when off, the water inlet valve may be faulty. Simple 10-20 minute DIY repair with basic tools.

12-pack of inlet hose washers for washers and washer dryer combos. Replace cracked, worn, or missing washers to prevent leaks at water connections.

Replacement water fill hoses for washing machines. Connect home water supply to washer. Replace when cracked, leaking, or showing rubber wear or corrosion.

Connects the pressure switch to the tub in top-load washers. Replace if cracked, punctured, or brittle to restore proper water level monitoring.

Includes 12 terminals.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
