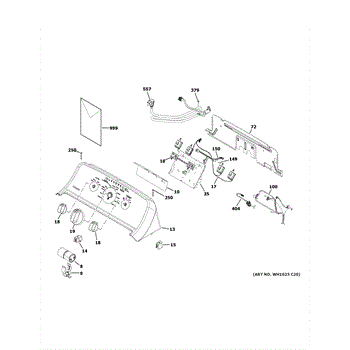

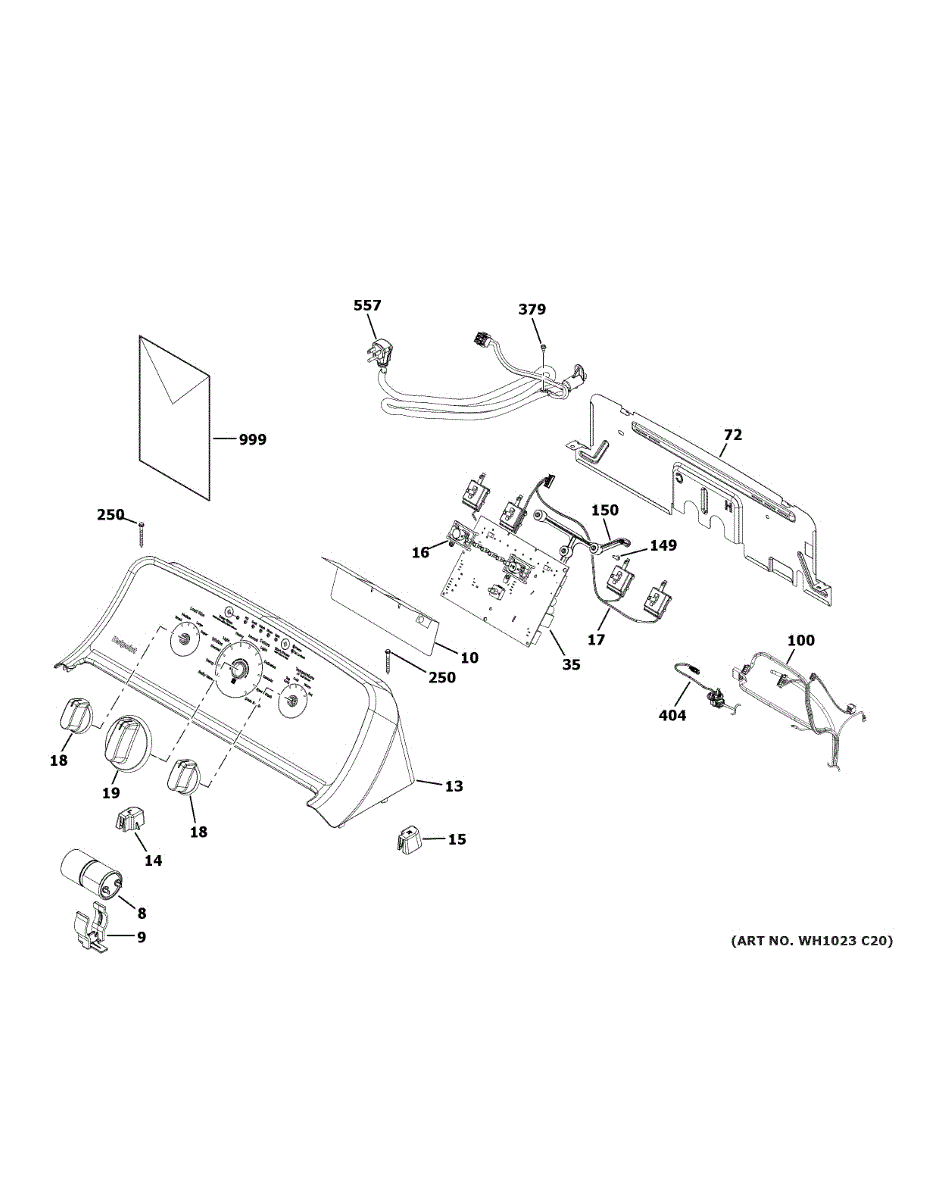

Parts for Hot Point HTW240ASK5WS: Controls & Backsplash Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Start Capacitor is an OEM part for GE washing machines. It is comprised of a bracket and capacitor, which work together in the motor control circuit to start and run the drive motor. The capacitor provides a phase shift that allows for smoother operation of the electric motor.

Symptoms of a bad Start Capacitor include:

• The washer fails to agitate or spin clothes
• An electric burning smell coming from the motor or control board
• The drive motor makes buzzing or humming noises during the operation

Causes of failure can be normal component degradation over time. Exposure to moisture, physical damage, or operating the machine with an unbalanced load can also stress the capacitor prematurely.

This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This control board shield protects the appliance's electronic control board from debris, heat, and accidental contact to help maintain reliable operation. It's a direct-fit replacement designed to restore proper protection for the control electronics. What it does:

• Covers and shields the electronic control board from dust, moisture splash, and physical contact
• Helps reduce risk of short circuits caused by loose debris or small objects
• Preserves board components from incidental heat exposure and wear
• Commonly replaced when the old shield is cracked, broken, or missing

• One control board shield

• Disconnect power before servicing to avoid shock or damage to electronics
• Handle shield and control board carefully to avoid bending tabs or damaging connectors
• Reuse original fasteners if undamaged; replace any broken clips or screws

The Panel Control Assembly is an OEM part for GE washing machines. It houses the washer control interface including buttons, touchpads, and digital displays. As the gateway for operating wash cycles and settings, the panel control assembly is a key interface component.

Causes of a bad panel control assembly can include faulty electronic components, damaged buttons or touchpads, water damage leading to corrosion, or general wear over time.

Symptoms of a bad panel control assembly include:

• Non-responsive or unreadable control panel
• Stuck or stuck buttons that don't register selections
• Inoperable cycles or errors displayed
• Water inside the enclosure area
• Loose or cracked mounting clips

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours to restore full functionality and ease of use. Proper controls are important for selecting the perfect wash settings.

A molded metal support bracket that holds the right side of the oven/range backsplash assembly in place, restoring secure alignment and preventing sagging or gaps behind the control area. What it does

• Secures the right side of the backsplash or backguard assembly to the range frame.
• Helps prevent the backsplash from sagging, shifting, or coming loose when using controls or cleaning.
• Can stop visible gaps that allow debris or steam behind the control panel.
• Works with the existing backsplash components and mounting hardware to maintain proper fit.

• One right backsplash support bracket.

• Disconnect power to the appliance before attempting any service.
• Access may require removing the cooktop, control panel, or top trim.
• Use appropriate hand tools; keep track of fasteners and any clips removed.
• If the backsplash or adjacent parts are damaged, inspect related fasteners and supports for wear before reassembly.

This left backsplash support is the metal bracket that secures the range/oven backsplash and helps keep the control panel and rear trim stable. It restores proper alignment and reduces movement of the upper back assembly. What it does

• Provides structural support for the left side of the backsplash and control panel area
• Keeps the backsplash and rear trim aligned to prevent wobble or sagging
• Helps stop vibration or rattling coming from the upper rear of the appliance
• Replaces a bent, broken, or missing left support bracket

• One left backsplash support bracket

• Disconnect power to the appliance before starting any repair
• You may need to remove the range top, control panel, or rear access panel to access mounting screws
• Use basic hand tools; keep fasteners for reuse and note their original locations
• If you see additional damaged or missing fasteners or trim, replace them as needed for a secure fit

This button tree is the group of selector buttons behind the control panel. It restores reliable button action so you can choose cycles and options when keys stick, feel mushy, or stop responding.

• Provides the push-button interface for cycle and option selections on the control panel
• Helps address unresponsive or intermittent keys
• Resolves sticking or jammed buttons
• Restores proper alignment and tactile feel

• Disconnect power to the appliance before servicing
• Remove the console/control panel to access the button tree
• Seat the new button tree so each button aligns with the control board switch positions and the overlay
• Handle the user interface board and wiring gently; do not force clips or tabs

The Selector Switch is an OEM part for GE washing machines. It directs power to specific components based on the selected wash cycle to properly operate the cycles chosen on the control panel.

Causes of a bad selector switch failure include broken or stuck contacts preventing current from flowing as needed to different parts of the washer.

Symptoms of a bad selector switch include:

• Inability to advance fully through available cycles
• Random or unexpected operation of unrelated components
• Strange odors, sparks, or smoke from the internal switch area
• Reduced functionality as cycles lack full components running

This OEM GE replacement selector switch is also compatible with some Hotpoint, RCA, and Kenmore models.

The Rotary Knob is an OEM replacement part for GE or Hotpoint washing machines. It provides the interface for selecting wash cycles and adjusting settings like temperature and spin speed.

Causes of a bad rotary knob include cracking, peeling, or damage to labeling from repeated use over time. The internal mechanisms can also wear out, preventing proper rotation.

Symptoms of a bad rotary knob are:

• Difficulty turning or clicking into set positions
• Loose, wobbly, or disconnected feel during use
• Faded or missing labels make settings unclear

It is also compatible with RCA, Westinghouse, Tappan, and some Kenmore models.

The Main Knob is an OEM part for GE washers. It is the central control knob located at the top of the washer control panel that is used to power on the washer, select wash cycles, set temps, and choose options.

Symptoms of a bad Main Knob include:

• Difficulty turning or selecting options
• Knob slipping or "clicking" instead of turning smoothly
• LED/control panel not responding properly to knob movements
• Inability to select desired cycles

Causes can be regular wear and tear over time, inadvertent impacts that damage the internal components, or failures in the electronic switch mechanisms located within the knob. As the main interface point for the washer controls, this knob needs to operate flawlessly.

It is also compatible with some Kenmore and other brands that use GE controls.

This main control board is the washer's central electronic brain, coordinating cycles, motor and valve operation, and safety checks. Replacing a failed board can restore normal starts, fills, agitation/spin, and reliable cycle completion.

• Manages cycle timing and power to the drive motor, drain pump, and water inlet valves
• Monitors inputs from the lid lock and other sensors for safe, accurate operation
• Interfaces with the user controls to run the selected wash program
• Typical failure symptoms: won't start or power up; no fill/agitate/spin/drain; stops mid-cycle; error codes or unresponsive controls

• Disconnect power before servicing and handle the board with ESD protection
• Access the control at the top/rear area, transfer connectors one at a time to the same positions, and secure the board in the original mounting
• After installation, restore power and run the unit's diagnostic/service mode to verify operation; some models may require a configuration/personality step per the tech sheet

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This rear control panel replaces the damaged or worn console panel that mounts behind the range/oven controls, restoring a secure mounting surface and proper protection for control wiring and components. Fits styles that use a rear-mounted control console. What it does

• Provides the mounting surface and enclosure for control switches, touchpads, and indicator lights.
• Protects internal wiring and control components from heat, debris, and accidental contact.
• Restores proper alignment for knobs, buttons, and display modules when the original panel is bent, cracked, or missing.
• Helps eliminate loose or vibrating controls and can resolve cosmetic damage to the console area.

• One rear control panel.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Removal typically requires taking off back access panels and disconnecting any attached control cables or grounding screws; keep hardware for reinstallation.
• Handle edges and sheet-metal openings with care; wear gloves and eye protection to avoid cuts.
• Note wiring locations and take photos before disconnecting for correct reassembly.

This yellow main wiring harness routes power and connections between major electrical components, restoring reliable circuit paths for proper operation. It replaces a damaged or worn factory harness to help re-establish secure electrical connections. What it does:

• Carries power and signal between the control/console and components (motors, switches, heaters, sensors)
• Replaces chafed or broken wires that can cause intermittent function or loss of power to components
• Helps correct issues like intermittent operation, failed cycles, or components not receiving power
• Matches original color and routing to simplify correct reconnection

• Disconnect power to the appliance before starting any repairs.
• Label or photograph wire locations and connector orientations to ensure correct reassembly.
• Avoid stretching or pinching the harness; route it along original clips and fasteners.

8-18 hi/lo 5/8

This replacement screw fastens appliance panels, brackets, and trim. The 8-18 thread with 1-3/4-inch length provides reliable bite in sheet metal or plastic, restoring a secure fit when an original fastener is missing or damaged.

• Secures panels, brackets, and trim to the cabinet or frame
• Replaces lost, stripped, or corroded fasteners
• Helps address loose or rattling panels, minor gaps, or misalignment
• Appropriate for sheet-metal applications that require ~1-3/4-inch reach

• Disconnect power before servicing; wear cut-resistant gloves
• Support the panel or part being fastened and use the correct driver for the screw head
• Start threads by hand to avoid cross-threading; do not overtighten into plastic or thin metal
• Repair or replace the anchor before installing

The Ground Screw is an OEM part for GE dryers. It ensures proper grounding and electrical safety for your dryer. This screw securely connects the ground wire to the dryer chassis, providing a path for electrical current to safely discharge in the event of a fault or power surge.

A bad Ground Screw can lead to electrical issues and potential safety hazards. Causes of a bad Ground Screw can include corrosion, loose connections, or damage due to accidental mishandling or improper installation.

Symptoms of a bad Ground Screw include:

• Intermittent dryer operation
• Visible signs of damage or deterioration on the screw or ground wire
• Tripped circuit breakers or blown fuses

Replace your faulty or damaged Ground Screw with this genuine OEM GE part to ensure proper grounding and electrical safety for your dryer.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Lid Lock Wiring Harness is an OEM part for GE washing machines. It connects the lid lock mechanism to the washing machine’s control board, ensuring proper communication and functionality. This wiring harness is crucial for the safe operation of the washer, as it ensures the lid remains locked during certain cycles to prevent accidental openings and maintain safety.

You should replace the lid lock wiring harness if it becomes faulty. Causes of a bad wiring harness can include regular wear and tear, electrical faults, or damage from impacts or pinching. A damaged wiring harness can lead to communication errors between the lid lock and control board, resulting in improper functioning of the lid lock mechanism.

Symptoms of a bad lid lock wiring harness include:

• The washing machine not starting or stopping mid-cycle
• The lid not locking or unlocking properly
• Error codes related to the lid lock mechanism
• The washer not responding to control inputs

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Power Cord is an OEM part for GE washers. It provides the crucial connection, transmitting electrical current from the wall outlet to power the washer components and functions. Ensuring the integrity of this cord is vital for safe and reliable operation.

Symptoms of a bad power cord include:

• Frayed, cracked, or exposed copper wiring
• Loose connections at either end
• Buzzing, sparks, or shocks felt around the cord
• The washer fails to power on as expected

Causes can be normal flexing wear over thousands of cycles, damage from pinching, rodents, or excess tension on the cord.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
