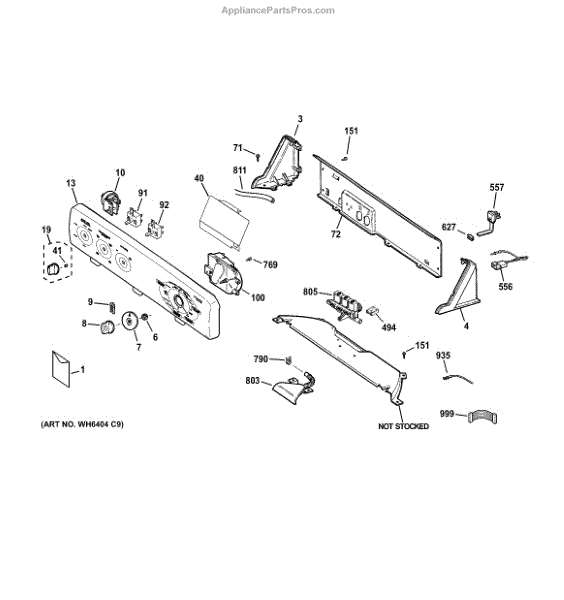

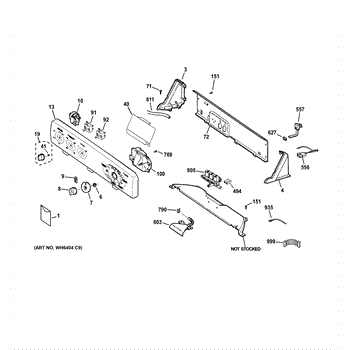

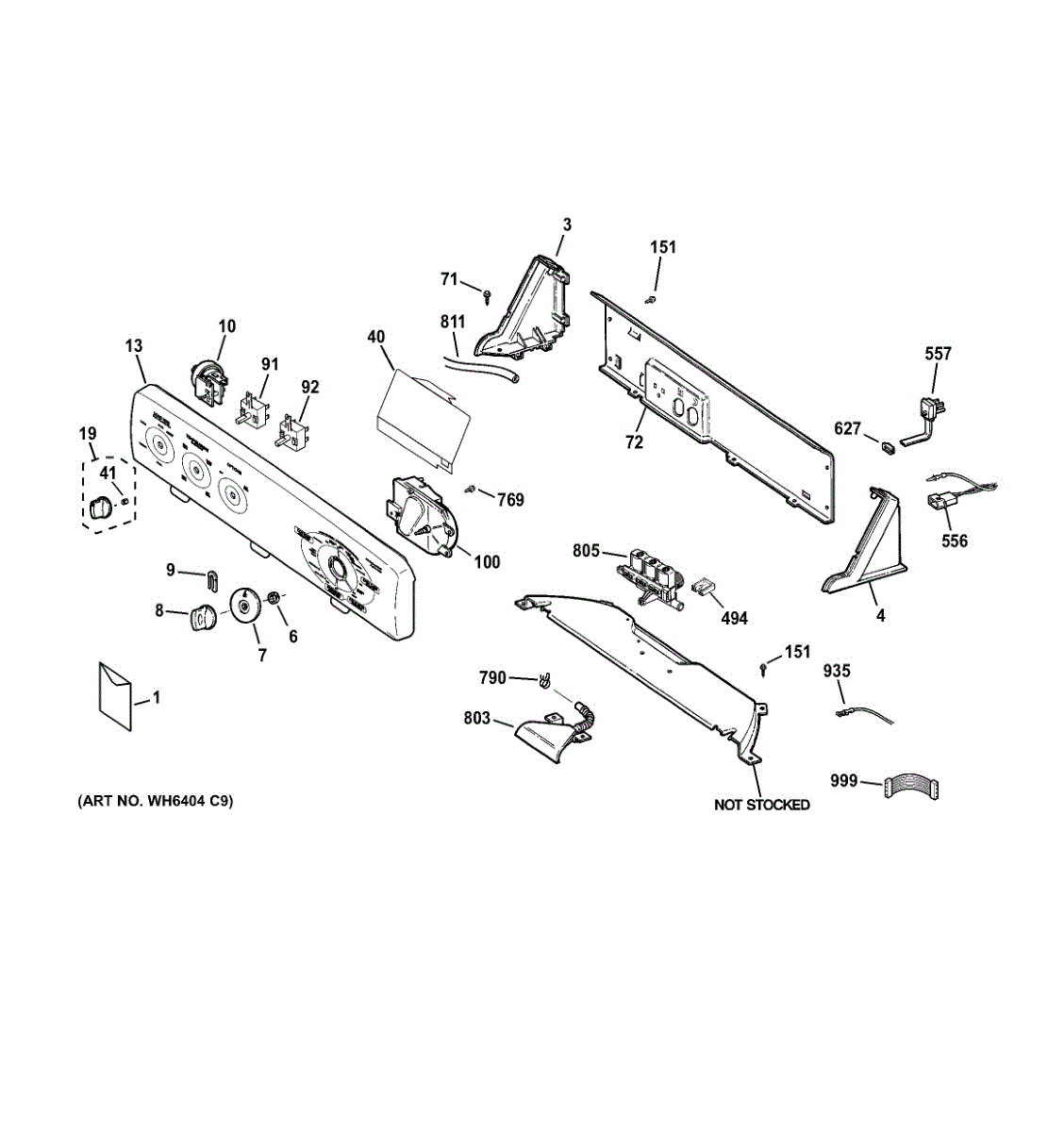

Parts for Hot Point HTWP1400F1WW: Controls & Backsplash Parts

This left end cap is a molded replacement trim piece that restores the finished edge and appearance of the appliance door. It replaces a cracked, broken or missing cap to keep the door trim secure and looking original. What it does:

• Covers and protects the left edge of the door trim or hinge/handle end for a finished appearance
• Hides mounting hardware and helps keep the trim aligned
• Prevents sharp edges or exposed holes that can catch on clothing
• Common symptom: visible crack, broken corner, loose or missing end cap causing an unfinished look

• Install with basic hand tools; verify orientation for the left side before fastening
• Handle parts carefully to avoid scratching the finish during installation
• Disconnect power only if needed to access components near wiring — otherwise follow normal appliance safety practices
• If mounting hardware is missing or damaged, replace only with manufacturer-recommended fasteners

The Tub Bearing is an OEM replacement part for GE washing machines. It is a critical component that supports the weight of the inner tub and allows for smooth rotation during the wash and spin cycles.

Causes of needing to replace the tub bearing include general wear and tear over time, exposure to excessive loads or unbalanced loads, or physical damage from impact or debris.

Symptoms of a bad tub bearing include:

• Loud grinding or rumbling noises during the wash or spin cycle
• Excessive vibration or shaking of the washing machine
• Leaks due to increased stress on the tub and other components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE washing machines. This ring is essential for securing the tub within the washing machine, ensuring it remains in place during the wash and spin cycles. It helps maintain the stability and proper function of the washing machine.

You should replace the compression ring if it becomes worn, cracked, or damaged. Causes of a bad compression ring can include frequent use, high-stress loads during wash cycles, or physical damage, which can lead to instability and poor washing performance.

Symptoms of a bad compression ring include:

• Excessive shaking or movement of the washing machine during cycles
• Unusual noises during operation
• The washing machine tub appearing misaligned or loose
• Ineffective washing due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dial assembly is the labeled control ring used on a washer's control panel. It restores clear cycle selection and secure indexing when the original dial becomes cracked, stripped, or unreadable.

• Provides the printed cycle/setting indicators and aligns with the knob for accurate selection
• Replaces a damaged or missing dial that wobbles, slips, or no longer shows settings
• Helps ensure your chosen cycle is indicated correctly on the panel
• Typical symptoms include a loose dial face, misaligned pointer, or difficulty selecting a cycle

• Disconnect power to the washer before servicing
• Pull the control knob straight off; remove any retaining clip if present
• Release the old dial's locking tabs and lift it away from the panel
• Align the new dial and press to lock in place; reinstall knob (and clip, if used)

This control knob assembly is the user interface for the timer/cycle selector on your washer. Replacing a cracked or stripped knob restores a secure grip and positive engagement so you can confidently choose wash cycles and settings. What it does:

• Attaches to the timer/cycle selector shaft to let you turn and set cycles
• Transfers rotation to the control without slipping when intact
• Helps maintain proper pointer alignment for accurate setting selection
• Common symptoms: knob cracked, loose, spins freely, falls off, or can't select/start cycles

• Includes: 1 control knob assembly

• Disconnect power before servicing
• Pull the old knob straight off the shaft; do not pry against the console
• Align the flat(s)/D-shape on the shaft with the knob insert and press until fully seated
• If your model uses a retaining clip, ensure it's properly positioned in the knob before installation

The Timer Knob Clip is an OEM part for GE washing machines. It secures the timer knob to the timer shaft, allowing users to set and adjust the washing cycle duration accurately.

You should replace the timer knob clip if it becomes worn out, broken, or lost. Common causes of a bad timer knob clip include regular use leading to wear and tear, physical damage from excessive force, or accidental breakage during maintenance or operation.

Symptoms of a bad timer knob clip include:

• The timer knob spinning freely without engaging
• Difficulty in setting or adjusting the timer
• The timer knob falling off or feeling loose
• The washing machine not starting or stopping cycles correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water level pressure switch monitors the tub's fill level and tells the washer when to stop filling and move to the next step. Replace it to restore accurate water levels and dependable cycle progress.

• Monitors air pressure from the tub to determine the selected water level
• Signals the control to open/close the inlet valves for proper fill
• Allows agitation and spin only after the correct level is reached
• Typical symptoms: overfilling or continuous filling, underfilling/low water level, cycle won't start or advance to wash/spin

What's included: 1 pressure switch Install notes:

• Unplug the washer and turn off the water supply before servicing
• Access the control console; note wire positions or take a photo and transfer connectors one at a time
• Move the pressure hose to the new switch; ensure the hose is clear, undamaged, and fully seated
• Secure the switch, reassemble, and run a fill test to confirm proper shutoff

This backsplash assembly replaces the vertical back trim on compatible freestanding or slide-in ranges to restore a finished look and protect controls from spills and grease. It keeps the area behind the control panel clean and visually complete. What it does:

• Covers and protects the rear control area and wall-facing section of the range
• Restores a finished appearance after damage, corrosion, or removal of the original panel
• Helps keep grease and cooking splatter off the rear control components
• Matches OEM fit and mounting points for straightforward replacement when compatible

• Remove power to the range before starting work to avoid shock or injury
• Typical installation requires removing the range cooktop or control console to access mounting screws
• Reuse existing fasteners when possible; replace any damaged clips or screws with OEM replacements

The Control Knob is an OEM part for GE washing machines, crafted to seamlessly integrate with your appliance. This knob allows users to select and adjust various settings, ensuring precise control over the washing machine's operations.

Signs that you might need to replace the Control Knob include it becoming loose, unresponsive, or breaking off, which can occur with age or from accidental damage.

Symptoms of a bad Control Knob include:

• The knob not engaging with the machine's settings, leading to difficulty in selecting wash cycles.
• A loose or wobbly knob that does not securely fit onto the washing machine.
• Visible cracks or damage that prevent the knob from functioning correctly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

The Rotary Temperature Switch is an OEM replacement part for GE washers. This switch controls the temperature setting during wash cycles, accommodating various fabric types.

Causes of a bad rotary temperature switch can include wear and tear from frequent use, electrical failures, or damage due to moisture exposure. Over time, the internal components of the switch may degrade, leading to incorrect temperature settings or unresponsive controls.

Symptoms of a bad temperature switch include:

• Inability to select temperature settings
• Wash cycles running at an unexpected temperature
• Fluctuations in water temperature during the wash
• Constantly running hot or cold water into the tub

This OEM GE replacement part is compatible with Hotpoint, RCA, and some Kenmore branded washers as well.

The washer timer is an OEM part for GE washing machines. This timer controls the various cycles of the washing machine, including wash, rinse, and spin cycles. By regulating the duration and sequence of each cycle, the timer ensures that the washing machine operates smoothly and efficiently.

Causes of a bad timer washer can include electrical failures, wear and tear from regular use, or internal mechanical issues. A faulty timer can lead to problems with the timing and execution of the wash cycles, potentially leaving clothes unwashed or causing the machine to stop unexpectedly.

Symptoms of a bad timer washer include:

• The washer not advancing through cycles
• The washer stopping mid-cycle
• Inconsistent or incorrect cycle timing
• The timer knob not turning or becoming stuck

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

Harness to corset & shifter

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Water Inlet Fill Spout is an OEM replacement part for GE washing machines. It guides water from the inlet valve to the wash tub for a controlled flow. The fill spout is designed to reduce splashing and ensure that water is evenly distributed within the washing machine.

A bad Water Inlet Fill Spout can be due to cracks or damage from material wear, blockages caused by debris or mineral buildup, or issues with its connection to the inlet valve.

Symptoms of a malfunctioning Water Inlet Fill Spout include:

• Water splashing or leaking during the fill cycle
• Inefficient filling of the washing machine
• Visible damage or cracks in the spout
• Restricted water flow into the wash tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Triple Water Valve is an OEM part specifically designed for GE washing machines. It precisely controls the flow of water into three separate circuits to fill the tub, dispense detergent and drain dirty water.

Symptoms of a faulty valve include:

• Inability to fully or properly fill the washer
• Inadequate rinsing or failure to drain fully
• Uneven or inconsistent water levels
• Leaks or water left in the tub after cycles

Causes can be mineral buildup affecting water flow, internal component wear over time, or damage that disrupts valve operation.

This OEM GE replacement part is also compatible with Hotpoint, RCA and some Kenmore models as well.

The Pressure Switch Hose is an OEM part for GE washing machines. It connects the pressure switch to the tub, allowing the switch to monitor the water level within the washing machine. This ensures the proper amount of water is used during each cycle for efficient washing and rinsing.

You should replace this pressure switch hose if it becomes cracked, clogged, or otherwise damaged. Common causes of a bad hose include wear and tear from repeated use, buildup of detergent or debris, and damage from improper handling or installation.

Symptoms of a bad pressure switch hose include:

• Washing machine not filling with water
• Overfilling or underfilling of the tub
• Inaccurate water level detection
• Error codes related to water level issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
