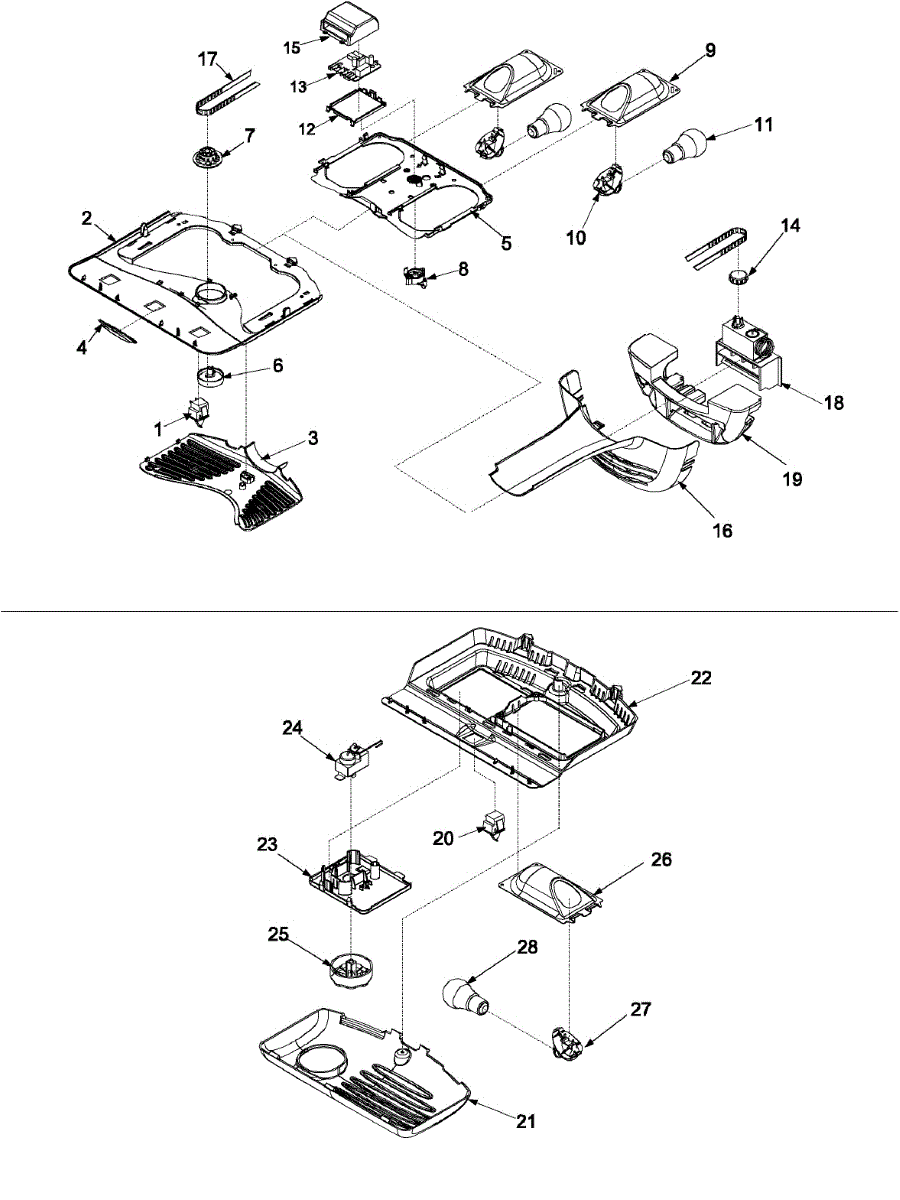

Parts for Kenmore 596.72252201 (59672252201, 596 72252201): Controls Parts

This replacement pan-timer/light housing assembly secures the timer and light components behind the control panel and restores proper fit and operation. Use it when the original housing is cracked, loose, or not holding the lamp/timer correctly. What it does:

• Provides the mounting structure for the timer and control panel light so components sit securely
• Keeps the light assembly aligned to illuminate the control area
• Prevents rattling or movement of timer/light parts caused by a damaged housing
• Safe, common symptom fix for visible cracks, loose control trim, or intermittent light alignment

• One pan-timer/light housing assembly

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the control panel or trim; handle plastic tabs and clips carefully to avoid breakage
• Reinstall screws and connectors to factory torque; do not force parts into position
• If wiring or bulbs are damaged, replace those items separately

Gear knob for refrigerators. Installs on control mechanisms to adjust settings. Replace if cracked, broken, worn, or missing for proper operation.

Refrigerator warm but freezer cold? Excessive frost buildup? This adaptive defrost control board restores automatic defrost cycles and normal cooling.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

Freezer not cooling properly or frosting over? This control module regulates temperature and defrost cycles. Restores proper freezer operation.

Freezer not cooling or running constantly? This mechanical temperature control thermostat regulates freezer temps. DIY-friendly repair in under an hour.

Freezer temperature control knob mounts on the control shaft inside your refrigerator. Replace yours if cracked, worn, or missing to restore grip.

This wiring harness connects the fresh-food (FF) module to the appliance's electrical system, restoring reliable signal and power paths for controls. Replaces a damaged or frayed harness to help re-establish normal control operation. What it does:

• Provides power and signal connections between the FF module and the main wiring harness/control circuits
• Restores intermittent or lost control communication caused by broken, burned, or corroded wires
• Helps stop failures such as unresponsive control panel, intermittent operation, or loss of certain fresh-food functions
• Matches OEM connector shapes and pin arrangements for a direct-fit replacement

• One replacement FF module wiring harness

• Disconnect power before servicing to avoid shock or damage
• Handle connectors by the bodies; avoid pulling on wires and ensure full seating of mating plugs
• Inspect mating connectors and wiring for damage or corrosion before installation
