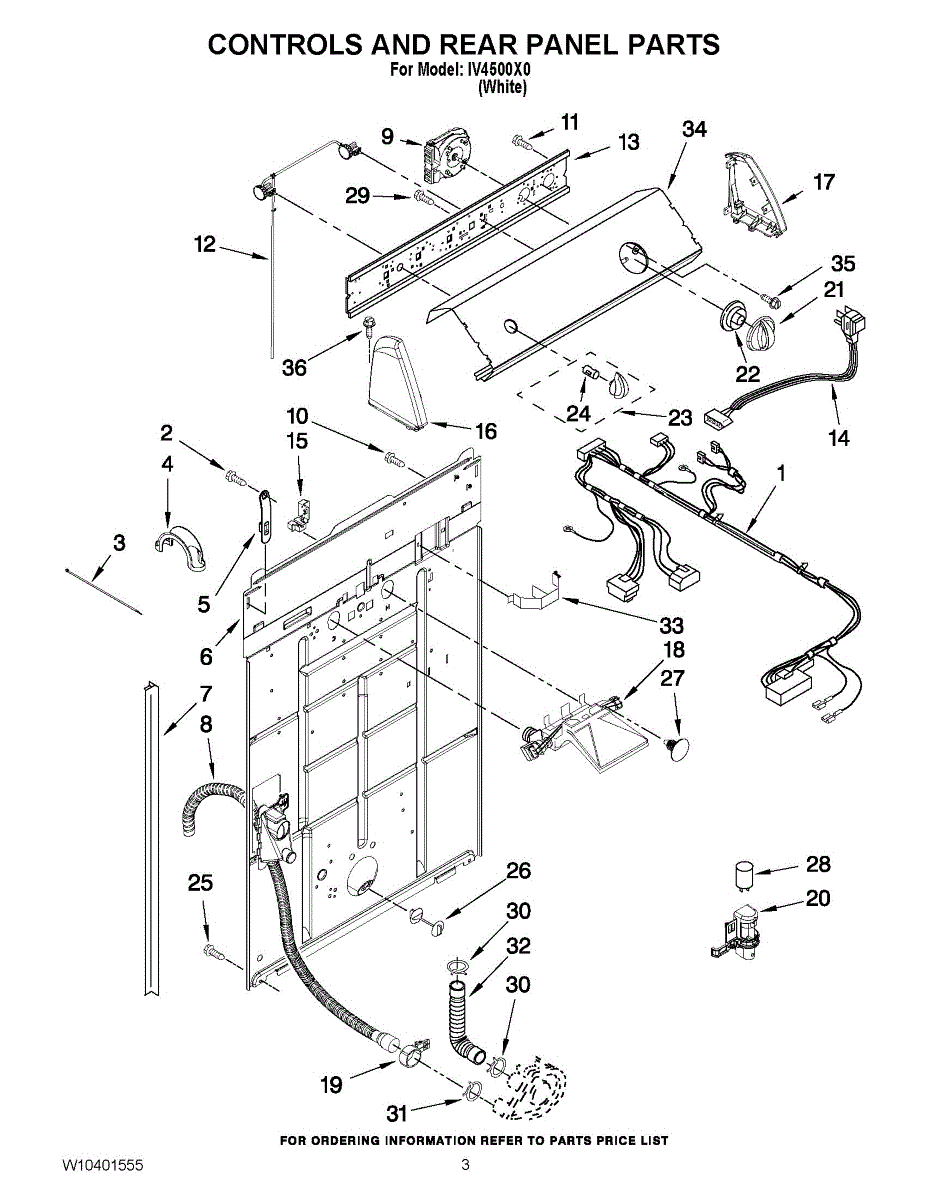

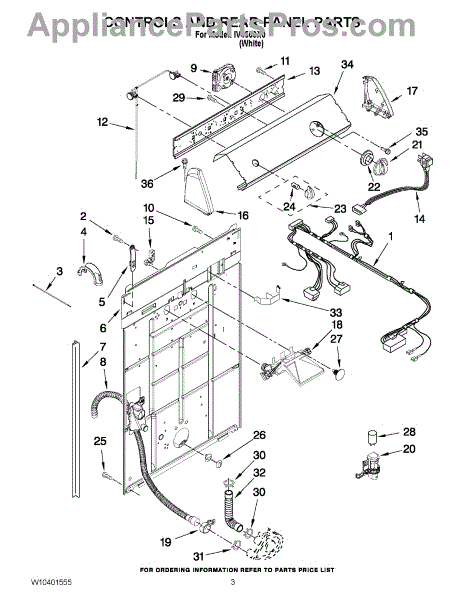

Parts for Whirlpool IV4500X0: 02 - Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This U-bend retainer secures the drain U-bend or trap tubing in place to prevent leaks and keep plumbing routed safely under the appliance. It's a small but important clip that helps maintain proper drain alignment. What it does:

• Holds the U-shaped drain/trap tubing securely to the appliance drain outlet
• Helps prevent the drain hose from slipping free and causing leaks
• Keeps the drain line routed to avoid kinks or contact with moving parts
• Commonly replaced when the original clip is broken, cracked, or missing

• One U-bend retainer clip

• Basic hand tools may be required; disconnect power and water supply before servicing
• Remove any obstructing panels to access the drain outlet area
• Press the clip into position over the U-bend until it snaps or seats securely

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

The Drain Hose Assembly is an OEM part for Whirlpool washing machines. It is responsible for carrying wastewater from the washer to the household drain during the wash and spin cycles.

Causes of a bad drain hose assembly can include blockages from debris, kinks or cracks in the hose, or general wear and tear from repeated use.

Symptoms of a bad drain hose assembly include:

• Water not draining properly from the washer
• Leaks or puddles around the washer
• Visible cracks or damage to the hose
• Unpleasant odors due to standing water

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-24 x 3/8 inch.

This is a replacement power cord that supplies electrical power from a wall outlet to your appliance. A fresh cord helps ensure safe, reliable power delivery when the original is damaged, overheated, or worn.

• Delivers household power to the unit's main electrical connection
• Replace if the cord is cut, cracked, burnt, loose, or intermittently powers the appliance
• Helps resolve issues like no power, tripping breakers, or visible cord damage

• Unplug the appliance and turn off the circuit breaker before starting
• Verify outlet type and cord routing match your original installation
• Transfer any cord clamp/retainer as needed and secure against sharp edges
• Inspect for proper grounding and test operation before returning to service

This water inlet valve assembly regulates when and how much water enters the appliance. Replacing a failing valve restores proper filling or water delivery and helps resolve no-water, slow-fill, or drip-through-the-valve issues.

• Opens and closes to control incoming water flow as commanded by the control system
• Directs water to the appliance's water circuit for proper operation
• Common symptoms: no water entering, weak/slow flow, water seeping in when off
• Physical clues: cracked housing, mineral buildup, or a valve that hums but doesn't pass water

• Disconnect power and shut off the water supply before servicing
• Keep towels handy; relieve line pressure before disconnecting tubing/fittings
• Transfer connectors and any mounting hardware one-for-one; ensure tubing is fully seated and use appropriate thread sealant if your model uses threaded fittings
• Restore water, check all joints for leaks, then restore power and run a test cycle

This retaining clip secures small panels and components to help keep assemblies aligned and reduce rattles or movement during operation. It's a simple replacement that restores proper fit where the original clip has broken or gone missing. What it does:

• Holds trim, panels or small assemblies in place to prevent loosening and vibration
• Restores proper alignment and fit where a worn or broken clip causes gaps or rattling
• Commonly used where snap-in retention is required for plastic or sheet-metal parts
• Simple, single-piece part with no electrical or mechanical adjustments needed

• One retaining clip

• Turn power off and unplug the appliance before accessing the repair area
• Remove any adjoining panels or fasteners as needed to access the clip location
• Press or snap the clip into the mating slot; use care to avoid bending surrounding parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement timer dial restores a clean, usable control surface so you can set cycles and times easily. Fits original timer shafts and matches the appliance's white control styling. What it does:

• Provides a functional interface to turn and select timer settings
• Replaces cracked, faded, or worn dials that are hard to read or grip
• Helps ensure positive engagement with the timer shaft for accurate selection
• Restores original appearance on white control panels

• Remove power to the appliance before attempting service
• Usually press-fit or secured on the timer shaft; pull straight off and press new dial onto the shaft
• If fit feels tight, avoid excessive force—confirm alignment with shaft splines before seating

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

10 - 16 x 1/2

This rear panel support is the structural bracket that secures the appliance's rear cover/backguard in place. Replacing a worn or broken support restores proper alignment, helps protect internal components, and reduces vibration noise.

• Secures the rear panel/backguard to the chassis for stable, proper fit
• Maintains alignment of panels and mounting points
• Helps minimize vibration, flexing, and rattles from a loose rear panel
• Common signs of failure: cracked or missing bracket, stripped mounting points, panel movement or buzzing

• Disconnect power at the breaker; shut off gas supply
• Pull the appliance forward carefully to access the back; protect flooring
• Remove fasteners, replace the damaged support, and reuse original hardware/clips
• Keep wiring clear of sharp edges; tighten screws evenly without over-torquing and check for vibration before repositioning

The Washer Capacitor is an OEM replacement part for Whirlpool washing machines. It is an essential electrical component that plays a crucial role in starting and running the washer motor efficiently.

Symptoms of a bad washer capacitor include:

• The washer not starting or failing to run
• Humming or buzzing noises from the motor during operation
• Error codes or indicators related to motor or electrical issues

Causes of a faulty capacitor can range from normal wear and tear over time to electrical surges, overheating, or physical damage.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

Size: 10 - 24 x 3/8

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Used on the pressure switch hose harness.

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
