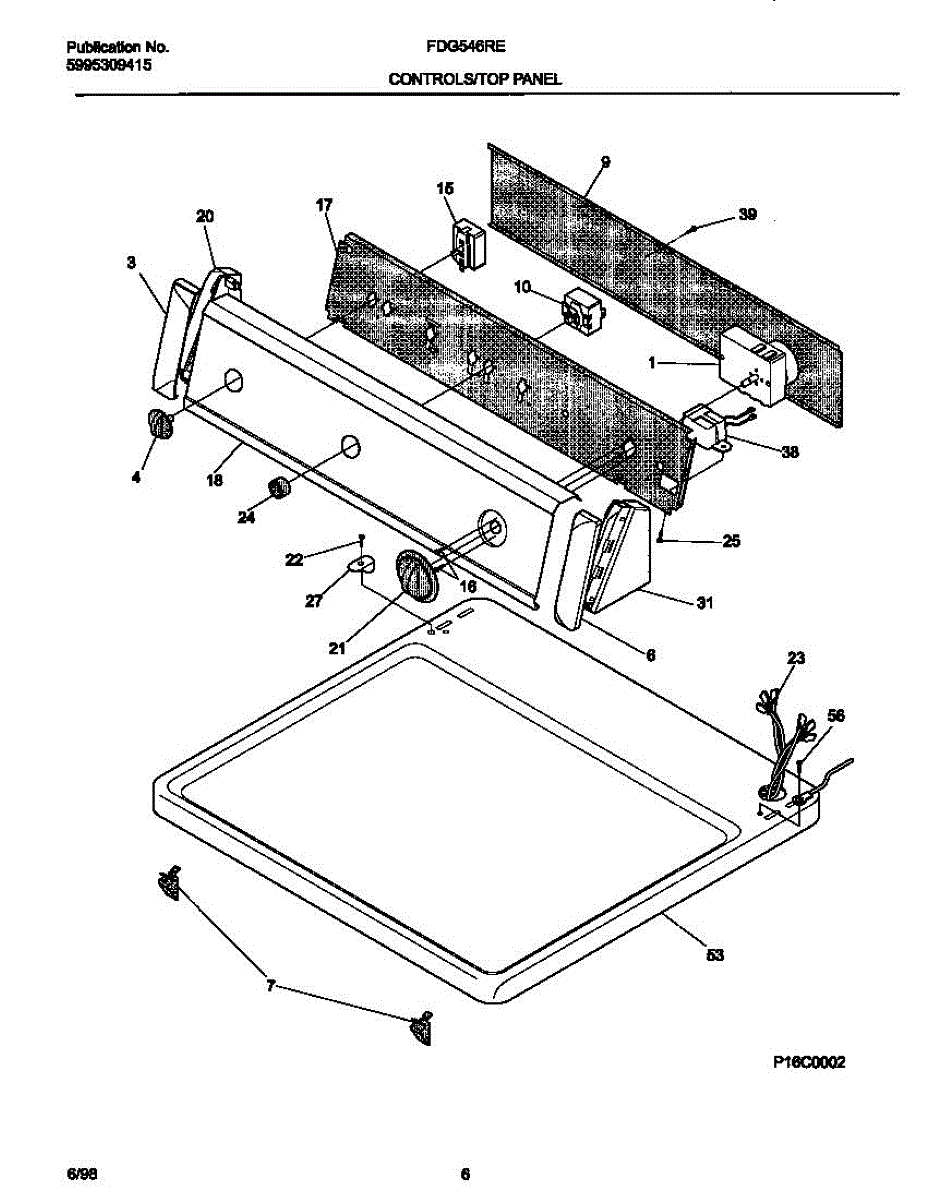

Parts for Frigidaire FDG546RES2: 04 - Controls / Top Panel Parts

Fix a dryer that won't advance or shut off automatically with this timer control board. Replaces faulty timers causing manual shutoff issues.

A decorative cover piece that caps the left end of the washer's control panel or cabinet. Replace if the cover is cracked, missing, or doesn't fit properly, affecting the appliance's appearance.

Color: white. Measures about 1-1/2 inches in diameter.

This is a small metal or plastic retainer clip that secures the main top panel of the dryer to the cabinet frame. It holds the top panel firmly in place so it doesn't shift or rattle during operation. If your dryer's top panel feels loose, pops up during use, or won't stay properly seated, this clip may be broken or missing.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

Color: white. It measures about 3 inches in diameter.

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

The side discharge tube is a plastic or rubber tube that routes exhaust air or fluid out through the side of an appliance, such as a dishwasher, washing machine, or refrigerator drain system. It directs water or air away from internal components to prevent buildup or damage. Replace this tube if it is cracked, kinked, or leaking, causing water or air to discharge in the wrong location.

The High Temp Lubricant Tube is an OEM part for Frigidaire appliances, specifically designed to withstand and operate under high temperature conditions. This lubricant is essential for the proper maintenance and functionality of various Frigidaire appliances, offering protection against heat and friction.

Over time, the lubricant can degrade or become contaminated, which can compromise its effectiveness. Causes of a bad high temp lubricant include exposure to extreme temperatures, accumulation of dirt and debris, or simply the natural breakdown of the lubricant over prolonged use.

Symptoms of needing a new High Temp Lubricant Tube include:

• Increased noise during appliance operation
• Reduced efficiency or performance of the appliance
• Harder movement of parts that should glide smoothly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The High Temperature Adhesive is an OEM part for Frigidaire appliances. This adhesive is specifically formulated to withstand high temperatures and is used in various repair applications within appliances such as ovens, ranges, and dryers.The 1-ounce tube contains adhesive formulated to withstand the extreme heat inside dryer drums and cabinets

Causes of a bad adhesive can include exposure to extremely high temperatures over extended periods, contamination by dirt or grease, or the natural aging and drying out of the adhesive.

Symptoms of a bad high temperature adhesive include:

• Components or parts becoming loose or detached
• The adhesive becoming brittle or cracked
• Inability to properly bond surfaces exposed to high heat
• Visible deterioration or peeling of the adhesive

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Supports and allows smooth drum rotation in your dryer. Replace if you hear squealing, grinding, or rattling noises during operation. Verify fit with your model.
