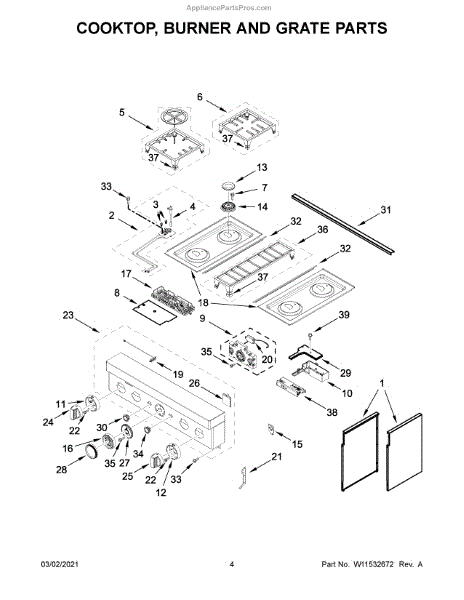

Parts for Kitchenaid KFDC500JMB01: Cooktop, Burner And Grate Parts

Parts for Kitchenaid KFDC500JMB01: Cooktop, Burner And Grate Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: W11333179
$183.02

IN STOCK
Ships Today Guaranteed
Add to Cart
1A
By: Whirlpool
Part Number: W11333303
$173.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2C
By: Whirlpool
Part Number: W11378587
$38.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2A
By: Whirlpool
Part Number: W11378585
$40.25

IN STOCK
Ships Today Guaranteed
Add to Cart
2B
By: Whirlpool
Part Number: W11378586
$40.25

IN STOCK
Ships Today Guaranteed
Add to Cart
2
By: Whirlpool
Part Number: W11378584

If your gas range burner won't ignite or has an uneven flame, this orifice holder secures the orifice to the valve for steady gas flow and alignment.

More
$58.43

IN STOCK
Ships Today Guaranteed
Add to Cart
3C
By: Whirlpool
Part Number: W10892438

Fixes weak or uneven flames on gas burners. This orifice spud secures the burner orifice and directs gas flow for reliable ignition and consistent heat.

More
$55.30

IN STOCK
Ships Today Guaranteed
Add to Cart
3
By: Whirlpool
Part Number: W11643164

Burner producing weak, uneven, or no flame? This natural gas orifice meters precise gas flow to restore proper flame size and consistent heating.

More
$51.62

IN STOCK
Ships Today Guaranteed
Add to Cart
3B
Product photo
By: Whirlpool
Part Number: W11661909

Weak or uneven flame? This burner orifice meters gas flow for proper flame size and consistent heat. Restores reliable ignition on gas ranges and cooktops.

More
$51.62

IN STOCK
Ships Today Guaranteed
Add to Cart
3A
Product photo
By: Whirlpool
Part Number: W11672510

Fixes uneven flames or incorrect burner output on your gas cooktop. This natural gas orifice restores proper gas flow to your 15,000 BTU burner. Direct-fit.

More
$51.62

IN STOCK
Ships Today Guaranteed
Add to Cart
4B
By: Whirlpool
Part Number: W11114379

If your gas range burner won't light or clicks continuously, the surface ignitor may need replacement. This part sparks to ignite the gas flame.

More
$44.95

IN STOCK
Ships Today Guaranteed
Add to Cart
4
By: Whirlpool
Part Number: W11573760

This is a surface burner igniter that generates a spark or glowing heat to light the gas on a cooktop burner. It is mounted near the burner head and activates when the corresponding knob is turned. Replace this igniter if the burner clicks but does not light, takes a long time to ignite, or does not spark at all when the knob is engaged.

More
$13.95

IN STOCK
Ships Today Guaranteed
Add to Cart
4A
By: Whirlpool
Part Number: W11628654

If your gas burner won't light or clicks continuously, replace the surface burner igniter. This spark electrode restores reliable ignition in 15 minutes.

More
$35.30

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Best Seller
Product photo
5.0 (1)
By: Whirlpool
Part Number: W11380124

Burner grate sits atop gas burners to support cookware during cooking. Replace if cracked, broken, or warped. Heavy-duty design for daily use.

More
$117.52

IN STOCK
Ships Today Guaranteed
Add to Cart
6
Product photo
By: Whirlpool
Part Number: W11380128

Cast iron burner grate for gas ranges and cooktops. Sits atop burners to support pots and pans. Replace if warped, melted, cracked, or damaged.

More
$117.52

IN STOCK
Ships Today Guaranteed
Add to Cart
7A
By: Whirlpool
Part Number: W11678580
$12.54

IN STOCK
Ships Today Guaranteed
Add to Cart
7
By: Whirlpool
Part Number: W11643628

8-18 x 1.125-inch screw secures panels, brackets, and trim on gas ranges and cooktops. Replace if missing, stripped, or corroded during repairs.

More
$12.13

IN STOCK
Ships Today Guaranteed
Add to Cart
8
By: Whirlpool
Part Number: W11320149
$67.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
By: Whirlpool
Part Number: W11320411
$36.85

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W11380145
$34.45

IN STOCK
Ships Today Guaranteed
Add to Cart
12
By: Whirlpool
Part Number: W11380146
$32.64

IN STOCK
Ships Today Guaranteed
Add to Cart
13
By: Whirlpool
Part Number: W11380174
$80.69

IN STOCK
Ships Today Guaranteed
Add to Cart
14B
By: Whirlpool
Part Number: W11344746
$46.34

IN STOCK
Ships Today Guaranteed
Add to Cart
14A
By: Whirlpool
Part Number: W11344742

Fixes uneven flames or weak heat on your gas cooktop. This burner head ensures proper gas distribution. Simple DIY repair, typically takes 15 minutes.

More
$66.78

IN STOCK
Ships Today Guaranteed
Add to Cart
14
By: Whirlpool
Part Number: W11344539

If your burner flame is uneven or won't light properly, the burner head may be damaged. This part distributes gas for stable flame production.

More
$63.65

IN STOCK
Ships Today Guaranteed
Add to Cart
15
By: Whirlpool
Part Number: W11318207

Plastic retainer clip that secures panels, trim, or wiring in your gas range. Replace if clip is cracked, broken, or missing to restore proper fit.

More
$7.95

IN STOCK
Ships Today Guaranteed
Add to Cart
16
By: Whirlpool
Part Number: W11567541

This control knob is a direct-replacement user interface part that restores safe, reliable control of your appliance's settings. It provides a firm grip and smooth rotation so you can accurately set temperature or cycle selections. What it does:

  • Replaces a worn, cracked, or stripped control knob so you can turn settings easily
  • Fits onto the control shaft to select cycles, temperatures, or burner levels
  • Eliminates slipping or loose knob feel that prevents accurate adjustments
  • Restores tactile feedback for precise user input
What's included: One control knob (quantity: 1) Install notes:
  • Disconnect power to the appliance before replacing the knob to avoid injury
  • Pull the old knob straight off the control shaft; align splines and push the new knob on firmly
  • If the knob is tight, ensure correct spline orientation—do not force or hammer

More
$72.55

IN STOCK
Ships Today Guaranteed
Add to Cart
17
By: Whirlpool
Part Number: W11380175
$307.95

IN STOCK
Ships Today Guaranteed
Add to Cart
18
Product photo
By: Whirlpool
Part Number: W11344755

This replacement cooktop glass surface restores the smooth, easy-to-clean top on compatible Whirlpool cooktops. It gives a fresh, intact cooking surface when the original glass is cracked, chipped, or cosmetically damaged. What it does:

  • Replaces a cracked, chipped, or scratched cooktop glass surface to restore a smooth cooking area
  • Provides a sealed, easy-to-clean surface for radiant or electric cooktops
  • Helps prevent glass fragments and reduces snagging of cookware on damaged areas
  • Restores the appliance's appearance and normal countertop integration

What's included: One replacement cooktop glass surface. Install notes:

  • Disconnect power to the appliance before starting any repair to avoid shock hazards.
  • Handle glass with care; wear cut-resistant gloves and eye protection when removing/installing.
  • Installation may require removal of trim, burners, or mounting brackets—keep all fasteners and follow model-specific instructions.

More
$78.95

IN STOCK
Ships Today Guaranteed
Add to Cart
19
By: Whirlpool
Part Number: W11318855
$103.08

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
20
5.0 (1)
By: Whirlpool
Part Number: W11123146

This is a small speaker used in a microwave to produce audible alerts and tones, such as the beep that sounds when cooking is complete or buttons are pressed. If your microwave no longer beeps, produces distorted sounds, or has no audio feedback at all, this speaker likely needs replacement.

More
$52.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21A
By: Whirlpool
Part Number: W10130759
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21
By: Whirlpool
Part Number: W10130760
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24
By: Whirlpool
Part Number: W11380561

Control knob for gas cooktops and ranges. Installs on the control panel for temperature adjustment. Replace if cracked, broken, or missing.

More
$59.48

IN STOCK
Ships Today Guaranteed
Add to Cart
25
By: Whirlpool
Part Number: W11380562

Control knob for gas range burners. Installs on the control panel to adjust burner temperature settings. Replace if cracked, broken, or difficult to turn.

More
$59.48

IN STOCK
Ships Today Guaranteed
Add to Cart
26
By: Whirlpool
Part Number: W10896366
$38.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
27
By: Whirlpool
Part Number: W11548484
$30.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
29
By: Whirlpool
Part Number: W11320410
$34.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
30
By: Whirlpool
Part Number: W11241511
$26.27

IN STOCK
Ships Today Guaranteed
Add to Cart
31
By: Whirlpool
Part Number: W11156414
$89.04

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
32
By: Whirlpool
Part Number: W10271524

Decorative trim panel for gas range or cooktop. Replaces cracked, chipped, or discolored trim pieces along the top edge. Restores appearance.

More
$104.34

IN STOCK
Ships Today Guaranteed
Add to Cart
33
Best Seller
Product photo
4.6 (8)
By: Whirlpool
Part Number: WP90767

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

  • Loose or wobbly components within the appliance
  • Panels or parts that are not securely attached
  • Rattling or unusual noises due to loose parts
  • Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
34
By: Whirlpool
Part Number: W11241510

Fix unresponsive or stuck control panel buttons on your range. This push button restores tactile feedback for selecting cycles and options. Simple repair.

More
$31.74

IN STOCK
Ships Today Guaranteed
Add to Cart
35
Product photo
4.7 (3)
By: Whirlpool
Part Number: WP3400814

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

  • Provides the correct 8-32 thread and 5/8-inch length where specified
  • Secures sheet-metal panels, brackets, and internal assemblies
  • Replaces missing, stripped, or corroded screws
  • Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight
What's included: 1 screw Install notes:
  • Disconnect power; shut off gas before servicing
  • Support panels/components while removing or installing hardware
  • Start threads by hand to avoid cross-threading; tighten only until snug
  • Match the original screw's location and orientation for proper fit

More
$8.95

IN STOCK
Ships Today Guaranteed
Add to Cart
36
By: Whirlpool
Part Number: W11380566

Replace your cracked, broken, or worn gas cooktop burner grate. This cast iron grate sits over the burner to support pots and pans during cooking.

More
$119.71

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
37
Product photo
By: Whirlpool
Part Number: W11550692

Insulating pad that protects cooktop surface under burner grates. Replace if worn, damaged, or causing scratches. Confirm fit with your model number.

More
$16.95

IN STOCK
Ships Today Guaranteed
Add to Cart
38
By: Whirlpool
Part Number: W11234290

This is a Wi-Fi module assembly that enables wireless connectivity for your appliance, allowing it to communicate with smart home networks and companion apps. It plugs into the main electronic control board. Replace this module if your appliance fails to connect to Wi-Fi, repeatedly drops its wireless connection, or is no longer discoverable by the companion app.

More
$90.95

IN STOCK
Ships Today Guaranteed
Add to Cart
39
Product photo
By: Whirlpool
Part Number: W10709795

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

More
$12.10

IN STOCK
Ships Today Guaranteed
Add to Cart
