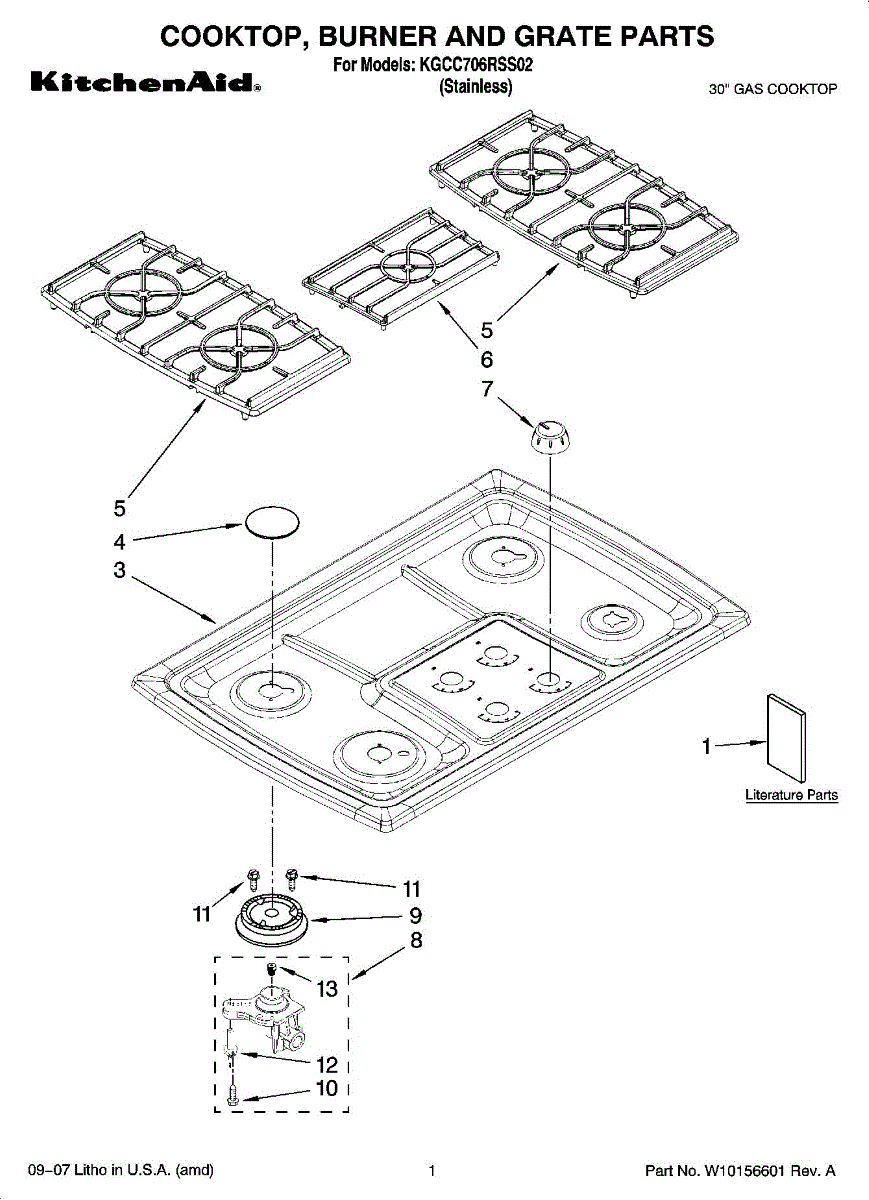

Parts for Kitchenaid KGCC706RSS02: 01 - Cooktop, Burner And Grate Parts

A replacement control knob cap that restores the appearance and proper fit of a cooktop or range front control knob. Matches the original coal matte black finish for a seamless, like-new look. What it does:

• Covers and protects the end of a front control knob while providing the correct surface and color
• Restores worn, cracked, or missing caps so the knob fits securely and operates as intended
• Helps prevent dirt and moisture from reaching the underlying knob internals
• Matches OEM finish to keep controls visually consistent

• One coal matte black control knob cap (RF/LF) as shown

• Removes and installs by hand; pull off the old cap and press the replacement into place until seated
• Disconnect power to the range/cooktop before working near electrical components as a safety precaution

A replacement finish cap in coal matte black that restores the appliance's appearance and hides exposed hardware. Use it to refresh scratched, faded or missing trim for a neat, factory look. What it does:

• Covers exposed screws, fasteners or openings for a finished appearance
• Helps restore uniform trim color and hide cosmetic damage
• Prevents dirt buildup where trim is missing or damaged
• Useful when replacing damaged or worn decorative trim pieces

• Always disconnect power (or gas where applicable) before servicing the appliance
• Use common hand tools as needed; avoid forcing parts to prevent breakage

This replacement knob cap restores the look and function of a cooktop or range control knob by covering the knob hub and providing a finished, heat-resistant surface. It's a simple cosmetic and protective fix for worn or missing caps. What it does:

• Covers and protects the exposed knob hub from dirt, grease and wear
• Restores the original appearance when caps are scratched, faded or missing
• Provides the correct surface for turning control knobs comfortably and safely
• Helps keep spills and debris out of the knob shaft area, reducing buildup

• Before installing, make sure the appliance is off and cooled; disconnect power if recommended by your appliance manual
• Push the cap firmly onto the knob hub until it seats; do not force if it won't align
• Inspect the knob and shaft for damage; replace the entire knob assembly if the shaft or mechanism is worn

This replacement cap restores the finished look of a damaged or missing control cap and helps protect the underlying control shaft and fastener. Matches the coal matte black finish for a factory appearance. What it does:

• Covers and protects the control shaft and retaining screw from debris and wear
• Restores a worn, cracked or missing cap so the control looks like new
• Helps keep the control knob seated and stable during use
• Useful when the original cap is chipped, faded or cosmetically damaged

• Unplug the appliance or shut off power at the breaker before servicing
• Remove the control knob (pull straight off) to access the cap if needed
• Press the cap into place over the control shaft until it snaps or seats securely
• If a retaining screw is present, verify fit before reassembly; do not force or modify the part

Color: Black. Dual.

This burner orifice holder secures the gas orifice in the burner assembly to help maintain consistent gas flow and reliable ignition. Replace a worn or damaged holder to restore proper burner performance. What it does:

• Holds the burner orifice in place so gas is directed correctly to the burner port.
• Helps maintain steady flame shape and combustion; a damaged holder can cause weak, uneven, or yellow flames.
• Can contribute to delayed ignition or burners that won't light if loose or broken.
• Keeps the orifice aligned with the burner tube for consistent operation.

• One orifice holder

• Shut off gas supply and electrical power before servicing the appliance.
• Allow the appliance to cool fully; inspect surrounding parts and orifice for debris before installation.
• Replace only with the exact part number; secure the holder snugly but avoid overtightening.

This orifice holder routes gas from the surface burner valve to the burner head and supports proper burner alignment. Replacing a damaged holder helps restore reliable ignition and steady, even flame on your cooktop/range. What it does:

• Directs gas from the valve to the burner head for correct flame output
• Positions and supports the burner head for stable operation
• Helps maintain proper igniter alignment for consistent lighting
• Common failure symptoms include delayed or no ignition, weak/uneven flame, or a burner head that won't sit securely

• 1 orifice holder assembly

• Disconnect power and shut off gas supply; allow the appliance to cool before servicing
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Transfer the existing orifice spud, screws, gasket, and spark electrode as required by your model
• After reassembly, restore gas and check connections with a soapy-water solution per safety best practices

This G4 orifice holder mounts beneath the cooktop to secure the burner orifice and route gas from the valve to the burner head. Replacing a damaged holder helps restore proper gas flow and consistent burner performance.

• Holds and aligns the orifice for the G4-designated surface burner
• Channels metered gas from the valve to the burner head
• Supports stable, even flame and reliable ignition at that burner
• A worn, cracked, or stripped holder may cause weak/uneven flame, delayed ignition, or a gas odor near the burner

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Remove burner caps/heads and access the holder
• Transfer the existing orifice spud if reusing, or install the correct orifice specified for your gas type
• Tighten fittings to spec and leak-test all gas connections with an approved solution before restoring service

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Spark Electrode is an OEM part for Whirlpool ranges. It is responsible for generating the spark that ignites the gas in the burners, allowing for efficient and reliable lighting of the stove. The spark electrode is located near the burner and produces a high-voltage spark to ignite the gas.

Causes of a bad spark electrode can include wear and tear over time, buildup of food debris or grease that can interfere with the spark, and damage from cleaning or handling. Electrical issues can also cause the electrode to fail.

Symptoms of a bad Spark Electrode include:

• The burner not igniting
• Weak or no spark
• Clicking sound without ignition
• The burner lighting inconsistently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Location: Right rear & left rear.
